CN211095491U - Prevent pressing sore air mattress - Google Patents

Abstract

The utility model discloses a pressure ulcer prevention inflatable mattress, which comprises an air cushion body. The air cushion body is composed of a head airbag, a right airbag, a lower limb airbag, a foot airbag, a left airbag and an upper back airbag. The middle part of the middle part is fixedly installed with the upper back airbag, the bottom end of the upper back airbag is fixedly connected with the lower limb airbag, the two sides of the bottom end of the head airbag are respectively fixed with the left airbag and the right airbag. The utility model is an anti-pressure sore inflatable mattress, which is simple in structure, convenient and safe to use, and is provided with six independent inflatable areas, and the left airbag is round when inflated. The curved surface is inflated to avoid contact with dead corners. When the patient turns over on the left side, there is no need to lift the patient. Just inflate the left inflatable pad to assist the turning over, which reduces the work of medical staff and avoids the occurrence of pressure ulcers.

Description

An air mattress for preventing pressure ulcers

technical field

The utility model relates to a mattress, in particular to an air mattress for preventing pressure ulcers, which belongs to the technical field of mattresses.

Background technique

ICU patients stay in bed for a long time, their autonomous activities are weak, their nutritional status is poor, and they are prone to pressure ulcers. In order to avoid the occurrence of pressure ulcers, nurses need to turn over patients every two hours, which increases the workload of nurses. Not being in place also increases the incidence of pressure ulcers. Now we design an air mattress to prevent pressure ulcers, which can effectively solve this problem.

Utility model content

The purpose of this utility model is to provide an air mattress for preventing pressure ulcers, to solve the problem in the above-mentioned background art that in order to avoid the occurrence of pressure ulcers, the nurse needs to turn the patient over every two hours, which increases the workload of the nurse.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a pressure ulcer prevention air mattress, comprising an air cushion body, the air cushion body is composed of a head airbag, a right airbag, a lower limb airbag, a foot airbag, a left airbag and The upper back airbag is formed, the middle part of the middle part of the bottom end of the head airbag is fixedly installed with the upper back airbag, the bottom end of the upper back airbag is fixedly connected with the lower limb airbag, and the two sides of the bottom end of the head airbag are respectively fixed and installed with Left airbag and right airbag, said left airbag and right airbag are composed of arc panel, bottom panel and connecting belt, one end of said bottom panel is fixedly connected with one end of arc panel, said bottom panel The other end of the lower limb airbag is fixedly connected with the other end of the arc-shaped panel through a connecting belt, and a foot airbag is fixedly installed at the bottom end of the lower limb airbag.

As a preferred technical solution of the present invention, a non-slip pad is fixedly installed on the surface of the upper back airbag.

As a preferred technical solution of the present invention, a casing is fixedly installed on one side of the air cushion body, an air pump is fixedly installed inside the casing, and the output end of the air cushion is communicated with the air cushion body through a conduit .

As a preferred technical solution of the present invention, a display screen is fixedly installed on one side of the foot airbag, a pressure detector is fixedly installed inside the air cushion body, and the pressure detector is electrically connected to the display screen .

Compared with the prior art, the beneficial effects of the utility model are as follows: the utility model is an anti-pressure sore inflatable mattress, which has a simple structure, is convenient and safe to use, and is provided with six independent inflation areas. Inflate the arc surface to avoid contact with dead corners. When the patient turns over on the left side, there is no need to lift the patient. Just inflate the air pad on the left side to assist the turning over, which reduces the work of medical staff and avoids the occurrence of pressure ulcers.

Description of drawings

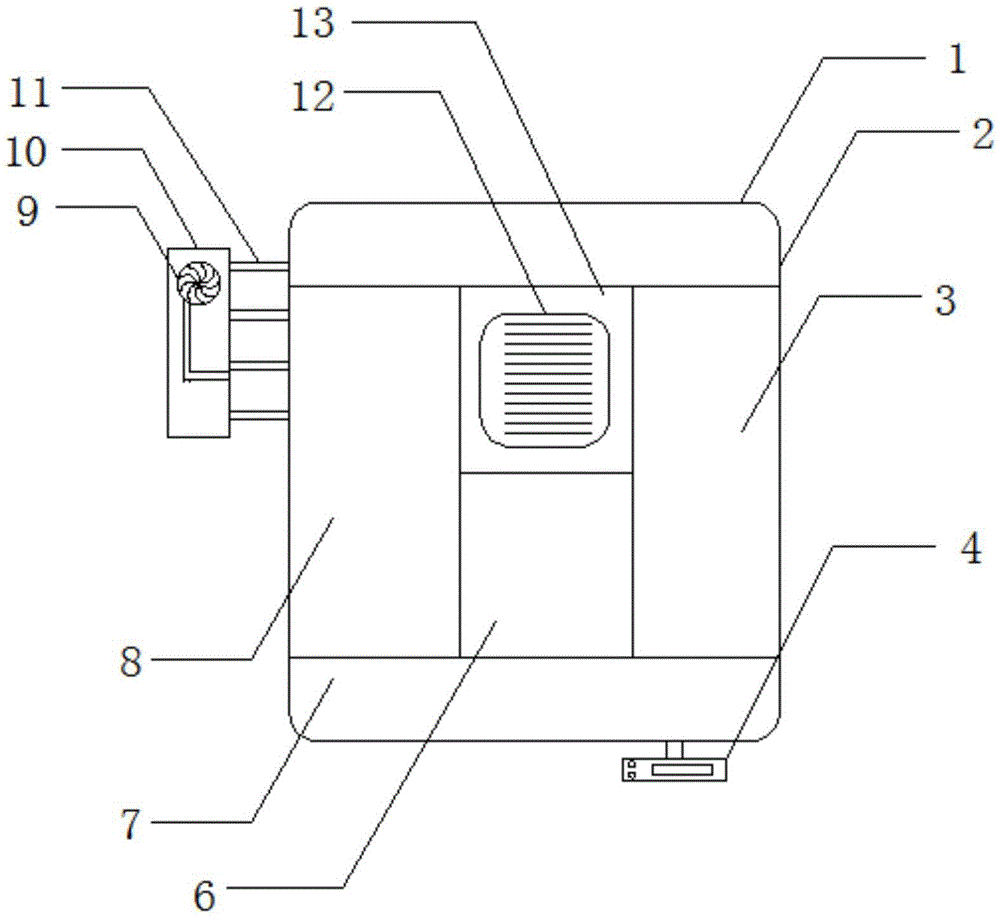

Fig. 1 is the front structure schematic diagram of the utility model;

FIG. 2 is a schematic structural diagram of the left airbag of the present invention.

In the figure: 1. Air cushion body; 2. Head airbag; 3. Right airbag; 4. Display screen; 5. Connecting belt; 6. Lower limb airbag; 7. Foot airbag; 8. Left airbag; 9. Inflation Pump; 10. Housing; 11. Catheter; 12. Anti-skid pad; 13. Upper back airbag; 14. Curved panel; 15. Pressure detector; 16. Bottom panel.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-2, the present utility model provides a pressure ulcer prevention air mattress, including an air cushion body 1, the air cushion body 1 consists of a head airbag 2, a right airbag 3, a lower limb airbag 6, a foot airbag 7, and a left airbag 7. The side airbag 8 and the upper back airbag 13 are formed. The middle part of the middle part of the bottom end of the head airbag 2 is fixedly installed with the upper back airbag 13, the bottom end of the upper back airbag 13 is fixedly connected with the lower limb airbag 6, and the two sides of the bottom end of the head airbag 2 are fixedly connected. The left airbag 8 and the right airbag 3 are respectively fixedly installed. The left airbag 8 and the right airbag 3 are both composed of an arc panel 14, a bottom panel 16 and a connecting belt 5. One end of the bottom panel 16 is connected to the arc panel 14. One end of the bottom panel 16 is fixedly connected, the other end of the bottom panel 16 is fixedly connected to the other end of the arc panel 14 through the connecting belt 5, and the foot airbag 7 is fixedly installed at the bottom end of the lower limb airbag 6.

Preferably, an anti-skid pad 12 is fixedly installed on the surface of the upper back airbag 13; a casing 10 is fixedly installed on one side of the air cushion body 1, an inflator 9 is fixedly installed inside the casing 10, and the output end of the inflator 9 passes through a conduit 11 communicates with the air cushion body 1 ; a display screen 4 is fixedly installed on one side of the foot airbag 7 , and a pressure detector 15 is fixedly installed inside the air cushion body 1 , and the pressure detector 15 is electrically connected with the display screen 4 .

In specific use, the utility model is an air mattress for preventing pressure ulcers. The air cushion body 1 has a simple structure and is convenient and safe to use. For independent inflation, when the left airbag 8 and the right airbag 3 are inflated, the curved panel 14 is propped up to the side to inflate the arc surface to avoid contact with the dead corner, so as to support one side of the patient, so the patient does not need to lift when turning on the left side. The patient can be turned over by inflating the air cushion on the left side, which effectively reduces the work of medical staff and avoids the occurrence of pressure ulcers in patients.

In the description of the present invention, it should be understood that the indicated orientation or positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying the indicated The device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

In the present utility model, unless otherwise expressly specified and limited, for example, it may be a fixed connection, a detachable connection, or an integrated body; it may be a mechanical connection or an electrical connection; it may be a direct connection, or a It can be indirectly connected through an intermediate medium, it can be the communication between two elements or the interaction relationship between the two elements, unless otherwise clearly defined, for those of ordinary skill in the art, the above terms can be understood according to the specific situation in this document. The specific meaning in the utility model.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (4)

1. An air mattress for preventing pressure ulcers, comprising an air cushion body (1), characterized in that the air cushion body (1) consists of a head airbag (2), a right airbag (3), a lower limb airbag (6), The foot airbag (7), the left airbag (8) and the upper back airbag (13) are composed, and the middle part of the middle part of the bottom end of the head airbag (2) is fixedly installed with the upper back airbag (13). A lower limb airbag (6) is fixedly connected to the bottom end of the airbag (13), and a left airbag (8) and a right airbag (3) are respectively fixedly installed on both sides of the bottom end of the head airbag (2). Both the airbag (8) and the right airbag (3) are composed of an arc-shaped panel (14), a bottom panel (16) and a connecting belt (5), and one end of the bottom panel (16) is connected to the arc-shaped panel (14) One end of the bottom panel (16) is fixedly connected, the other end of the bottom panel (16) is fixedly connected to the other end of the arc panel (14) through the connecting strap (5), and the bottom end of the lower limb airbag (6) is fixedly installed with a foot airbag (7). 2 . The air mattress for preventing pressure ulcers according to claim 1 , wherein a non-slip pad ( 12 ) is fixedly installed on the surface of the upper back airbag ( 13 ). 3 . 3. An air mattress for preventing pressure ulcers according to claim 1, characterized in that: a casing (10) is fixedly installed on one side of the air cushion body (1), and the inner part of the casing (10) is fixedly installed. An air pump (9) is fixedly installed, and the output end of the air pump (9) communicates with the air cushion body (1) through a conduit (11). 4. An air mattress for preventing pressure ulcers according to claim 1, characterized in that: a display screen (4) is fixedly installed on one side of the foot airbag (7), and a display screen (4) is fixedly installed on one side of the air cushion body (1). A pressure detector (15) is fixedly installed inside, and the pressure detector (15) is electrically connected with the display screen (4).
