Abstract

The utility model relates to the field of network control boxes, and specifically discloses a multifunctional network control box. Aiming at the problem of poor heat dissipation of the existing network control boxes, the following scheme is proposed, which comprises a network control box main body, the network control box The outer side of the main body is provided with a cooling annular pipe, and the cooling annular pipe is fixedly connected to the surface of the main body of the network control box. An air outlet box is fixedly connected to the bottom of the main body of the network control box, and a fan is installed in the air outlet box. The two sides are respectively connected with air ducts, and the other end of the air duct movably passes through the cooling annular pipe and extends to the surface of the main body of the network control box, and the surface of the main body of the network control box is fixedly connected with the air inlet box. In the utility model, a cooling annular pipe that can be filled with water is arranged on the outside of the network control box, the air circulating inside can pass through the cooling annular pipe filled with water, and the air can be cooled, and then injected into the network control box.

Description

A multifunctional network control box

technical field

The utility model relates to the field of network control boxes, in particular to a multifunctional network control box.

Background technique

With the development of information technology, computer networks have gradually begun to popularize and act on all aspects of people's lives and work. The performance of computer network functions is based on computer network equipment, and computer network equipment requires computer network control boxes as carriers. , The traditional plus computing network control box is often simple in structure, single function, poor heat dissipation, for this reason, we urgently need to propose a multi-functional network control box to solve the above problems.

Utility model content

The multifunctional network control box proposed by the utility model solves the problem of poor heat dissipation of the network control box.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A multifunctional network control box, comprising a network control box main body, a cooling annular pipe is arranged on the outside of the network control box main body, and the cooling annular pipe is fixedly connected to the surface of the network control box main body, and the bottom of the network control box main body is An air outlet box is fixedly connected, and a fan is installed in the air outlet box. Air ducts are respectively connected on both sides of the air outlet box, and the other end of the air duct moves through the cooling annular pipe and extends to the surface of the main body of the network control box. An air inlet box is fixedly connected to the surface of the main body of the network control box, and one end of the air duct away from the air outlet box is fixedly connected to both sides of the air inlet box. A positioning frame is movably arranged in the air inlet box, and one end of the positioning frame is fixedly connected. There is a pull plate, a desiccant is arranged in the positioning frame, a support shaft is fixedly connected to the pull plate, and one end of the support shaft is movably inserted into the air inlet box.

Preferably, a moving wheel is installed on the bottom of the main body of the network control box.

Preferably, two ends of the main body of the network control box are respectively provided with air outlets, and the air outlets are respectively connected to the air inlet box and the air outlet box, the positioning frame is arranged on the surface of the air outlet, and the positioning frame has a rectangular structure.

Preferably, a plurality of groups of partition plates are installed in the main body of the network control box, and the surfaces of the partition plates are provided with through holes.

Preferably, the surface of the cooling annular pipe is respectively connected with a water inlet pipe and a water outlet pipe.

Preferably, one end of the support shaft inserted into the air inlet box is fixedly connected to a limiting ring, and a support spring is movably wound on the surface of the support shaft.

In this utility model:

1. In the present invention, a cooling annular pipe that can be filled with water is arranged on the outside of the network control box, so that the air circulating inside can pass through the cooling annular pipe filled with water, and the air can be cooled, and then injected into the network control box.

2. The present utility model can dry the air inside by setting a positioning frame in the air inlet box and filling the positioning frame with a desiccant when the air is in It is also equipped with moving wheels, which can be moved easily and make the network control box more multifunctional.

Description of drawings

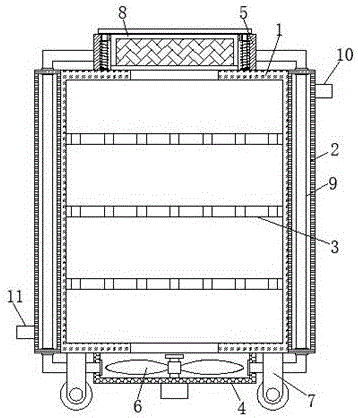

FIG. 1 is a schematic structural diagram of a multifunctional network control box.

FIG. 2 is a schematic structural diagram of a positioning frame of the network control box shown in FIG. 1 .

FIG. 3 is a schematic structural diagram of an air inlet box of the network control box shown in FIG. 1 .

Labels in the figure: 1 main body of network control box, 2 cooling ring pipe, 3 partition plate, 4 air outlet, 5 air inlet box, 6 fan, 7 moving wheel, 8 positioning frame, 9 air pipe, 10 water inlet pipe, 11 water outlet pipe , 12 desiccant, 13 support shaft, 14 support spring, 15 pull plate.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-3, a multifunctional network control box includes a network control box main body 1, a cooling annular pipe 2 is arranged on the outside of the network control box main body 1, and the cooling annular pipe 2 is fixedly connected to the surface of the network control box main body 1 , an air outlet 4 is fixedly connected to the bottom of the main body 1 of the network control box, and a fan 6 is installed in the air outlet 4. Both sides of the air outlet 4 are respectively connected with an air duct 9, and the other end of the air duct 9 moves through the cooling ring. The pipe 2 extends to the surface of the main body 1 of the network control box. The surface of the main body 1 of the network control box is fixedly connected with the air inlet box 5, and the end of the air duct 9 away from the air outlet box 4 is fixedly connected to both sides of the air inlet box 5. A positioning frame 8 is movably arranged in the bellows 5, and one end of the positioning frame 8 is fixedly connected with a pull plate 15, a desiccant 12 is arranged in the positioning frame 8, and a support shaft 13 is fixedly connected to the pull plate 15, and one end of the support shaft 13 is fixed. The air inlet box 5 is movably inserted, the bottom of the network control box main body 1 is installed with a moving wheel 7, the two ends of the network control box main body 1 are respectively provided with air outlets, and the air outlets are respectively connected to the air inlet box 5 and the air outlet box 4, and the positioning frame 8 is arranged at the air outlet. The surface of the locating frame 8 is a rectangular structure, and there are multiple groups of partition plates 3 installed in the main body 1 of the network control box, and the surface of the partition plate 3 is provided with through holes, and the surface of the cooling annular pipe 2 is connected with the water inlet pipes 10 and 10 respectively. One end of the water outlet pipe 11 and the support shaft 13 inserted into the air inlet box 5 is fixedly connected to a limiting ring, and a support spring 14 is movably wound on the surface of the support shaft 13 .

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Clockwise", "Counterclockwise" etc. Or the positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed in a specific orientation and operation, so it cannot be construed as a limitation to the present invention.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first" or "second" may expressly or implicitly include one or more of that feature. In the description of the present invention, "plurality" means two or more, unless otherwise expressly and specifically defined.

Working principle: When using this device, pour water into the cooling annular pipe 2 from the water inlet pipe 10, and then start the fan 6, so that the fan 6 draws out the hot air in the main body 1 of the network control box, and then passes the air pipe 9 to the air inlet box 5. During transmission, the air duct 9 passes through the cooling annular pipe 2 filled with water to cool the air, and then enters the air inlet box 5, and is dried by the desiccant 12 in the positioning frame 8, and then discharged to the network. In the main body 1 of the control box, the internal air circulation is completed, and the air in the main body 1 of the network control box is dried to ensure the normal operation of the internal equipment. By pulling the pull plate 15 outward, the positioning frame 8 can be brought out and the positioning frame 8 can be replaced. The desiccant 12 in the frame 8 and the pull plate 15 are always attached to the surface of the air inlet box 5 under the support of the support spring 14 on the support shaft 13 .

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. The utility model provides a multifunctional network control box, includes network control box main part (1), its characterized in that, the outside of network control box main part (1) is provided with cooling ring pipe (2), and cools off ring pipe (2) fixed connection at the surface of network control box main part (1), the bottom fixedly connected with of network control box main part (1) goes out bellows (4), and goes out and install fan (6) in bellows (4), the both sides that go out bellows (4) are connected with tuber pipe (9) respectively, and the other end activity of tuber pipe (9) passes cooling ring pipe (2), and extends to the surface of network control box main part (1), the fixed surface of network control box main part (1) is connected with air inlet box (5), and the one end fixed connection of keeping away from out bellows (4) on tuber pipe (9) is in the both sides of air inlet box (5), air inlet box (5) internalization is provided with locating frame (8), and one end fixedly connected with arm-tie (15) of locating frame (8), be provided with drier (12) in locating frame (8), fixedly connected with back shaft (13) on arm-tie (15), and the one end activity of back shaft (13) inserts air inlet box (5).

2. A multifunction network control box according to claim 1, characterized by that the bottom of the network control box body (1) is mounted with moving wheels (7).

3. The multifunctional network control box of claim 1, wherein two ends of the network control box main body (1) are respectively provided with an air inlet, the air inlets are respectively communicated with the air inlet box (5) and the air outlet box (4), the positioning frame (8) is arranged on the surface of the air inlets, and the positioning frame (8) is of a rectangular structure.

4. The multifunctional network control box of claim 1, characterized in that a plurality of groups of partition plates (3) are installed in the network control box main body (1), and through holes are opened on the surface of the partition plates (3).

5. Multifunction network control box according to claim 1, characterized by the fact that the cooling ring (2) has a surface connected to it a water inlet pipe (10) and a water outlet pipe (11), respectively.

6. The multifunctional network control box of claim 1, characterized in that a limit ring is fixedly connected to one end of the support shaft (13) inserted into the air inlet box (5), and a support spring (14) is movably wound on the surface of the support shaft (13).
