Abstract

The utility model discloses an anti-vibration protection device for a computer hard disk, which comprises a bottom plate, the upper side of the bottom plate supports a top plate through two buffer assemblies, each buffer assembly includes two cross-arranged buffer rods, one end of each buffer rod is connected to the bottom plate Hinged connection, the other end of each buffer rod is hingedly connected to the top plate, a group of sliding holes are arranged on both sides above the top plate, and the sliding rods are slidably connected in each sliding hole. A first spring is sleeved outside each sliding rod, and the first spring is arranged between the top plate and the flat plate. The advantages of the utility model are as follows: the resonance with the computer case is initially relieved by the shock-absorbing pad, and then the horizontal vibration force received by the hard disk can be relieved again by the two cross-arranged buffer rods, and the hard disk can be effectively relieved by the cooperation of the sliding rod and the first spring. The vertical vibration force received can also continuously cool the hard disk through the cooling fan, creating a good working environment for the hard disk.

Description

A shock-proof protection device for computer hard disk

technical field

The utility model relates to the technical field of computers, in particular to an anti-shock protection device for a computer hard disk.

Background technique

The hard disk is an important part of the computer. In the prior art, a hard disk bracket is usually installed in the computer case. This kind of hard disk bracket has a poor shock-proof protection effect on the hard disk, which can easily damage the hard disk and cause unnecessary damage to people. Loss. Although there are some hard disk brackets with shock absorption effect on the market, these hard disk brackets use simple rubber rods for shock absorption. Although they can play a part of the shock absorption effect, when the computer graphics card fan, CPU fan, etc. work, It will drive the chassis to generate resonance, and these resonances are difficult to eliminate by the existing shock absorption bracket.

Utility model content

The purpose of the utility model is to provide a shockproof protection device for a computer hard disk in order to solve the shortcomings in the prior art.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

An anti-vibration protection device for a computer hard disk, comprising a bottom plate, the upper side of the bottom plate supports a top plate through two buffer assemblies, each buffer assembly includes two cross-arranged buffer rods, one end of each buffer rod is hingedly connected with the bottom plate, and each buffer rod is hingedly connected to the bottom plate. The other end of the buffer rod is hingedly connected with the top plate, a group of vertically arranged sliding holes are arranged on both sides above the top plate, and the sliding rods are slidably connected in each sliding hole. A first spring is sleeved on the outer side of each sliding rod, and the first spring is arranged between the top plate and the flat plate.

Preferably, a mounting plate is fixedly connected on one side of each flat plate, the two mounting plates are arranged opposite to each other, and a mounting hole is provided on one side of each mounting plate.

Preferably, a group of shock-absorbing pads are evenly arranged on the underside of the bottom plate.

Preferably, each shock pad includes a rubber block, and a groove is provided on the upper side of the rubber block, and the support column is fixedly connected in the groove.

Preferably, a fixing plate is provided on the lower side of each rubber block, and each fixing plate is provided with a fixing hole.

Preferably, a first ventilation hole is provided in the center of the bottom plate, a second ventilation hole is provided in the center of the top plate, and a cooling fan is installed on the lower side of the bottom plate, and the cooling fan is arranged opposite to the first ventilation hole.

Preferably, cooling pipes are installed on the upper side of the bottom plate or the lower side of the top plate.

The utility model has the advantages that the shock-proof protection device for a computer hard disk provided by the utility model can initially relieve the resonance with the computer case through the shock-absorbing pad, and then can relieve the horizontal shock of the hard disk again through the two cross-arranged buffer rods. Vibration force, through the cooperation of the sliding rod and the first spring, the vertical vibration force on the hard disk can be effectively relieved, and the cooling fan can also continuously cool the hard disk, creating a good working environment for the hard disk.

Description of drawings

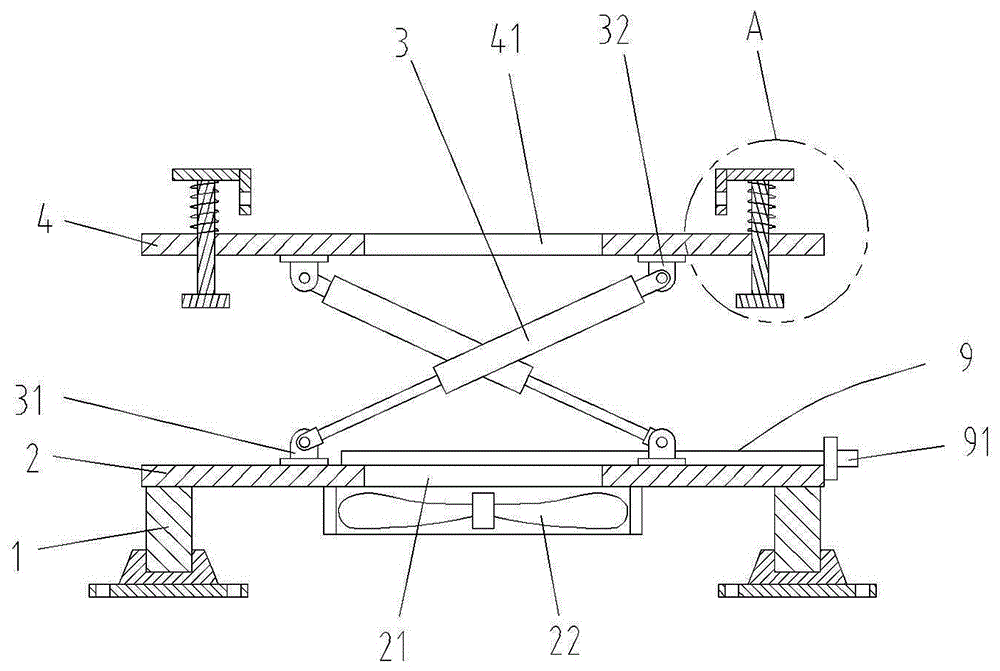

1 is a schematic diagram of the basic structure of a shock-proof protection device for a computer hard disk provided by the present utility model;

Fig. 2 is the connection schematic diagram of bottom plate and cooling pipe;

Figure 3 is a schematic diagram of the basic structure of the buffer rod;

Figure 4 is a schematic diagram of the basic structure of the shock pad;

FIG. 5 is an enlarged view of part A of FIG. 1 .

Detailed ways

In order to make the purpose, technical solutions and advantages of the present utility model more clearly understood, the present utility model will be further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are only used to explain the present invention, and are not intended to limit the present invention.

Example 1

As shown in FIGS. 1-5 , a shock-proof protection device for a computer hard disk provided by the present invention includes a rectangular base plate 2 , and shock-absorbing pads 1 are installed at the four corners of the lower side of the base plate 2 . Each shock-absorbing pad 1 includes a rubber block 11 , a groove is provided on the upper side of the rubber block 11 , and a support column 12 is fixedly connected in the groove, and the support column 12 is fixedly connected to the lower side of the bottom plate 2 . The sides are provided with fixing plates 13 , and each fixing plate 13 is provided with a fixing hole 14 . The computer hard disk shockproof protection device provided by the present invention is conveniently and fixedly connected in the computer case through the fixing plate 13 .

The upper side of the bottom plate 2 supports the top plate 4 through two buffer assemblies, each of which includes two buffer rods 3 arranged at intervals and intersecting, the buffer rod 3 includes a base rod 33, and one end of the base rod 33 is provided with a chute 34. A round rod 36 is slidably connected inside 34 , and a second spring 35 is installed between the bottom of the inner side of the chute 34 and the round rod 36 .

Each round rod 36 is hinged to the upper side of the bottom plate 2 through a first hinge seat 31 , and each base rod 33 is hinged to the lower side of the top plate 4 through a second hinge seat 32 , the first hinge seat 31 and the second hinge seat 32 are both In the prior art, the hinged manner of the first hinge seat 31 and the round rod 36 is also the prior art, and the hinged manner of the second hinge seat 32 and the top plate 4 is also the prior art, which will not be repeated here.

Two vertically arranged sliding holes are provided on both sides above the top plate 4, and each sliding hole is slidably connected to a sliding rod 5. The upper ends of the two sliding rods 5 on the same side are fixed and connected to the flat plate 6 together. One side is fixedly connected to the mounting plate 61, the two mounting plates 61 are arranged opposite to each other, and a mounting hole 62 is provided on one side of each mounting plate 61, and the hard disk is installed between the two mounting plates 61 through corresponding bolts, or the hard disk is installed above plate 6. A first spring 7 is sleeved outside each sliding rod 5 , and the first spring 7 is arranged between the top plate 4 and the flat plate 6 .

A first ventilation hole 21 is provided at the center of the bottom plate 2 , a second ventilation hole 41 is provided at the center of the top plate 4 , and a cooling fan 22 is installed on the lower side of the bottom plate 2 , and the cooling fan 22 is arranged opposite to the first ventilation hole 21 . The air outlet of the cooling fan 22 is arranged upward, and a cooling pipe 9 is installed on the upper side of the bottom plate 2 or the lower side of the top plate 4 . The cooling pipe 9 is a U-shaped pipe, and the U-shaped pipe is fixedly connected to the upper side of the bottom plate 2 or the lower side of the top plate 4 through a plurality of pipe clips 92 . Joints 91 are provided at both ends of the cooling pipe 9 . The cooling fan 22 can continuously cool the hard disk, enhance its heat dissipation performance, and indirectly improve the service life of the hard disk. When the shock-proof protection device for the hard disk provided by the present invention is used in a water-cooled computer case, the joints at both ends of the cooling pipe 9 91 is respectively connected to the water inlet end and the water outlet end of the water cooling device, and the cooling fan 22 can blow the cold air emitted from the cooling pipe 9 to the hard disk to further enhance its heat dissipation.

During use, the resonance with the computer case is initially relieved by the shock-absorbing pad 1, and then the horizontal vibration force received by the hard disk can be relieved again by the two cross-arranged buffer rods 3, and the sliding rod 5 and the first spring 7 can effectively cooperate with each other. The vertical vibration force on the hard disk is relieved, and the cooling fan 22 can also continuously cool down the hard disk, thereby creating a good working environment for the hard disk.

Claims (7)

1. An anti-vibration protection device for a computer hard disk, characterized in that it comprises a bottom plate (2), the upper side of the bottom plate (2) supports a top plate (4) through two buffer assemblies, and each buffer assembly includes two cross-arranged buffer rods (3), one end of each buffer rod (3) is hingedly connected to the bottom plate (2), and the other end of each buffer rod (3) is hingedly connected to the top plate (4), where the top plate (4) ) are provided with a set of vertically arranged sliding holes on both sides of the upper part, and the sliding rods (5) are slidably connected in each sliding hole. A first spring (7) is sleeved on the outside of the sliding rod (5), and the first spring (7) is arranged between the top plate (4) and the flat plate (6). 2 . The shock-proof protection device for a computer hard disk according to claim 1 , wherein a mounting plate ( 61 ) is fixedly connected to one side of each of the flat plates ( 6 ), and the two mounting plates ( 61 ) are arranged opposite to each other. 3 . , and a mounting hole (62) is provided on one side of each mounting plate (61). 3 . The shock-proof protection device for a computer hard disk according to claim 1 , wherein a set of shock-absorbing pads ( 1 ) are evenly arranged on the lower side of the bottom plate ( 2 ). 4 . 4 . The shock-proof protection device for a computer hard disk according to claim 3 , wherein each of the shock-absorbing pads ( 1 ) comprises a rubber block ( 11 ), and a groove is provided on the upper side of the rubber block ( 11 ). 5 . , and the support column (12) is fixedly connected in the groove. 5 . The shock-proof protection device for a computer hard disk according to claim 4 , wherein a fixing plate ( 13 ) is provided on the lower side of each of the rubber blocks ( 11 ), and each of the fixing plates ( 13 ) is provided with a fixing plate ( 13 ). ) are provided with fixing holes (14). 6 . The shock-proof protection device for a computer hard disk according to claim 1 , wherein a first ventilation hole ( 21 ) is provided at the center of the bottom plate ( 2 ), and a first ventilation hole ( 21 ) is provided at the center of the top plate ( 4 ). 7 . A second ventilation hole (41) is provided at the bottom, a cooling fan (22) is installed on the lower side of the bottom plate (2), and the cooling fan (22) is arranged opposite to the first ventilation hole (21). 7 . The shockproof protection device for a computer hard disk according to claim 6 , wherein a cooling pipe ( 9 ) is installed on the upper side of the bottom plate ( 2 ) or the lower side of the top plate ( 4 ). 8 .
