Abstract

The utility model discloses a fall-proof LED ceiling lamp, which comprises a wall, an inner cavity of the wall is provided with a groove, both sides of the inner wall of the groove are provided with clamping grooves, and the bottom of the wall is provided with a groove. An installation box is installed, a lamp housing is fixedly connected to the bottom of the installation box, a lamp body is fixedly connected to the bottom of the lamp housing, and a guide column is horizontally fixedly connected to the inner cavity of the installation box. The utility model drives the pull rod to move to the outside through the side plate, the pull rod drives the sliding rod to slide inside the limit groove, and at the same time the sliding rod drives the sliding plate to slide on the surface of the guide column. Move, and then insert the push plate into the groove until the clamping rod and the clamping groove are in a horizontal state, release the side plate, and make the clamping rod clamp into the clamping groove under the recovery and deformation of the clamping spring, which achieves the advantage of preventing falling off. It is solved that the existing LED ceiling lamp does not have the function of preventing falling off when in use.

Description

A fall-proof LED ceiling lamp

technical field

The utility model relates to the technical field of LED ceiling lamps, in particular to a fall-proof LED ceiling lamp.

Background technique

LED ceiling light is a kind of lamps. LED ceiling light sources include ordinary white light bulbs, fluorescent lamps, high-intensity gas discharge lamps, tungsten halogen lamps and LEDs. At present, LED ceiling lamps are often used in homes, offices, and entertainment venues. Commonly used LED ceiling lights are: square cover LED ceiling light, spherical LED ceiling light, pointed flat round LED ceiling light, semi-spherical LED ceiling light, semi-flat ball LED ceiling light and small rectangular cover LED ceiling light, and the existing LED ceiling light The LED ceiling light does not have the function of preventing it from falling off when it is in use, and often the LED ceiling light is easy to fall off after being installed, so that the LED ceiling light is damaged, so it is not convenient for people to use.

Utility model content

(1) Technical problems solved

In view of the deficiencies of the prior art, the utility model provides an LED ceiling lamp with anti-fall off, which has the advantage of preventing falling off, and solves the problem that the existing LED ceiling lamp does not have the function of preventing falling off when in use, and the LED ceiling lamp is often installed It is easy to fall, so that the LED ceiling light is damaged, so it is not convenient for people to use.

(2) Technical solutions

In order to achieve the above purpose of preventing falling off, the present invention provides the following technical solutions: a fall-proof LED ceiling lamp, comprising a wall, the inner cavity of the wall is provided with a groove, and both sides of the inner wall of the groove are A card slot is opened, an installation box is installed at the bottom of the wall, a lamp housing is fixedly connected to the bottom of the installation box, a lamp body is fixedly connected to the bottom of the lamp housing, and the inner cavity of the installation box is horizontally fixedly connected There is a guide column, the surface of the guide column is sequentially sleeved with a clamping spring and a sliding plate from the outside to the inside, the bottom of the sliding plate is fixedly connected with a sliding rod, the outer side of the sliding rod is installed with a pull rod, and the outer side of the pull rod is It penetrates to the outside of the installation box and is fixedly connected with a side plate, the top of the sliding plate is installed with a push plate, the top of the push plate penetrates the installation box and extends to the inner cavity of the groove, and the top of the outer side of the push plate is fixedly connected There is a clamping rod, and the outer side of the clamping rod penetrates to the inner cavity of the clamping slot.

Preferably, transverse grooves are provided on both sides of the top of the inner wall of the installation box, and the inner wall of the transverse groove is slidably connected to the surface of the push plate.

Preferably, sliding holes are provided at the bottoms of both sides of the inner wall of the installation box, and the inner walls of the sliding holes are slidably connected to the surface of the pull rod.

Preferably, a reinforcement plate is fixedly connected to the outer side of the sliding rod, and the outer side of the reinforcement plate is fixedly connected to the inner side of the pull rod.

Preferably, limiting grooves are provided on both sides of the bottom of the inner wall of the installation box, and the inner wall of the limiting groove is slidably connected to the bottom of the sliding rod.

Preferably, the outer side of the sliding plate is fixedly connected with the inner side of the clamping spring, and the outer side of the clamping spring is fixedly connected with the inner wall of the installation box.

Preferably, a connection block is fixedly connected to the top of the slide plate, and the top of the connection block is fixedly connected to the bottom of the push plate.

(3) Beneficial effects

Compared with the prior art, the utility model provides an LED ceiling lamp that prevents falling off, which has the following beneficial effects:

1. The utility model drives the pull rod to move outward through the side plate, the pull rod drives the slide rod to slide inside the limit groove, and the slide rod drives the slide plate to slide on the surface of the guide column. The push plate moves, and then inserts the push plate into the groove until the clamping rod and the clamping groove are in a horizontal state, then loosen the side plate, and the clamping rod is clamped into the clamping groove under the recovery and deformation of the clamping spring, so as to prevent falling off. The advantage is to solve the problem that the existing LED ceiling lamp does not have the function of preventing falling off during use, and the LED ceiling lamp is often easy to fall off after being installed, so that the LED ceiling lamp is damaged, so it is inconvenient for people to use.

2. The reinforcement plate of the utility model ensures the stability of the connection between the pull rod and the sliding rod, and prevents the pull rod from shaking during the moving process.

3. The utility model has a guiding effect on the moving position of the slide plate through the guide column, so as to avoid the slide plate from shifting during the moving process.

Description of drawings

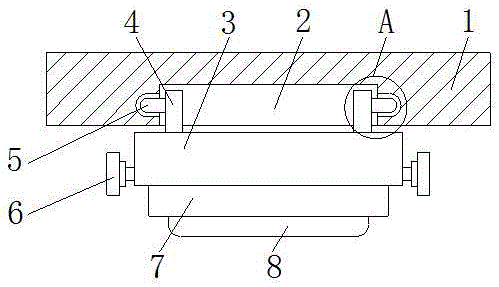

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the sectional view of the utility model installation box structure;

FIG. 3 is a partial enlarged schematic diagram of the position A in FIG. 1 .

In the figure: 1. Wall; 2. Groove; 3. Installation box; 4. Push plate; 5. Clamping rod; 6. Side plate; 7. Lamp housing; 8. Lamp body; 9. Clamping spring; 10 11, connecting block; 12, slide plate; 13, sliding hole; 14, reinforcing plate; 15, limit slot; 16, guide column; 17, sliding rod; 18, pull rod;

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end" and "the other end" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation on the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The utility model has a wall surface 1, a groove 2, an installation box 3, a push plate 4, a clamping rod 5, a side plate 6, a lamp housing 7, a lamp body 8, a clamping spring 9, a horizontal groove 10, a connecting block 11, and a sliding plate. 12. The sliding hole 13, the reinforcing plate 14, the limit groove 15, the guide column 16, the sliding rod 17, the pull rod 18 and the card groove 19 are all common standard parts or parts known to those skilled in the art, and their structures and principles are as follows: Those skilled in the art can know it through technical manuals or through routine experimental methods.

Please refer to Fig. 1-3, an anti-dropping LED ceiling lamp, including a wall 1, a groove 2 is formed in the inner cavity of the wall 1, and a card slot 19 is formed on both sides of the inner wall of the groove 2, and the wall 1 The bottom of the installation box 3 is installed with the installation box 3, the bottom of the installation box 3 is fixedly connected with the lamp housing 7, the bottom of the lamp housing 7 is fixedly connected with the lamp body 8, the inner cavity of the installation box 3 is horizontally fixedly connected with the guide post 16, through the guide post 16 , has a guiding effect on the moving position of the sliding plate 12, and prevents the sliding plate 12 from shifting during the movement process. The inner side of the clamping spring 9 is fixedly connected, the outer side of the clamping spring 9 is fixedly connected with the inner wall of the installation box 3, the bottom of the slide plate 12 is fixedly connected with a sliding rod 17, and the two sides of the bottom of the inner wall of the installation box 3 are provided with limit slots 15, The inner wall of the limit slot 15 is in sliding connection with the bottom of the sliding rod 17 , the outer side of the sliding rod 17 is installed with a pull rod 18 , the outer side of the sliding rod 17 is fixedly connected with a reinforcement plate 14 , and the outer side of the reinforcement plate 14 is fixedly connected with the inner side of the pull rod 18 , Through the reinforcement plate 14, the stability of the connection between the pull rod 18 and the sliding rod 17 is ensured, and the pull rod 18 is prevented from shaking during the movement process. The bottoms of both sides of the inner wall of the installation box 3 are provided with sliding holes 13, the inner wall of the sliding hole 13 is slidingly connected with the surface of the pull rod 18, the top of the sliding plate 12 is installed with a push plate 4, and the top of the sliding plate 12 is fixedly connected with a connecting block 11, The top of the connecting block 11 is fixedly connected with the bottom of the push plate 4, the top of the push plate 4 penetrates the installation box 3 and extends to the inner cavity of the groove 2, and the two sides of the top of the inner wall of the installation box 3 are provided with transverse grooves 10. The transverse grooves The inner wall of 10 is in sliding connection with the surface of the push plate 4 . The top of the outer side of the push plate 4 is fixedly connected with a clamping rod 5 , and the outer side of the clamping rod 5 penetrates into the inner cavity of the clamping slot 19 .

In use, first hold the side plate 6 by hand, pull the side plate 6 to the outside, the side plate 6 drives the pull rod 18 to move to the outside, the pull rod 18 slides inside the sliding hole 13, and at the same time the pull rod 18 drives the reinforcing plate 14 to move, the reinforcing plate 14 The slide bar 17 is driven to slide inside the limiting groove 15, and at the same time, the slide bar 17 drives the slide plate 12 to slide on the surface of the guide column 16. At this time, the movement of the slide plate 12 deforms the clamping spring 9, and the slide bar 12 drives the connecting block 11 to move, and the connecting block The movement of 11 drives the push plate 4 to slide inside the horizontal groove 10, and then insert the push plate 4 into the groove 2 until the clamping rod 5 and the clamping groove 19 are in a horizontal state, release the side plate 6, and restore the clamping spring 9. Under the deformation, the clamping rod 5 is clamped into the interior of the clamping slot 19 .

Although the embodiments of the present invention have been shown and described, various modifications and variations of the present invention will occur to those skilled in the art. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included within the scope of the claims of the present invention.

Claims (7)

1. The utility model provides an anti-drop's L ED ceiling lamp, includes wall (1), its characterized in that the inner chamber of wall (1) is seted up fluted (2), draw-in groove (19) have all been seted up to the both sides of recess (2) inner wall, install bin (3) in the bottom of wall (1), the bottom fixedly connected with lamp body (7) of install bin (3), bottom fixedly connected with lamp body (8) of lamp body (7), the horizontal fixedly connected with guide post (16) of inner chamber of install bin (3), the surface of guide post (16) is equipped with chucking spring (9) and slide (12) from outer to interior cover in proper order, the bottom fixedly connected with slide bar (17) of slide (12), pull rod (18) are installed in the outside of slide bar (17), the outside of pull rod (18) is run through to the outside and fixedly connected with curb plate (6) of install bin (3), push pedal (4) are installed at the top of slide (12), the top of push pedal (4) runs through push pedal (3) and extends to the inner chamber of recess (2), the top fixedly connected with the draw-in the outside (5) of inner chamber (5) run through the draw-in groove (5).

2. The anti-falling L ED ceiling lamp of claim 1, wherein the two sides of the top of the inner wall of the installation box (3) are both provided with a transverse groove (10), and the inner wall of the transverse groove (10) is in sliding connection with the surface of the push plate (4).

3. The anti-falling L ED ceiling lamp of claim 1, wherein the bottom of the two sides of the inner wall of the installation box (3) are both provided with a sliding hole (13), and the inner wall of the sliding hole (13) is connected with the surface of the pull rod (18) in a sliding manner.

4. The anti-falling L ED ceiling lamp of claim 1, wherein the outer side of the sliding rod (17) is fixedly connected with a reinforcing plate (14), and the outer side of the reinforcing plate (14) is fixedly connected with the inner side of the pull rod (18).

5. The anti-falling L ED ceiling lamp of claim 1, wherein the two sides of the bottom of the inner wall of the mounting box (3) are both provided with a limiting groove (15), and the inner wall of the limiting groove (15) is in sliding connection with the bottom of the sliding rod (17).

6. An anti-falling L ED ceiling lamp as claimed in claim 1, wherein the outside of the sliding plate (12) is fixedly connected with the inside of the chucking spring (9), and the outside of the chucking spring (9) is fixedly connected with the inner wall of the mounting box (3).

7. The anti-falling L ED ceiling lamp of claim 1, wherein the top of the sliding plate (12) is fixedly connected with a connecting block (11), and the top of the connecting block (11) is fixedly connected with the bottom of the push plate (4).
