Abstract

The utility model relates to the technical field of LED lamps, and discloses an imitation lumen high-power LED lamp for outdoor lighting, which comprises a lamp holder, two pins, an LED chip and a lamp shade. Each pin is fixedly connected to the left and right sides of the lamp holder, and the two pins are electrically connected to the LED chip through wires respectively. The interior of the lampshade is provided with a plurality of evenly distributed cavities, and the interiors of the multiple cavities are respectively filled with There are different rare gases, the upper end of the lampshade is fixedly connected with an annular fixing plate, and the lower end of the lamp holder is provided with an annular fixing groove matching the annular fixing plate. Fixed plate connection. The utility model can make the LED lamps emit different colors at the same time, improve the artistic appreciation, and is convenient to replace the lampshade, which is convenient for people to use.

Description

An imitation lumen high-power LED lamp for outdoor lighting

technical field

The utility model relates to the technical field of LED lamps, in particular to an imitation lumen high-power LED lamp for outdoor lighting.

Background technique

LED is the abbreviation of light emitting diode in English. Its basic structure is an electroluminescent semiconductor material chip, which is cured on the bracket with silver glue or white glue, and then connects the chip and the circuit board with silver wire or gold wire. The epoxy resin is sealed to protect the inner core wire, and finally the outer casing is installed, so the shock resistance of the LED lamp is good. The field of application involves the production of daily home appliances and machinery such as mobile phones, desk lamps, and home appliances.

At present, people often install LED lights for lighting in some outdoor artistic landscapes. However, in the prior art, the color of LED lights is single, not ornamental, and has low market competitiveness. Therefore, an imitation lumen for outdoor lighting is proposed. High power LED lights.

Utility model content

The purpose of the utility model is to solve the problems of the prior art that the light color of the LED lamp is single, not ornamental, and low in market competitiveness, and proposes an imitation lumen high-power LED lamp for outdoor lighting.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

An imitation-lumen high-power LED lamp for outdoor lighting, comprising a lamp holder, two pins, an LED chip and a lampshade, the LED chip is fixedly connected to the middle of the lower end of the lamp holder, and the two pins are respectively connected with the lamp holder. The left and right sides are fixedly connected, and the two pins are electrically connected to the LED chip through wires respectively. The interior of the lampshade is provided with a plurality of evenly distributed cavities, and the interiors of the plurality of cavities are respectively filled with different rare materials. Gas, the upper end of the lampshade is fixedly connected with an annular fixing plate, the lower end of the lamp holder is provided with an annular fixing groove matching the annular fixing plate, and two sets of fixing mechanisms are arranged inside the annular fixing groove and pass through the fixing mechanism. Connect with the ring fixing plate.

Preferably, the two sets of fixing mechanisms include two sets of clamping blocks, pull rods and springs, two symmetrically arranged grooves are formed on the outer side wall of the annular fixing groove, and the two clamping blocks are located in two concave grooves respectively. The inside of the slot is slidably arranged, the opposite ends of the two clamping blocks are respectively fixedly connected with the two springs, the opposite ends of the two clamping blocks are respectively fixedly connected with the two pull rods, and the two opposite ends of the two pull rods are respectively fixedly connected. The ends respectively penetrate the groove bottoms of the two grooves and extend to the outside of the lamp holder. The groove bottoms of the two grooves are provided with through holes matching the pull rods and are slidably connected with the pull rods. The outer circular side wall is provided with two symmetrically arranged arc-shaped chutes, and the outer circular side wall of the annular fixing plate is also provided with two symmetrically arranged fixing holes. It is communicated with the two fixing holes, and the upper side wall of the other end of the two arc-shaped sliding grooves is provided with an opening matched with the clamping block.

Preferably, a pull plate is fixedly connected to one end of the pull rod outside the lamp socket.

Preferably, an annular gasket is fixedly connected to the upper end of the lampshade, and the annular fixing plate is fixedly inserted into the annular gasket.

Preferably, the lamp holder is made of iron material, and the two pins are made of aluminum material.

Compared with the prior art, the utility model provides an imitation lumen high-power LED lamp for outdoor lighting, which has the following beneficial effects:

1. The imitation lumen high-power LED lamp for outdoor lighting can make the light emitted by the LED chip show different colors through the lampshade, multiple cavities and multiple rare gases, which can increase the viewing ability and improve the market competitiveness.

2. The imitation lumen high-power LED lamp for outdoor lighting is convenient for the fixed connection of the lamp holder and the lamp shade through the cooperation of two sets of clamping blocks, springs, pull rods and annular fixing plates, and easy to disassemble and replace.

The parts not involved in the device are the same as the existing technology or can be realized by using the existing technology. The utility model can make the LED lamp emit different colors at the same time, improve the artistic appreciation, and is convenient to replace the lampshade and convenient for people to use.

Description of drawings

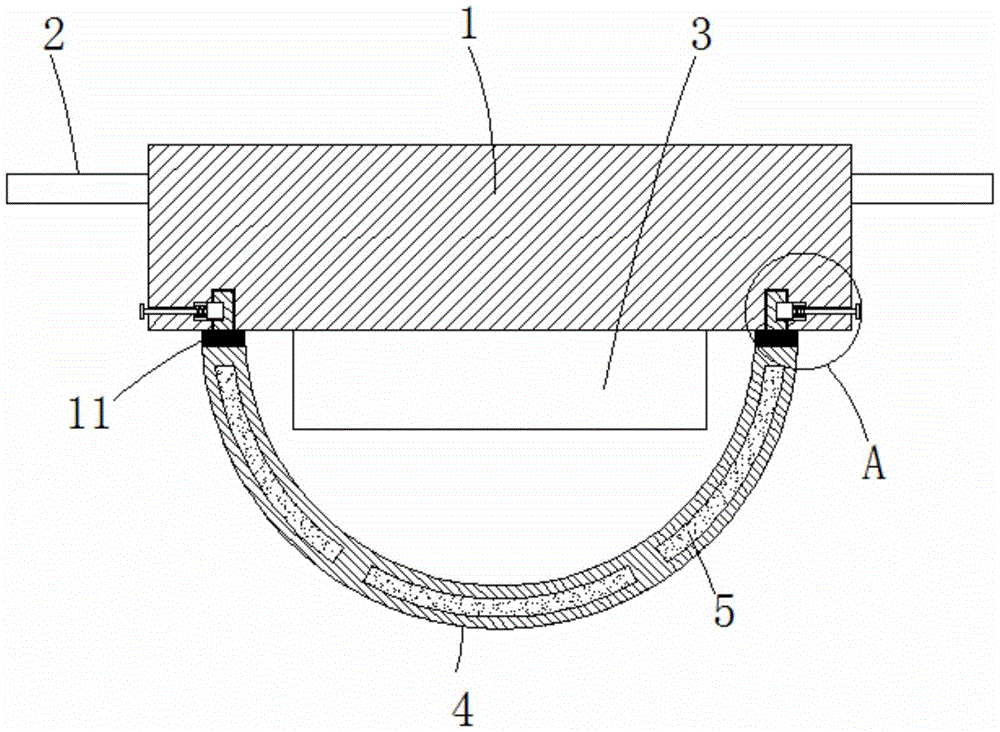

Fig. 1 is the structural representation of a kind of imitation lumen high-power LED lamp for outdoor lighting proposed by the utility model;

Fig. 2 is an enlarged view of the structure of part A in Fig. 1;

FIG. 3 is a schematic view of the bottom cross-sectional structure of the lamp holder in FIG. 1 .

In the picture: 1 lamp holder, 2 pins, 3 LED chips, 4 lampshade, 5 rare gas, 6 annular fixing plate, 7 clamping block, 8 pulling rod, 9 spring, 10 pulling plate, 11 annular gasket.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-3, an imitation lumen high-power LED lamp for outdoor lighting includes a lamp holder 1, two pins 2, an LED chip 3 and a lampshade 4. Fixed connection, the two pins 2 are fixedly connected to the left and right sides of the lamp holder 1 respectively, and the two pins 2 are respectively electrically connected to the LED chip 3 through wires, and the interior of the lampshade 4 is provided with a plurality of evenly distributed cavities , the interior of the multiple cavities are respectively filled with different rare gases 5, the upper end of the lampshade 4 is fixedly connected with an annular fixing plate 6, and the lower end of the lamp holder 1 is provided with an annular fixing groove that matches the annular fixing plate 6. The annular fixing groove There are two sets of fixing mechanisms in the inner part and are connected with the annular fixing plate 6 through the fixing mechanisms.

The two sets of fixing mechanisms include two sets of clamping blocks 7 , tie rods 8 and springs 9 . The outer side wall of the annular fixing groove is provided with two symmetrically arranged grooves, and the two clamping blocks 7 are respectively located inside the two grooves. , the opposite ends of the two blocks 7 are fixedly connected with the two springs 9 respectively, the opposite ends of the two blocks 7 are fixedly connected with the two pull rods 8 respectively, and the opposite ends of the two pull rods 8 respectively penetrate through two concave The groove bottom of the groove extends to the outside of the lamp holder 1. The groove bottoms of the two grooves are provided with through holes that match the pull rod 8 and are slidably connected with the pull rod 8. The outer circular side wall of the annular fixing plate 6 is provided with Two symmetrically arranged arc-shaped chutes, and the outer circular side wall of the annular fixing plate 6 is also provided with two symmetrically arranged fixing holes, and one end of the two arc-shaped chutes in the same direction is communicated with the two fixing holes respectively. , the upper side wall of the other end of the two arc-shaped chutes is provided with an opening that matches the clamping block 7. During installation, the annular fixing plate 6 is inserted into the annular fixing groove, and the openings on the two arc-shaped grooves are respectively The positions of the two blocking blocks 7 correspond to each other. Insert the two blocking blocks 7 into the two arc-shaped grooves respectively, and turn the lampshade 4, so that the two blocking blocks 7 slide inside the two arc-shaped grooves respectively. When the two blocking blocks 7 When moved to the positions of the two card holes, the two springs 9 provided can apply elastic force to the two blocks 7, so that the two blocks 7 are inserted into the two holes, so that the lampshade 4 and the lamp socket can be connected to each other. 1 Fixed connection, and easy to disassemble and replace.

A pull plate 10 is fixedly connected to one end of the pull rod 8 outside the lamp holder 1 , so that people can pull the pull plate 10 to drive the pull rod 8 to move.

An annular gasket 11 is fixedly connected to the upper end of the lampshade 4 , and the annular fixing plate 6 is fixedly inserted into the annular gasket 11 , which can improve the sealing between the lampshade 4 and the lamp socket 1 .

The lamp holder 1 is made of iron material, and the two pins 2 are made of aluminum material, which reduces the production cost.

In the present invention, the lampshade 4, multiple cavities and multiple rare gases 5 provided can make the light emitted by the LED chip 3 take on different colors during use, thereby increasing the viewing experience and improving market competitiveness.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (5)

1. The utility model provides a high-power L ED lamp of imitative lumen for outdoor lighting, includes lamp stand (1), two pins (2), L ED chip (3) and lamp shade (4), a serial communication port, L ED chip (3) and the lower extreme middle part fixed connection of lamp stand (1), two pin (2) respectively with the left and right sides fixed connection of lamp stand (1), and two pins (2) are respectively through wire and L ED chip (3) electric connection, a plurality of evenly distributed's cavity, a plurality of are seted up to the inside of lamp shade (4) the inside of cavity is filled respectively has different rare gas (5), the upper end fixedly connected with annular fixed plate (6) of lamp shade (4), the lower extreme of lamp stand (1) seted up with annular fixed plate (6) assorted annular fixed slot, the inside of annular fixed slot is equipped with two sets of fixed establishment and is connected with annular fixed plate (6) through fixed establishment.

2. The lumen-imitating high-power L ED lamp as claimed in claim 1, wherein the two sets of fixing mechanisms comprise two sets of fixture blocks (7), pull rods (8) and springs (9), the outer circular side wall of the annular fixing groove is provided with two symmetrically arranged grooves, the two fixture blocks (7) are respectively located in the two grooves in an internal sliding manner, the two opposite ends of the two fixture blocks (7) are respectively fixedly connected with the two springs (9), the two opposite ends of the two fixture blocks (7) are respectively fixedly connected with the two pull rods (8), the two opposite ends of the pull rods (8) respectively penetrate through the bottoms of the two grooves and extend to the outside of the lamp holder (1), the bottoms of the two grooves are respectively provided with through holes matched with the pull rods (8) and are slidably connected with the pull rods (8), the outer circular side wall of the annular fixing plate (6) is provided with two symmetrically arranged arc chutes, the outer circular side wall of the annular fixing plate (6) is further provided with two symmetrically arranged fixing holes, the two arc chutes in the same direction are respectively communicated with the two fixing holes, and the two fixture blocks are provided with openings at the other ends of the fixture blocks (7).

3. An artificial lumen high power L ED lamp as claimed in claim 2, wherein the pull rod (8) is fixedly connected with a pull plate (10) at one end outside the lamp holder (1).

4. The lumen-imitating high-power L ED lamp for outdoor lighting according to claim 1, wherein an annular sealing gasket (11) is fixedly connected to the upper end of the lamp housing (4), and the annular fixing plate (6) is fixedly inserted into the annular sealing gasket (11).

5. The pseudo-lumen high-power L ED lamp as claimed in claim 1, wherein the socket (1) is made of iron material and the two pins (2) are made of aluminum material.
