Abstract

The utility model discloses a balcony drying rack, which comprises a support rack, a steel wire rope, a shrinking reel and a drying rod. The support frame is in an "L" shape, and one end of the support frame is provided with a steel wire rope, and the other end of the support frame is provided with a shrinkage A reel, one end of the wire rope is arranged inside the shrinking reel, a drying rod is inlaid on the support frame, and the drying rod and the support frame are movably connected. The load-bearing frame of the balcony drying rack is hinged with the first support arm and the second support arm, the first support arm and the second support arm can be retracted, and can be stowed away when not in use, thereby reducing the waste of space and being more convenient to operate. At the same time, due to the special design of the drying rods, the distance between the two drying rods can be adjusted, and it can be adjusted according to different drying objects. You don’t have to worry about the distance between the drying objects being too small, the sun contact surface is improved, and the drying effect is also greatly improved.

Description

balcony drying rack

technical field

The utility model belongs to the technical field of drying racks, in particular to a balcony drying rack.

Background technique

Clothes racks, as household items that people use every day, have now become a necessities of life for many families. "Clothing rack" is a major characteristic product in China. It has been more than ten years since the industry was formed. Since its establishment, the technology has been continuously improved and changed. One is "lifting drying rack", or the so-called "electric drying rack", which is divided into manual and electric. Manual (hand cranking) is more popular, and electric (intelligent) is the development trend; There are mainly airfoil, X-type, single-rod, double-rod and other types. These products are relatively simple and consist of stainless steel pipes or spray pipes and plastic connectors. They are easy to disassemble and do not require special personnel to install. For some balcony drying racks, the space cannot be adjusted at will, and the number of drying is limited. If the distance between the drying rods is too small, the clothes will block the sunlight.

SUMMARY OF THE INVENTION

In view of the above problems existing in the prior art, the technical problem to be solved by the present utility model is to provide a balcony drying rack, so as to solve the problem that the space of the current balcony drying rack cannot be adjusted, and the distance between the drying rods is too small, which will cause the clothes to block the sunlight for drying, and the effect is not good. good question.

In order to solve the above-mentioned technical problems, the technical scheme adopted by the present utility model is:

A balcony drying rack includes a support frame, a steel wire rope, a shrinking reel and a drying rod. The support frame is in an "L" shape, and one end of the support frame is provided with a steel wire rope, and the other end of the support frame is provided with a shrinking reel. The steel wire rope One end of the spool is arranged inside the shrinking reel, the support frame is inlaid with a drying rod, and the drying rod and the support frame are movably connected.

Further, the support frame includes a load-bearing frame, a first support arm and a second support arm, the load-bearing frame is hinged with the first support arm and the second support arm, and the first support arm and the second support arm are hinged. A connecting rod is arranged between the arms, a sliding cavity is arranged in the second support arm, and a fixing groove is arranged in the first support arm.

Further, a rotating handle and a locking buckle are provided on the shrinking reel, one end of the wire rope is fixed on a rotating shaft inside the shrinking reel, and the shrinking reel is fixedly connected to the support frame.

Further, one end of the drying rod is provided with two blocking blocks, and the drying rod 4 between the two blocking blocks is embedded in the sliding cavity, the other end of the drying rod is provided with a handle, and one side of the handle is provided with a bayonet. , and the bayonet is matched with the fixing slot.

Further, several drying rods are arranged in the first support arm and the second support arm.

Further, the outer surface of the handle is provided with anti-skid threads.

Beneficial effects: Compared with the prior art, the present application has the following advantages:

The load-bearing frame of the balcony drying rack is hinged with the first support arm and the second support arm, the first support arm and the second support arm can be retracted, and can be stowed away when not in use, thereby reducing the waste of space and being more convenient to operate. At the same time, due to the special design of the drying rods, the distance between the two drying rods can be adjusted, and it can be adjusted according to different drying objects. You don’t have to worry about the distance between the drying objects being too small, the sun contact surface is improved, and the drying effect is also greatly improved.

Description of drawings

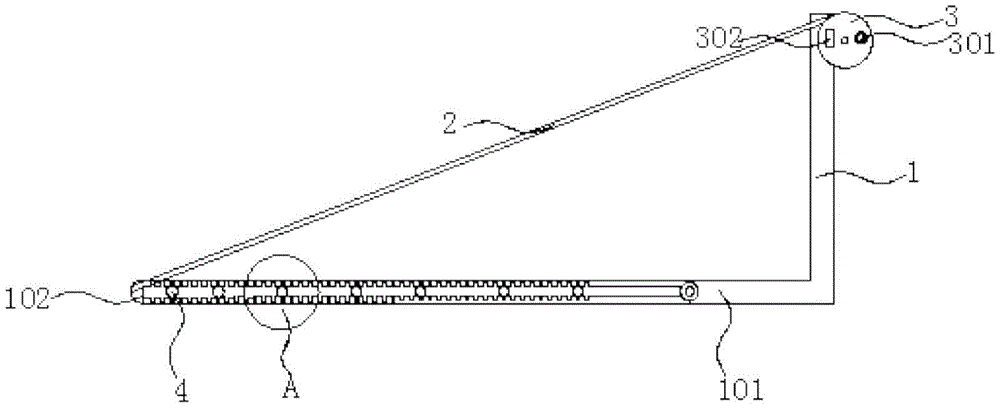

Fig. 1 is the structure schematic diagram of balcony drying rack;

Fig. 2 is the partial structure schematic diagram of balcony drying rack;

Figure 3 is an enlarged schematic view of the balcony drying rack A.

Detailed ways

The utility model will be further described below in conjunction with the accompanying drawings.

As shown in Figure 1, Figure 2, Figure 3, the balcony drying rack of the present application includes a supporting frame 1, a wire rope 2, a shrinking reel 3 and a drying rod 4, the supporting frame 1 is "L" shaped, and the supporting frame 1 is fixed on the balcony It can support the drying rack to be saturated and dry, and one end of the support rack 1 is provided with a wire rope 2, the other end of the support frame 1 is provided with a shrinking reel 3, and one end of the steel wire rope 2 is set inside the shrinking reel 3. When the drying rack is not in use , the shrinking reel 3 rotates and shrinks, the wire rope 2 shrinks, the first support arm 102 and the second support arm 103 rotate, accepting a large amount of space, the support frame 1 is inlaid with a drying rod 4, and the drying rod 4 is movably connected with the support frame 1, The drying rod 4 can switch positions in the support frame 1 .

The support frame 1 includes a load-bearing frame 101, a first support arm 102 and a second support arm 103. The load-bearing frame 101 is hinged to the first support arm 102 and the second support arm 103. The first support arm 102 and the second support arm 103 can be rotated, a connecting rod is provided between the first support arm 102 and the second support arm 103, the connecting rod makes the strength between the first support arm 102 and the second support arm 103 higher, and does not need to be easily deformed, the second support arm 103 is provided with a sliding cavity 5, the first support arm 102 is provided with a fixing slot 6, and the fixing slot 6 is provided with a bayonet slot up and down.

The shrinking reel 3 is provided with a rotating handle 301 and a locking buckle 302. The rotating handle 301 can make the wire rope 2 shrink more convenient and labor-saving. When connected, when the wire rope 2 is retracted and released to a certain position, the deadlocking buckle 302 is closed, and the wire rope 2 will not move around, ensuring the overall stability of the device.

One end of the drying rod 4 is provided with two blocking blocks 401, and the drying rod 4 between the two blocking blocks 401 is embedded in the sliding cavity 5, and this section of the drying rod 4 has a small moving position, but this section of the drying rod 4 has a small distance. A section will not fall off from the sliding cavity 5, the other end of the drying rod 4 is provided with a handle 402, and one side of the handle 402 is provided with a locking pin 403, and the locking pin 403 is matched with the fixing groove 6, and the drying rod 4 is pulled out. After a certain distance, the bayonet 401 is separated from the fixing slot 6, and then the user can use the handle 402 to adjust the position. After adjusting to the appropriate position according to the actual situation, push the handle 402 inward, and the bayonet 401 is matched with the fixing slot 6. , the drying rod 4 is adjusted.

The first support arm 102 and the second support arm 103 are provided with several drying rods 4, the distance between the drying rods 4 can be adjusted according to the actual situation, the sunlight contact surface is improved, and the drying effect is also greatly improved.

The outer surface of the handle 402 is provided with anti-skid threads, which improves the friction between the handle 402 and the hand and improves the stability.

When the user needs to use the balcony drying rack to work, he must first check whether the balcony drying rack is obviously damaged, and then the operation can be carried out after the inspection is safe.

The present utility model provides an idea and an implementation method for a balcony drying rack. There are many specific application ways. The above are only the preferred embodiments of the present utility model. Under the premise of the principle of the utility model, several improvements can also be made, and these improvements should also be regarded as the protection scope of the present invention.

Claims (6)

1. The balcony airing rack is characterized by comprising a support frame (1), a steel wire rope (2), a contraction scroll (3) and an airing rod (4), wherein the support frame (1) is in a shape of L, the steel wire rope (2) is arranged at one end of the support frame (1), the contraction scroll (3) is arranged at the other end of the support frame (1), one end of the steel wire rope (2) is arranged inside the contraction scroll (3), the airing rod (4) is embedded in the support frame (1), and the airing rod (4) is movably connected with the support frame (1).

2. The balcony drying rack of claim 1, wherein: support frame (1) package expands bearing frame (101), first support arm (102) and second support arm (103), bearing frame (101) are articulated with first support arm (102) and second support arm (103), be provided with the connecting rod between first support arm (102) and second support arm (103), be provided with sliding chamber (5) in second support arm (103), be provided with fixed slot (6) in first support arm (102).

3. The balcony drying rack of claim 1, wherein: be provided with on shrink spool (3) and rotate handle (301) and lock knot (302), the one end of wire rope (2) is fixed on the rotation axis of shrink spool (3) inside, shrink spool (3) are fixed connection with support frame (1).

4. The balcony drying rack of claim 1, wherein: the drying rod is characterized in that 2 blocking blocks (401) are arranged at one end of the drying rod (4), the drying rod (4) between the 2 blocking blocks (401) is embedded in the sliding cavity (5), a handle (402) is arranged at the other end of the drying rod (4), a clamping pin (403) is arranged on one side of the handle (402), and the clamping pin (403) is matched with the fixing groove (6).

5. The balcony drying rack of claim 2, wherein: a plurality of airing rods (4) are arranged in the first supporting arm (102) and the second supporting arm (103).

6. The balcony drying rack of claim 4, wherein: the outer surface of the handle (402) is provided with anti-skid threads.
