Abstract

The utility model discloses a distillation still with a liftable stirring device, which comprises a still body and a still cover connected at the upper end thereof. There is a rotating drum rotatably connected with it, the upper end of the rotating drum penetrates the first mounting frame and extends upward, the first mounting frame is provided with a driving mechanism connected with the rotating drum, and the upper end of the first mounting frame is fixedly connected with a A second installation frame, the upper end of the second installation frame is fixedly installed with an electric telescopic rod, the telescopic end of the electric telescopic rod penetrates the second installation frame, the rotating drum and extends into the rotating drum, and the rotating drum is slidably connected There is a sliding plug, and the telescopic end of the electric telescopic rod is rotatably connected to the sliding plug. The utility model can adjust the relative positions of the stirring pieces in the kettle body by lifting and lowering, so as to better stir materials of different heights in the kettle body, improve the stirring effect, and will not disturb the environment in the kettle body.

Description

A still with a liftable stirring device

technical field

The utility model relates to the technical field of distillation stills, in particular to a distillation still with a liftable stirring device.

Background technique

The distillation kettle is mainly designed to solve the problem of intermittent maintenance and cleaning when the material contains solids and high-boiling substances in the production process of the existing distillation kettle. It includes the still body shell, the upper sealing head and other components. The advantage is that the solids and high-boiling substances can be discharged at any time, and there is no need for intermittent maintenance and cleaning to ensure continuous production.

However, the stirring device of the existing distillation still only fixes the ordinary stirring blade on the stirring shaft, so it can only stir the relative fixed position in the still body, and cannot lift and lower the stirring device according to actual needs, that is, it cannot be flexibly adjusted according to the amount of materials. The stirring device is relatively high in the kettle body, and the stirring effect is poor.

Utility model content

The purpose of the utility model is to solve the shortcomings of the prior art, and propose a distillation still with a liftable stirring device.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A distillation still with a liftable stirring device, comprising a still body and a still cover connected to its upper end, the upper end of the still cover is fixedly connected with a first mounting frame, and the upper end of the still cover is vertically penetrated with a rotatable connection therewith. a rotating drum, the upper end of the rotating drum penetrates the first installation frame and extends upward, the first installation frame is provided with a driving mechanism connected with the rotating drum, and the upper end of the first installation frame is fixedly connected with a second installation frame, The upper end of the second mounting frame is fixedly installed with an electric telescopic rod, and the telescopic end of the electric telescopic rod penetrates the second mounting frame and the rotating drum and extends into the rotating drum. A sliding plug is slidably connected in the rotating drum, so the The telescopic end of the electric telescopic rod is rotatably connected to the sliding plug, the lower end of the sliding plug is fixedly connected with a movable rod, the lower end of the movable rod penetrates the rotating drum and is fixedly connected with a rotating rod, and the movable rod is fixedly sleeved There are turning blades, the rotating rod is provided with two stirring pieces, and the bottom of the kettle body is provided with supporting legs.

Preferably, the driving mechanism includes a motor fixedly connected to the upper end of the first mounting frame, the end of the motor output shaft is fixedly connected with a driving wheel, and the side wall of the drum above the first mounting frame is fixedly sleeved with a drive wheel. The driven wheel is engaged with the driving wheel.

Preferably, the stirring member includes a vertical stirring rod fixedly connected to the rotating rod, and a plurality of horizontal stirring rods are arranged on the vertical stirring rod at equal intervals.

Preferably, a scraper rod is provided in the kettle body, and the scraper rod has a U-shaped structure. The inner part of the kettle body is fixedly connected with a limit ring that abuts against the upper end of the scraper rod. Each is provided with a limit chute, and the two ends of the rotating rod are respectively slidably connected in the two limit chute.

Preferably, the end of the rotating rod and the limit chute are T-shaped structures that cooperate with each other.

Preferably, the horizontal stirring rod and the vertical stirring rod are integrally formed.

The beneficial effects of the present utility model:

By arranging the electric telescopic rod, sliding plug, rotating drum, movable rod, and stirring piece, and by starting the electric telescopic rod, the sliding plug can be driven to move in the rotating drum, and the movable rod can be driven to move up and down, and then the position of the rotating rod can be adjusted. , you can adjust the relative position of the stirring member in the kettle body, so as to better stir the materials of different heights in the kettle body and improve the stirring effect.

By setting the sliding plug, effective isolation can be achieved, so that the environment in the kettle is not disturbed while the lifting and stirring are realized.

Description of drawings

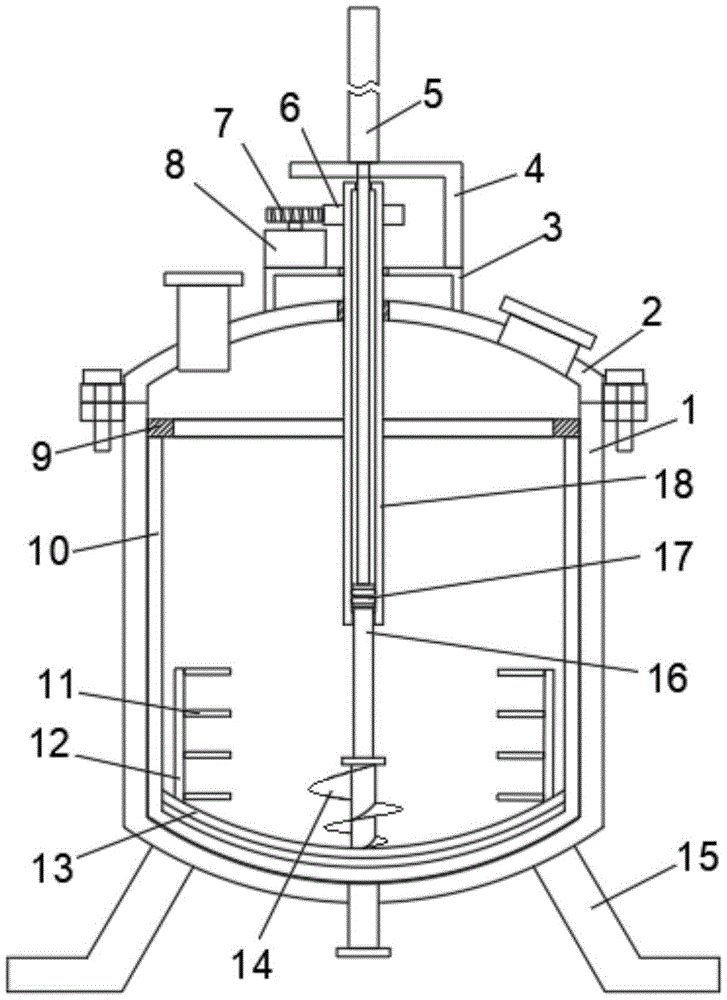

Fig. 1 is the structural representation of a kind of still kettle with liftable stirring device proposed by the utility model;

2 is a schematic structural diagram of the limit chute and the end of the rotating rod of a distillation kettle with a liftable stirring device proposed by the utility model.

In the picture: 1 kettle body, 2 kettle cover, 3 first installation frame, 4 second installation frame, 5 electric telescopic rod, 6 driven wheel, 7 driving wheel, 8 motor, 9 limit ring, 10 scraper, 11 horizontal Stirring rod, 12 vertical stirring rod, 13 rotating rod, 14 turning blade, 15 supporting leg, 16 movable rod, 17 sliding plug, 18 rotating drum, 19 limit chute.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation , are constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

Referring to Figure 1-2, a distillation kettle with a liftable stirring device includes a kettle body 1 and a kettle cover 2 connected to its upper end, the upper end of the kettle cover 2 is fixedly connected with a first mounting frame 3, and the upper end of the kettle cover 2 is vertical There is a rotating drum 18 which is rotatably connected with it. The connection between the rotating drum 18 and the kettle cover 2 is connected by a sealed bearing. The upper end of the rotating drum 18 penetrates through the first mounting frame 3 and extends upward. The driving mechanism connected to the cylinder 18, the upper end of the first mounting frame 3 is fixedly connected with the second mounting frame 4, the upper end of the second mounting frame 4 is fixedly installed with an electric telescopic rod 5, and the telescopic end of the electric telescopic rod 5 penetrates the second mounting frame 4 , the rotating drum 18 extends into the rotating drum 18, the rotating drum 18 is slidably connected with a sliding plug 17, the telescopic end of the electric telescopic rod 5 is rotatably connected to the sliding plug 17, and the lower end of the sliding plug 17 is fixedly connected with a movable rod 16, The lower end of the movable rod 16 penetrates through the rotating drum 18 and is fixedly connected with a rotating rod 13. The movable rod 16 is fixedly sleeved with a turning blade 14. The rotating rod 13 is provided with two stirring pieces, and the bottom of the kettle body 1 is provided with supporting legs 15.

In the present invention, the driving mechanism includes a motor 8 fixedly connected to the upper end of the first mounting frame 3 , the end of the output shaft of the motor 8 is fixedly connected with a driving wheel 7 , and the rotating drum 18 is fixedly sleeved on the side wall above the first mounting frame 3 . There is a driven wheel 6 , and the driven wheel 6 is engaged with the driving wheel 7 .

Specifically, the stirring member includes a vertical stirring rod 12 fixedly connected to the rotating rod 13 , a plurality of horizontal stirring rods 11 are arranged on the vertical stirring rod 12 at equal intervals, and the horizontal stirring rods 11 and the vertical stirring rods 12 are integrally formed.

Specifically, a scraper rod 10 is provided in the kettle body 1, and the scraper rod 10 has a U-shaped structure. The inner part of the kettle body 1 is fixedly connected with a limit ring 9 that is in contact with the upper end of the scraper rod 10. The two inner sides of the scraper rod 10 are opposite to each other. There are limit chutes 19 on the walls, and the two ends of the rotating rod 13 are respectively slidably connected in the two limit chutes 19. When the rotating rod 13 rotates, the scraper rod 10 can be driven to rotate, and then the inner wall of the kettle body 1 can be adjusted. Scraping the material to prevent the material from sticking to the inner wall, thereby improving the stirring effect.

Specifically, the end of the rotating rod 13 and the limit chute 19 are T-shaped structures that cooperate with each other, so that when the rotating rod 13 moves up and down, the scraper rod 10 can also be driven to rotate.

When the utility model is in use, start the motor 8 to drive the driving wheel 7 to rotate. Since the driving wheel 7 is engaged with the driven wheel 6, the movable rod 16 can be driven to rotate, and then the rotating rod 13 and the stirring member can be driven to rotate to perform stirring and start the electric telescopic The rod 5 can drive the sliding plug 17 to move in the rotating drum 18, and can drive the movable rod 16 to move up and down, and then adjust the position of the rotating rod 13, so as to adjust the relative position of the stirring member in the kettle body 1, so as to better The materials at different heights in the kettle body 1 are stirred to improve the stirring effect.

By arranging the sliding plug 17 , effective isolation can be achieved, so that the environment in the kettle body 1 is not disturbed while the lifting and stirring are realized.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited thereto. Equivalent replacement or modification of the technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. A still with a liftable stirring device, comprising a still body (1) and a still cover (2) connected to its upper end, wherein the upper end of the still cover (2) is fixedly connected with a first mounting frame (3), the upper end of the kettle cover (2) is vertically provided with a rotating drum (18) rotatably connected with it, and the upper end of the rotating drum (18) penetrates the first mounting frame (3) and extends upwards, the The first mounting frame (3) is provided with a driving mechanism connected to the rotating drum (18), the upper end of the first mounting frame (3) is fixedly connected with a second mounting frame (4), and the second mounting frame (4) ) is fixedly installed with an electric telescopic rod (5), and the telescopic end of the electric telescopic rod (5) penetrates the second mounting frame (4), the drum (18) and extends into the drum (18). A sliding plug (17) is slidably connected in the rotating drum (18), the telescopic end of the electric telescopic rod (5) is rotatably connected to the sliding plug (17), and the lower end of the sliding plug (17) is fixedly connected with a movable rod (16), the lower end of the movable rod (16) penetrates the rotating drum (18) and is fixedly connected with a rotating rod (13), and the movable rod (16) is fixedly sleeved with a turning blade (14), so The rotating rod (13) is provided with two stirring pieces, and the bottom of the kettle body (1) is provided with support legs (15). 2. The distillation still with a liftable stirring device according to claim 1, wherein the drive mechanism comprises a motor (8) fixedly connected to the upper end of the first mounting frame (3), and the motor ( 8) A drive wheel (7) is fixedly connected to the end of the output shaft, a driven wheel (6) is fixedly sleeved on the side wall of the drum (18) above the first mounting frame (3), and the driven wheel (6) Engage with the drive wheel (7). 3. The distillation still with a liftable stirring device according to claim 1, wherein the stirring member comprises a vertical stirring rod (12) fixedly connected to the rotating rod (13), and the vertical stirring The rod (12) is provided with a plurality of horizontal stirring rods (11) at equal intervals. 4. The distillation still with a liftable stirring device according to claim 1, wherein the still body (1) is provided with a scraper rod (10), and the scraper rod (10) is in a U-shaped structure , the inside of the kettle body (1) is fixedly connected with a limit ring (9) that abuts against the upper end of the scraper rod (10), and limit chute ( 19), the two ends of the rotating rod (13) are respectively slidably connected in the two limit chute (19). 5 . The distillation still with a liftable stirring device according to claim 4 , wherein the end of the rotating rod ( 13 ) and the limit chute ( 19 ) are T-shaped structures that cooperate with each other. 6 . 6 . The still with a liftable stirring device according to claim 3 , wherein the horizontal stirring rod ( 11 ) and the vertical stirring rod ( 12 ) are integrally formed. 7 .
