Abstract

The utility model relates to the technical field of daily necessities, and discloses an air mattress, comprising a wave air cushion, a soft cushion installed on the upper surface of the wave air cushion, and a hard cushion installed on the lower surface of the wave air cushion. The air cushion includes a plurality of air bags arranged in sequence, and each air bag is respectively provided with an inflation port connected with the inflation and deflation unit, and the inflation port of each air bag is connected with the inflation and deflation unit through the trachea to form an inflation and deflation path. The charging and discharging circuits are independent of each other. With the air mattress adopting the technical scheme of the utility model, the softness and hardness of the mattress can be adjusted by setting different air pressures, and the contact time and position of the soft cushion on the upper surface of the fluctuating air cushion and the patient can be adjusted alternately, so that It adapts to the needs of different patients, and overcomes the defects of various air mattresses at present, when the patient needs to stay in bed for a long time, the feeling of use is not good, and the effect of preventing the formation of pressure ulcers is not strong.

Description

an air mattress

technical field

The utility model relates to the technical field of daily necessities, in particular to an air mattress.

Background technique

At present, with the aging of the population, many elderly people need to rest in bed at home, hospitals and nursing homes. The elderly are different in weight and thickness, and the bed body needs to be different in hardness and softness when sleeping. The common air mattresses on the market are: integral air mattresses , multi-tube air mattresses and pneumatic suspension beds, but the various products and structural designs commonly found in the market are that the human body lies directly on the air mattresses and sheets, and various inflatable mattresses have various problems in use:

① The contact position of the one-piece air mattress and the human body is relatively fixed. After lying in bed with the human body, the body and the mattress form a closed state after being attached, and the air permeability is poor. In addition, the change of the pressure-bearing point of the human body in bed is small, which cannot effectively reduce the effect of dispersing the pressure on the prone position of human pressure ulcers, and the effect of auxiliary prevention of pressure ulcers is limited.

②The multi-tube airbags of the multi-tube air mattress can be automatically controlled, alternately inflated to achieve the effect of changing the pressure and force of different positions of the bedridden body, but because the bed surface airbags are divided into small airbags, each airbag is small, and the inflation volume is small. It is limited. Adults are generally heavier, especially at the buttocks. Higher air pressure can lift the human body and change the position (point) of the weight of the human body to achieve the effect of assisting in the prevention of pressure ulcers. However, due to the high inflation pressure, the airbag becomes hard, and the two groups of airbags are alternately inflated and deflated to hold up the human body. The bedridden human body and the air cushion are in contact with the load-bearing position relatively concentrated, and the local pressure is increased. The long-term bedridden patient Poor experience.

③The pneumatic suspension bed is equipped with more than 100 structurally designed airbags on the bed surface, and the human body is lifted up by automatically controlling the inflation and extraction of high-pressure air flow of different groups of airbags, so as to achieve the goal of preventing pressure ulcers and treating wounds. However, the contact between the high-pressure airbag of the pneumatic suspension bed and the force point of the bedridden body cannot be predicted, which will cause the user to feel uncomfortable. At the same time, it must use a complete set of control systems, which is expensive. Currently, it is only suitable for the rescue and treatment of large-scale burns and scalds, and cannot be universally applied. in ordinary homes and nursing homes.

Due to the common anti-pressure sore air mattress on the market, the user directly contacts the inflatable air cushion through the sheet during use, because the inflatable airbags are made of non-breathable materials, and the bedridden has a poor feeling of use.

Utility model content

The purpose of this utility model is: to provide an air mattress, which can realize the adjustable degree of softness and hardness of the mattress, and can alternately adjust the contact time and position between the upper layer soft pad and the patient, so as to adapt to the needs of different patients, overcome the current Various air mattresses have the defects of limited effect of preventing pressure ulcers and poor experience.

In order to achieve the above purpose, the present invention provides an air mattress, which includes a wave air cushion, a soft cushion installed on the upper surface of the wave air cushion, and a hard cushion installed on the lower surface of the wave air cushion. Including several air bags arranged in sequence, each air bag is respectively provided with an inflation port connected with the inflation and deflation unit, the inflation port of each air bag is connected with the inflation and deflation unit through the trachea to form an inflation and deflation path, each of the air bags The charging and discharging circuits are independent of each other.

Preferably, the air bag includes a first air bag and a second air bag arranged in sequence, the first air bag and the second air bag are cylindrical, and the height direction of the first air bag and the second air bag is along the same direction. The fluctuating air cushion is arranged in the width direction, and the first air bag and the second air bag are respectively provided with an inflation port connected with an inflation and deflation unit.

Preferably, two fixing blocks are oppositely arranged on the upper surface of the wave air cushion and the soft cushion along the length direction of the wave air cushion, and the two ends of the first air bag and the second air bag are respectively fixedly connected to each other. On the fixing block, a plurality of limit belts for fixing the first airbag and the second airbag are arranged in the two fixing blocks, and the import and export directions of the limit belts are the same as the setting direction of the fixing blocks. parallel.

Preferably, the inflating and deflating unit includes an air pump and a side-by-side solenoid valve connected to the air pump, and the inflation port of the first air bag and the inflation port of the second air bag are respectively connected to one of the side-row solenoid valves. The control valve port is connected.

Preferably, it also includes a control assembly, the control assembly includes a liquid crystal display screen, a control main board and a power supply for supplying power to the control main board, the row solenoid valve, the air pump and the liquid crystal display screen are all connected with the control board. The main board is electrically connected.

Preferably, the hard pads include calf hard pads, thigh hard pads, buttocks hard pads and back hard pads, the calf hard pads, thigh hard pads, buttocks hard pads Hard pad and back hard pad stitched connection.

Preferably, it also includes an air cushion cover sleeved on the outside of the soft cushion, the wave air cushion and the hard cushion.

Preferably, the first airbag and the second airbag are fixedly connected to the fixing block through mounting buckles.

Compared with the prior art, an air mattress according to an embodiment of the present utility model has the following beneficial effects:

In the air mattress of the embodiment of the present invention, a soft pad is arranged on the fluctuating air cushion to avoid direct contact between the user and the fluctuating air cushion, avoid the discomfort of direct contact between the skin and the plastic, and at the same time increase the friction between the user and the mattress. The area of the force point can help prevent the possibility of pressure ulcers caused by long-term bed rest. At the same time, the airbag can be adjusted to inflate and deflate at intervals, so that the surface of the fluctuating air cushion forms a wave-like alternating change, changing the pressure on the skin of each part of the patient, and alternating soft and hard. To the role of manual massage, it not only prevents pressure ulcers but also increases the comfort of patients, effectively reduces the average unit area pressure and lasting time of the skin in the pressure-bearing position of the body when sleeping, so as to promote the blood circulation of the skin tissue in the pressure-bearing position of the bedridden and reduce the occurrence of The risk of pressure ulcers, especially for long-term bedridden patients, provides the effect of prevention rather than cure, relieves the pressure of long-term care for the patient's family and caregivers, and reduces the patient's turning over to work. Further, by controlling the inflation pressure of the fluctuating air cushion, the degree of softness and hardness of the air cushion can be adjusted to meet the needs of different users.

Description of drawings

1 is a cross-sectional view of an air mattress according to an embodiment of the present invention;

2 is a schematic diagram of the connection structure of the air mattress according to the embodiment of the present invention;

3 is a schematic structural diagram of an air mattress according to an embodiment of the present invention;

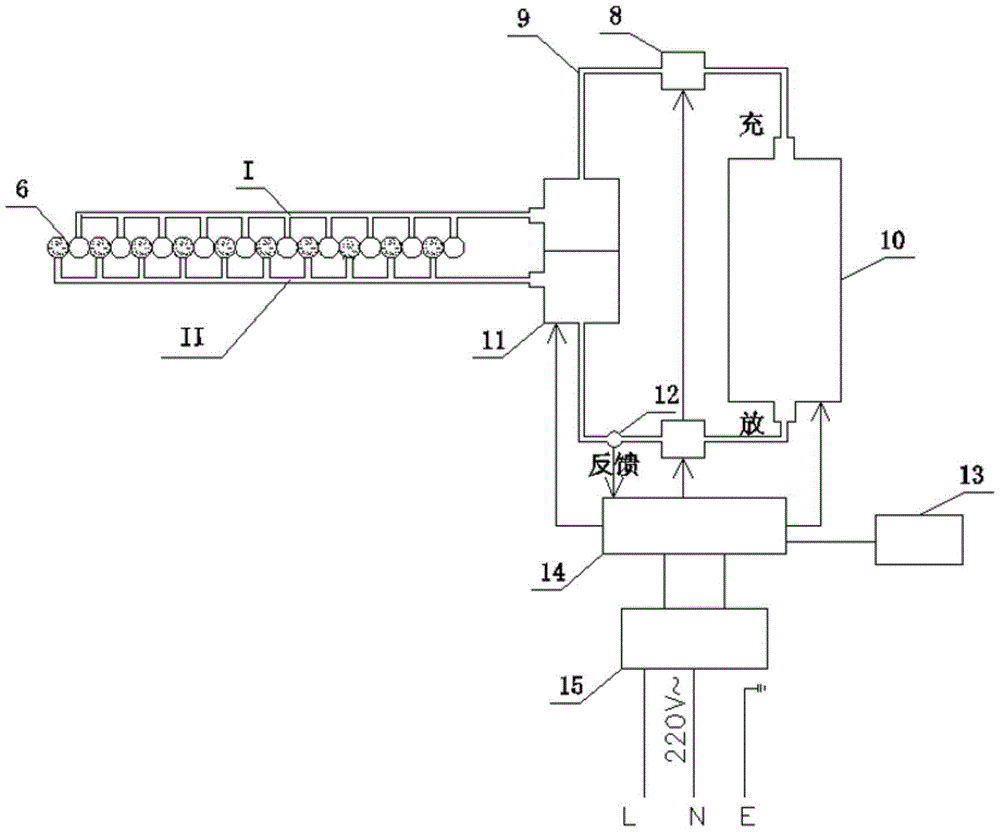

Fig. 4 is the control principle diagram of the air mattress of the embodiment of the present invention;

In the picture, 1. Air mattress, 2. Tracheal plug, 3. Control host, 4. Air cushion cover, 5. Soft cushion, 6. Fluctuating air cushion, 7. Hard cushion, 8. Solenoid valve, 9. Trachea, 10. Air pump, 11. Parallel solenoid valve, 12. Pressure sensor, 13. LCD screen, 14. Control board, 15. DC24V switching power supply, I, first air bag, II, second air bag.

Detailed ways

The specific embodiments of the present utility model will be described in further detail below with reference to the accompanying drawings and embodiments. The following examples are used to illustrate the present invention, but are not intended to limit the scope of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be understood that the terms "first", "second", etc. are used to describe various information in the present invention, but the information should not be limited to these terms, and these terms are only used to distinguish the same type of information from each other. For example, "first" information may also be referred to as "second" information, and similarly, "second" information may also be referred to as "first" information without departing from the scope of the present invention.

As shown in FIGS. 1 to 4 , an air mattress 1 according to a preferred embodiment of the present invention includes a wave air cushion 6 , a soft cushion 5 installed on the upper surface of the wave air cushion 6 , and a hard cushion installed on the lower surface of the wave air cushion 6 . Therefore, the installation of the wave air cushion 6 is convenient, and at the same time, the wave air cushion 6 is prevented from directly contacting the bed board, and the wave air cushion 6 is prevented from being damaged. In this embodiment, the hard pad 7 is a brown pad, which facilitates the overall shaping of the mattress and the function of being relatively fixed relative to the bed. In this embodiment, the soft pad 5 is a latex pad. Therefore, the direct contact between the user and the fluctuating air cushion 6 is avoided, the discomfort caused by the direct contact between the skin and the plastic is avoided, and the area of the stress point between the user and the mattress is increased, further avoiding pressure ulcers caused by prolonged bed rest. produce. The fluctuating air cushion 6 includes a number of airbags arranged in sequence, each airbag is respectively provided with an inflation port connected with the inflation and deflation unit, and the inflation port of each airbag is connected with the inflation and deflation unit through the trachea 9 to form an inflation and deflation path. The air paths are independent of each other, and the inflation and deflation processes of each airbag do not interfere with each other.

Based on the above technical solutions, by disposing the soft pad 5 on the undulating air cushion 6 to avoid direct contact between the user and the undulating air cushion 6, the discomfort of direct contact between the skin and the plastic is avoided, and the stress point between the user and the mattress is increased. It can help prevent the possibility of pressure ulcers from being in bed for a long time. At the same time, the air bags can be adjusted to inflate and deflate at intervals, so that the surface of the fluctuating air cushion 6 forms a wave-like alternating change, changing the pressure on the skin of each part of the patient, and alternating soft and hard. The function of manual massage not only prevents pressure ulcers, but also increases the comfort of patients, effectively reduces the average unit area pressure and lasting time of the skin in the pressure-bearing position of the body when sleeping and lying down, and promotes the blood circulation of the skin tissue in the pressure-bearing position of the bedridden, reducing the generation of pressure. The risk of sore, especially for long-term bedridden patients, provides the effect of prevention rather than cure, relieves the pressure of long-term care for the patient's family and caregivers, and reduces the patient's turning over to work. Further, by controlling the inflation pressure of the fluctuating air cushion 6, the degree of softness and hardness of the air cushion 6 can be adjusted to meet the needs of different users.

Preferably, the airbag includes a first airbag I and a second airbag II arranged in sequence, the first airbag I and the second airbag II are cylindrical, and the height direction of the first airbag I and the second airbag II is along the width of the wave air cushion 6 Direction setting, the first airbag I and the second airbag II are respectively provided with an inflation port connected with the inflation and deflation unit.

Further, two fixing blocks are oppositely arranged along the length direction of the wave air cushion 6 on the upper surface where the wave air cushion 6 is attached to the soft cushion 5, and the two ends of the first air bag I and the second air bag II are respectively fixed and connected to the fixed blocks. , the two fixing blocks are provided with a number of limit belts for fixing the first airbag I and the second airbag II, and the import and export direction of the limit belts is parallel to the setting direction of the fixing blocks. Therefore, the positioning and installation of the wave air cushion 6 is facilitated. The first airbag I and the second airbag II are arranged in the limit belt. In this embodiment, the limit belt is along the height direction of the first airbag I and the second airbag II. They are arranged at equal intervals to further ensure that the positions of the first airbag I and the second airbag II will not change when the patient turns over.

Preferably, the inflating and deflating unit includes an air pump 10 and a row solenoid valve 11 connected to the air pump 10 . The inflation port of the first airbag I and the inflation port of the second airbag II are respectively connected to a control valve port of the row solenoid valve 11 . . Therefore, one air pump 10 can be used to control the inflation port of the first airbag I and the inflation port of the second airbag II, which simplifies the structure and circuit of the device and facilitates the user's manipulation.

Preferably, it also includes a control assembly, the control assembly includes a liquid crystal display 13 , a control main board 14 and a power supply for powering the control main board 14 . In this embodiment, the power supply is a DC24V switching power supply 15, a direct current of 24V, which is lower than the human body safety voltage of 36V, which is lower than the voltage tolerable by human beings, thereby ensuring the safety of users, and controlling the main board 14 and the parallel solenoid valves 11, The air pump 10 and the liquid crystal display 13 are electrically connected. The user or medical staff can adjust the inflation and deflation of the airbag under the patient by operating the airbag inflation and deflation through the liquid crystal display 13 , adjust the hardness and fluctuation frequency of the mattress, and improve the comfort of the patient. At the same time, software control can be used to realize alternate inflation and deflation of the two groups of airbags in the wave air cushion 6, forming a bar-shaped wave, which can be continuously alternately inflated and deflated for 24 hours, which can transfer and fluctuate the stress points of the body of patients who are bedridden for a long time.

In the present embodiment, the control main board 14 and the parallel solenoid valve 11 are installed in the control host 3. When in use, the host only needs to be connected to the air mattress 1 through the air pipe 9 and the plug 2 to realize the charging of the fluctuating air cushion 6. Bleed control for easy installation.

In this embodiment, the inlet and outlet of the air pump 10 are connected to the parallel solenoid valve 11 respectively through the gas pipe 9, and the three-way solenoid valve 8 is provided on the gas path formed by the gas pipe 9, thereby facilitating their connection. There is also a pressure sensor 12 on the gas path, which is electrically connected to the control component, so that the pressure information can be fed back to the control component in time, so that the user or medical staff can read the relevant pressure information for timely adjustment.

Specifically, the hard pads 7 include calf hard pads, thigh hard pads, buttocks hard pads and back hard pads, calf hard pads, thigh hard pads, buttocks hard pads And the back hard pad sewing connection. Segmentation is used to facilitate the placement of the hard pad 7 on the multifunctional hospital bed, and the hard pad 7 will not be broken after the corresponding movement of the patient bed.

Further, it also includes an air cushion cover 4 sleeved on the outside of the soft cushion 5, the wave air cushion 6 and the hard cushion 7, thereby making the entire air mattress 1 into a whole, which is convenient for the installation and movement of the air mattress 1, and further It is convenient to replace the air cushion cover 4, so as to facilitate the cleaning of the air mattress 1. At the same time, the appearance of the mattress is improved and the mattress is integrated and easy to carry.

Preferably, the first airbag I and the second airbag II are fixedly connected to the fixing block through a mounting buckle, thereby facilitating the disassembly and assembly of the first airbag I and the second airbag II.

The working process of the present invention is as follows: controlling the row solenoid valve 11 through the liquid crystal display screen 13, thereby controlling the inflation amount of the wave air cushion 6, thereby adjusting the degree of softness and hardness of the wave air cushion 6, and further, by controlling the row solenoid valve 11 to achieve The interval between the first air bag I and the second air bag in the wave air cushion 6 is inflated and deflated, so that the surface of the wave air cushion can be undulating, which can transfer the stress point of the body of the patient who is in bed for a long time, and avoid the occurrence of pressure ulcers. When the user is lying on the air mattress 1, a soft cushion 5 is arranged between the user and the fluctuating air, thereby making the force point between the fluctuating air cushion 6 and the user large, avoiding the pressure generated by long-term bed rest. phenomenon of sores. At the same time, the user is not in direct contact with the wave air cushion 6, which avoids discomfort on the skin.

To sum up, the embodiment of the present invention provides an air mattress 1, wherein the air mattress 1 avoids the direct contact between the user and the fluctuating air cushion 6 by disposing the soft pad 5 on the fluctuating air cushion 6, and avoids the direct contact between the skin and the plastic. At the same time, it can increase the stress point area between the user and the mattress, and help prevent the possibility of pressure ulcers caused by long-term bed rest. At the same time, the airbags can be adjusted to inflate and deflate at intervals, so that the surface of the fluctuating air cushion 6 forms a wave-like alternation. Change, change the pressure on the skin of various parts of the patient, alternate soft and hard to play the role of manual massage, not only prevent pressure ulcers but also increase the comfort of the patient, effectively reduce the average unit area pressure and lasting time of the skin in the pressure-bearing position of the body when sleeping and lying down , in order to promote the blood circulation of the skin tissue in the pressure-bearing position of the bedridden person, reduce the risk of pressure ulcers, especially for the long-term bedridden patients, it also provides the effect of prevention rather than treatment, and reduces the pressure of long-term care for the patient's family and caregivers. Reduce patient turning work. Further, by controlling the inflation pressure of the fluctuating air cushion 6, the degree of softness and hardness of the air cushion 6 can be adjusted to meet the needs of different users.

In the description of the present invention, it should be understood that the orientations or positional relationships indicated by the terms "upper", "lower", "left", "right", "top", "bottom", etc. are based on those shown in the accompanying drawings. The orientation or positional relationship is only for the convenience of describing the present utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be understood as a reference to the present utility model. limits.

The above are only the preferred embodiments of the present invention. It should be pointed out that for those skilled in the art, without departing from the technical principles of the present invention, several improvements and replacements can be made. These improvements And replacement should also be regarded as the protection scope of the present invention.

Claims (8)

1. An air mattress, characterized in that, comprising a wave air cushion, a soft pad installed on the upper surface of the wave air cushion, and a hard pad installed on the lower surface of the wave air cushion, and the wave air cushion comprises an arrangement arranged in sequence Each of the air bags is provided with an inflation port connected with the inflation and deflation unit, and the inflation port of each air bag is connected with the inflation and deflation unit through the trachea to form an inflation and deflation path. independent of each other. 2 . The air mattress according to claim 1 , wherein the airbag comprises a first airbag and a second airbag arranged in sequence, the first airbag and the second airbag are cylindrical, and the The height direction of the first air bag and the second air bag are arranged along the width direction of the wave air cushion, and the first air bag and the second air bag are respectively provided with an inflation port connected with an inflation and deflation unit. 3 . The air mattress according to claim 2 , wherein two fixing blocks are oppositely arranged on the upper surface of the undulating air cushion and the soft pad attached along the length direction of the undulating air cushion, 3 . The two ends of the first airbag and the second airbag are respectively fixedly connected to the fixing blocks, and a plurality of limit belts for fixing the first airbag and the second airbag are arranged in the two fixing blocks. The import and export direction of the bit belt is parallel to the setting direction of the fixing block. 4. The air mattress according to claim 2, wherein the inflating and deflating unit comprises an air pump and a parallel solenoid valve connected with the air pump, the inflation port of the first airbag and the second airbag. The inflation ports of the airbags are respectively connected with a control valve port of the row solenoid valve. 5. The air mattress according to claim 4, further comprising a control assembly comprising a liquid crystal display screen, a control mainboard and a power supply for supplying power to the control mainboard, the row solenoid valve, Both the air pump and the liquid crystal display screen are electrically connected with the control main board. 6 . The air mattress according to claim 1 , wherein the hard pads comprise calf hard pads, thigh hard pads, buttocks hard pads and back hard pads. Leg hard pads, thigh hard pads, hip hard pads and back hard pads are sewn together. 7 . The air mattress according to claim 1 , further comprising an air cushion cover sleeved on the outside of the soft cushion, the wave air cushion and the hard cushion. 8 . 8 . The air mattress according to claim 3 , wherein the first airbag and the second airbag are fixedly connected to the fixing block through a mounting buckle. 9 .
