Abstract

The utility model provides a novel vibration damping and noise reduction device, which comprises a mounting base plate, mounting bolts, a base, a spring, a bushing, a vibration damping pad, a vibration component mounting plate and a nut; the vibration damping pad is fixedly arranged on the vibration component mounting plate Mounting bolts are fixedly arranged on the mounting base plate, the bottom end of the base is connected and fixed with the mounting bolts, the top end is connected and fixed with the bushing, and the top end of the bushing is fixed with the vibration component mounting plate through the nut after passing through the vibration damping pad , the spring is sleeved on the outer wall of the bushing, and stretches between the base and the vibration damping pad, and the vibration source component is arranged on the outer surface of the vibration component mounting plate. The utility model plays a three-stage shock absorption effect through the shock absorption pad, the spring and the base, and realizes a good vibration reduction and noise reduction effect; and the structure is simple, the installation and disassembly are convenient, and the cost is low.

Description

A new type of vibration and noise reduction device

technical field

The utility model relates to the field of vibration and noise reduction devices, in particular to a novel vibration reduction and noise reduction device.

Background technique

With the development of economy and technology and the improvement of people's living standards, the comfort of the riding environment inside the car has also attracted more and more attention. NVH (Noise, Vibration, Harshness, Vibration and Harshness) is a measure of the ride inside the car. An important indicator of environmental comfort, optimizing the NVH performance of a vehicle can significantly improve the user's ride experience and improve the quality of the vehicle.

The noise of the vehicle air conditioner is one of the main noises of the NVH in the cabin. After the vehicle is turned on the air conditioner, the vibration of the compressor will be transmitted to the body through the air conditioner pipeline and the refrigerant, which will cause the whole vehicle to vibrate and generate noise. After the interior reaches the set temperature, the air-conditioning compressor will stop running, and when the temperature inside the car deviates from the set temperature, the air-conditioning compressor will re-run, which will have a pulse effect on the refrigerant in the air-conditioning pipeline, which will cause the air-conditioning pipe. The road vibrates and generates noise, which affects the NVH performance of the vehicle. At the same time, vibration will cause fatigue of related components and shorten their service life, which will inevitably lead to higher requirements on the quality of components and increase the cost.

With the development of industrialization, simple structure and noise control have become the goals pursued by the automotive market. At present, the structures related to vibration reduction and noise reduction of many automotive air conditioners are abnormally single (noise reduction cotton, vibration reduction pads, etc.), and the effect is not significantly improved. The vibration and noise reduction mechanism with relatively good effect has complex structure, large space occupation and high cost.

Utility model content

Aiming at the defects in the prior art, the purpose of the present invention is to provide a novel vibration reduction and noise reduction device. The present invention has a three-stage shock absorption effect through a vibration reduction pad, a spring and a base, and achieves good vibration reduction and noise reduction. Noise effect; and simple structure, easy installation and disassembly, low cost.

According to one aspect of the present invention, a novel vibration and noise reduction device is provided, comprising a mounting base plate (1), mounting bolts (2), a base (3), a spring (4), a bushing (5), and a vibration damping pad (6), a vibration component mounting plate (7), a nut (9); the vibration damping pad (6) is fixedly arranged on the vibration component mounting plate (7), and the mounting base plate (1) is fixedly provided with mounting bolts ( 2), the bottom end of the base (3) is connected and fixed with the mounting bolt (2), the top end is connected and fixed with the bushing (5), and the top end of the bushing (5) passes through the vibration damping pad (6) and then passes through. The nut (9) is fixed to the vibrating component mounting plate (7), the spring (4) is sleeved on the outer wall of the bushing (5), and stretches between the base (3) and the vibration damping pad (6), so A vibration source member (10) is provided on the outer surface of the vibration member mounting plate (7). The mounting bolts (2) are used for positioning the base (3), and the damping pads (6), the springs (4), and the base (3) are mainly used for shock absorption; the vibration source part (10) can be connected with the vibration parts The outer surface of the mounting plate (7) is fixedly arranged, and may also be in contact with the outer surface of the vibration component mounting plate (7), and the vibration source component (10) may be a compressor, a blower, an evaporator, etc. in an air conditioner that generate vibration It can also be other non-air-conditioning components. The specifications of the vibration and noise reduction device can be appropriately adjusted according to the place of use and installation conditions. The mounting base plate (1) can be made of sheet metal or plastic, and is fixed relative to the vibration component according to the place of use. abutting or fixing the supports.

Preferably, there are at least three mounting bolts (2), bases (3), springs (4), bushings (5), damping pads (6) and nuts (9). At least 3 can be set to ensure a certain support strength, which can be set reasonably according to the weight and size of the vibration parts.

Preferably, four mounting bolts (2), bases (3), springs (4), bushings (5), damping pads (6) and nuts (9) are provided.

Preferably, the damping pad (6) includes an upper damping pad (61) and a lower damping pad (62), and a concave is provided in the middle of the upper damping pad (61) and the lower damping pad (62). A groove (63), the groove (63) is snapped into the mounting hole of the vibration component mounting plate (7), and the upper vibration damping pad (61) and the lower vibration damping pad (62) are respectively arranged on the vibration component mounting plate (7). Surface and bottom of plate (7).

Preferably, the top of the base (3) is provided with an insertion hole (31) for inserting the bushing (5), and the bottom is provided with a limit skirt (32) for limiting the spring (4), and the limit skirt ( In the middle of 32), there is a hole (33) for installing the mounting bolt (2).

Preferably, the diameters of the lower vibration damping pad (62) and the limiting skirt (32) are both larger than the diameter of the spring (4). The lower vibration damping pad (62) and the limiting skirt (32) restrict the expansion and contraction of the spring (4) between the base (3) and the vibration damping pad (6).

Preferably, a washer (8) is arranged between the nut (9) and the upper vibration damping pad (61).

Preferably, the mounting bolt (2) and the base (3) are connected and fixed by welding, inlay or stud bolts.

Preferably, the base (3) is made of plastic, rubber or hard sponge, preferably the base is made of rubber or hard sponge. When the base (3) is made of plastic, the base (3) acts as a limiting spring (4), and the damping effect is small; when the base (3) is made of rubber or hard sponge, the base (3) not only It acts as a limiting spring (4), and also has a good shock absorption effect.

Preferably, the vibration damping pad (6) is made of rubber or hard sponge.

The working principle is as follows: the vibration of the vibration source component is first buffered and damped by the vibration damping pad made of elastic material, and then the vibration from the upper and lower directions of the vibration component is buffered by the spring to reduce the frequency and amplitude of the noise transmission, and then through the elastic A base made of material further reduces noise transmission.

Compared with the prior art, the utility model has the following beneficial effects:

(1) The novel vibration reduction and noise reduction device involved in the present utility model has a three-stage shock absorption effect through the vibration reduction pad, the spring and the base, and realizes a good vibration reduction and noise reduction effect;

(2) The novel vibration and noise reduction device involved in the present utility model is suitable for the components that generate vibration such as compressors, blowers, and evaporators in air conditioners, greatly reducing the vibration and noise of vehicle air conditioners during operation, improving the comfort of the passengers in the vehicle;

(3) The novel vibration reduction and noise reduction device involved in the present utility model is also applicable to other non-air-conditioning components. The size of the vibration reduction and noise reduction device, as well as the number of parts and connectors that play the role of vibration reduction and noise reduction can be determined according to Appropriate adjustments are made to the use site and installation conditions to meet a variety of use needs and have a wide range of applications;

(4) The novel vibration reduction and noise reduction device involved in the present utility model has simple structure, ingenious design and remarkable effect;

(5) The novel vibration and noise reduction device involved in the present utility model is easy to process and assemble, easy to install and disassemble, and has strong practicability;

(6) The novel vibration reduction and noise reduction device of the present invention has the advantages of simple manufacturing process, light weight, high supporting strength and low cost, and is suitable for wide-scale promotion.

Description of drawings

Other features, objects and advantages of the present invention will become more apparent by reading the detailed description of non-limiting embodiments with reference to the following drawings:

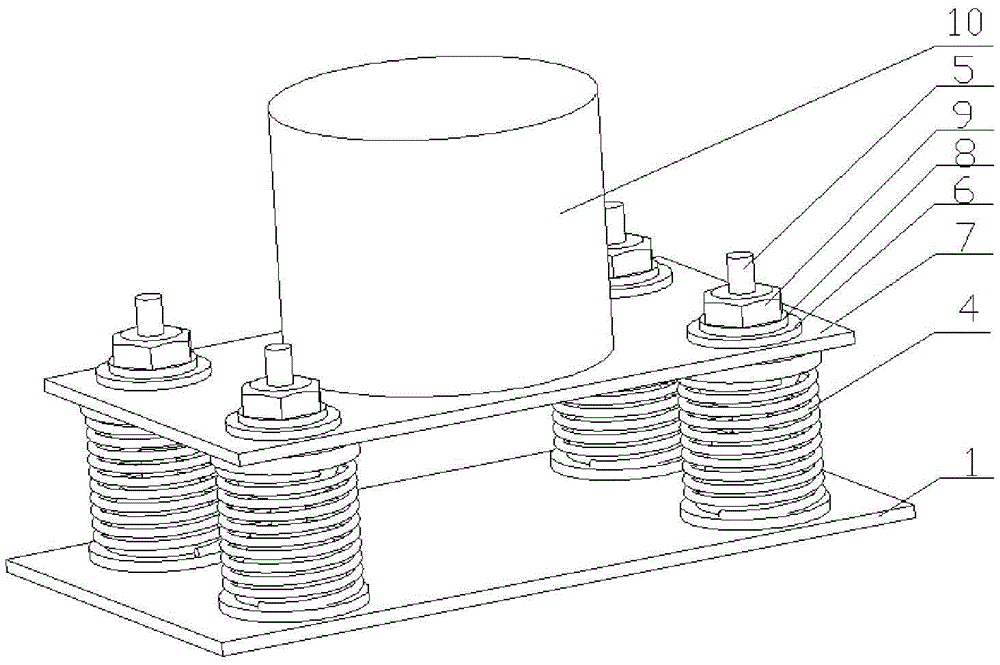

Fig. 1 is the structural schematic diagram of the novel vibration reduction and noise reduction device;

Figure 2 is a schematic diagram of a structural explosion of a novel vibration reduction and noise reduction device;

Fig. 3 is the structural representation of the base;

FIG. 4 is a schematic diagram of the structure of the vibration damping pad.

Detailed ways

The present utility model will be described in detail below with reference to specific embodiments. The following examples will help those skilled in the art to further understand the present invention, but do not limit the present invention in any form. It should be noted that, for those skilled in the art, some modifications and improvements can be made without departing from the concept of the present invention. These all belong to the protection scope of the present invention.

Example

This embodiment provides a novel vibration reduction and noise reduction device, the structure of which is shown in Figures 1-4: including a mounting base plate 1, mounting bolts 2, a base 3, a spring 4, a bushing 5, a vibration damping pad 6, a vibration The component mounting plate 7 and the nut 9; the vibration damping pad 6 is fixed on the vibration component mounting plate 7, the mounting bolt 2 is fixed on the mounting bottom plate 1, and the bottom end of the base 3 is connected and fixed with the mounting bolt 2, The top end is connected and fixed with the bushing 5. The top end of the bushing 5 passes through the damping pad 6 and is fixed with the vibration component mounting plate 7 through the nut 9. The spring 4 is sleeved on the outer wall of the bushing 5 and is on the base. 3 and the vibration damping pad 6 are stretched and contracted, and the vibration source member 10 is provided on the outer surface of the vibration member mounting plate 7 . The mounting bolts 2 are used for positioning the base 3, and the damping pads 6, the springs 4, and the base 3 are mainly used for damping; The outer surface of the vibration component mounting plate 7 is in contact. The vibration source component 10 can be a component that generates vibration such as a compressor, a blower, an evaporator, etc. in an air conditioner, or other non-air conditioner components. The specifications of the vibration reduction and noise reduction device can be based on Appropriate adjustments are made to the use site and installation conditions. The mounting base plate 1 can be made of sheet metal or plastic, and the support member opposite to the vibrating component is fixed to abut or be fixed according to the use site.

Further, there are at least three installation bolts 2 , bases 3 , springs 4 , bushings 5 , damping pads 6 , and nuts 9 . At least 3 can be set to ensure a certain support strength, which can be set reasonably according to the weight and size of the vibration parts.

Further, there are four installation bolts 2 , bases 3 , springs 4 , bushings 5 , vibration damping pads 6 , and nuts 9 .

Further, the vibration damping pad 6 includes an upper vibration damping pad 61 and a lower vibration damping pad 62 , a groove 63 is formed in the middle of the upper vibration damping pad 61 and the lower vibration damping pad 62 , and the groove 63 is buckled In the mounting holes of the vibration component mounting plate 7 , the upper vibration damping pad 61 and the lower vibration damping pad 62 are respectively disposed on the surface and the bottom of the vibration component mounting plate 7 .

Further, the top of the base 3 is provided with an insertion hole 31 for inserting the bushing 5, and the bottom is provided with a limit skirt 32 for limiting the spring 4, and the middle of the limit skirt 32 has holes for installing the mounting bolts 2. bit 33.

Further, the diameters of the lower damping pad 62 and the limiting skirt 32 are both larger than the diameter of the spring 4 . The lower vibration damping pad 62 and the limiting skirt 32 restrict the expansion and contraction of the spring 4 between the base 3 and the vibration damping pad 6 .

Further, a washer 8 is provided between the nut 9 and the upper vibration damping pad 61 .

Further, the mounting bolts 2 and the base 3 are connected and fixed by welding, inlay or stud bolts.

Further, the base 3 is made of plastic, rubber or hard sponge, preferably the base is made of rubber or hard sponge. When the base 3 is made of plastic, the base 3 plays the role of limiting the spring 4, and the shock absorption effect is small; when the base 3 is made of rubber or hard sponge, the base 3 not only acts as a limiting spring 4, but also plays a role in to good shock absorption.

Further, the vibration damping pad 6 is made of rubber or hard sponge.

The working principle is as follows: the vibration of the vibration source component is first buffered and damped by the vibration damping pad made of elastic material, and then the vibration from the upper and lower directions of the vibration component is buffered by the spring to reduce the frequency and amplitude of the noise transmission, and then through the elastic A base made of material further reduces noise transmission.

This embodiment has the following beneficial effects:

(1) The shock-absorbing pads, springs and bases play a three-stage shock absorption effect, achieving a good vibration and noise reduction effect;

(2) It is suitable for components that generate vibration such as compressors, blowers, and evaporators in air conditioners, which greatly reduces the vibration and noise of vehicle air conditioners during operation, and improves the comfort of passengers in the car;

(3) It is also suitable for other non-air-conditioning components. The size of the vibration and noise reduction device, as well as the number of parts and connectors that play the role of vibration and noise reduction can be appropriately adjusted according to the place of use and installation conditions to meet a variety of uses. needs, a wide range of applications;

(4) Its structure is simple, the design is ingenious, and the effect is remarkable;

(5) It is easy to process and assemble, easy to install and disassemble, and has strong practicability;

(6) The manufacturing process is simple, the weight is light, the support strength is high, and the cost is low, which is suitable for wide-scale promotion.

The specific embodiments of the present invention have been described above. It should be understood that the present invention is not limited to the above-mentioned specific embodiments, and those skilled in the art can make various deformations or modifications within the scope of the claims, which do not affect the essential content of the present invention.

Claims (10)

1. A novel vibration reduction and noise reduction device, characterized in that it comprises a mounting base plate (1), mounting bolts (2), a base (3), a spring (4), a bushing (5), and a vibration damping pad (6) , a vibration component mounting plate (7), a nut (9); the vibration damping pad (6) is fixedly arranged on the vibration component mounting plate (7), and a mounting bolt (2) is fixedly arranged on the mounting bottom plate (1), The bottom end of the base (3) is connected and fixed with the mounting bolt (2), the top end is connected and fixed with the bushing (5), and the top end of the bushing (5) passes through the damping pad (6) and then passes through the nut (9). ) is fixed to the vibration component mounting plate (7), the spring (4) is sleeved on the outer wall of the bushing (5), and stretches between the base (3) and the vibration damping pad (6), the vibration component A vibration source component (10) is arranged on the outer surface of the mounting plate (7). 2. The novel vibration reduction and noise reduction device according to claim 1, characterized in that the mounting bolt (2), the base (3), the spring (4), the bushing (5), and the vibration damping pad (6) , Nuts (9) are provided with at least three. 3. The novel vibration reduction and noise reduction device according to claim 1, characterized in that the mounting bolt (2), the base (3), the spring (4), the bushing (5), and the vibration damping pad (6) , Nuts (9) are provided with four. 4. The novel vibration reduction and noise reduction device according to claim 1, wherein the vibration reduction pad (6) comprises an upper vibration reduction pad (61) and a lower vibration reduction pad (62), and the upper vibration reduction pad (62) A groove (63) is provided in the middle of the pad (61) and the lower vibration damping pad (62), the groove (63) is snapped into the mounting hole of the vibration component mounting plate (7), and the upper vibration damping pad (61) and the lower vibration damping pad (62) are respectively arranged on the surface and the bottom of the vibration component mounting plate (7). 5 . The novel vibration and noise reduction device according to claim 4 , wherein the top of the base ( 3 ) is provided with a socket ( 31 ) for inserting the bushing ( 5 ), and the bottom is provided with a limiting spring ( 4 ). 6 . ) of the limiting skirt (32), the middle of the limiting skirt (32) is provided with a hole (33) for installing the mounting bolt (2). 6 . The novel vibration and noise reduction device according to claim 5 , wherein the diameters of the lower vibration damping pad ( 62 ) and the limiting skirt ( 32 ) are both larger than the diameter of the spring ( 4 ). 7 . 7. The novel vibration damping and noise reduction device according to claim 4, characterized in that, a washer (8) is provided between the nut (9) and the upper vibration damping pad (61). 8 . The novel vibration and noise reduction device according to claim 1 , wherein the mounting bolt ( 2 ) and the base ( 3 ) are connected and fixed by welding, inlay or stud bolts. 9 . 9 . The novel vibration and noise reduction device according to claim 1 , wherein the base ( 3 ) is made of plastic, rubber or hard sponge. 10 . 10 . The novel vibration reduction and noise reduction device according to claim 1 , wherein the vibration reduction pad ( 6 ) is made of rubber or hard sponge. 11 .
