The utility model discloses an electric power iron tower convenient to maintenance and climbing, including base, iron tower body, wire-lapping frame and climbing mechanism, the top fixedly connected with iron tower body of base, the equal fixedly connected with wire-lapping frame in top of the iron tower body left and right sides, iron tower body's the left and right sides all is provided with climbing mechanism, climbing mechanism includes the fixed plate, weld between fixed plate and the iron tower body, the equal fixedly connected with curb plate in both sides around the fixed plate top. The utility model discloses a mutually supporting of base, iron tower body, take the line frame and climbing mechanism not only provides very big facility for staff's climbing, and the climbing in-process is difficult to appear the condition that hand or foot skidded, can be with the foot card in climbing mechanism climbing in-process to provide the guarantee for staff's safety, after the running-board damages moreover, can also be convenient change it, bring very big facility for the staff.
Description
Technical Field
The utility model relates to an electric power iron tower technical field specifically is an electric power iron tower convenient to maintenance and climbing.
Background
At present, the common maintenance of being convenient for and climbing electric power iron tower only are provided with simple climbing frame and supply the staff to scramble, and factor of safety is lower, and the staff is at the climbing in-process and skid because of hand or foot easily and take place the accident, has great potential safety hazard, and climbing frame generally welds on iron tower surface in addition, in case climbing frame corrodes or can't carry out convenient change after damaging, brings very big inconvenience for the staff.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an electric power iron tower convenient to maintenance and climbing to solve the problem of proposing among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: an electric iron tower convenient to maintain and climb comprises a base, an iron tower body, wire lapping frames and climbing mechanisms, wherein the top of the base is fixedly connected with the iron tower body, the top of the left side and the top of the right side of the iron tower body are both fixedly connected with the wire lapping frames, and the left side and the right side of the iron tower body are both provided with the climbing mechanisms;
the climbing mechanism comprises a fixed plate, the fixed plate is welded with an iron tower body, the front side and the rear side of the top of the fixed plate are fixedly connected with side plates, the tops of the two side plates are fixedly connected through a clamping plate, the front side and the rear side of the bottom of the clamping plate are fixedly connected with first anti-skid blocks, a pedal plate is arranged at the top of the fixed plate and corresponds to the first anti-skid blocks, the bottom of the pedal plate is in mutual contact with the top of the fixed plate, a second anti-skid block is arranged at the top of the pedal plate, a bolt is fixedly connected to the midpoint of the bottom of the pedal plate, the bottom of the bolt penetrates through the fixed plate and extends to the outside of the fixed plate, the bolt is movably connected with the fixed plate, a nut is in threaded connection with the bottom of the bolt, the top of the, the middle point of one side of the fixed plate, which is far away from the iron tower body, is fixedly connected with a hanging ring.
Preferably, the top of the iron tower body is fixedly connected with a mounting seat, and a lightning rod is fixedly mounted at the midpoint of the top of the mounting seat.
Preferably, the top of the wire-lapping frame is fixedly connected with a stabilizing rod, and one end of the stabilizing rod, which is far away from the wire-lapping frame, is fixedly connected with the iron tower body.
Preferably, the first anti-skid block is made of rubber, and the second anti-skid block is made of rubber.
Preferably, the surface of the handle is provided with anti-skid grains.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a mutually supporting of base, iron tower body, take the line frame and climbing mechanism not only provides very big facility for staff's climbing, and the climbing in-process is difficult to appear the condition that hand or foot skidded, can be with the foot card in climbing mechanism climbing in-process to provide the guarantee for staff's safety, after the running-board damages moreover, can also be convenient change it, bring very big facility for the staff.
2. The utility model discloses a set up the lightning rod, played good lightning-arrest effect, through setting up firm pole, prevent that the take-up frame from rocking or dropping.
Drawings
Fig. 1 is a schematic structural view of a front view of the present invention;

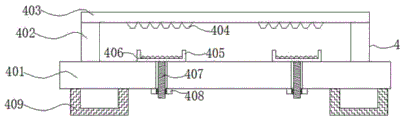

figure 2 is the structural section view of the utility model discloses climbing mechanism side view.
In the figure: the device comprises a base 1, an iron tower body 2, a wire lapping frame 3, a climbing mechanism 4, a fixing plate 401, a side plate 402, a clamping plate 403, a first antiskid block 404, a pedal 405, a second antiskid block 406, a bolt 407, a nut 408, a grip 409, a hanging ring 410, a mounting seat 5, a lightning rod 6 and a stabilizing rod 7.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Please refer to fig. 1-2, an electric power iron tower convenient for maintenance and climbing, including base 1, iron tower body 2, stringing frame 3 and climbing mechanism 4, the top fixedly connected with iron tower body 2 of base 1, the equal fixedly connected with stringing frame 3 in top of the iron tower body 2 left and right sides, the left and right sides of iron tower body 2 all is provided with climbing mechanism 4, the top fixedly connected with mount pad 5 of iron tower body 2, mid point department fixed mounting at the top of mount pad 5 has lightning rod 6, through setting up lightning rod 6, good lightning protection effect has been played, the top fixedly connected with stabilizing rod 7 of stringing frame 3, the one end that the stringing frame 3 was kept away from to stabilizing rod 7 and iron tower body 2 fixed connection, through setting up stabilizing rod 7, prevent that stringing frame 3 from rocking or dropping.
Referring to fig. 1-2, the climbing mechanism 4 includes a fixing plate 401, the fixing plate 401 is welded to the iron tower body 2, side plates 402 are fixedly connected to front and rear sides of a top of the fixing plate 401, tops of the two side plates 402 are fixedly connected through a clamping plate 403, first anti-slip blocks 404 are fixedly connected to front and rear sides of a bottom of the clamping plate 403, a pedal plate 405 is disposed at a position corresponding to the first anti-slip blocks 404 at the top of the fixing plate 401, a bottom of the pedal plate 405 contacts with a top of the fixing plate 401, a second anti-slip block 406 is disposed at the top of the pedal plate 405, the first anti-slip block 404 is made of rubber, the second anti-slip block 406 is made of rubber, a bolt 407 is fixedly connected to a midpoint of the bottom of the pedal plate 405, a bottom of the bolt 407 penetrates through the fixing plate 401 and extends to an exterior of the fixing plate, the top of nut 408 and the bottom of fixed plate 401 contact each other, the equal fixedly connected with handle 409 in both sides around the fixed plate 401 bottom, the surface of handle 409 has seted up anti-skidding line, fixed plate 401 keeps away from iron tower body 2 one side's mid point department fixedly connected with link 410.
During the use, when climbing, at first the staff hangs the safety hook on one's body on the link 410 of suitable position, then the staff puts the foot on the running-board 405, thereby it is spacing to carry out effectual antiskid through first non slipping spur 404 on the splint 403 and the second non slipping spur 406 on the running-board 405 to the foot, simultaneously the staff can hold grip 409 with the hand and borrow the power, thereby conveniently scramble, the climbing in-process, the continuous adjustment safety hook on one's body of staff, make it hang on the link 410 of corresponding position can, through above step, can be safe scramble, when running-board 405 damages and needs to dismantle, only need rotate nut 408 anticlockwise through the spanner, thereby make nut 408 break away from bolt 407, then can take off running-board 405 and change.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides an electric power iron tower convenient to maintenance and climbing, includes base (1), iron tower body (2), takes line frame (3) and climbing mechanism (4), its characterized in that: the top of the base (1) is fixedly connected with an iron tower body (2), the tops of the left side and the right side of the iron tower body (2) are fixedly connected with a wire lapping frame (3), and the left side and the right side of the iron tower body (2) are provided with climbing mechanisms (4);
the climbing mechanism (4) comprises a fixing plate (401), the fixing plate (401) and an iron tower body (2) are welded, side plates (402) are fixedly connected to the front side and the rear side of the top of the fixing plate (401), the tops of the two side plates (402) are fixedly connected through a clamping plate (403), first anti-slip blocks (404) are fixedly connected to the front side and the rear side of the bottom of the clamping plate (403), a pedal plate (405) is arranged at the top of the fixing plate (401) and corresponds to the first anti-slip blocks (404), the bottom of the pedal plate (405) is in contact with the top of the fixing plate (401), a second anti-slip block (406) is arranged at the top of the pedal plate (405), a bolt (407) is fixedly connected to the midpoint of the bottom of the pedal plate (405), the bottom of the bolt (407) penetrates through the fixing plate (401) and extends to the outside of the fixing plate, and the, the bottom threaded connection that bolt (407) surface just is located fixed plate (401) has nut (408), the top of nut (408) and the bottom of fixed plate (401) contact each other, equal fixedly connected with handle (409) in both sides around fixed plate (401) bottom, fixed plate (401) keep away from iron tower body (2) one side midpoint department fixedly connected with link (410).
2. The electric power iron tower convenient to maintain and climb according to claim 1, characterized in that: the top fixedly connected with mount pad (5) of iron tower body (2), mid point department fixed mounting at mount pad (5) top has lightning rod (6).
3. The electric power iron tower convenient to maintain and climb according to claim 1, characterized in that: the top of the wire laying frame (3) is fixedly connected with a stabilizing rod (7), and one end, far away from the wire laying frame (3), of the stabilizing rod (7) is fixedly connected with the iron tower body (2).
4. The electric power iron tower convenient to maintain and climb according to claim 1, characterized in that: the first cleat (404) is made of rubber and the second cleat (406) is made of rubber.
5. The electric power iron tower convenient to maintain and climb according to claim 1, characterized in that: the surface of the grip (409) is provided with anti-skid grains.
