Abstract

The female urine receiver has a bedpan with an open upper end, and a defecation channel is opened at the bottom of the bedpan. The pots are connected, the contour of the upper end surface of the pot is similar to the contour of the buttocks of the human body, a clip is arranged on one side of the front of the pot, and a box is arranged on the side of the clip, and gloves are placed in the box. Place the bedpan under the buttocks and perineum of the bedridden patient, the urine and feces discharged by the patient can fall into the bedpan, and the urine and thinner stools will enter the urinal from the defecation passage. Observe when the urinal is nearly full, Take out a glove in the box and clamp it with a clip. After the nursing staff puts on the glove with one hand, while removing the bedpan with the other hand, the patient's anus and perineum can be removed with the gloved hand. Wipe clean; when the bedpan is removed, dump it to wash it and use it again.

Description

female urine catcher

technical field

The utility model relates to a nursing appliance, in particular to a female urine receiving device.

Background technique

At present, in order to solve the problem of inconvenience or incontinence of bedridden female patients, they are usually asked to use diapers. The use of diapers has the following shortcomings: 1. The diapers will mix urine and feces together, which is easy to cause retrograde infection; 2. The air permeability of diapers is poor, and the feces and urine stains repeatedly irritate the skin, which is easy to cause dermatitis and even infection and ulceration; 3. The diapers wrap the entire perineum and buttocks area, and the wiping area of feces and urine stains increases, which increases the difficulty of scrubbing. Cause side leakage and contaminate the bed; 4. Diapers are disposable items, increasing the economic burden.

Utility model content

The purpose of the utility model is to provide a female urine receiver, which can be used by bedridden female patients.

In order to achieve the above purpose, the utility model adopts the following scheme: a female urine receiving device, which has a bedpan with an open upper end, and a defecation channel is opened at the bottom of the bedpan, and the outlet of the defecation channel penetrates one side of the bedpan, and one end of a urinary catheter is provided. It is connected with the outlet of the defecation channel, and the other end is connected with a toilet pot. The contour of the upper end surface of the bedpan is similar to the contour of the buttocks of the human body. , gloves are placed inside the box.

It can be seen from the above scheme that when using the urine catcher provided by the utility model, the bedpan is placed under the buttocks and perineum of the bedridden patient, and the urine and feces discharged by the patient can fall into the bedpan, and the urine and thinner stools will pass through the defecation channel. Enter into the urinal and observe that when the urinal is nearly full, take out a glove in the box and clamp it with a clip. By the way, the patient's anus and perineum can be wiped clean with a gloved hand; after the bedpan is withdrawn, it can be dumped and cleaned, and it can be used again.

The utility model has a reasonable structure and is convenient to use, and conforms to the requirements of the female human body structure, thereby making the patient comfortable and safe to use, and can effectively prevent infection.

Description of drawings

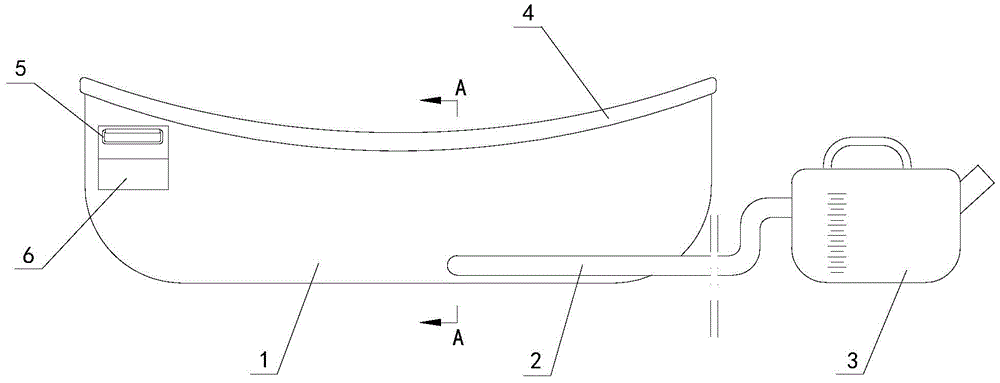

Figure 1 is a schematic structural diagram of an embodiment of the present invention;

Figure 2 is a top view of Figure 1;

Figure 3 is a cross-sectional view taken along the line AA of Figure 1;

Figure 4 is a schematic structural diagram of a glove used in conjunction with the present invention.

Detailed ways

The present invention will be further described below in conjunction with the embodiments and the accompanying drawings.

See Figure 1, Figure 2, Figure 3

The female urine receiver provided by the utility model has a bedpan 1 with an open upper end, a defecation channel 1a is opened at the bottom of the bedpan 1, the outlet of the defecation channel 1a penetrates one side of the bedpan 1, and one end of a catheter 2 is connected to the defecation channel The outlet of 1a is connected, and the other end is connected with a potty 3. The contour of the upper end face of the bedpan 1 is similar to the contour of the buttocks of the human body. One side of the front of the bedpan is provided with a clip 5, and the side of the clip is provided with a box. Body 6, and gloves are placed in the box body 6. The structure of the clip 5 is the same as that of the clip used in the existing file folders. The material of the urinal pot 3 is transparent plastic, and there are scales on it, which can observe and record the defecation volume and character of the patient.

In this embodiment, a baffle ring 4 is covered on the mouth edge of the upper end of the bedpan 1 , and a water absorption body 7 is embedded in the rear of the upper end of the baffle ring 4 . The retaining ring 4 is made of elastic material, such as silicone or rubber. The material of the water-absorbing body 7 can be washing cotton or water-absorbing paper. The setting of the retaining ring 4 can improve the comfort during use; the setting of the water absorbing body 7 can prevent a small amount of urine from flowing out from the buttock cleft part of the human body to avoid pollution.

In addition, when the utility model is evacuated after use, the nursing staff needs to wear gloves to wipe the patient's anus or perineum. The gloves placed in the box body 6 shown in FIG. 1 are used for this purpose. The process of evacuation and wiping of the utility model after use is as follows: take out the gloves in the box body 6 and clamp them with clips 5; Wipe the patient's anus and perineum with one hand. In order to facilitate the glove to be clamped and used, referring to FIG.

Claims (2)

1. a female urine receiving device is characterized in that: it has a bedpan with an open upper end, the bottom of the bedpan is provided with a defecation passage, the outlet of the defecation passage penetrates one side of the bedpan, and one end of a urinary catheter is in phase with the outlet of the defecation passage. The other end of the bedpan is connected to a potty. The contour of the upper end surface of the bedpan is similar to the contour of the buttocks of the human body. A clip is arranged on one side of the front of the bedpan, and a box is arranged on the side of the clip. Gloves are placed in the box. . 2 . The female urine catcher according to claim 1 , wherein the mouth rim of the upper end of the bedpan is covered with a retaining ring, and a water absorbing body is embedded in the rear of the upper end of the retaining ring. 3 .
