Abstract

The utility model discloses a rotating device, which comprises a top frame, the bottom of the top frame close to its corner is fixedly connected with a bottom column, the edge of the top frame is installed with a bottom frame through a mounting buckle, and the bottom frame is close to the bottom frame. The bottom of the edge is provided with a chute, the inner wall of the chute is slidably connected with a moving belt, the moving belt is provided with a tooth slot, and the inner side of the bottom frame close to one end is fixedly connected with a fixing plate, the fixing A first rotating shaft is rotatably installed on the plate. The bottom end of the first rotating shaft passes through the fixing plate and is sequentially installed with a traveling gear and a first gear. The outer wall of the traveling gear is clamped with the inner wall of the tooth slot, and the fixed A second rotating shaft is rotatably installed on the side of the plate close to the first gear. The utility model has the advantages of large capacity of clothes, convenient and quick selection, etc., and solves the problem of low practicability that although the wardrobe has the function of rotation in the prior art, the capacity of the wardrobe itself is limited, and practically not many clothes can be placed.

Description

a smart wardrobe

technical field

The utility model relates to the technical field of intelligent furniture, in particular to an intelligent wardrobe.

Background technique

Wardrobe is a cabinet for storing clothes. It is usually made of stainless steel, solid wood, tempered glass, and hardware accessories. Generally, it is composed of cabinet body, door panel, silent wheels, and door curtain. And other accessories, using punching, assembly, riveting, welding and other processes, with flame retardant, anti-rat, dust-proof, moth-proof, moisture-proof, clean and beautiful, easy to move, etc. Cabinets, stainless steel wardrobes, UV disinfection and cleaning wardrobes, moisture-proof multi-functional wardrobes, men's and women's lockers, drying wardrobes, folding wardrobes. Commonly divided into flat doors, sliding doors inside and outside the cabinet, etc. The plates used in wardrobes are generally stainless steel, metal, wood, etc., and are one of the commonly used furniture in the family.

With the improvement of people's living standards and the acceleration of product replacement, people buy more and more clothes, so a lot of clothes will be accumulated and placed in the wardrobe. The clothes in the wardrobe are usually hung in a single row. On the hanger rod, due to the limited opening of the sliding door of the wardrobe, some clothes are still placed in the corner of the wardrobe and difficult to take out. If the wardrobe can drive the rotation function for people to choose, it will be greatly convenient for people. life travel.

For example, Chinese Utility Model Patent Application No. CN201420707606.4 discloses a rotatable multifunctional wardrobe, which includes a sliding door, a support rod, a circular base, an outer frame of the wardrobe and a bottom wardrobe. The upper part of the circular base rotates A bottom locker is installed, a cylindrical sleeve is sleeved at the lower end of the support rod, and a circular fixed seat is fixedly connected under the cylindrical sleeve, and the circular fixed seat passes through the circular base and The screws of the bottom locker are fixed on the circular base, and the upper end of the support rod is covered with a positioning block, which is connected to one end of the hanger I through the positioning block, and four hangers II are evenly arranged around the support rod in the middle. The outer frame of the cabinet is installed on the bottom wardrobe, and the sliding door is installed on one side of the outer frame of the wardrobe. The rotatable multifunctional wardrobe solves the rigid appearance of the traditional wardrobe, facilitates the access of clothes and can store more clothes.

However, the rotatable multifunctional wardrobe still has the following defects: although the rotatable multifunctional wardrobe has the function of rotation for people to choose from, its own volume is limited, and it can not actually put many clothes, which is practical. relatively low.

Utility model content

The purpose of the utility model is to provide a smart wardrobe, which has the advantages of large capacity of clothes, convenient and quick selection, etc., and solves the problem that although the wardrobe has the function of rotation in the prior art, its own volume is limited, and it can't actually store much. Clothes, the problem of low practicality.

In order to achieve the above purpose, the present invention provides the following technical solutions: a rotating device, comprising a top frame, the bottom of the top frame close to its corner is fixedly connected with a bottom column, and the edge of the top frame is installed with a bottom through a mounting buckle The bottom of the bottom frame close to its edge is provided with a chute, the inner wall of the chute is slidably connected with a moving belt, the moving belt is provided with a tooth slot, and the inner side of the bottom frame close to one end is fixed A fixed plate is connected, and a first rotating shaft is rotatably installed on the fixed plate. The bottom end of the first rotating shaft passes through the fixed plate and is sequentially installed with a traveling gear and a first gear. The outer wall of the traveling gear and the tooth slot The inner wall of the fixed plate is clamped, and a second rotating shaft is rotatably installed on the side of the fixed plate close to the first gear. The bottom end of the second rotating shaft passes through the fixed plate and is installed with a second gear. The surface is meshed with the surface of the first gear, a mounting seat is fixedly installed on the side of the fixing plate close to the second gear, a third rotating shaft is rotatably installed in the mounting seat, and the bottom end of the third rotating shaft is installed in sequence There is a worm gear and a third gear, the surface of the third gear is meshed with the surface of the second gear, a motor is installed on the side of the mounting seat away from the first gear, and the output shaft of the motor penetrates into the mounting seat and A worm is installed, and the surface of the worm is engaged with the surface of the worm wheel.

Preferably, the inner side of the top frame is fixedly connected with a first reinforcing rib.

Preferably, the inner side of the chassis is fixedly connected with a second reinforcing rib.

Preferably, a support pad is installed at the bottom of the bottom column.

Preferably, the moving belt is a stainless steel belt.

Preferably, the bottom frame is in the shape of a straight notch.

An intelligent wardrobe, comprising a rotating device according to any one of claims 1 to 6.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. In this utility model, driven by a motor, through the transmission and deceleration effect of the worm gear, the worm, the first gear, the second gear and the third gear, the traveling gear is driven to rotate, and the moving gear is driven by the clamping action between the traveling gear and the tooth slot. The belt rotates smoothly at low speed, and then drives the clothes hooked on the tooth slot to rotate, which is convenient for people to select quickly.

2. In the present utility model, the bottom frame is in the shape of a straight slot, which can be well adapted to most wardrobes in the prior art, and compared with the circular shape in the technology, the rotating device can carry more clothes at one time. It has the advantages of large capacity and convenient and quick selection.

Description of drawings

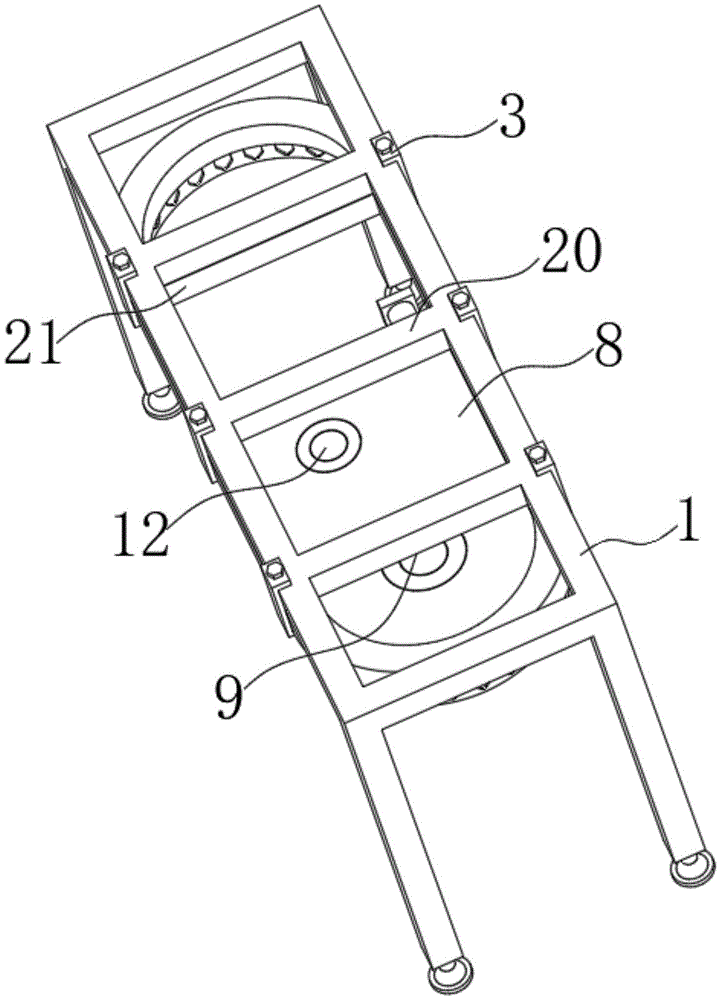

Fig. 1 is the structural representation of the perspective view of the top frame of the present utility model;

Fig. 2 is the structural schematic diagram of the three-dimensional view of the installation buckle of the present invention;

Fig. 3 is the structural representation of the perspective view of the moving belt of the utility model;

4 is a schematic structural diagram of a perspective view of a mounting seat of the present invention.

In the picture: 1-Top frame, 2-Bottom column, 3-Installation buckle, 4-Bottom frame, 5-Chute, 6-Moving belt, 7-Gov, 8-Fixed plate, 9-First shaft, 10 -Travel gear, 11-first gear, 12-second shaft, 13-second gear, 14-mount, 15-third shaft, 16-worm gear, 17-third gear, 18-motor, 19-worm , 20 - the first reinforcing rib, 21 - the second reinforcing rib, 22 - the support pad.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIG. 1 to FIG. 4 , the present invention provides a first technical solution: a rotating device, comprising a top frame 1 , a bottom column 2 is fixedly connected to the bottom of the top frame 1 near its corner, and the edge of the top frame 1 passes through The mounting buckle 3 is installed with a bottom frame 4, and a chute 5 is provided on the bottom of the bottom frame 4 close to its edge. The inner wall of the chute 5 is slidably connected with a moving belt 6, and the moving belt 6 is provided with a tooth slot 7, and the bottom frame 4 is A fixed plate 8 is fixedly connected to the inner side close to one end of the fixed plate 8. A first rotating shaft 9 is rotatably installed on the fixed plate 8. The bottom end of the first rotating shaft 9 passes through the fixed plate 8 and is sequentially installed with a traveling gear 10 and a first gear 11. The outer wall of the traveling gear 10 is clamped with the inner wall of the tooth slot 7. The function of the tooth slot 7 is: on the one hand, when the traveling gear 10 rotates, the moving belt 6 is driven to rotate through the clamping action between the traveling gear 10 and the tooth slot 7, and the other is On the one hand, there is a gap at the bottom of the tooth slot 7, which is used to hang the clothes hanger, so under the driving action of the traveling gear 10, the clothes will be rotated to facilitate quick selection; the fixing plate 8 is close to the side of the first gear 11. A second rotating shaft 12 is rotatably installed. The bottom end of the second rotating shaft 12 passes through the fixing plate 8 and is installed with a second gear 13. The surface of the second gear 13 is meshed with the surface of the first gear 11, and the fixed plate 8 is close to the surface. A mounting seat 14 is fixedly mounted on the side of the second gear 13 , a third rotating shaft 15 is rotatably mounted in the mounting seat 14 , and a worm gear 16 and a third gear 17 are sequentially mounted on the bottom end of the third rotating shaft 15 . It is meshed with the surface of the second gear 13, and the motor 18 is mounted on the side of the mounting seat 14 away from the first gear 11. The output shaft of the motor 18 penetrates the mounting seat 14 and is mounted with a worm 19. The surface of the worm 19 is connected to the worm wheel 16. The surface of the gear is meshed and connected, driven by the motor 18, through the transmission and deceleration of the worm wheel 16, the worm 19, the first gear 11, the second gear 13 and the third gear 17, the traveling gear 10 is driven to rotate, and the traveling gear 10 and the tooth slot 7 are driven. The snap-on action of the belt 6 drives the moving belt 6 to rotate smoothly at a low speed, and then drives the clothes hung on the tooth slot 7 to rotate, which is convenient for people to select quickly.

Further, the inner side of the top frame 1 is fixedly connected with the first reinforcing rib 20 to improve the rigidity and structural strength of the top frame 1 itself.

Further, the inner side of the bottom frame 4 is fixedly connected with a second reinforcing rib 21 to improve the rigidity and structural strength of the bottom frame 4 itself.

Further, a support pad 22 is installed at the bottom of the bottom column 2. When the rotary device is installed in the wardrobe, if the bottom column 2 is in direct contact with the wardrobe, the wardrobe will be easily damaged, so the support pad 22 can be well supported. After being fixed in the wardrobe, the supporting pad 22 can also be firmly installed in the wardrobe by means of screws or the like.

Further, the moving belt 6 is a stainless steel belt, and the stainless steel belt has high structural strength and prolongs the service life.

Further, the bottom frame 4 is in the shape of a straight notch, which can be well adapted to most wardrobes in the prior art, and compared with the circular shape in the contrasting technology, the rotating device can carry more clothes at one time, and has The advantages of large capacity, convenient and quick selection.

Referring to FIGS. 1 to 1 , the present invention provides a second technical solution based on the first technical solution: an intelligent wardrobe, comprising a rotating device according to any one of claims 1 to 6 .

In addition, the control method of the present invention supports APP control and manual control to control the motor 18. Those skilled in the art of these control circuits can implement simple programming, which belongs to the common knowledge in the field, and the present invention is used for To protect the mechanical device, the utility model will not explain the control mode and circuit connection in detail.

Working principle: when the smart wardrobe is used, first install the rotating device in the wardrobe, which can be well supported and fixed in the wardrobe by the support pad 22, and the support pad 22 can also be firmly fixed on the support pad 22 by screws, etc. Installed in the wardrobe; when choosing clothes, the motor 18 is controlled to start and stop by APP control and manual control. When the motor 18 starts, it passes through the worm gear 16, the worm 19, the first gear 11, the second gear 13 and the third gear. The transmission and deceleration effect of the gear 17 drives the traveling gear 10 to rotate. Through the clamping action between the traveling gear 10 and the tooth slot 7, the moving belt 6 is driven to rotate smoothly at a low speed, and then drives the clothes hung on the tooth slot 7 to rotate, which is convenient for people. Make quick picks and save people time traveling.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a rotating device, includes roof-rack (1), be close to bottom fixedly connected with sill pillar (2) at its turning on roof-rack (1), its characterized in that: the edge of the top frame (1) is buckled (3) through installation and is provided with a bottom frame (4), the bottom of the bottom frame (4) close to the edge of the top frame is provided with a sliding groove (5), the inner wall sliding connection of the sliding groove (5) is provided with a moving belt (6), the moving belt (6) is provided with a toothed groove (7), the bottom frame (4) is provided with an inner side fixedly connected with fixing plate (8) close to one end of the bottom frame, the fixing plate (8) is rotatably provided with a first rotating shaft (9), the bottom end of the first rotating shaft (9) penetrates out of the fixing plate (8) and is sequentially provided with a traveling gear (10) and a first gear (11), the outer wall of the traveling gear (10) is connected with the inner wall of the toothed groove (7) in a clamping manner, the side of the fixing plate (8) close to the first gear (11) is rotatably provided with a second rotating shaft (12), the bottom end of the second rotating shaft, the surface of second gear (13) is connected with the surface engagement of first gear (11), be close to the side fixed mounting of second gear (13) on fixed plate (8) and have mount pad (14), rotate in mount pad (14) and install third pivot (15), worm wheel (16) and third gear (17) are installed in proper order to the bottom of third pivot (15), the surface of third gear (17) is connected with the surface engagement of second gear (13), motor (18) are installed to the one side of keeping away from first gear (11) on mount pad (14), mount pad (14) are worn into to the output shaft of motor (18) and worm (19) are installed, the surface of worm (19) is connected with the surface engagement of worm wheel (16).

2. A rotary device according to claim 1, wherein: the inner side of the top frame (1) is fixedly connected with a first reinforcing rib (20).

3. A rotary device according to claim 1, wherein: and the inner side of the underframe (4) is fixedly connected with a second reinforcing rib (21).

4. A rotary device according to claim 1, wherein: and a supporting pad (22) is installed at the bottom of the bottom column (2).

5. A rotary device according to claim 1, wherein: the moving belt (6) is a stainless steel belt.

6. A rotary device according to claim 1, wherein: the underframe (4) is in a straight notch shape.

7. An intelligent wardrobe, characterized in that: a rotary device comprising any one of claim 1 to claim 6.
