CN211035615U - Rubber sewage treatment system - Google Patents

Abstract

The utility model discloses a rubber sewage treatment system, comprising a first box body, a second box body is fixedly connected to the top of the first box body, a box cover is movably connected to the right side of the top of the second box body, and the A motor is fixedly connected to the right side of the second box body, an output end of the motor is fixedly connected to a rotating shaft, and the left side of the rotating shaft penetrates into the inner cavity of the second box body. The utility model is provided with a first box body, a second liquid outlet valve, a microporous filter screen, a biofilm, activated carbon particles, a liquid discharge pipe, a feeding pipe, a first liquid outlet valve, a second box body, a stirring rod, a box The use of cover, dust filter, motor, limit seat, funnel, waterproof solenoid valve, frame, shaft, box door, controller, support plate and limit groove solves the problem of existing rubber sewage treatment systems. After the sewage is treated, it is usually inconvenient to disassemble and clean the filter screen and other components therein, which affects its service life and brings inconvenience to users.

Description

Rubber Sewage Treatment System

technical field

The utility model relates to the technical field of sewage treatment, in particular to a rubber sewage treatment system.

Background technique

Rubber factory wastewater refers to the wastewater discharged from the production process of tire factories, tire repair factories, rubber industrial products factories and recycled rubber factories.

In the process of rubber production and processing, a lot of rubber waste water is often generated, which is easy to pollute the environment. Therefore, it is necessary to use a rubber sewage treatment system to treat it. The existing rubber sewage treatment system is usually inconvenient to treat the sewage. Dismantling and cleaning the filter screen and other components therein will affect the service life of the filter and bring inconvenience to the user.

Utility model content

The purpose of the utility model is to provide a rubber sewage treatment system, which has the advantage of being convenient for disassembling and cleaning components such as filters, and solves the problem that the existing rubber sewage treatment systems are usually inconvenient to disassemble the filters and other components after treating the sewage. Cleaning will affect its service life and bring inconvenience to users.

In order to achieve the above purpose, the present invention provides the following technical solutions: a rubber sewage treatment system, including a first box body, a second box body is fixedly connected to the top of the first box body, and the right side of the top of the second box body is A box cover is movably connected, a motor is fixedly connected to the right side of the second box body, a rotating shaft is fixedly connected to the output end of the motor, and the left side of the rotating shaft penetrates into the inner cavity of the second box body, and the rotating shaft The top of the surface and the bottom of the surface are fixedly connected with a stirring rod, the bottom of the second box body is connected with a first liquid outlet valve, and the bottom of the first liquid outlet valve penetrates to the inner cavity of the first box body, so The left side of the inner cavity of the first box is provided with a limiting groove, the left side of the first box is connected with a feeding pipe, the inner cavity of the first box is provided with a support plate, and the left side of the support plate is It extends to the inner cavity of the limit slot and is movably connected with the inner cavity of the limit slot, the right side of the support plate penetrates to the outside of the first box body and is fixedly connected to the limit seat, and the top of the support plate is penetrated and installed with A dust filter screen, a funnel is fixedly connected to the inner cavity of the first box, a drain pipe is connected to the bottom of the funnel, and a dust-proof solenoid valve is fixedly installed on the surface of the drain pipe. The inner cavity of the body and the bottom of the funnel are fixedly connected with a frame body, a microporous filter screen is installed through the top of the frame body, a biofilm is installed through the bottom of the frame body, and the inner cavity of the frame body is filled with Activated carbon particles, a second liquid outlet valve is connected to the center of the bottom of the first box body, a box door is movably connected to the left side of the front surface of the first box body, and a right side of the top surface of the first box body is connected A controller is fixedly connected.

Preferably, the left side of the first box body is movably connected to the left side of the box door through a first hinge, and the right side of the front surface of the box door is fixedly connected with a first handle.

Preferably, the connection between the right side of the box cover and the top of the second box body is movably connected through a second hinge, and the right side of the limiting seat is fixedly connected with a second handle.

Preferably, a protective cover is fixedly connected to the right side of the second box body and is located outside the motor, and the connection between the surface of the rotating shaft and the inner wall of the second box body is sealed.

Preferably, the four corners of the bottom of the first box are fixedly connected with support legs, the bottoms of the support legs are fixedly connected with a support seat, and the bottom of the support seat is provided with anti-skid lines.

Preferably, an ultraviolet germicidal lamp is fixedly connected to the bottom of the rear side of the inner cavity of the first box, and a sealing cover is fixedly connected to the rear side of the inner cavity of the first box and located outside the ultraviolet germicidal lamp.

Preferably, a guide rod is fixedly connected to the inner cavity of the first box and located at the bottom of the support plate, and the connection between the surface of the support plate and the inner wall of the first box is sealed.

Preferably, the top movable sleeve on the surface of the feeding pipe is provided with a dust cover, the top of the surface of the feeding pipe and the connection of the inner wall of the dust cover are threadedly connected, and the top of the front surface of the box door is connected to the second box. An observation mirror is installed through the top of the front surface of the body.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model is equipped with a first box body, a second liquid outlet valve, a microporous filter screen, a biofilm, activated carbon particles, a liquid discharge pipe, a feeding pipe, a first liquid outlet valve, a second box body, and a stirring rod. , box cover, dust filter, motor, limit seat, funnel, waterproof solenoid valve, frame, rotating shaft, box door, controller, support plate and limit groove are used together to solve the existing rubber sewage treatment. After the sewage is treated by the system, it is usually inconvenient to disassemble and clean the filter screen and other components, which affects its service life and brings inconvenience to users.

2. The utility model can balance the support of the first box by setting the support legs, by setting the support base, it can increase the friction force between the support legs and the ground, and by setting the anti-skid pattern, it can increase the relationship between the support base and the ground. The friction between the ground, by setting the dust cover, can prevent the external dust and other magazines from entering the inner cavity of the first box, and by setting the observation mirror, it is convenient for the user to observe the process of the acid-base neutralization reaction and the flocculation reaction. , The motor can be protected by setting the protective cover, the ultraviolet germicidal lamp can be protected by setting the sealing cover, the installation and use of the support plate can be facilitated by setting the limit groove, and the installation and use of the support plate can be facilitated by setting the guide rod. Extract and install.

Description of drawings

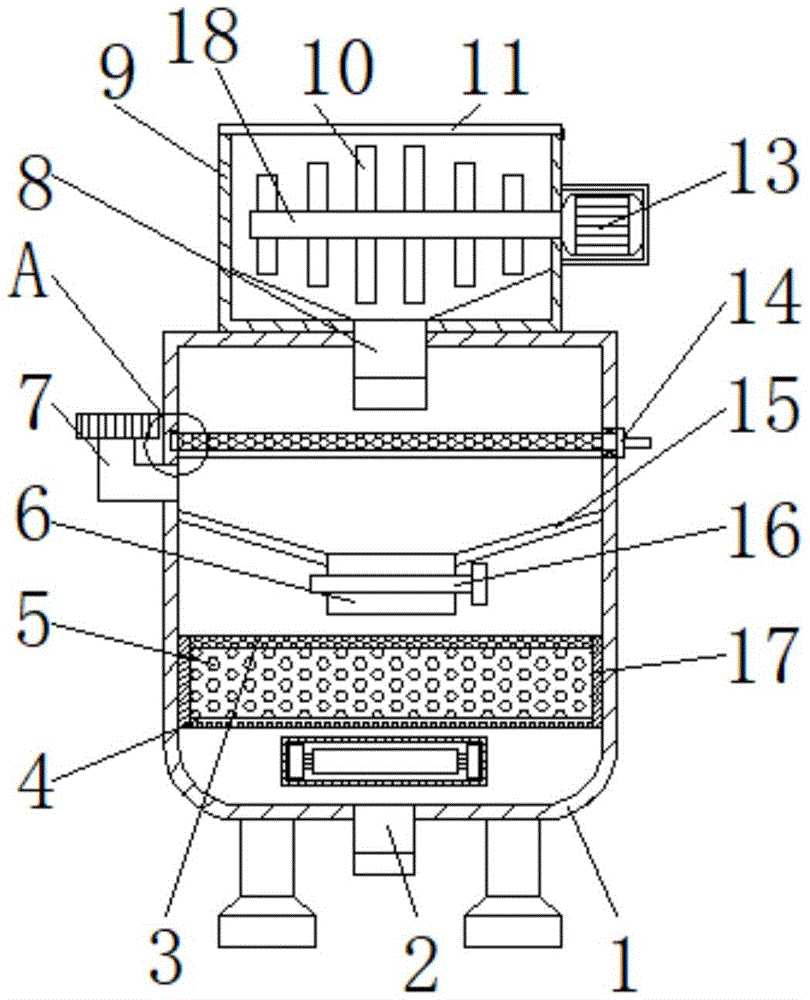

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the front view schematic diagram of the partial structure of the present utility model;

FIG. 3 is an enlarged view of A in FIG. 1 of the present utility model.

In the picture: 1 first box, 2 second outlet valve, 3 microporous filter, 4 biofilm, 5 activated carbon particles, 6 drain pipe, 7 feed pipe, 8 first outlet valve, 9 second Box, 10 stirring rod, 11 box cover, 12 dust filter, 13 motor, 14 limit seat, 15 funnel, 16 waterproof solenoid valve, 17 box, 18 shaft, 19 box door, 20 controller, 21 support plate, 22 limit slots.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end" and "the other end" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation on the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

In the utility model, the first box body 1, the second liquid outlet valve 2, the microporous filter screen 3, the biological membrane 4, the activated carbon particles 5, the liquid discharge pipe 6, the feeding pipe 7, the first liquid outlet valve 8, the first liquid outlet valve 8, the Two boxes 9, stirring rod 10, box cover 11, dust filter 12, motor 13, limit seat 14, funnel 15, waterproof solenoid valve 16, frame 17, rotating shaft 18, box door 19, controller 20, Components such as the support plate 21 and the limiting groove 22 are all common standard components or components known to those skilled in the art, and their structures and principles are known to those skilled in the art through technical manuals or through conventional experimental methods.

Please refer to Figure 1-3. The rubber sewage treatment system includes a first box 1. The four corners of the bottom of the first box 1 are fixedly connected with support legs. By setting the support legs, the first box 1 can be balanced and supported. The bottom of the support leg is fixedly connected with a support seat. By setting the support seat, the friction force between the support leg and the ground can be increased, and the bottom of the support seat is provided with anti-skid patterns. The friction force between the first box body 1 and the bottom of the back side of the inner cavity of the first box body 1 is fixedly connected with the ultraviolet germicidal lamp. The cover can protect the ultraviolet germicidal lamp. The top of the first box body 1 is fixedly connected with a second box body 9, and the right side of the top of the second box body 9 is movably connected with a box cover 11. The connection between the tops of the two boxes 9 is movably connected by a second hinge, the right side of the limit seat 14 is fixedly connected with a second handle, the right side of the second box 9 is fixedly connected with the motor 13 , and the right side of the second box 9 is fixedly connected with a second handle. A protective cover is fixedly connected to the outer side of the motor 13 and is located at the outer side of the motor 13 . By setting the protective cover, the motor 13 can be protected. The connection between the surface of the rotating shaft 18 and the inner wall of the second box body 9 is sealed, the top of the surface of the rotating shaft 18 and the bottom of the surface are fixedly connected with the stirring rod 10, and the bottom of the second box body 9 is connected with the first liquid outlet Valve 8, the bottom of the first liquid outlet valve 8 penetrates into the inner cavity of the first box body 1, the left side of the inner cavity of the first box body 1 is provided with a limit slot 22, and by setting the limit slot 22, it can facilitate the support plate 21 The left side of the first box body 1 is connected with a feeding pipe 7, the top movable sleeve on the surface of the feeding pipe 7 is provided with a dust cover, and the top of the surface of the feeding pipe 7 is connected with the inner wall of the dust cover. Threaded connection, by providing a dust cover, it can prevent external dust and other magazines from entering the inner cavity of the first box body 1, the inner cavity of the first box body 1 is provided with a support plate 21, and the inner cavity of the first box body 1 is located in the support plate 21. A guide rod is fixedly connected to the bottom of the board 21. By setting the guide rod, the extraction and installation of the support board 21 can be facilitated. The connection between the surface of the support board 21 and the inner wall of the first box body 1 is sealed. Extends to the inner cavity of the limit slot 22 and is movably connected with the inner cavity of the limit slot 22, the right side of the support plate 21 penetrates to the outside of the first box 1 and is fixedly connected to the limit seat 14, and the top of the support plate 21 penetrates A dust filter 12 is installed, a funnel 15 is fixedly connected to the inner cavity of the first box 1, a drain pipe 6 is connected to the bottom of the funnel 15, and a dust-proof solenoid valve 16 is fixedly installed on the surface of the drain pipe 6. A frame body 17 is fixedly connected to the inner cavity of the box body 1 and is located at the bottom of the funnel 15. The microporous filter screen 3 is installed through the top of the frame body 17, and the biofilm 4 is installed through the bottom of the frame body 17. The cavity is filled with activated carbon particles 5, the center of the bottom of the first box 1 is connected with a second liquid outlet valve 2, the left side of the front surface of the first box 1 is movably connected with a box door 19, and the left side of the first box 1 with box The left side of the door 19 is movably connected by a first hinge, the right side of the front surface of the box door 19 is fixedly connected with a first handle, the right side of the top surface of the front surface of the first box 1 is fixedly connected with the controller 20, and the front side of the box door 19 is fixedly connected with the controller 20. Both the top and the top of the front surface of the second box body 9 are provided with observation mirrors. By setting the observation mirrors, it is convenient for the user to observe the progress of the acid-base neutralization reaction and the flocculation reaction.

When in use, the user opens the box cover 11 and injects the rubber sewage into the inner cavity of the second box body 9, and then injects an appropriate amount of acid-base neutralization reagent into the inner cavity of the second box body 9 according to the measured pH value, and then closes it. The box cover 11 starts the motor 13 through the controller 20, and the output end of the motor 13 drives the stirring rod 10 through the rotating shaft 18 to stir the waste water in the inner cavity of the second box 9 to speed up the acid-base neutralization reaction rate, and then pass the controller 20 Activate the first liquid outlet valve 8, discharge the neutralized waste water to the inner cavity of the first tank 1, and then filter the large particles of impurities in the first tank 1 to remove the large particles of impurities, and then unscrew the dust cover to remove the flocculant. Inject into the inner cavity of the first box 1, and then observe the flocculation status of the inner cavity of the first box 1 through the observation mirror. After the flocculation is completed, open the dust-proof solenoid valve 16 through the controller 20, and the flocculated sediment and waste water are discharged. The liquid pipe 6 guides the flow to the top of the frame body 17, the precipitation is blocked by the microporous filter screen 3 on the top of the microporous filter screen 3, the waste water enters the inner cavity of the frame body 17, and then the micro-particle impurities are removed by activated carbon adsorption. The nitrogen and ammonia compounds with higher concentration are removed through the biofilm, and then sterilized by the ultraviolet germicidal lamp, and then discharged through the second liquid outlet valve 2. When the filter screen and other components need to be disassembled and cleaned, the user can pass the second handle. Drive the limiting seat 14 to extract the support plate 21 from the inner cavity of the first box body 1 for cleaning, and then open the box door through the first handle to clean and replace the microporous filter screen 3, activated carbon particles 5 and biofilm 4.

To sum up: the rubber sewage treatment system, by setting the first box 1, the second liquid outlet valve 2, the microporous filter screen 3, the biofilm 4, the activated carbon particles 5, the drain pipe 6, the feed pipe 7, The first liquid outlet valve 8, the second box body 9, the stirring rod 10, the box cover 11, the dust filter screen 12, the motor 13, the limit seat 14, the funnel 15, the waterproof solenoid valve 16, the frame body 17, the rotating shaft 18, The coordinated use of the box door 19, the controller 20, the support plate 21 and the limit groove 22 solves the problem that the existing rubber sewage treatment system is usually inconvenient to disassemble and clean the filter screen and other components after the sewage is treated, so that it can be used. The lifespan is affected, which brings inconvenience to the user.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (8)

1. A rubber sewage treatment system, comprising a first box (1), characterized in that: a second box (9) is fixedly connected to the top of the first box (1), and the second box (9) The right side of the top of the ) is movably connected with a box cover (11), the right side of the second box (9) is fixedly connected with a motor (13), and the output end of the motor (13) is fixedly connected with a rotating shaft (18) , the left side of the rotating shaft (18) penetrates to the inner cavity of the second box (9), the top and bottom of the surface of the rotating shaft (18) are fixedly connected with a stirring rod (10), the second The bottom of the box body (9) is communicated with a first liquid outlet valve (8), and the bottom of the first liquid outlet valve (8) penetrates to the inner cavity of the first box body (1), and the first box body ( 1) A limiting groove (22) is set on the left side of the inner cavity, a feeding pipe (7) is communicated with the left side of the first box body (1), and the inner cavity of the first box body (1) is provided with A support plate (21), the left side of the support plate (21) extends to the inner cavity of the limit slot (22) and is movably connected with the inner cavity of the limit slot (22), the right side of the support plate (21) The side penetrates to the outer side of the first box body (1) and is fixedly connected to the limiting seat (14). ) is fixedly connected with a funnel (15), the bottom of the funnel (15) is communicated with a drain pipe (6), and a dust-proof solenoid valve (16) is fixedly installed on the surface of the drain pipe (6), A frame body (17) is fixedly connected to the inner cavity of the first box body (1) and is located at the bottom of the funnel (15), and a microporous filter screen (3) is installed through the top of the frame body (17). A biofilm (4) is installed through the bottom of the frame body (17), the inner cavity of the frame body (17) is filled with activated carbon particles (5), and the center of the bottom of the first box body (1) communicates with A second liquid outlet valve (2), a box door (19) is movably connected to the left side of the front surface of the first box body (1), and a box door (19) is fixedly connected to the right side of the top surface of the first box body (1) controller (20). 2. The rubber sewage treatment system according to claim 1, wherein the left side of the first box body (1) is movably connected to the left side of the box door (19) through a first hinge, and the box door (19) A first handle is fixedly connected to the right side of the front surface. 3. The rubber sewage treatment system according to claim 1, characterized in that: the connection between the right side of the box cover (11) and the top of the second box body (9) is movably connected by a second hinge, and the limit A second handle is fixedly connected to the right side of the seat (14). 4. The rubber sewage treatment system according to claim 1, characterized in that: a protective cover is fixedly connected to the right side of the second box body (9) and is located at the outer side of the motor (13), and the rotating shaft (18) The junction between the surface of the casing and the inner wall of the second box body (9) is sealed. 5. The rubber sewage treatment system according to claim 1, wherein the four corners of the bottom of the first box (1) are fixedly connected with support legs, and the bottom of the support legs is fixedly connected with a support seat, and the bottom of the support seat is fixedly connected with a support seat. The bottom has anti-slip patterns. 6. The rubber sewage treatment system according to claim 1, characterized in that: the bottom of the back side of the inner cavity of the first box body (1) is fixedly connected with an ultraviolet germicidal lamp, and the first box body (1) The rear side of the cavity and the outer side of the ultraviolet germicidal lamp are fixedly connected with a sealing cover. 7 . The rubber sewage treatment system according to claim 1 , wherein a guide rod is fixedly connected to the inner cavity of the first box body ( 1 ) and is located at the bottom of the support plate ( 21 ). 21) and the junction of the inner wall of the first box body (1) to be sealed. 8. The rubber sewage treatment system according to claim 1, characterized in that: the top movable sleeve on the surface of the feed pipe (7) is provided with a dust cover, and the top of the surface of the feed pipe (7) is provided with a dust cover. The connection part of the inner wall of the dust cover is threadedly connected, and the top of the front surface of the box door (19) and the top of the front surface of the second box body (9) are all provided with observation mirrors.
