Abstract

The utility model discloses an automobile overhaul platform, including base lifting table, pivot A is installed to base left end both sides, and movable mounting has support A on the pivot A, lifting table bottom both sides are installed pivot B, movable mounting has support B on the pivot B, the toolbox is installed to base left side front end, the slide rail is installed to the inside bilateral symmetry of toolbox, the inboard movable mounting of slide rail has the drawer, the workstation is installed at the toolbox top, lifting table right-hand member inboard is installed the screw box. The utility model discloses a slide rail makes its drawer be located the toolbox and takes out, can be convenient for overhaul the depositing and taking of instrument through the drawer, makes its use more convenient laborsaving, and the use when can be convenient for overhaul through the workstation has the screw of dismantling at the maintenance in-process, and these screw accessible screw boxes are deposited to avoid losing, the depositing of screw has been made things convenient for greatly.

Description

Automobile overhaul platform
Technical Field
The utility model relates to an automobile overhaul technical field specifically is an automobile overhaul platform.
Background
The existing automobile maintenance is a general term of automobile maintenance and repair, namely, the detection of parts is carried out on an automobile, so that problems are found, or the automobile with faults is checked by technical means, the fault reason is found out, certain measures are taken to remove the faults and recover to reach certain performance and safety standards, the automobile needs to be arranged above a maintenance platform and then lifted up when the existing automobile maintenance is carried out, but the existing automobile maintenance platform has some insufficient places, for example; the existing automobile overhaul platform is single in functionality, the overhaul tools are not convenient to store and take, and the disassembled screws are not convenient to store, so that the automobile overhaul platform is easy to lose, and unnecessary loss is brought.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an automobile overhaul platform has solved the problem that proposes in the background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an automobile overhaul platform, includes base lifting table, pivot A is installed to base left end both sides, and movable mounting has support A on the pivot A, lifting table bottom both sides and installing pivot B, movable mounting has support B on the pivot B, the toolbox is installed to base left side front end, the slide rail is installed to the inside bilateral symmetry of toolbox, the inboard movable mounting of slide rail has the drawer, the workstation is installed at the toolbox top, lifting table right-hand member inboard is installed the screw box, support A and support B mid-mounting have pivot C, support A and support B are through pivot C swing joint, just be located the inboard movable mounting of support A in pivot A and have hydraulic push rod, pivot D is installed in support B left side, hydraulic push rod right-hand member is located swing joint on the pivot D.
As a preferred embodiment of the utility model, lifting platform front side both ends symmetry install branch, light A is installed at the branch top.
As a preferred embodiment of the present invention, the base top is embedded with a lighting lamp B inside the lifting platform.
As an optimal implementation manner of the present invention, pulleys are installed at the right ends of the support a and the support B.
As a preferred embodiment of the present invention, a rubber pad a is bonded to the bottom of the base, and a rubber pad B is bonded to the top surface of the lifting table.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model relates to an automobile overhaul platform makes its drawer be located the toolbox through the slide rail and takes out, can be convenient for overhaul the depositing and taking of instrument through the drawer, makes its use more convenient laborsaving, and the use when can be convenient for overhaul through the workstation, has the screw of dismantling at the maintenance in-process, and these screw accessible screw boxes deposit to avoid losing, be convenient depositing of screw greatly.
2. The utility model relates to an automobile overhaul platform can be convenient for the illumination work to the vehicle both sides through light A, can be convenient for the illumination work to vehicle chassis through light B to improve the light when staff overhauls the vehicle greatly, thereby do benefit to the maintenance.
3. The utility model relates to an automobile overhaul platform can improve the device through rubber pad A and put with subaerial frictional force, avoids rocking, and can improve the frictional force that the vehicle was located when lifting the bench through rubber pad B to ensure stability, improve the maintenance security greatly.
Drawings
Other features, objects and advantages of the invention will become more apparent upon reading of the detailed description of non-limiting embodiments with reference to the following drawings:

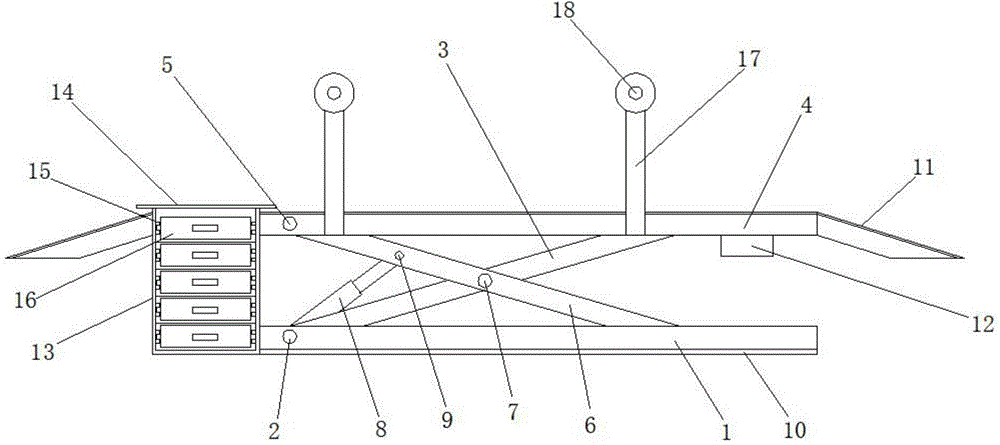

FIG. 1 is a schematic side view of an automobile maintenance platform according to the present invention;
FIG. 2 is a schematic view of a front view structure of an automobile maintenance platform of the present invention;
fig. 3 is the utility model relates to a screw box structure schematic diagram of auto repair platform.
In the figure: 1. a base; 2. a rotating shaft A; 3. a bracket A; 4. a lifting table; 5. a rotating shaft B; 6. a bracket B; 7. a rotating shaft C; 8. a hydraulic push rod; 9. a rotating shaft D; 10. a rubber pad A; 11. a rubber pad B; 12. a screw box; 13. a tool box; 14. a work table; 15. A slide rail; 16. a drawer; 17. a strut; 18. an illuminating lamp A; 19. a pulley; 20. and an illuminating lamp B.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
Referring to fig. 1-3, the present invention provides a technical solution: an automobile maintenance platform comprises a base 1 lifting platform 4, rotating shafts A2 are arranged on two sides of the left end of the base 1, a support A3 is movably arranged on the rotating shaft A2, two sides of the bottom of the lifting platform 4 are provided with a rotating shaft B5, a bracket B6 is movably arranged on the rotating shaft B5, a tool box 13 is arranged at the front end of the left side of the base 1, slide rails 15 are symmetrically arranged on two sides in the tool box 13, a drawer 16 is movably arranged on the inner side of the slide rail 15, a workbench 14 is arranged on the top of the tool box 13, a screw box 12 is arranged at the inner side of the right end of the lifting table 4, a rotating shaft C7 is arranged at the middle parts of the bracket A3 and the bracket B6, the bracket A3 is movably connected with the bracket B6 through a rotating shaft C7, a hydraulic push rod 8 is movably arranged on the rotating shaft A2 and positioned at the inner side of the bracket A3, and a rotating shaft D9 is installed on the left side of the support B6, and the right end of the hydraulic push rod 8 is movably connected with the rotating shaft D9.
In the embodiment (please refer to fig. 1 and 3), the drawer 16 is drawn out from the tool box 13 through the slide rail 15, the maintenance tool can be conveniently stored and taken through the drawer 16, so that the maintenance tool is more convenient and labor-saving to use, and the screws can be conveniently used during maintenance through the workbench 14, and can be detached during maintenance, and can be stored through the screw box 12, so that the loss is avoided, and the storage of the screws is greatly facilitated.
Wherein, lifting table 4 front side both ends symmetry are installed branch 17, light A18 is installed at branch 17 top.
In this embodiment (see fig. 1), the illumination of both sides of the vehicle can be facilitated by the illumination lamp a 18.
Wherein, the top of the base 1 and the inner side of the lifting platform 4 are embedded with an illuminating lamp B20.
In this embodiment (see fig. 2), the illuminating lamp B20 can facilitate the illumination of the chassis of the vehicle, thereby greatly improving the light of the worker during the vehicle maintenance.
And pulleys 19 are arranged at the right ends of the support A3 and the support B6.
In this embodiment (see fig. 2), the pulley 19 can ensure the mobility of the right end when the support a3 and the support B6 cross.
Wherein, rubber pad A10 is bonded to the bottom of the base 1, and rubber pad B11 is bonded to the top surface of the lifting table 4.
In this embodiment (see fig. 1), the rubber pad a10 can increase the friction between the device and the ground to avoid shaking, and the rubber pad B11 can increase the friction between the vehicle and the lifting platform 4, thereby ensuring stability and greatly improving the safety of maintenance.
It should be noted that the utility model relates to an automobile maintenance platform, which comprises a base 1; 2. a rotating shaft A; 3. a bracket A; 4. a lifting table; 5. a rotating shaft B; 6. a bracket B; 7. A rotating shaft C; 8. a hydraulic push rod; 9. a rotating shaft D; 10. a rubber pad A; 11. a rubber pad B; 12. a screw box; 13. a tool box; 14. a work table; 15. a slide rail; 16. a drawer; 17. a strut; 18. an illuminating lamp A; 19. a pulley; 20. the lighting lamp B is a universal standard part or a part known by technicians in the field, the structure and the principle of the lighting lamp B can be known by technical manuals or conventional experimental methods, when the vehicle is operated, firstly, the vehicle is lifted on the lifting platform 4, then the hydraulic push rod 8 is started, at the moment, the hydraulic push rod 8 extends out to jack the left side of the support B6 to ascend, at the same time, the right end of the support A3 is lifted, at the moment, the left end of the hydraulic push rod 8 is positioned on the rotating shaft A2 to rotate, the right end of the hydraulic push rod 8 is positioned on the rotating shaft D9 to rotate, after the support B6 is lifted, the right end of the support B6 is positioned in the base 1 to move to the left through the pulley 19, the right end of the support A3 is positioned in the lifting platform 4 to move to the left through the pulley 19 to finally complete the lifting platform 4, when the hydraulic push rod 8 contracts, the hydraulic push rod 8 can complete the descending, after the vehicle is lifted, the drawer 16, can be convenient for maintenance instrument deposit and take through drawer 16, make its use more convenient laborsaving, and use when can be convenient for overhaul through workstation 14, there is the screw that dismantles in the maintenance in-process, and these screw accessible screw box 12 are deposited, thereby avoid losing, the depositing of screw is greatly convenient, and can be convenient for the illumination work to the vehicle both sides through light A18, can be convenient for the illumination work to vehicle chassis through light B20, thereby light when improving staff's maintenance vehicle greatly, thereby do benefit to the maintenance, and can improve the device through rubber pad A10 and put with subaerial frictional force, avoid rocking, and can improve the frictional force when the vehicle is located lifting platform 4 through rubber pad B11, thereby ensure stability, improve maintenance security greatly.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above, it will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, but that the invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims (5)

1. The utility model provides an automobile overhaul platform, includes base (1) lifting platform (4), its characterized in that: the hydraulic lifting platform is characterized in that a rotating shaft A (2) is installed on two sides of the left end of a base (1), a support A (3) is movably installed on the rotating shaft A (2), a rotating shaft B (5) is installed on two sides of the bottom of a lifting platform (4), a support B (6) is movably installed on the rotating shaft B (5), a tool box (13) is installed at the front end of the left side of the base (1), slide rails (15) are symmetrically installed on two sides of the inner portion of the tool box (13), drawers (16) are movably installed on the inner sides of the slide rails (15), a workbench (14) is installed at the top of the tool box (13), a screw box (12) is installed on the inner side of the right end of the lifting platform (4), a rotating shaft C (7) is installed between the support A (3) and the support B (6), the support A (3) and the support B (6) are movably connected through the rotating shaft C (7), a hydraulic, pivot D (9) are installed in support B (6) left side, swing joint on hydraulic push rod (8) right-hand member is located pivot D (9).
2. An automotive service platform as claimed in claim 1, wherein: supporting rods (17) are symmetrically installed at two ends of the front side of the lifting table (4), and illuminating lamps A (18) are installed at the tops of the supporting rods (17).
3. An automotive service platform as claimed in claim 1, wherein: and an illuminating lamp B (20) is embedded into the top of the base (1) and positioned on the inner side of the lifting platform (4).
4. An automotive service platform as claimed in claim 1, wherein: pulleys (19) are installed at the right ends of the support A (3) and the support B (6).
5. An automotive service platform as claimed in claim 1, wherein: the bottom of the base (1) is bonded with a rubber pad A (10), and the top surface of the lifting table (4) is bonded with a rubber pad B (11).
