Abstract

The utility model discloses a medical pipeline storage device, comprising a fixed bracket, a winding mechanism, the winding mechanism is movably sleeved on the fixed bracket to wrap and fix the pipeline body, a chuck mechanism, and the chuck The mechanism is movably connected to the upper end of the fixed bracket to clamp and fix the pipeline port. The fixed bracket includes a base and a rotating shaft. The rotating shaft is arranged at the center of the base, and an outer sleeve is fixed to the outer sleeve. The ring-shaped protrusion is sleeved on the outside of the rotating shaft, and the annular protrusion is arranged on the outer sleeve. The winding mechanism includes a cross fixed frame movably sleeved on the outer sleeve, and a fixed sleeve. For the several threading wheel sets placed on the cross fixing frame, the utility model can fix and summarize the redundant pipelines, effectively avoid the problems such as pipelines intertwining and occupying public space, and mistakes in plugging and unplugging easily affect the diagnosis results, which is beneficial to medical staff. It is convenient for wide popularization and application.

Description

A medical pipeline storage device

technical field

The utility model relates to the technical field of pipeline storage and fixing, in particular to a medical pipeline storage device.

Background technique

In the process of diagnosis and treatment in the hospital, many instruments and equipment are used. When various instruments and equipment are used together, a large number of pipelines and power cords will be exposed, and the storage of these pipelines is often difficult; when using, the pipelines of various instruments It is easy to be intertwined, and mistakes are prone to occur during the plugging and unplugging process; after use, if it is directly stacked on the ground, it will not only take up space, and the intricate winding of the pipeline will easily cause inconvenience to the medical staff, but also is not conducive to the next use.

Combined with the defects of the prior art that the pipelines of medical equipment are easy to intertwine, easy to cause insertion and extraction errors, and inconvenient to store pipelines, a device is designed that is convenient for pipeline winding storage, saves space, and is convenient to use, so as to solve the above problems.

SUMMARY OF THE INVENTION

The purpose of the utility model is to provide a medical pipeline storage device which is convenient for pipeline winding storage, space saving and convenient use.

In order to achieve the above object, the utility model provides the following technical solutions:

A medical pipeline storage device, comprising:

fixed bracket;

a wire winding mechanism, the wire winding mechanism is movably sleeved on the fixing bracket to wrap and fix the wire body of the pipeline;

A chuck mechanism, the chuck mechanism is movably connected to the upper end of the fixing bracket to clamp and fix the pipeline port.

The fixing bracket includes:

base;

a rotating shaft, the rotating shaft is arranged at the center of the base;

an outer sleeve, the outer sleeve is fixedly sleeved on the outside of the rotating shaft;

The annular protrusion is arranged on the outer sleeve.

The winding mechanism includes:

a cross fixing frame movably sleeved on the outer sleeve; and

Several threading wheel sets are fixedly sleeved on the cross fixing frame.

The chuck mechanism includes:

a first chuck that is movably sleeved on the rotating shaft; and

The second chuck is arranged at the lower end of the first chuck and coaxial with the first chuck.

The threading wheel set includes:

an inner sleeve fixedly sleeved on the cross fixing frame; and

a winding wheel that is movably sleeved on the inner sleeve;

Both ends of the inner sleeve are respectively fixed and sleeved with a first threading reel and a second threading reel, and the thread winding reel is located between the first threading reel and the second threading reel;

Wherein, the first threading disc and the second threading disc are provided with wire grooves.

the first chuck includes a first bending part;

the second chuck includes a second bending portion;

Further, the first bending part and the second bending part are used together.

Beneficial effects of the present utility model:

The medical pipeline storage device provided by the utility model can fix and summarize redundant pipelines, effectively avoid problems such as pipelines intertwining and occupying public space, misplugging and unplugging errors easily affecting the diagnosis results, etc.

Description of drawings

In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the accompanying drawings that need to be used in the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only in the present invention For some of the described embodiments, for those of ordinary skill in the art, other drawings can also be obtained according to these drawings.

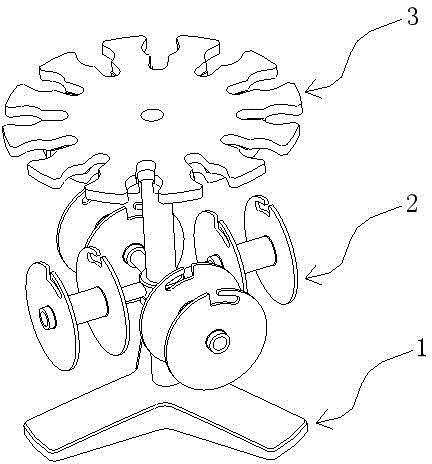

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of the fixed bracket in the utility model;

Fig. 3 is the structural representation of the winding mechanism in the utility model;

Fig. 4 is the structural representation of the first chuck in the utility model;

Fig. 5 is the structural representation of the second chuck in the utility model;

Fig. 6 is the structural schematic diagram of the cross fixing frame in the utility model;

Fig. 7 is the structural representation of the threading wheel set in the utility model;

Fig. 8 is the top view of the chuck mechanism in the utility model;

FIG. 9 is a detailed view of the position A in FIG. 8 of the present invention.

Description of reference numbers:

1. Fixed bracket; 2. Winding mechanism; 3. Chuck mechanism;

11. Base; 12. Outer sleeve; 13. Shaft;

21. Cross fixing frame; 22. Threading wheel set;

31. The first chuck; 32. The second chuck;

221, the first threading reel; 222, the second threading reel; 223, the inner sleeve; 224, the thread winding wheel; 225, the wire groove;

311, the first bending part; 321, the second bending part.

Detailed ways

In order to make those skilled in the art better understand the technical solutions of the present invention, the present invention will be further described in detail below with reference to the accompanying drawings.

See Figure 1 to Figure 7;

A medical pipeline storage device of the utility model comprises:

Fixed bracket 1;

Winding mechanism 2, the winding mechanism 2 is movably sleeved on the fixing bracket 1 to wrap and fix the pipeline body;

The chuck mechanism 3 is movably connected to the upper end of the fixing bracket 1 to clamp and fix the pipeline port.

Specifically, in the medical pipeline storage device provided by the present invention, when in use, the pipeline is firstly wound and fixed on the winding mechanism 2, and then one end of the pipeline is clamped and fixed on the chuck mechanism 3; at the same time, the winding The mechanism 2 and the chuck mechanism 3 are respectively movably connected to the fixed bracket 1, and the medical staff can rotate the winding mechanism 2 or the chuck mechanism 3 to take the pipeline when using it.

Fixing bracket 1 includes:

base 11;

A rotating shaft 12, the rotating shaft 12 is arranged at the center of the base 11;

The outer sleeve 13, the outer sleeve 13 is fixedly sleeved on the outside of the rotating shaft 12;

The annular protrusion 14 is provided on the outer sleeve 13 .

Specifically, the outer sleeve 13 is fixedly sleeved on the outside of the rotating shaft 12 and the lower end of the outer sleeve 13 and the lower end of the rotating shaft 12 are fixed on the base 11 together. The upper end of the outer sleeve 13 does not completely cover the upper end port of the rotating shaft 12 The upper port of the rotating shaft 12 is movably connected with the chuck mechanism 3 , the winding mechanism 2 is movably connected with the outer sleeve 13 , and the annular protrusion 14 acts as an axial support for the winding mechanism 2 .

Winding mechanism 2 includes:

a cross fixing frame 21 movably sleeved on the outer sleeve 13; and

Several threading wheel sets 22 are fixedly sleeved on the cross fixing frame 21 .

The chuck mechanism 3 includes:

the first chuck 31 movably sleeved on the rotating shaft 12; and

The second chuck 32 is provided at the lower end of the first chuck 31 and is coaxial with the first chuck 31 .

The threading wheel set 22 includes:

an inner sleeve 223 that is fixedly sleeved on the cross fixing frame 21; and

a winding wheel 224 that is movably sleeved on the inner sleeve 223;

Both ends of the inner sleeve 223 are respectively fixed with a first threading reel 221 and a second threading reel 222, and the thread winding wheel 224 is located between the first threading reel 221 and the second threading reel 222;

Wherein, the first threading disc 221 and the second threading disc 222 are provided with wire grooves 225 .

Specifically, after passing one end of the pipeline through the second threading reel 222 and clamping the other end of the pipeline, the pipeline is wound on the reel 224 to an appropriate length, and then the penetrating end of the pipeline is passed through the first threading reel 221 is pierced out and stuck, and finally the pierced end of the pipeline is placed on the chuck mechanism 3 to be clamped and fixed.

The first chuck 31 includes a first bending portion 311;

The second chuck 32 includes a second bending portion 321;

The first bending part 311 and the second bending part 321 are used together.

Specifically, the first bending part 311 is a multi-section irregular bending arc, and the second bending part 321 is used in conjunction with the bending arc of the first bending part 311 close to the inner side, and can fix a relatively thin pipeline; The bending arc of the folded portion 311 near the outer side can be used to fix thicker pipelines.

Certain exemplary embodiments of the present invention have been described above by way of illustration only, and it goes without saying that for those of ordinary skill in the art, without departing from the spirit and scope of the present invention, various different Modifications are made to the described embodiments. Accordingly, the above drawings and descriptions are illustrative in nature and should not be construed as limiting the scope of protection of the claims of the present invention.

Claims (6)

1. A medical pipeline storage device, characterized in that, comprising: Fixing bracket (1); a winding mechanism (2), the winding mechanism (2) is movably sleeved on the fixing bracket (1) to wrap and fix the pipeline body; A chuck mechanism (3), the chuck mechanism (3) is movably connected to the upper end of the fixing bracket (1) to clamp and fix the pipeline port. 2. A medical pipeline storage device according to claim 1, wherein the fixing bracket (1) comprises: base (11); a rotating shaft (12), the rotating shaft (12) is arranged at the center of the base (11); an outer sleeve (13), the outer sleeve (13) is fixedly sleeved on the outside of the rotating shaft (12); An annular protrusion (14) is provided on the outer sleeve (13). 3. The medical pipeline storage device according to claim 2, wherein the winding mechanism (2) comprises: a cross fixing frame (21) movably sleeved on the outer sleeve (13); and Several threading wheel sets (22) are fixedly sleeved on the cross fixing frame (21). 4. The medical pipeline storage device according to claim 2, wherein the chuck mechanism (3) comprises: a first chuck (31) movably sleeved on the rotating shaft (12); and A second chuck (32) is arranged at the lower end of the first chuck (31) and coaxial with the first chuck (31). 5. The medical pipeline storage device according to claim 3, wherein the threading wheel set (22) comprises: an inner sleeve (223) fixedly sleeved on the cross fixing frame (21); and a winding wheel (224) movably sleeved on the inner sleeve (223); A first threading reel (221) and a second threading reel (222) are respectively fixedly sleeved at both ends of the inner sleeve (223), and the thread winding wheel (224) is located on the first threading reel (221) and the second threading disc (222); Wherein, the first threading disc (221) and the second threading disc (222) are provided with wire grooves (225). 6. A medical pipeline storage device according to claim 4, characterized in that: The first chuck (31) includes a first bending portion (311); The second chuck (32) includes a second bending portion (321); The first bending part (311) and the second bending part (321) are used together.
