A device for draining oral secretions

technical field

The utility model relates to the technical field of chemotherapy equipment, in particular to a device for draining oral secretions.

Background technique

In clinical practice or during surgery, patients need to install devices such as tracheal intubation or oropharyngeal ventilation tubes. Both tracheal intubation and oropharyngeal ventilation tubes extend into the patient's body through the patient's mouth, resulting in the patient's mouth not being able to be closed for a long time. In the open state, as shown in Figure 1 (tracheal intubation and oropharyngeal ventilation tubes are usually fixed in the patient's mouth by tape), the oral cavity secretes a large amount of secretions (such as saliva, saliva, etc.), and it is very inconvenient to swallow, making it difficult to swallow. Oral secretions will flow out along one or both sides of the mouth under the action of gravity. In addition, for patients with tracheal intubation and under anesthesia, there is also the problem of oral secretions flowing out along the corners of the mouth. Not only is it easy to soil the sick clothes and bed sheets, which is unsightly, but also requires medical staff or their family members to clean up from time to time, which increases the workload of medical staff and their family members.

Utility model content

The purpose of this utility model is to improve the deficiencies existing in the prior art, and to provide a device for draining oral secretions, which has a simple structure and low cost, can drain and temporarily store the secretions from the corners of the mouth, and is easy to wear. And disassembly, very convenient to use.

The technical scheme adopted by the utility model is:

A device for draining oral secretions, comprising a drainage portion for draining oral secretions, a accommodating portion for storing oral secretions, and a fixing portion, one end of the drainage portion is used for drainage at the corner of the mouth, and the other is used for drainage. One end communicates with the accommodating part, the accommodating part and/or the drainage part are fixed on the fixing part, and the fixing part is used for fixing on the patient's head. In this solution, the device can be fixed on the patient's head by the fixing part, and the accommodating part is located under the patient's head (usually below the lower jaw), so that the oral secretions can be automatically accommodated under the action of gravity The upper end of the drainage part can be placed at the corner of the patient's mouth or extended into the patient's mouth, so as to automatically guide the flow of oral secretions along the drainage part, so as to smoothly flow into the accommodating part It can effectively avoid the problem of overflowing secretions. In addition, the device has a simple structure, low cost, and is easy to wear during use, and is especially suitable for patients and patients who are equipped with tracheal intubation or oropharyngeal ventilation in clinical practice. A patient under anesthesia during surgery.

Preferably, the drainage portion includes a drainage tube and a drainage bar disposed in the drainage tube, one end of the drainage tube is communicated with the accommodating portion, one end of the drainage bar extends into the drainage tube, and the other end extends into the drainage tube. an accommodating part, and the drainage strip is used for guiding oral secretions into the accommodating part. The drainage strip can be preferably made of water-absorbing material, so as to guide the oral secretions to flow along the drainage tube and smoothly enter the accommodating part under the action of gravity. The purpose is to prevent secretions from contaminating the patient's skin, clothes, bed sheets, etc.

Preferably, the drainage tube is a hose. It can be bent, so that it is convenient for medical staff to set one end of the drainage strip at the corner of the patient's mouth or extend from the corner of the mouth into the patient's mouth.

Preferably, the drainage tube is a square tube, a round tube or an oval tube. The drainage tube can be preferably a square tube, which is more convenient for stable installation and avoids a large change in the position of the drainage tube during use.

Further, the cross-sectional shape of the drainage strip is adapted to the cross-sectional shape of the drainage tube. That is, when the cross-sectional shape of the drainage tube is rectangular, the cross-sectional shape of the drainage strip is also rectangular, so as to have a larger contact area, which is more conducive to intercepting oral secretions.

Further, a plurality of protrusions are arranged in the drainage pipe, and each protrusion is evenly distributed along the circumferential direction of the drainage pipe, and there is a gap between two adjacent protrusions, and the protrusions are used to support the drainage arranged at the middle position of the drainage pipe. strip. The arrangement of the protrusions, on the one hand, can ensure that the drainage strip is arranged in the middle of the drainage tube, and is not in contact with the drainage tube, which is more conducive to drainage; on the other hand, the gaps between the protrusions can form a channel for air circulation , so as to maintain the air pressure balance in the fixed part, so that oral secretions can flow into the fixed part smoothly.

Preferably, the drainage strip is a strip sponge or cotton thread or sand strip. Sponges, cotton threads or sand strips have good water absorption properties, which can effectively intercept and guide oral secretions into the container.

Further, an attraction head is also included, the attraction head is connected with the drainage strip, the material of the attraction head is the same as that of the drainage strip, and the attraction head has an arc structure. The suction head of the arc structure is beneficial to increase the interception area, so that the interception effect of oral secretions is better, especially suitable for intercepting oral secretions overflowing from the corner of the mouth.

In order to facilitate fixing the drainage tube, preferably, a fin of a sheet-like structure is further included, and the fin is fixed to the drainage tube. When using the device, the medical staff can conveniently set the position of the drainage tube by holding the fins. After the position of the drainage tube is set, the drainage tube and the fins can be bypassed with adhesive tape, and the drainage tube can be easily fixed in the corresponding position. The fins can increase the contact area with the tape, which can effectively avoid loosening and lead to changes in the position of the drainage tube.

Preferably, the accommodating part comprises a soft bladder made of rubber or plastic, the bladder is provided with an opening, and the opening is fixedly connected or detachably connected to the drainage tube. The interior of the sac has a cavity for accommodating oral secretions, and the communication between the drainage tube and the sac is realized through the opening, which can not only realize the fixation of the sac, but also allow the oral secretions to smoothly enter the cavity. .

Further, the bladder is also filled with sponge, and the sponge is filled in the upper part of the bladder and is in contact with the drainage strip. The sponge has good water absorption performance, which is more conducive to providing suction to oral secretions and guiding oral secretions into the cystic body. Moreover, after using for a period of time, the sponge can be manually squeezed to make the oral secretions absorbed by the sponge. It can be squeezed to the lower part of the sac, so that the water content of the sac is reduced, which facilitates the continued drainage of oral secretions.

Preferably, the fixing portion includes a fixing band, and two ends of the fixing band are respectively provided with a Velcro or a snap button, so as to realize the detachable connection of the two ends of the fixing band. It is convenient to wear the device on the patient's head and easy to dismantle, which is beneficial to more convenient use.

In a preferred solution, two bladder-shaped bodies and two drainage tubes are included, the two drainage tubes are respectively fixed on the fixing belt, one end of the drainage tubes is respectively connected with the bladder-shaped body, and the inner parts of the two drainage tubes are respectively The drainage strips are provided, and the two drainage strips are respectively used to be arranged at the two corners of the patient's mouth or respectively used to extend into the mouth from the two corners of the patient's mouth. In this solution, two drainage strips are arranged to drain the oral secretions at the two corners of the patient's mouth respectively, so that no matter which direction the patient lies on his side, a better drainage effect can be achieved, which is beneficial for the device to be applied to more the occasion. Especially for patients who are not lying flat.

Further, it also includes a one-way valve, the one-way valve is arranged on the bladder-shaped body and communicates with the bladder-shaped body, and the one-way valve is used for discharging the air in the bladder-shaped body. In this solution, a one-way valve is provided so that when the capsule body is squeezed, the air in the capsule body can be discharged from the one-way valve. Continuous and relatively stable suction to achieve better drainage effect.

Compared with the prior art, using the device for draining oral secretions provided by the utility model has the advantages of simple structure and low cost, which can both drain and store the oral secretions flowing out from the corners of the mouth, and avoid the overflow of oral secretions. In addition, it is very convenient to wear and disassemble during use, especially suitable for patients with tracheal intubation or oropharyngeal ventilation tubes in clinical practice and patients under anesthesia during surgery.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings that need to be used in the embodiments will be briefly introduced below. It should be understood that the following drawings only show some embodiments of the present invention. Therefore, it should not be regarded as a limitation of the scope. For those of ordinary skill in the art, other related drawings can also be obtained from these drawings without any creative effort.

Figure 1 is a schematic view of the patient's face after endotracheal intubation or oropharyngeal ventilation.

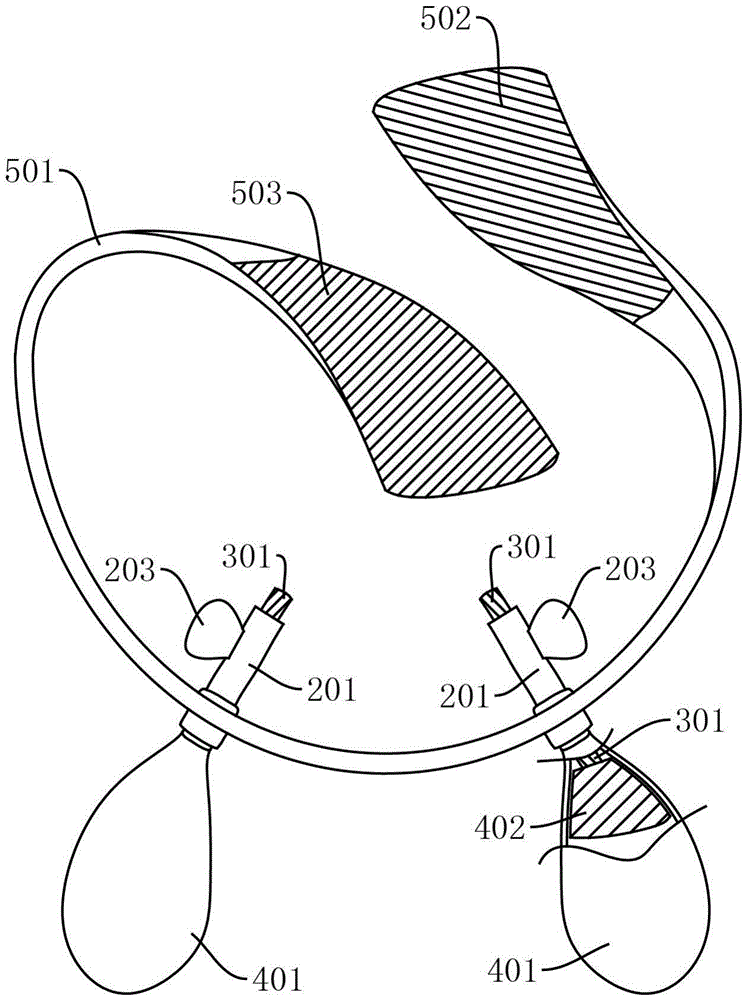

2 is a schematic structural diagram of a device for draining oral secretions provided in Embodiment 1 of the present invention.

3 is a schematic cross-sectional view of a drainage tube in a device for drainage of oral secretions provided in Embodiment 1 of the present invention.

4 is a schematic cross-sectional view of another drainage tube in a device for drainage of oral secretions provided in Embodiment 1 of the present invention.

5 is a partial schematic diagram of the end of the drainage strip in the device for drainage of oral secretions provided in Embodiment 1 of the present invention.

6 is a schematic diagram of a device for draining oral secretions provided in Embodiment 1 of the present invention, which is disposed behind a patient's head.

Description of the marks in the figure

Mouth 101, tracheal intubation or oropharyngeal ventilation tube 102, tape 103,

Drainage tube 201, protrusion 202, fin 203,

Drainage strip 301, suction head 302,

Capsule 401, sponge 402,

Fixing belt 501 , A side 502 , B side 503 .

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the embodiments. . The components of the embodiments of the invention generally described and illustrated in the drawings herein may be arranged and designed in a variety of different configurations. Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those skilled in the art without creative work fall within the protection scope of the present invention.

Example 1

Referring to FIG. 2 and FIG. 6 , this embodiment provides a device for draining oral secretions, including a drainage portion for draining oral secretions, a accommodating portion for storing oral secretions, and a device for installing this The fixing part of the device, one end of the drainage part is used for drainage at the corner of the mouth, and the other end is communicated with the accommodating part, the accommodating part and/or the drainage part can be fixed to the fixing part, and the fixing part is used for It is fixed on the patient's head, so that the installation of the device can be realized to avoid falling off or loosening during use. In this embodiment, the device can be fixed on the patient's head by the fixing part, and the accommodating part is located under the patient's head (usually under the lower jaw), so that the oral secretions can be automatically moved to the patient's head under the action of gravity. The upper end of the drainage part can be placed at the corner of the patient's mouth or extended into the patient's mouth, so as to automatically guide the flow of oral secretions along the drainage part, so as to smoothly flow into the accommodating part It can effectively avoid the problem of overflowing oral secretions. In addition, the device has a simple structure, low cost, and is easy to wear during use, and is especially suitable for clinical devices such as tracheal intubation or oropharyngeal ventilation tubes. Patients and patients under anesthesia during surgery.

As shown in FIG. 2 and FIG. 6 , in this embodiment, the drainage portion includes a drainage tube 201 and a drainage strip 301 disposed in the drainage tube 201. One end of the drainage tube 201 is communicated with the accommodating portion, One end of the drainage strip 301 extends into the drainage tube 201 and the other end extends into the accommodating part, and the drainage strip 301 is used for guiding oral secretions into the accommodating part. In this embodiment, the drainage strip 301 can be preferably made of water-absorbing material. As an example, the drainage strip 301 can be a strip sponge 402, cotton thread or sand strip; the sponge 402, cotton thread or sand strip all have good water absorption performance , which can effectively intercept and guide oral secretions to smoothly enter the accommodating part under the action of gravity. The drainage tube 201 is used to isolate the drainage strip 301, which can achieve the purpose of conveying oral secretions and prevent oral secretions from contaminating the patient's skin. , clothes, bed sheets, etc.

In order to facilitate setting the position of the end of the drainage strip 301, in a preferred solution, the drainage tube 201 can use a hose, such as a plastic hose as shown in the figure, so that it can be bent, so that it is convenient for medical staff to set one end of the drainage strip 301 at the end of the drainage strip 301. At or extending from the corner of the patient's mouth into the patient's mouth.

In a preferred solution, the drainage tube 201 is a square tube or a round tube (as shown in FIG. 3 and FIG. 4 ) or an oval tube. As shown in FIG. 4 , as an example, in this embodiment, the drainage tube 201 is preferably a square tube, which is more convenient for stable installation, and avoids a large change in the position of the drainage tube 201 during use.

In a further solution, the cross-sectional shape of the drainage bar 301 is adapted to the cross-sectional shape of the drainage tube 201 , as shown in FIGS. 3 and 4 , that is, when the drainage tube 201 has a rectangular cross-sectional shape , the cross-sectional shape of the drainage strip 301 is also rectangular, so as to have a larger contact area, which is more conducive to intercepting oral secretions.

As shown in FIG. 3 and FIG. 4 , in a further solution, the drainage tube 201 is provided with a plurality of protrusions 202 , and each protrusion 202 is evenly distributed along the circumferential direction of the drainage tube 201 , and two adjacent protrusions There is a gap between the 202 , and the protrusion 202 is used to support the drainage strip 301 disposed at the middle position of the drainage tube 201 . In this embodiment, the arrangement of the protrusions 202, on the one hand, can ensure that the drainage strip 301 is arranged in the middle of the drainage tube 201 and does not contact the drainage tube 201, which is more conducive to the flow of oral secretions along the drainage strip 301. On the one hand, the gaps between the protrusions 202 can form a channel for air circulation, so as to maintain the air pressure balance in the fixed part, that is, when the oral secretions flow down the drainage strip 301, the air in the accommodating part can be discharged through the gaps, Therefore, the oral secretions can smoothly flow into the fixed part.

In a further solution, the suction head 302 is also included, the suction head 302 is connected with the drainage strip 301, the material of the suction head 302 is the same as that of the drainage strip 301, and the suction head 302 is an arc structure, as shown in FIG. 5 . As shown, the suction head 302 with the arc-shaped structure is beneficial to increase the interception area, so that the interception effect of oral secretions is better, and is especially suitable for intercepting oral secretions overflowing from the corner of the mouth.

In order to facilitate fixing the drainage tube 201 , in a preferred solution, a fin 203 with a sheet-like structure is further included, and the fin 203 is fixed on the drainage tube 201 , as shown in FIG. 2 or FIG. 6 . When using the device, the medical staff can conveniently set the position of the drainage tube 201 by holding the flaps 203. After the position of the drainage tube 201 is set, the tape 103 is used to bypass the drainage tube 201 and the flaps 203, which can conveniently The drainage tube 201 is fixed on the skin at the corresponding position, and the fins 203 can increase the contact area with the adhesive tape 103, thereby effectively preventing the position of the drainage tube 201 from changing due to loosening.

As shown in FIG. 2 or FIG. 6 , in a preferred solution, the accommodating part is a soft bladder 401 made of rubber or plastic, the bladder 401 is provided with an opening, and the opening is connected to the The drainage tube 201 is fixedly connected. The inside of the bladder 401 has a cavity for accommodating oral secretions, and the communication between the drainage tube 201 and the bladder 401 is realized through the opening, which can realize the fixation of the bladder 401, that is, the bladder 401 is hung on the drainage tube 201. The lower end of the cavity can also allow oral secretions to smoothly enter the cavity.

It can be understood that the opening can also be detachably connected to the drainage tube 201 . Therefore, in a further solution, the lower end of the drainage tube 201 is provided with a first connector, and the opening of the bladder 401 is provided with a second connector adapted to the first connector. The cooperation of the connecting head and the second connecting head can realize the detachable connection between the bladder 401 and the drainage tube 201, which is convenient for dumping the oral secretions collected in the bladder 401, so that the drainage system provided in this embodiment is used for drainage. The device for oral secretions can be used for a long time and can greatly reduce the cost of use. As an example, in this embodiment, the first connecting head is a cylinder provided with an external thread, the cylinder communicates with the lower end of the drainage tube 201, and the second connecting head is a cylinder provided with an internal thread , the cylinder is communicated with the capsule body 401, and the first connector and the second connector can be detachably connected with threads.

In a preferred solution, the fixing part is a fixing belt 501, and both ends of the fixing belt 501 are respectively provided with Velcro or snap buttons to realize the detachable connection of the two ends of the fixing belt 501, as shown in FIG. 2 and FIG. 6 . As shown, as an example, in this embodiment, the two ends of the fixing belt 501 are respectively provided with the A surface 502 and the B surface 503 of the Velcro, and the detachable connection is realized by the cooperation of the A surface 502 and the B surface 503 .

It is convenient to wear the device on the patient's head and easy to dismantle, which is beneficial to more convenient use. As shown in FIG. 2 and FIG. 6 , in this embodiment, the drainage tube 201 is fixed to the fixing belt 501 , and the fixing belt 501 has a certain width so as to be more comfortable to wear. The fixing strap 501 can be worn more tightly, and is less likely to fall off or loosen automatically.

As an example, as shown in FIG. 2 and FIG. 6 , in this embodiment, the device includes two bladders 401 and two drainage tubes 201 , and the two drainage tubes 201 are respectively fixed to the fixing belt 501 . One end of the drainage tube 201 is communicated with the bladder 401 respectively, the drainage strips 301 are respectively arranged in the two drainage tubes 201, and the two drainage strips 301 are respectively used to be arranged at the two corners of the patient's mouth or respectively. It is used to extend from the two corners of the patient's mouth into the mouth, as shown in FIG. 6 , in this embodiment, two drainage strips 301 are provided to drain the oral secretions at the two corners of the patient's mouth respectively, so that no matter where the patient goes Whichever direction is lying on the side (because the patient is not usually lying flat), a better drainage effect can be achieved, which is beneficial for the device to be applied to more occasions.

Example 2

The main difference between this embodiment 2 and the above-mentioned embodiment 1 is that in the device for draining oral secretions provided in this embodiment, a negative pressure can also be generated in the bladder 401 to provide a greater suction force, It is more conducive to drainage of oral secretions.

In a solution provided in this embodiment, the bladder 401 is also filled with a sponge 402, and the sponge 402 is filled on the upper part of the bladder 401 and is in contact with the drainage strip 301, as shown in FIG. 2 As shown, the sponge 402 has better water absorption performance, which is more conducive to providing suction to oral secretions and guiding the oral secretions into the capsule 401. Moreover, after a period of use, the sponge 402 can be manually squeezed to make The oral secretions absorbed by the sponge 402 can be squeezed to the lower part of the capsule body 401. After releasing the hand, a certain negative pressure can be generated in the capsule body 401, which is more conducive to the drainage of oral secretions. The water content of the body 401 is more convenient to continue to drain oral secretions. It can be understood that in this solution, the drainage strip 301 can be filled with the drainage tube 201 (that is, the drainage tube 201 does not need to be provided with the protrusion 202 ), so that the negative pressure in the bladder 401 can be released slowly, so that the drainage tube 201 can be The upper end of the drainage tube 201 generates continuous and relatively stable suction.

In a further solution, a one-way valve is also provided, the one-way valve is disposed on the capsule body 401 and communicated with the capsule body 401 , and the one-way valve is used to discharge the air in the capsule body 401 . In this solution, a one-way valve is provided so that when the capsule body 401 is squeezed, the air in the capsule body 401 can be discharged from the one-way valve. The upper end of the tube 201 generates a continuous and relatively stable suction, so as to attract oral secretions and part of the air into the bladder 401 to achieve a better drainage effect.

The above are only specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Replacement should be covered within the protection scope of the present invention.

Claims (10)

1. The utility model provides a device for drainage oral secretion which characterized in that, is including the drainage portion that is used for drainage oral secretion, the portion of holding and the fixed part that is used for storing oral secretion, the one end of drainage portion is used for placing drainage in the corner of the mouth department, the other end with the portion of holding communicates, and portion of holding and/or drainage portion are fixed in the fixed part, the fixed part is used for fixing the head at the patient.

2. The device for draining oral secretions according to claim 1, wherein said drainage portion comprises a drainage tube and a drainage strip disposed in said drainage tube, one end of said drainage tube communicates with said receptacle, one end of said drainage strip extends into said drainage tube, the other end extends into said receptacle, said drainage strip is for guiding oral secretions into said receptacle, and said drainage tube is a flexible tube.

3. The device for draining oral secretions according to claim 2, wherein a plurality of protrusions are arranged in said drainage tube, each protrusion is uniformly distributed along the circumferential direction of said drainage tube, and a gap is arranged between two adjacent protrusions, and said protrusions are used for supporting a drainage strip arranged at the middle position of said drainage tube.

4. The device for draining oral secretions according to claim 2, wherein said drainage strip is a strip of sponge or cotton thread or sand.

5. The device for draining oral secretions according to claim 2, further comprising a flap of sheet-like construction secured to said drain tube.

6. The device for draining oral secretions according to any of claims 2-5, wherein said containing portion comprises a flexible bladder made of rubber or plastic, said bladder being provided with an opening, said opening being fixedly or removably connected to said drain tube.

7. The device for draining oral secretions according to claim 6, wherein said bladder is further filled with a sponge, and said sponge is filled in the upper portion of said bladder and in contact with said drainage strip.

8. The device for draining oral secretions according to claim 6, wherein said fixing portion comprises a fixing band, and both ends of said fixing band are respectively provided with a hook and loop fastener or snap fastener for realizing detachable connection of both ends of the fixing band.

9. The device for draining oral secretions according to claim 8, further comprising a one-way valve disposed in said bladder and communicating with said bladder, said one-way valve for venting air from within said bladder.

10. The device for draining oral secretions according to claim 9, comprising two bladders and two drainage tubes, wherein said two drainage tubes are respectively fixed to said fixing band, one end of each drainage tube is respectively communicated with said bladders, said drainage strips are respectively arranged in said two drainage tubes, and said two drainage strips are respectively used for being arranged at two corners of the mouth of the patient or respectively used for extending into the oral cavity from two corners of the mouth of the patient.
