Abstract

The utility model discloses an expressway billboard, which comprises a base, first bolts are arranged through the left and right sides and the front and rear sides of the top of the base, and a column is fixedly connected at the center of the top of the base. The left and right sides and the front and rear sides of the bottom of the surface are fixedly connected with fixed rods, one end of the fixed rod away from the column is movably connected with a support leg through a rotating shaft, and one end of the support leg away from the fixed rod is movably connected with a support plate through the rotating shaft, A motor is fixedly connected to the bottom of the inner cavity of the column, and a threaded rod is fixedly connected to the output shaft of the motor. The utility model has the advantages of being easy to use, and solves the problem that the existing highway billboards are inconvenient to use, and the staff needs to replace the advertising cloth at high altitude, which has low safety, poor protection to the advertising cloth, and is easy to corrode the advertising cloth when it rains. Solar power cannot be used, and the stability of the billboard is poor.

Description

A highway billboard

technical field

The utility model relates to the technical field of highway billboards, in particular to a highway billboard.

Background technique

Highway anti-aircraft artillery advertising media is a form of outdoor advertising, also known as Optimus Prime advertising media, also known as single-column anti-aircraft artillery media, commonly known as anti-aircraft artillery, mainly distributed on highways and airports, including highways , urban highways, transportation hubs and other main road areas.

The existing highway billboards are inconvenient to use, and the staff needs to replace the billboards at high altitude, which is low in safety and has poor protection for the billboards. Bad sex.

Utility model content

The purpose of the utility model is to provide a highway billboard, which has the advantages of being easy to use, and solves the problem that the existing highway billboard is inconvenient to use, and the staff needs to replace the advertising cloth at high altitude, and the safety is low. The protection is poor, the advertising cloth is easy to corrode when it rains, cannot use solar energy to generate electricity, and the stability of the billboard is poor.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a highway billboard, comprising a base, the left and right sides and the front and rear sides of the top of the base are provided with first bolts, and the center of the top of the base is provided with first bolts. A column is fixedly connected, and a fixing rod is fixedly connected to the left and right sides and the front and rear sides of the bottom of the surface of the column. The end of the fixing rod away from the column is movably connected with a leg through a rotating shaft, and the end of the leg is away from the fixing rod. A support plate is movably connected through the rotating shaft, a motor is fixedly connected to the bottom of the inner cavity of the column, a threaded rod is fixedly connected to the output shaft of the motor, and a threaded sleeve is provided on the top of the surface of the threaded rod. Both sides are fixedly connected with sliding rods, and both sides of the column are provided with sliding grooves, the surface of the sliding rod is movably connected with the inner wall of the sliding groove, and the opposite side of the sliding rod extends to both sides of the column And a connecting plate is fixedly connected, the front and rear sides of the opposite side of the connecting plate are fixedly connected with electric telescopic rods, the top of the column is fixedly connected with a battery box, and the bottoms of both sides of the battery box are fixedly connected with a fixed battery box. The opposite side of the fixed seat is provided with a sliding cavity, the opposite side of the electric telescopic rod penetrates the sliding cavity and is fixedly connected with an advertising board, and the bottom of the inner wall of the fixed seat is fixedly connected with a limit plate, the The advertising board is located on the opposite side of the fixing base and the limiting plate, a protective shell is provided on the opposite side of the advertising board, and the top and bottom of the opposite side of the protective shell are penetrated to the second bolts, the first The opposite side of the two bolts penetrates to the opposite side of the advertising board, the top of the fixing base is fixedly connected with a fixing frame, the bottom of the fixing frame is fixedly installed with a lighting lamp, and the left side of the bottom of the inner cavity of the battery box is fixed A battery is connected, an inverter is fixedly connected to the bottom of the inner cavity of the battery box, a support rod is fixedly connected to the top of the battery box, and a solar panel is fixedly connected to the top of the support rod.

Preferably, the bottom of the support plate is fixedly connected with fixing teeth, and the bottom of the fixing teeth penetrates into the ground, the advertising board is located in the inner cavity of the protective shell, and the material of the protective shell is a transparent plastic material.

Preferably, the bottom of the first bolt penetrates into the foundation, and the number of the lighting lamps is four and is located on the top of the advertising board.

Preferably, the top, the middle end and the bottom of the surface on the opposite side of the advertising board are provided with fixing holes, and the number of fixing holes is several.

Preferably, a controller is fixedly installed on the right side of the top of the inner cavity of the battery box, and the signal output end of the controller is electrically connected with the signal input end of the battery, the lighting lamp, the electric telescopic rod and the motor.

Preferably, the output end of the solar panel is electrically connected to the input end of the battery, the output end of the battery is electrically connected to the input end of the inverter, and the output end of the inverter is electrically connected to the lighting lamp, the motor and the The input end of the electric telescopic rod is electrically connected.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model adopts the base, the motor, the first bolt, the column, the threaded rod, the fixed seat, the sliding rod, the threaded sleeve, the battery, the solar panel, the controller, the inverter, the connecting plate, the electric telescopic rod, the chute, The use of fixed rod, outrigger, support plate, advertising board, sliding cavity, protective shell, second bolt and limit plate solves the problem that the existing highway billboards are inconvenient to use, and the staff needs to replace the advertisements at high altitudes Cloth, low safety, poor protection of advertising cloth, easy to corrode the advertising cloth when it rains, unable to use solar energy to generate electricity, and poor stability of the billboard.

2. The utility model can easily make the advertising board more stable through the cooperation of the limit plate and the fixed seat, and can easily prevent the column from tilting through the cooperation of the outrigger and the support plate. Fixed on the foundation, through the cooperation of the motor, the threaded rod and the threaded sleeve, the advertising board can be easily lowered to replace the advertising cloth. By setting the lighting lamp, it is convenient to illuminate the advertising cloth at night, and by setting the protective shell, it can be convenient to protect the advertising cloth. , by setting the solar panel, it is easy to collect solar energy, by setting the fixing hole, it is easy to fix the advertising cloth on the advertising board, and by using the electric telescopic rod and the sliding cavity, the advertising board can be easily taken out, and by setting the second bolt, The protective shell can be easily fixed, and the threaded sleeve can be easily limited to prevent the threaded sleeve from rotating during the moving process through the cooperative use of the sliding groove and the sliding rod.

Description of drawings

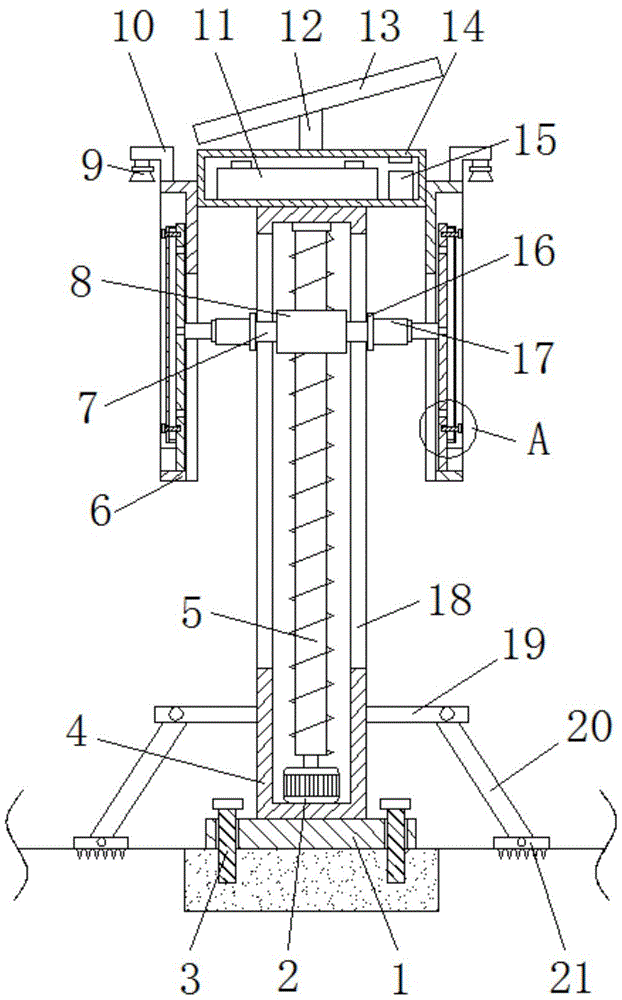

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the front view structure schematic diagram of the utility model;

3 is a schematic top view of the utility model;

FIG. 4 is an enlarged schematic view of the partial structure of A in FIG. 1 of the present invention.

In the picture: 1 base, 2 motor, 3 first bolt, 4 column, 5 threaded rod, 6 fixed seat, 7 sliding rod, 8 threaded sleeve, 9 lighting, 10 fixed frame, 11 battery, 12 support rod, 13 solar energy Plate, 14 battery box, 15 inverter, 16 connecting plate, 17 electric telescopic pole, 18 chute, 19 fixed pole, 20 outrigger, 21 supporting plate, 22 advertising plate, 23 sliding cavity, 24 protective shell, 25 Two bolts, 26 limit plates.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end" and "the other end" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation on the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The base 1, the motor 2, the first bolt 3, the column 4, the threaded rod 5, the fixed seat 6, the sliding rod 7, the threaded sleeve 8, the lighting lamp 9, the fixed frame 10, the battery 11, the support rod 12, the solar energy Board 13, inverter 15, connecting board 16, electric telescopic rod 17, fixing rod 19, outrigger 20, support board 21, advertising board 22, protective shell 24, second bolt 25 and limit board 26 are all common components The structure and principle of standard parts or parts known to those skilled in the art can be known from technical manuals or through routine experimental methods.

Please refer to Fig. 1-4, a highway billboard includes a base 1, and first bolts 3 are provided through the left and right sides and the front and rear sides of the top of the base 1. By arranging the first bolts 3, the upright column 4 can be easily Fixed on the foundation, the bottom of the first bolt 3 penetrates into the foundation, the center of the top of the base 1 is fixedly connected with a column 4, and the left and right sides and the front and rear sides of the bottom of the surface of the column 4 are fixedly connected with fixing rods 19. The fixing rods One end of 19 away from the upright column 4 is movably connected with the outrigger 20 through the rotating shaft, and the end of the outrigger 20 away from the fixing rod 19 is movably connected with the support plate 21 through the rotating shaft. Inclined, the bottom of the support plate 21 is fixedly connected with fixed teeth, and the bottom of the fixed teeth penetrates into the ground, the bottom of the inner cavity of the column 4 is fixedly connected with the motor 2, the output shaft of the motor 2 is fixedly connected with a threaded rod 5, and the threaded rod 5 The top threaded sleeve on the surface is provided with a threaded sleeve 8. Through the cooperation of the motor 2, the threaded rod 5 and the threaded sleeve 8, the advertising board 22 can be easily lowered to replace the advertising cloth. Both sides of the threaded sleeve 8 are fixedly connected with sliding rods 7. , the two sides of the column 4 are provided with a chute 18, and the surface of the sliding rod 7 is movably connected with the inner wall of the chute 18. Through the cooperation of the chute 18 and the sliding rod 7, it is convenient to limit the threaded sleeve 8 to avoid it. In the process of moving, it rotates, the opposite side of the sliding rod 7 extends to both sides of the column 4 and is fixedly connected with the connecting plate 16, and the front and rear sides of the opposite side of the connecting plate 16 are fixedly connected with the electric telescopic rod 17. The column 4 The top of the battery box 14 is fixedly connected to the battery box 14 , the bottoms of the two sides of the battery box 14 are fixedly connected to the fixed seat 6 , the opposite side of the fixed seat 6 is provided with a sliding cavity 23 , and the opposite side of the electric telescopic rod 17 penetrates through the sliding cavity 23 And fixedly connected with the advertising board 22, through the cooperation of the electric telescopic rod 17 and the sliding cavity 23, the advertising board 22 can be easily taken out. The number of holes is several. By setting the fixing holes, the advertising cloth can be easily fixed on the advertising board 22. The bottom of the inner wall of the fixing seat 6 is fixedly connected to the limit plate 26, and the advertising board 22 is located in the fixing seat 6 and the limit plate 26. On the side of the advertising board 22, the use of the limit plate 26 and the fixing seat 6 can facilitate the stability of the advertising board 22. A protective shell 24 is provided on the opposite side of the advertising board 22. By setting the protective shell 24, the advertising cloth can be easily protected. , the advertising board 22 is located in the inner cavity of the protective shell 24, the material of the protective shell 24 is a transparent plastic material, and the top and bottom of the opposite side of the protective shell 24 are penetrated to the second bolt 25. By setting the second bolt 25, it can be It is convenient to fix the protective shell 24. The opposite side of the second bolt 25 penetrates to the opposite side of the advertising board 22. The top of the fixing base 6 is fixedly connected with the fixing frame 10, and the bottom of the fixing frame 10 is fixedly installed with the lighting lamp 9. By setting The lighting lamps 9 can easily illuminate the advertising cloth at night. The number of lighting lamps 9 is four and is located on the top of the advertising board 22, and the bottom of the inner cavity of the battery box 14 The battery 11 is fixedly connected to the left side of the battery box 14, the inverter 15 is fixedly connected to the right side of the bottom of the inner cavity of the battery box 14, and the controller is fixedly installed on the right side of the top of the inner cavity of the battery box 14, and the signal output end of the controller is connected to the battery 11. The lighting lamp 9, the electric telescopic rod 17 and the signal input terminal of the motor 2 are electrically connected. The top of the battery box 14 is fixedly connected with a support rod 12, and the top of the support rod 12 is fixedly connected with a solar panel 13. By setting the solar panel 13 , which can facilitate the collection of solar energy, the output end of the solar panel 13 is electrically connected with the input end of the battery 11 , the output end of the battery 11 is electrically connected with the input end of the inverter 15 , and the output end of the inverter 15 is electrically connected with the lighting lamp 9 , The input end of the motor 2 and the electric telescopic rod 17 are electrically connected through the base 1, the motor 2, the first bolt 3, the column 4, the threaded rod 5, the fixed seat 6, the sliding rod 7, the threaded sleeve 8, the battery 11, the solar energy Plate 13, inverter 15, connecting plate 16, electric telescopic rod 17, chute 18, fixing rod 19, outrigger 20, support plate 21, advertising plate 22, sliding cavity 23, protective shell 24, second bolt 25 and The use of the limit plate 26 solves the problem that the existing highway billboards are inconvenient to use, and the staff needs to replace the advertising cloth at high altitude, which is low in safety, and has poor protection for the advertising cloth. It is easy to corrode the advertising cloth when it rains. Solar power cannot be used, and the stability of the billboard is poor.

When in use, the controller controls the motor 2 and the electric telescopic rod 17 to work, the motor 2 rotates in the forward direction to drive the threaded rod 5 to rotate, the threaded rod 5 drives the threaded sleeve 8 to move upward, and the threaded sleeve 8 drives the electric telescopic rod 17 and the advertising board 22 upward. Move, the advertising board 22 moves up to the top of the limit board 26, the electric telescopic rod 17 is activated, the electric telescopic rod 17 drives the advertising board 22 to move to the outside of the limit board 26, the motor 2 rotates in the reverse direction, and drives the advertising board 22 downward Move, fix the advertising cloth on the advertising board 22 through the fixing hole, and fix the protective shell 24 by rotating the second bolt 25. After the fixing is completed, the motor 2 and the electric telescopic rod 17 drive the advertising board 22 to reset, and the solar energy is converted by the solar panel 13. In order to collect electric energy in the battery 11, the direct current is converted into alternating current by the inverter 15 to supply power to the motor 2, the electric telescopic rod 17 and the lighting lamp 9. At night, the lighting lamp 9 is controlled to be turned on by the controller, and the advertising screen is illuminated at night. .

To sum up: the highway billboard, through the base 1, the motor 2, the first bolt 3, the column 4, the threaded rod 5, the fixed seat 6, the sliding rod 7, the threaded sleeve 8, the battery 11, the solar panel 13, the reverse Inverter 15, connecting plate 16, electric telescopic rod 17, chute 18, fixed rod 19, outrigger 20, support plate 21, advertising board 22, sliding cavity 23, protective shell 24, second bolt 25 and limit plate 26 It solves the problem that the existing highway billboards are inconvenient to use, and the staff needs to replace the advertising cloth at high altitude. The safety is low, the protection of the advertising cloth is poor, it is easy to corrode the advertising cloth when it rains, and the solar energy cannot be used. Power generation, poor stability of billboards.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a highway bill-board, includes base (1), its characterized in that: the left side and the right side and the front side and the rear side of the top of the base (1) are respectively provided with a first bolt (3) in a penetrating manner, the center of the top of the base (1) is fixedly connected with a stand column (4), the left side and the right side and the front side and the rear side of the surface bottom of the stand column (4) are respectively fixedly connected with a fixed rod (19), one end of each fixed rod (19) far away from the stand column (4) is movably connected with a support leg (20) through a rotating shaft, one end of each support leg (20) far away from the fixed rod (19) is movably connected with a support plate (21) through a rotating shaft, the bottom of an inner cavity of the stand column (4) is fixedly connected with a motor (2), an output shaft of the motor (2) is fixedly connected with a threaded rod (5), a threaded sleeve (8) is sleeved on the top thread on, the surface of the sliding rod (7) is movably connected with the inner wall of the sliding groove (18), one side of the sliding rod (7) opposite to the sliding rod extends to two sides of the stand column (4) and is fixedly connected with a connecting plate (16), the front side and the rear side of one side of the connecting plate (16) opposite to the sliding rod are fixedly connected with electric telescopic rods (17), the top of the stand column (4) is fixedly connected with a storage battery box (14), the bottoms of two sides of the storage battery box (14) are fixedly connected with fixing seats (6), one side of the fixing seats (6) opposite to each other is provided with a sliding cavity (23), one side of the electric telescopic rods (17) opposite to each other penetrates through the sliding cavity (23) and is fixedly connected with an advertising board (22), the bottom of the inner wall of the fixing seats (6) is fixedly connected with limiting plates (26), the advertising board (22) is located on one side of the fixing seats, the utility model discloses a solar energy storage battery box, including protective housing (24), the top and the bottom of the opposite one side of protective housing (24) all run through to being provided with second bolt (25), the opposite one side of second bolt (25) runs through to advertising panel (22), the top fixedly connected with mount (10) of fixing base (6), the bottom fixed mounting of mount (10) has light (9), the left side fixedly connected with battery (11) of battery box (14) inner chamber bottom, the right side fixedly connected with dc-to-ac converter (15) of battery box (14) inner chamber bottom, the top fixedly connected with bracing piece (12) of battery box (14), the top fixedly connected with solar panel (13) of bracing piece (12).

2. A highway signboard of claim 1, wherein: the bottom of the supporting plate (21) is fixedly connected with fixing teeth, the bottoms of the fixing teeth penetrate into the ground, the advertising plate (22) is located in an inner cavity of the protective shell (24), and the protective shell (24) is made of transparent plastic materials.

3. A highway signboard of claim 1, wherein: the bottom of the first bolt (3) penetrates into the foundation, and the number of the illuminating lamps (9) is four and is positioned at the top of the advertising board (22).

4. A highway signboard of claim 1, wherein: the top, the middle end and the bottom of the surface of the opposite side of the advertising board (22) are provided with a plurality of fixing holes.

5. A highway signboard of claim 1, wherein: the right side fixed mounting at battery box (14) inner chamber top has the controller, and the signal output part of controller and battery (11), light (9), electric telescopic handle (17) and the signal input part electric connection of motor (2).

6. A highway signboard of claim 1, wherein: the output of solar panel (13) and the input electric connection of battery (11), the output of battery (11) and the input electric connection of dc-to-ac converter (15), the output of dc-to-ac converter (15) and the input electric connection of light (9), motor (2) and electric telescopic handle (17).
