Orbital escape ladder

technical field

The utility model relates to a track-type refuge ladder, in particular to a track-type refuge ladder which is erected through the interior or the exterior of a high-rise building.

Background technique

Due to the fact that the cities where humans live are narrow and densely populated and the land prices are becoming more and more expensive, high-rise buildings in urban floors are extremely common. According to the current fire regulations, high-rise buildings must also have safety considerations. Escape equipment as a benchmark! Every once in a while in China, there will always be building fire accidents that cause heavy casualties due to lack of urgency in building escapes. The main cause of serious casualties is mostly insufficient escape measures. The lack of evacuation measures is also to blame. For example, in the recent fire accident in the Carnival Building in Chiayi City, Taiwan, some victims jumped off the building in a hurry because they could not escape. Therefore, how to deal with various unexpected disasters such as: When unwarranted disasters such as fires and earthquakes occur, the escape of residents living on high floors is obviously something that building residents should face up to. Among the current general high-rise building escape equipment, the most commonly used are rope-type vertical landing equipment and escape ladders, and rope-type vertical landing equipment is often difficult to operate because of the shaking caused by climbing, which makes people uncomfortable. Dare to try, it is not suitable for everyone. These devices are especially difficult to provide rapid and safe escape and escape protection for the elderly, the sick, the handicapped and children; Without experience in use, it is often impossible to activate it immediately in an emergency, and in unfamiliar situations, most people do not dare to descend directly into the sky, and a fall accident may occur due to improper operation.

Furthermore, everyone knows that fire and water are ruthless, especially building fires are not uncommon. When a fire occurs, in addition to deadly crises such as flames and thick smoke, the darkness generated by the loss of electricity is another obstacle to escape. It is a big killer, and when the power is lost, the elevator that can quickly take people away from the fire is useless. In view of this, the general fire escape equipment must comply with the principle of no power available, so there are no power escape equipment such as escape slow-down tubes (rescue bags) and slow-down machines. The regulator is used to achieve the effect of emergency escape. Its principle is the same as that of the ancient pulley type ancient well. It uses a pulley device and does a centrifugal force brake to control the descending speed. , throwing, wrapping, bunching, pushing" and other operating formulas, when operating, personnel must hang and slowly lower outside the outer wall of high-rise buildings, and personnel are directly exposed to extremely high environments, which are easily affected by fear of heights and cannot be operated. , On the other hand, the operating procedures and formulas are too complicated, if not well-trained (such as firefighters) can not easily operate, and its personnel escape efficiency is low (only one person operation and use), so the use effect is not good.

In view of the above, the rescue bag is the simplest structure of the escape equipment. It is tied in a high-tensile cloth tube and installed in a proper position with a funnel-shaped loop with an elastic effect. The loop has a slow-down effect, and personnel can quickly get out of the cloth. Drilling and sliding above the pipe to the bottom of the pipe to escape, although the escape efficiency is higher than that of the slow descent machine, it is often limited by the difference in the descending speed caused by the different body shapes and motor nerves of the escapees, which may cause the escapees to collide with each other. On the one hand, if the location of the piping erection is too close to the wall, people may hit the wall and be injured. For those who are inconvenient to move, it is difficult to use rescue bags to escape, so there are still shortcomings in the use of rescue bags.

Utility model content

Therefore, in view of the above-mentioned existing problems and deficiencies, the designer of the present utility model collects relevant data through various evaluations and considerations, and makes use of many years of research and development experience in this industry to continuously make trials and revise, so that there is such a track. A new type of patent for escape ladders was born.

For achieving the above object, the technical scheme adopted by the present utility model is:

An orbital escape ladder, installed in a building, is characterized in that, comprising:

a main body, a loading space is arranged in the top of the main body, a bearing space is communicated beside the loading space, and a chain guide groove is respectively provided on an opposite side of the main body corresponding to the bearing space;

A gravity deceleration device is arranged in the loading space of the body, the gravity deceleration device is provided with a retarder and extends a transmission shaft, and the transmission shaft is inserted between a pair of first gears inside the body;

A pair of chains are arranged in the two chain guide grooves of the main body, the upper part of the single chain is sleeved outside the first gear, the lower part of the chain is sleeved outside the two second gears inside the main body, and the pair of chains are provided with There are a plurality of shaft holes, so that the pair of chains can rotate cyclically along the two chain guide grooves of the body;

A pair of guide frames, the pair of guide frames are fixed in the carrying space of the main body and adjacent to the two chain guide grooves, an arc turning portion is arranged above the guide frame, and the arc turning portion is opposite to the bearing space. The inlet side is recessed inward and has a narrowed portion extending obliquely. The narrowed portion extends downward with a descending section. The end of the descending section is laterally turned backwards to form a transverse moving section. The end of the ascending section is connected to the far side of the arc-turning portion relative to the bearing space, and each of the pair of guide frames is provided with a guide groove on the opposite inner side; and

A plurality of carriers have a bearing surface, a short axis and a long axis are respectively provided on both sides of the bearing surface, and a pulley is provided outside the two short axes of a single carrier and is positioned through the guide of the pair of guide frames. in the groove, and the two long shafts of a single carrier are penetrated and fixed in the plurality of shaft holes of the pair of chains, when the bearing surface of the plurality of carriers is loaded with personnel or articles, the plurality of carriers can be downward Move and slow down the descent with this gravitational retarder.

The rail-type refuge ladder, wherein: when the carrier passes through the pair of pedestals and enters the narrowing portion from the arc-turning portion, the two short axes of the carrier are along the guide of the pair of pedestals. The slot slides and the two long shafts pull the pair of chains to slide downward, the bearing surface of the carrier is tilted backward from the vertical state to form a horizontal state and enters the descending section of the pair of pedestals, the horizontal state of the The carrying surface of the carrier is used to carry people or articles.

The rail-type refuge ladder, wherein: the width of both ends of the arc-turning portion of the lead frame is greater than the distance between the ascending section and the descending section.

The orbital escape ladder, wherein: the diameter of the first gear is larger than the diameter of the second gear.

The orbital escape ladder, wherein: the number of the plurality of carriages is proportional to the height of the building and the number of floors, and at the entrance of the orbital escape ladder on each floor, there is a wheelchair for the escape personnel to enter the elevator smoothly. Ramp plate on the carrier.

The rail-type refuge ladder, wherein: the plurality of shaft holes of the pair of chains are respectively provided with a handrail at a predetermined height above the plurality of carriers, and the handrail is arranged in the guide groove of the pair of pedestals to form A stable structure, the plurality of handrails are used by the personnel to hold by hand.

Such self-propelled evacuation ladders ensure that the public and persons with disabilities on high floors can achieve the purpose of rapid and safe escape.

Description of drawings

FIG. 1 is a three-dimensional appearance structure diagram of the track-type refuge ladder of the present invention.

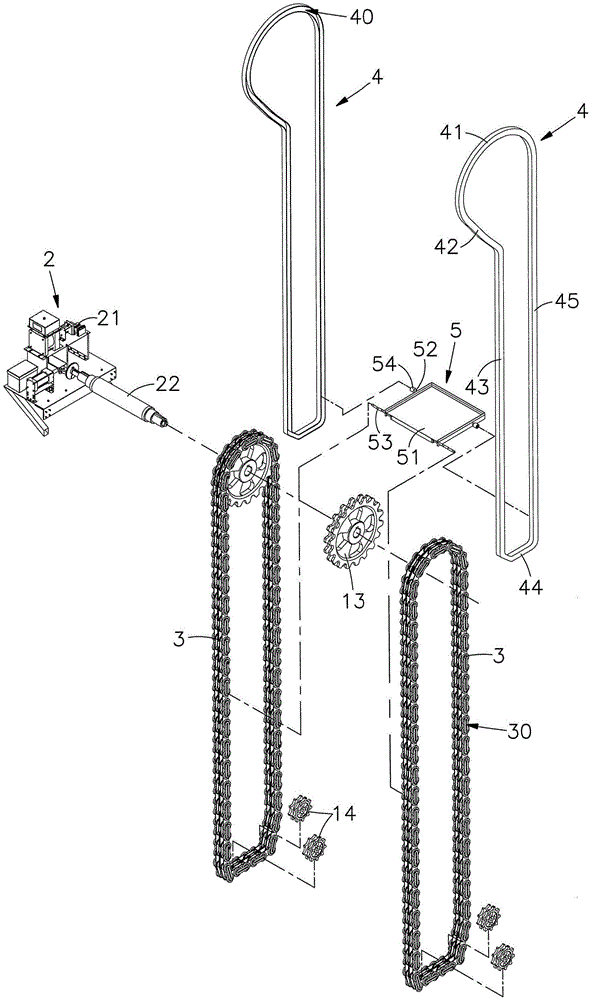

Fig. 2 is a perspective exploded structural view of the track-type refuge ladder of the present invention.

FIG. 3 is a three-dimensional perspective structural view of the interior of the track-type refuge ladder of the present invention.

4 is a schematic diagram of the first action of the track-type refuge ladder of the present invention.

5 is a schematic diagram of the second action of the track-type refuge ladder of the present invention.

6 is a schematic diagram of the third action of the track-type refuge ladder of the present invention.

7 is a schematic diagram of the fourth action of the track-type refuge ladder of the present invention.

8 is a schematic diagram of the fifth action of the track-type refuge ladder of the present invention.

Description of reference numerals: 1-body; 10-loading space; 11-carrying space; 12-chain guide groove; 13-first gear; 14-second gear; 2-gravity reduction device; 21-retarder; 22 -Drive shaft; 3-chain; 30-shaft hole; 31-armrest; 4-lead frame; 40-guide groove; 41-arc turning part; 42-narrowing part; 43-lowering section; 45-rising section; 5-bearing base; 51-bearing surface; 52-short shaft; 53-long shaft; 54-pulley; 6-slope plate.

Detailed ways

In order to achieve the above purpose and effect, the technical means and structure adopted by the present invention are described in detail with reference to the preferred embodiment of the present invention.

Please refer to FIGS. 1 to 3 , which are the three-dimensional appearance structure diagram, the three-dimensional exploded structure diagram and the internal three-dimensional perspective structure diagram of the track-type refuge ladder of the present invention. The main components of the present invention can be seen from the plural drawings. It includes a main body 1, a gravity deceleration device 2, a pair of chains 3, a pair of guide frames 4, and a plurality of carriers 5. The details of each component are as follows:

A loading space 10 is provided in the top of the main body 1, a bearing space 11 is communicated next to the loading space, and a chain guide groove 12 is respectively provided on an opposite side of the main body 1 corresponding to the bearing space 11.

The gravity deceleration device 2 is disposed in the loading space 10 of the main body 1 . The gravity deceleration device 2 is provided with a retarder 21 and extends a transmission shaft 22 , and the transmission shaft 22 penetrates through a pair of first between a gear 13 . The function of the gravitational deceleration device 2 is to slow down the descending speed of the escaping personnel, and the descending speed is fixed and stable within the bearing weight range, and the retarder 21 may include an alternating current (AC) motor and a reducer during actual production. , Drive (AC in/AC out and DC in/AC out) and direct current (DC) battery pack or generator.

The pair of chains 3 are disposed in the two chain guide grooves 12 of the main body 1 , the upper part of the single chain 3 is sleeved outside the first gear 13 , and the lower part of the chain 3 is sleeved outside the two second gears 14 inside the main body 1 , and the pair of chains 3 are provided with a plurality of shaft holes 30 , so that the pair of chains 3 can rotate cyclically along the two chain guide grooves 12 of the main body 1 . The diameter of the first gear 13 is larger than the diameter of the second gear 14 .

The pair of pedestal frames 4 are fixed in the bearing space 11 of the main body 1 and are adjacent to the two chain guide grooves 12 . There is an arcing portion 41 above the pedestal frame 4 , and the arcing portion 41 is opposite to the bearing. The entrance side of the space 11 is recessed inward and has a narrowing portion 42 extending obliquely. The narrowing portion 42 extends downward with a descending section 43 , and the end of the descending section 43 is laterally turned backwards to form a traverse section 44 . 44 is turned upward to extend a rising section 45, the end of the rising section 45 is connected to the far side of the arc turning portion 41 relative to the bearing space 11, and the pair of guide frames 4 are respectively provided with a guide groove 40 on the opposite inner side. The width of both ends of the arc-turning portion 41 of the frame 4 is greater than the distance between the ascending section 45 and the descending section 43 .

The plurality of carriers 5 have a bearing surface 51 , a short axis 52 and a long axis 53 are respectively provided on both sides of the bearing surface 51 , and a pulley 54 is disposed outside the two short axes 52 of a single carrier 5 and is positioned through the bearing surface 51 . In the guide grooves 40 of a pair of guide frames 4, and the two long shafts 53 of a single carrier 5 are inserted and fixed in the plurality of shaft holes 30 of the pair of chains 3, when the bearing surfaces of the plurality of carriers 5 When people or articles are carried on the 51 , the plurality of carriers 5 move downward and the descending speed is slowed down by the gravity deceleration device 2 to form a track-type evacuation ladder structure. The plurality of shaft holes 30 of the pair of chains are respectively provided with a handrail 31 at a predetermined height above the plurality of carriers 5 , and the other end of the handrail 31 is also disposed in the guide groove 40 of the pair of guide frames 4 to form a handrail 31 . Stabilizing structure, the plurality of handrails 31 are for personnel to hold by hand to improve the stability of personnel when descending.

When the carrier 5 passes through the pair of guide frames 4 and enters the narrowing portion 42 from the arc-turning portion 41 , the two short shafts 52 of the carrier 5 slide along the guide grooves 40 of the pair of guide frames 4 And the two long shafts 53 pull the pair of chains 3 to slide downward, the bearing surface 51 of the carrier seat 5 is tilted backward from a vertical state to form a horizontal state and enters the descending section 43 of the pair of guide frames 4, the The carrying surface 51 of the carrier 5 in a horizontal state is used for carrying people or articles.

The number of the plurality of carriages 5 is proportional to the height of the building and the number of floors, and a ramp 6 is provided at the entrance of the rail-type evacuation ladder on each floor to facilitate the escape personnel in wheelchairs to enter the carriage 5 smoothly superior.

When assembling the rail-type refuge ladder of the present invention, first assemble the gravity deceleration device 2 in the loading space 10 of the main body 1, and the transmission shaft 22 of the retarder 21 of the gravity deceleration device 2 passes through the body 1 between a pair of first gears 13 inside. Continue to assemble the two chains 3 in the two chain guide grooves 12 of the main body 1, and the upper part of the chain 3 is sleeved outside the first gear 13 and the lower part of the chain 3 is sleeved outside the second gear 14, and the two guide frames 4 is assembled in the carrying space 11 of the main body 1 and adjacent to the two chain guide grooves 12 . In addition, the pulleys 54 of the two short shafts 52 of the plurality of carriers are inserted and positioned in the guide grooves 40 of the pair of guide frames 4 , and the two long shafts 53 are inserted and fixed to the plurality of shafts of the pair of chains 3 . In the hole 30 , a track-type evacuation ladder structure is formed.

Please refer to FIG. 4 to FIG. 8 , which are schematic diagrams of the operation of the track-type refuge ladder of the present invention. There is a wide arc-turning portion 41 above the guide frame 4 , and the arc-turning portion 41 is opposite to the entrance side of the bearing space 11 . A narrowed portion 42 is recessed inwardly and stretched obliquely. The narrowed portion 42 extends downward with a descending section 43. The end of the descending section 43 is laterally turned backwards to form a traversing section 44, which extends upward through the turning. There is an ascending section 45 , the end of the ascending section 45 is connected to the far side of the arc turning portion 41 relative to the bearing space 11 , and a guide groove 40 is respectively provided on the opposite inner side of the pair of guide frames 4 . By virtue of the foregoing, when the carrier 5 passes through the pair of pedestals 4 and enters the narrowing portion 42 from the arc-turning portion 41 , the two short axes 52 of the carrier 5 are along the guide grooves of the pair of pedestals 4 . 40 slides and the two long shafts 53 pull the pair of chains 3 to slide downward (as shown in FIG. 4 ), and then the bearing surface 51 of the carrier 5 is tilted backward from a vertical state to form a horizontal state (as shown in FIG. 5 ). (shown) and enter the descending section 43 of the pair of pedestals 4, the carrying surface 51 of the carrier 5 in the horizontal state is used to carry people or articles, when the personnel or articles descend to the first floor or basement and leave the After the carrier 5 is loaded (as shown in FIG. 6 ), the two short axes 52 of the carrier 5 move along the traverse section 44 of the pair of guide frames 4 and the two long axes 53 also move laterally along the chain 3 , At this time, the bearing surface 51 of the bearing seat 5 faces the northwest (as shown in FIG. 7 ). Then the two short axes 52 of the carrier 5 move along the rising section 45 of the pair of pedestals 4 and the two long axes 53 also move in the vertical direction along the chain 3 (at this time the two short axes 52 are located at the top), at this time, the carrier 5 is in a nearly vertical state and the carrier surface 51 faces the northwest (as shown in FIG. 8 ). Finally, the two short shafts 52 of the carrier 5 move from the ascending section 45 along the pair of pedestals 4 to the arc-turning portion 41 to repeat the action state of the carrier 5 in FIG. 4 to complete the cycle.

For residents on high floors, most of the garbage collection sites in the building are located on the first floor or in the basement, which causes a lot of inconvenience. Those who are familiar with this skill can also place items on the carrier 5 during normal use. The carrier 5 can be activated by electronic control, so as to facilitate the transportation of items from high floors to the first floor, which can save manpower and the frequent use of building elevators, thereby achieving the purpose of energy saving and environmental protection, which is also within the scope of protection of the present invention. Inside.

With reference to the disclosures of FIGS. 1 to 8 , it can be understood that the present invention provides a rail-type escape ladder, which is installed in a building, including: a main body is provided with a loading space and a bearing space in the top of the main body, the main body is A chain guide groove is respectively set on an opposite side of the bearing space; a pair of chains are arranged in the two chain guide grooves of the body; a pair of guide frames are arranged in the bearing space of the body and are adjacent to the two chains Guide groove, the guide frame has an arc turning part, a narrowing part, a descending section, a traverse section, an ascending section and a guide groove, the plurality of carriers have a bearing surface, a short axis and a long axis, A pulley is arranged outside the two short shafts of the single carrier and is positioned in the guide grooves of the pair of guide frames, and the two long shafts of the single carrier are penetrated and fixed to the plurality of shaft holes of the pair of chains In this way, such self-propelled evacuation ladders ensure that the public and persons with disabilities on high floors can achieve the purpose of rapid and safe escape.

The above description is only illustrative rather than restrictive for the present invention, and those of ordinary skill in the art will understand that many modifications, changes or equivalents can be made without departing from the spirit and scope defined by the claims. But all will fall within the protection scope of the present invention.

Claims (6)

1. an orbital type refuge ladder, is installed in the building, it is characterized in that, comprise: a main body, a loading space is arranged in the top of the main body, a bearing space is communicated beside the loading space, and a chain guide groove is respectively provided on an opposite side of the main body corresponding to the bearing space; A gravity deceleration device is arranged in the loading space of the body, the gravity deceleration device is provided with a retarder and extends a transmission shaft, and the transmission shaft is inserted between a pair of first gears inside the body; A pair of chains are arranged in the two chain guide grooves of the main body, the upper part of the single chain is sleeved outside the first gear, the lower part of the chain is sleeved outside the two second gears inside the main body, and the pair of chains are provided with There are a plurality of shaft holes, so that the pair of chains can rotate cyclically along the two chain guide grooves of the body; A pair of guide frames, the pair of guide frames are fixed in the carrying space of the main body and adjacent to the two chain guide grooves, an arc turning portion is arranged above the guide frame, and the arc turning portion is opposite to the bearing space. The inlet side is recessed inward and has a narrowed portion extending obliquely. The narrowed portion extends downward with a descending section. The end of the descending section is laterally turned backwards to form a transverse moving section. The end of the ascending section is connected to the far side of the arc-turning portion relative to the bearing space, and each of the pair of guide frames is provided with a guide groove on the opposite inner side; and A plurality of carriers have a bearing surface, a short axis and a long axis are respectively provided on both sides of the bearing surface, and a pulley is provided outside the two short axes of a single carrier and is positioned through the guide of the pair of guide frames. in the groove, and the two long shafts of a single carrier are penetrated and fixed in the plurality of shaft holes of the pair of chains, when the bearing surface of the plurality of carriers is loaded with personnel or articles, the plurality of carriers can be downward Move and slow down the descent with this gravitational retarder. 2 . The orbital escape ladder according to claim 1 , wherein when the carrier passes through the pair of guide frames and enters the narrowing portion from the arc-turning portion, the two short axes of the carrier are along the The guide grooves of the pair of pedestals slide and the two long shafts pull the pair of chains to slide downward, the bearing surface of the carrier is tilted backward from a vertical state to form a horizontal state and enters the pair of pedestals. The descending section, the carrying surface of the carrier in the horizontal state is used for carrying people or articles. 3 . The track-type refuge ladder according to claim 1 , wherein the width of both ends of the arc-turning portion of the pedestal is greater than the distance between the ascending section and the descending section. 4 . 4 . The orbital escape ladder of claim 1 , wherein the diameter of the first gear is larger than the diameter of the second gear. 5 . 5. The track-type refuge ladder according to claim 1, wherein the number of the plurality of carriers is proportional to the height of the building and the number of floors, and a convenient Escapers in wheelchairs successfully entered the ramp on the carrier. 6 . The track-type refuge ladder according to claim 1 , wherein the plurality of shaft holes of the pair of chains are respectively provided with a handrail at a predetermined height above the plurality of carriers, and the handrail is arranged on the pair of guide rails. 7 . A stable structure is formed in the guide groove of the frame, and the plurality of handrails are used by the personnel to hold by hand.
