CN210995523U - Solar panel cleaning device - Google Patents

Abstract

A solar panel cleaning device includes a frame body, a walking mechanism, a spraying mechanism and a cleaning mechanism; both ends of the frame body are provided with a walking mechanism, a spray mechanism is arranged around the frame body, and the cleaning mechanism is arranged inside the frame body and both sides; the device of the present utility model reduces the influence of the cleaning of the roller brush on the movement of the device through the same rotation speed of the two roller brushes at the bottom, but turns in different ways, and the two roller brushes are compared by turning in different rotation modes. The efficiency of cleaning is greatly increased by switching to the same method.

Description

A solar panel cleaning device

technical field

The utility model belongs to the technical field of solar panel cleaning, in particular to a solar panel cleaning device.

Background technique

The solar panel cleaning device is mainly used in large photovoltaic power stations or small household solar power panels that need to be wiped regularly to maintain a clean working surface. Since the solar panel is exposed to the outdoor natural environment for a long time, a large amount of dust will adhere to the solar panel. Some dust with strong acid and alkali will erode the surface of the solar panel and reduce the light transmittance of the panel glass. Dust will also affect the solar panel. The heat dissipation on the surface reduces the photoelectric conversion efficiency, which seriously affects the power generation efficiency of solar energy and the service life of the solar panel. Therefore, it is necessary to use a cleaning device to remove the dust and small particles attached to the surface of the solar power generation panel, so that the solar panel can maintain a high power generation power.

Most of the existing solar power panels are cleaned manually, which not only results in a waste of manpower, but also has low work efficiency. Some household solar panels are placed in high positions, and it is dangerous to use manual cleaning. There are mainly two types of solar panel cleaning equipment on the market: the roller up and down movement with guide rails and the large roller brush connected vehicle type; the roller up and down movement device with guide rails is complicated in structure, difficult to realize automatic control, and the failure of the device. Due to the disadvantages of high rate and high cost, it is rarely used. The vehicle-mounted roller brush cleaning device controls the distance between the roller brush and the solar panel through the driver, which can easily cause the solar panel to be damaged by the roller brush or fail to achieve the cleaning effect due to the excessive distance between the roller brushes, thus causing certain limitations in use. sex.

Utility model content

The purpose of the present invention is to provide a solar panel cleaning device to solve the above problems.

To achieve the above object, the utility model adopts the following technical solutions:

A solar panel cleaning device includes a frame body, a walking mechanism, a spraying mechanism and a cleaning mechanism; both ends of the frame body are provided with a walking mechanism, a spray mechanism is arranged around the frame body, and the cleaning mechanism is arranged inside the frame body and both sides;

The traveling mechanism includes a traveling mechanism bracket, a worm gear motor, a worm gear motor bracket and a traveling wheel; the two traveling mechanism brackets are respectively arranged at both ends of the frame body, and the two ends of the traveling mechanism bracket are respectively fixed by the worm gear and worm gear motor brackets. There is a worm gear motor, and the output end of the worm gear motor is connected to the traveling wheel; the frame body is mounted on the solar panel through the traveling mechanism; the traveling wheel of the traveling mechanism at one end of the frame body is perpendicular to the top surface of the solar panel; The walking wheel of the mechanism is perpendicular to the surface of the solar panel.

Further, the output end of the worm gear motor is connected with the traveling wheel through a hexagonal coupling.

Further, the spraying mechanism includes a pipe, a pipe support and a spray head; the pipe is arranged on both sides of the frame body through the pipe support, the pipes are provided with holes at equal intervals, and the holes are provided with spray heads; one end of the pipe is closed and one end is open, and one end is open. Converged to the water inlet, and the water inlet is connected to the water source.

Further, the cleaning mechanism includes a roller brush, a DC gear motor, a brush bar and a DC gear motor bracket; a number of roller brushes are arranged in parallel inside the main frame, the DC gear motor is fixed on the end of the frame body through the DC gear motor bracket, and the DC gear is reduced. The output end of the motor is connected to the end of the roller brush.

Further, the DC gear motor is connected with the roller brush through a coupling.

Further, the frame body is provided with a controller, and the controller is connected to the worm gear motor and the DC gear motor.

Further, the solar panel is supported by a solar panel bracket, both ends of the solar panel bracket are provided with photoelectric sensor baffles, and the traveling mechanism is provided with a photoelectric sensor.

Compared with the prior art, the utility model has the following technical effects:

(A) The utility model relies on the unique installation method of the traveling wheels of the upper and lower parts of the traveling mechanism in the solar panel cleaning device, so that the cleaning device can move stably on the solar panel without the need for guide rails.

(B) The utility model relies on the function of the photoelectric switch and the single-chip microcomputer to automatically identify the entire cleaning device when it reaches the edge position of the solar panel, and the single-chip microcomputer controls the movement in the opposite direction after reaching the edge position without manual control.

(C) The water supply mode of the device of the present invention is directly connected to the faucet through the input pipe, which greatly simplifies the mechanism.

(D) The device of the present utility model reduces the influence on the movement of the device when the roller brushes are cleaned by the same rotation speed of the two roller brushes at the bottom, but turns in different ways, and the two roller brushes are rotated by turning different rotation methods. The efficiency of cleaning is greatly increased by switching to the same method.

(E) The utility model has the advantages of simple structure, convenient use, high efficiency and low cost.

Description of drawings

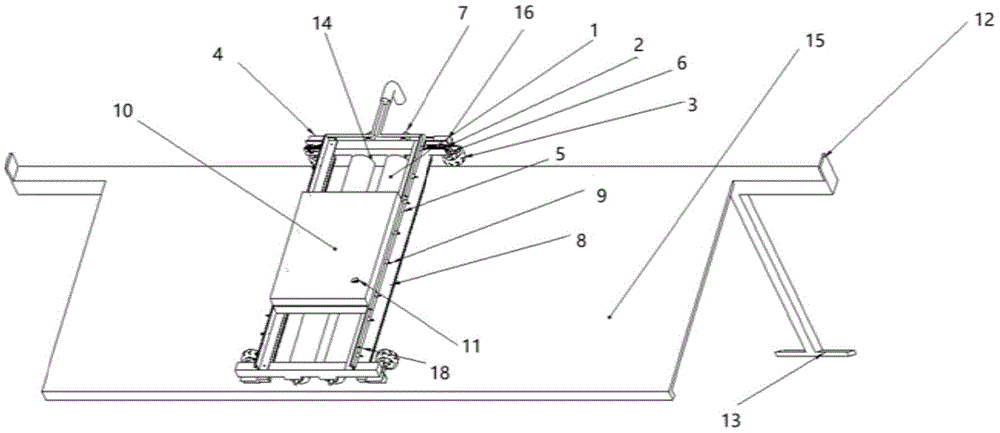

Fig. 1 is the front view structure schematic diagram of the utility model.

Figure 2 is a schematic side view of the structure of the present invention.

FIG. 3 is a schematic top view of the structure of the present invention.

Among them: 1- roller brush, 2- photoelectric sensor, 3- traveling wheel, 4- worm gear motor, 5- pipe, 6- hexagonal coupling, 7- DC gear motor, 8- long brush, 9- nozzle , 10-controller, 11-power switch, 12-photoelectric sensor baffle, 13-solar panel bracket, 14-coupling, 15-solar panel, 16-turbine worm motor bracket, 17-DC gear motor bracket, 18 - Tube support, 19- with base bearing

Detailed ways

Below in conjunction with accompanying drawing, the utility model is further described:

1 to 3, a solar panel cleaning device includes a frame body, a walking mechanism, a spraying mechanism and a cleaning mechanism; both ends of the frame body are provided with a walking mechanism, and a spray mechanism is arranged around the frame body, The cleaning mechanism is arranged inside and on both sides of the frame body;

The traveling mechanism includes a traveling mechanism bracket, a worm gear motor 4, a worm gear motor bracket 16 and a traveling wheel 3; the two traveling mechanism brackets are respectively arranged at both ends of the frame body, and the two ends of the traveling mechanism bracket are respectively passed through the worm gear and worm gear motor. The bracket 16 is fixedly provided with a worm gear motor 4, and the output end of the worm gear motor 4 is connected to the traveling wheel 3; the frame body is mounted on the solar panel through the traveling mechanism; the traveling wheel of the traveling mechanism at one end of the frame body is perpendicular to the top surface of the solar panel Tangent; the traveling wheel of the traveling mechanism at the other end is vertically tangent to the surface of the solar panel.

The output end of the worm gear motor 4 is connected with the traveling wheel 3 through a hexagonal coupling.

The spray mechanism includes a pipe 5, a pipe support 18 and a spray head 9; the pipe 5 is arranged on both sides of the frame body through the pipe support 18, the pipe 5 is provided with holes at equal intervals, and the hole is provided with a spray head 9; one end of the pipe 5 is closed at one end Opening, one end of the opening converges to the water inlet, and the water inlet is connected to the water source.

The cleaning mechanism includes a roller brush 1, a DC gear motor 7, a brush strip 8 and a DC gear motor bracket 17; several roller brushes 1 are arranged in parallel inside the main body frame, and the DC gear motor 7 is fixed on the end of the frame body through the DC gear motor bracket 17. The output end of the DC deceleration motor 7 is connected to the end of the roller brush 1 .

The DC geared motor 7 is connected to the roller brush 1 through a coupling 14 .

The frame body is provided with a controller, and the controller is connected to the worm gear motor 4 and the DC gear motor 7 .

The solar panel is supported by a solar panel bracket, both ends of the solar panel bracket are provided with photoelectric sensor baffles 12, and a photoelectric sensor 2 is provided on the traveling mechanism.

A cleaning method for a solar panel cleaning device, comprising the following steps:

Step 1, the two walking wheels on the upper end of the walking mechanism make the whole device hang on the frame surface of the top of the solar panel by the gravity of the cleaning device itself, start the device, and the walking mechanism drives the device to walk on the solar panel;

Step 2, when the solar panel cleaning device moves to the edge of the solar panel, the photoelectric sensor senses the baffles on both sides of the solar panel, and sends a signal to the controller to make the cleaning device move in the opposite direction, when it reaches the edge of the other side At the same time, the baffle at the other end makes the corresponding photoelectric sensor send a signal to the central processing unit to make the cleaning device move in the opposite direction, and so on.

Step 3: Connect the water inlet of the pipeline to a water supply device such as a faucet and clean the surface of the solar panel through the nozzle; at the same time, start the DC gear motor, the long brushes on both sides of the device are used to remove large impurities on the surface, and the roller brush is driven by the gear motor. Turning in the opposite direction allows the roller brush to clean the solar surface.

As shown in FIG. 1 to FIG. 3 , this example provides an automatic control type solar panel cleaning device and method.

The utility model relates to an automatic control type solar panel cleaning device, which comprises a central control system, an induction device, a walking mechanism and a cleaning system;

The traveling mechanism includes a traveling wheel 4, a hexagonal coupling 6, a worm gear motor 4, and a worm gear motor bracket 16. The upper part of the traveling mechanism makes the worm gear motor 4 fixed on the top of the solar panel cleaning device through the worm gear motor bracket 16. both ends of . The worm gear motor 4 is connected to the traveling wheel 3 through the hexagonal coupling 6 so that the bottom of the wheel is perpendicular to the top surface of the solar panel 15 . The lower half of the traveling mechanism is fixed by two turbine and worm motor brackets 16 to the two ends of the lower frame of the solar panel cleaning device, so that the bracket 16 and the connecting surface of the bracket are parallel to the solar panel 16 . Due to the placement of the worm gear motor bracket 16 , the traveling wheel 4 under the traveling mechanism is perpendicular to the surface of the solar panel 15 .

The cleaning system includes a roller brush 1 , a pipe 5 , a pipe support 18 , a DC reduction motor 7 , a long brush 8 , a spray head 9 , a coupling 14 , and a DC reduction motor support 17 . The elongated brushes 8 are fixed on both sides of the solar panel cleaning device and have their bristles in contact with the surface of the solar panel 15 . The pipe 5 is fixed around the solar panel cleaning device by the pipe bracket 18 , and the nozzle 9 is fixed on the pipe at a certain distance to adjust the angle so that the water sprayed by the nozzle 9 can be evenly sprayed on the solar panel 15 . The roller brush 1 is fixed on the bottom end of the solar cleaning device through a bearing 19 with a base and is connected with the DC gear motor 7 through a coupling 14 . The DC deceleration motor bracket 17 fixes the DC deceleration motor 7 on the top end of the solar cleaning device bracket.

The central control system consists of single chip microcomputer and motor control board.

The sensing device is an electric inductor.

The working process of the present utility model is as follows:

When the solar panel cleaning device installed with the automatic control is in operation, first press the power switch 11 to supply power to the entire mechanism, and when the photoelectric sensor 2 of the solar panel cleaning device senses the photoelectric sensor baffle 12, a signal is generated and transmitted to the center. The control system 10, the central control system 10 controls the cleaning device to move to the end that does not sense the photoelectric sensor baffle 12. If the power switch 11 is turned on and the cleaning device does not sense the photoelectric sensor baffle 12, the central control system defaults to the left end. sports. When the running mechanism is working, the four running wheels 3 move in one direction at the same time, and the rotating speed of the running wheels 3 is controlled to be the same. Due to the effect of the gravity of the cleaning device and the frictional force at the bottom of the traveling wheel 3, the upper part of the traveling wheel 3 of the traveling mechanism moves smoothly at the top of the frame of the solar panel 15 without side slipping. The cooperation of the running wheels 3 keeps the entire cleaning device parallel to the surface of the solar panel 15 .

While moving, water is supplied to the pipeline 5 with a faucet or other water supply system, so that the spray head 9 sprays water on the surface of the solar panel 15 for cleaning, and the roller brush 1 controlled by the DC gear motor rotates in different directions. When the whole device moves to a certain distance, the photoelectric sensor 2 will send a signal to the controller 10 to make it move in the opposite direction, and the solar panel cleaning device will stop moving by turning off the power button 11 repeatedly.

Claims (7)

1. A solar panel cleaning device is characterized by comprising a frame main body, a travelling mechanism, a spraying mechanism and a cleaning mechanism; the two ends of the frame main body are provided with walking mechanisms, the periphery of the frame main body is provided with a spraying mechanism, and the cleaning mechanisms are arranged inside and at two sides of the frame main body;

the walking mechanism comprises a walking mechanism bracket, a worm and gear speed reducing motor (4), a worm and gear speed reducing motor bracket (16) and walking wheels (3); the two walking mechanism supports are respectively arranged at two ends of the frame main body, a worm gear reduction motor (4) is fixedly arranged at two ends of the walking mechanism supports through a worm gear reduction motor support (16), and the output end of the worm gear reduction motor (4) is connected with the walking wheels (3); the frame main body is erected on the solar panel through the traveling mechanism; the traveling wheel of the traveling mechanism at one end of the frame main body is vertically tangent to the surface of the top end of the solar panel; the walking wheel of the walking mechanism at the other end is vertically tangent with the surface of the solar panel.

2. A solar panel cleaning apparatus according to claim 1, wherein the output of the worm gear reduction motor (4) is connected to the travelling wheel (3) via a hex coupling.

3. Solar panel cleaning apparatus according to claim 1, wherein the spray mechanism comprises a pipe (5), a pipe holder (18) and a spray head (9); the pipelines (5) are arranged on two sides of the frame main body through the pipe brackets (18), holes are arranged on the pipelines (5) at equal intervals, and spray heads (9) are arranged on the holes; one end of the pipeline (5) is closed, and the other end is opened, and the water inlet is converged to the open end and is connected with a water source.

4. A solar panel cleaning apparatus according to claim 1, wherein the cleaning mechanism comprises a roller brush (1), a dc geared motor (7), a brush bar (8) and a dc geared motor support (17); a plurality of cylinder brushes (1) are arranged inside the main body frame in parallel, a direct current speed reducing motor (7) is fixed at the end part of the frame body through a direct current speed reducing motor support (17), and the output end of the direct current speed reducing motor (7) is connected with the end part of the cylinder brushes (1).

5. Solar panel cleaning apparatus according to claim 1, wherein the dc gear motor (7) is connected to the roller brush (1) by means of a coupling (14).

6. A solar panel cleaning device according to claim 4, wherein the frame body is provided with a controller, and the controller is connected with the worm gear speed reduction motor (4) and the DC speed reduction motor (7).

7. Solar panel cleaning device according to claim 1, wherein the solar panel is supported by a solar panel support, wherein the solar panel support is provided with photo sensor shutters (12) at both ends and the travelling mechanism is provided with photo sensors (2).
