CN210992285U - Extension management line ware for syringe pump - Google Patents

Abstract

The utility model discloses an extension management cable for a syringe pump, which comprises a syringe pump body, an observation screen is fixedly connected to the upper end of the syringe pump body, and an adjustment button is arranged on one side of the observation screen, and the adjustment button is One side is provided with a switch button, the front end of the syringe pump body is provided with a power interface, the rear end of the observation screen is provided with a pusher, one side of the pusher is provided with three sets of fixed rods, one end of the fixed rod A push block is fixedly connected, an atlas of the push block is provided with an injection device, and an outer wall of the injection device is provided with a fixed tube device. The extension management cord for a syringe pump according to the utility model is provided with a material pressing device and a shock absorbing device, which can effectively classify and identify the hoses filled with different medicines, improve the working efficiency of medical staff, and can The injection tube can be fixed and disassembled effectively, which brings a better prospect of use.

Description

An extension management line device for a syringe pump

technical field

The utility model relates to the technical field of medical devices, in particular to an extension management wire device for a syringe pump.

Background technique

Syringe pump instruments are often used in the neurointensive care unit. Many liquid medicines are injected into the patient's body by the syringe pump through the hose. There is still a certain distance between the syringe pump instrument and the patient. Usually, the syringe pump is not connected to only one hose for injection. For a drug, due to the material of the hose and a certain distance, most of the hoses are mixed together, and it is difficult to distinguish the hoses of different drugs, which increases the difficulty of changing the patient's dressing. The personnel must start from the beginning of the syringe pump device to accurately change the medicine, which is very time-consuming, and most of the hoses are intertwined, which also affects the appearance, and also increases the hidden danger of medical accidents.

The extension management cable for syringe pump often needs to disassemble and replace the injection tube on the syringe pump in order to play the maximum role, but the general extension management cable for syringe pump is inconvenient to disassemble the injection tube. In addition, it is time-consuming, resulting in lower work efficiency of changing the medicine.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides an extension management wire device for a syringe pump, which has the advantages of effectively classifying and identifying the hoses containing different medicines, and effectively fixing and disassembling the syringe tubes. It solves the problems that the hoses are entangled and difficult to identify, and the process of disassembling and assembling the injection tube is complicated.

(2) Technical solutions

In order to achieve the above-mentioned purposes of effectively classifying and identifying the hoses containing different medicines and effectively fixing and disassembling the injection tube, the present utility model provides the following technical solutions: an extension management line device for a syringe pump, including a syringe pump The upper end of the syringe pump body is fixedly connected with an observation screen, one side of the observation screen is provided with an adjustment button, one side of the adjustment button is provided with a switch button, and the front end of the syringe pump body is provided with a power interface , the rear end of the observation screen is provided with a pusher, one side of the pusher is provided with three sets of fixed rods, one end of the fixed rod is fixedly connected with a push block, and the atlas of the push block is provided with an injection device, The outer wall of the injection device is provided with a fixed tube device.

Preferably, the injection device includes a liquid storage tube, a catheter tube, a first numeral mark and a second numeral mark, the outer wall of the liquid storage tube is fixedly connected to the inner side of the first numeral mark, and one end of the liquid storage tube It is fixedly connected with one end of the liquid guide hose, and the outer wall of the liquid guide hose is fixedly connected with the inner side of the second numeral.

Preferably, the fixing pipe device includes a fixed connection block, a cover block, an extraction block and a connection plate, the lower end of the fixed connection block is fixedly connected with the upper end of the connection plate, and the upper end of the fixed connection block is connected with the upper end of the cover block. The lower end is detachably connected, and the upper end of the cover block is fixedly connected with the squat of the extraction block.

Preferably, a connecting sealing ring is provided between the liquid storage tube and the liquid guiding hose, and one end of the liquid storage tube is fixedly connected to one end of the liquid guiding hose through the connecting sealing ring.

Preferably, an R-shaped plastic rivet is arranged between the capping block and the extraction block, and the upper end of the capping block is fixedly connected to the lower end of the extraction block through the R-shaped plastic rivet.

Preferably, a fixed triangle block is arranged between the syringe pump body and the pusher, the upper end of the syringe pump body is fixedly connected to the lower end of the pusher through the fixed triangle block, and a fixed triangle block is arranged between the syringe pump body and the fixed tube device. There are pan-head machine wire screws, and the upper end of the syringe pump body is fixedly connected with the lower end of the fixing tube device through the pan-head machine wire screws.

(3) Beneficial effects

Compared with the prior art, the utility model provides an extension management wire device for a syringe pump, which has the following beneficial effects:

1. This kind of extension management cable for a syringe pump can easily identify and classify the drugs in the hose through the setting of the first number mark and the second number mark, and then separate the liquid storage tube and the outside of the catheter tube. The appearance is set to different colors, which can easily organize and separate the catheterization hose, and can easily identify the catheterization hoses of different drugs, which improves the work efficiency to a certain extent.

2. This kind of extension management wire for syringe pump, when the injection device needs to be disassembled, first take the extraction block to remove the cover block, and then take out the injection device from the upper end of the fixed connection block to perform operations such as dressing change, etc. In this way, the injection device can be fixed, and at the same time, it can be easily disassembled and replaced, and the fixed connection block is provided with six sets of grooves, which can be installed with different types of injection devices. , significantly improve the work order.

Description of drawings

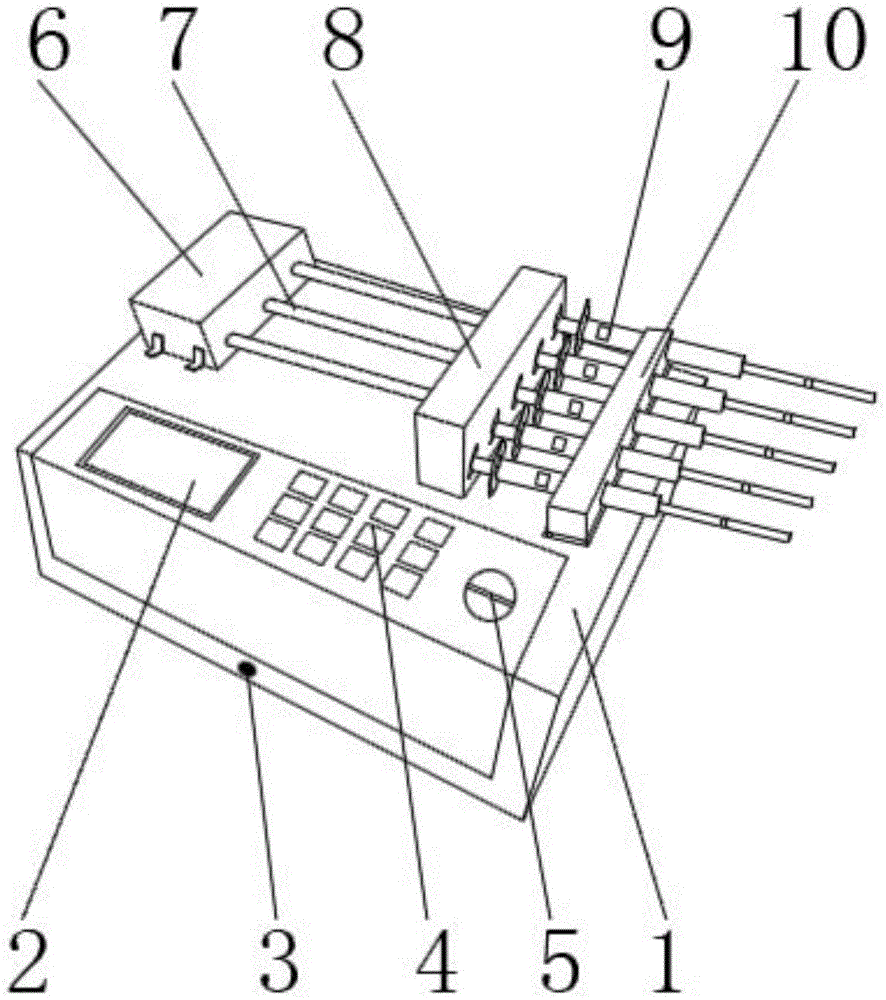

Fig. 1 is the structural representation of a kind of extension management wire device for syringe pump of the present invention;

Figure 2 is a schematic structural diagram of a syringe pump extension management wire injection device of the present invention;

FIG. 3 is a schematic structural diagram of a fixed tube device for an extension management wire device for a syringe pump according to the present invention.

In the figure: 1. Syringe pump body; 2. Observation screen; 3. Power interface; 4. Adjustment button; 5. Switch button; 6. Pusher; 7. Fixed rod; 8. Pushing block; 9. Injection device; 10 901, liquid storage tube; 902, catheter hose; 903, first numeral; 904, second numeral; 101, fixed connection block; 102, capping block; 103, extraction block; 104 , connection board.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1-3, an extension management cable for a syringe pump, including a syringe pump body 1, an observation screen 2 is fixedly connected to the upper end of the syringe pump body 1, and an adjustment button 4 is arranged on one side of the observation screen 2. The adjustment button One side of 4 is provided with a switch button 5, the front end of the syringe pump body 1 is provided with a power interface 3, the rear end of the observation screen 2 is provided with a pusher 6, one side of the pusher 6 is provided with three sets of fixed rods 7, the fixed rods 7 A push block 8 is fixedly connected to one end of the push block 8 , an injection device 9 is provided on the atlas of the push block 8 , and a fixed tube device 10 is provided on the outer wall of the injection device 9 .

Further, the injection device 9 includes a liquid storage tube 901, a catheter hose 902, a first numeral 903 and a second numeral 904. The outer wall of the liquid storage tube 901 is fixedly connected to the inner side of the first numeral 903, and the liquid storage tube One end of 901 is fixedly connected to one end of the catheter tube 902, and the outer wall of the catheter tube 902 is fixedly connected to the inner side of the second number 904. In use, through the setting of the first number 903 and the second number 904, The medicines in the hose can be easily identified and classified, and then the external appearance of the liquid storage tube 901 and the liquid guide hose 902 can be set to different colors, and the liquid guide hose 902 can be easily sorted and separated, and can be easily identified. The catheter tube 902 for discharging different medicines improves the work efficiency to a certain extent.

Further, the fixed pipe device 10 includes a fixed connection block 101, a cover block 102, an extraction block 103 and a connection plate 104, the lower end of the fixed connection block 101 is fixedly connected with the upper end of the connection plate 104, and the upper end of the fixed connection block 101 is connected with the cover The lower end of the block 102 is detachably connected, and the upper end of the cover block 102 is fixedly connected with the squatting block of the extraction block 103. In use, when the injection device 9 needs to be disassembled, first hold the extraction block 103 to remove the cover block 102, Then, the injection device 9 is taken out from the upper end of the fixed connection block 101 to perform operations such as dressing change, so that the injection device 9 can be fixed, and at the same time, it can be conveniently disassembled, assembled and replaced, and the connection block can be fixed. 101 is provided with six sets of separate grooves, which can accommodate different types of injection devices 9.

Further, a connecting sealing ring is provided between the liquid storage tube 901 and the liquid guiding hose 902, and one end of the liquid storage tube 901 is fixedly connected to one end of the liquid guiding hose 902 through the connecting sealing ring, and the connecting sealing ring can connect the liquid storage tube 901 is tightly connected with the catheter tube 902 .

Further, an R-shaped plastic rivet is arranged between the capping block 102 and the extraction block 103, and the upper end of the capping block 102 is fixedly connected with the lower end of the extraction block 103 through the R-shaped plastic The cover block 102 and the extraction block 103 are connected more firmly.

Further, a fixed triangular block is provided between the syringe pump body 1 and the pusher 6, the upper end of the syringe pump body 1 is fixedly connected with the lower end of the pusher 6 through the fixed triangular block, and the syringe pump body 1 and the fixed tube device 10 are provided between the There are pan head wire screws, and the upper end of the syringe pump body 1 is fixedly connected to the lower end of the fixing tube device 10 through the pan head machine wire screws.

Working principle: First, when the injection device 9 needs to be disassembled, first hold the extraction block 103 to remove the cover block 102, and then take the injection device 9 out of the upper end of the fixed connection block 101 to perform operations such as dressing changes. While the injection device 9 is fixed, it can be easily disassembled and replaced, and the fixed connection block 101 is provided with six sets of grooves, which can be installed with different types of injection devices 9. Through the setting of the first numeral 903 and the second numeral 904, the medicines in the hose can be easily identified and classified, and then the external appearance of the liquid storage tube 901 and the catheter tube 902 can be set to different colors, which can conveniently The catheter tube 902 is sorted and separated, and the catheter tube 902 of different drugs can be easily identified, then the switch button 5 is activated, and the speed of the fixed rod 7 and the push block 8 is adjusted by adjusting the adjustment button 4, The numerical value of the moving speed can be observed through the viewing screen 2 .

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides an extension management line ware for syringe pump, includes the syringe pump body (1), its characterized in that: the utility model discloses an injection pump, including the injection pump body (1), the upper end fixedly connected with of the injection pump body (1) observes screen (2), one side of observing screen (2) is provided with adjustment button (4), one side of adjustment button (4) is provided with shift knob (5), the front end of the injection pump body (1) is provided with power source (3), the rear end of observing screen (2) is provided with impeller (6), one side of impeller (6) is provided with three dead levers of group (7), the one end fixedly connected with of dead lever (7) promotes piece (8), the atlas that promotes piece (8) is provided with injection apparatus (9), the outer wall of injection apparatus (9) is provided with fixed pipe device (10).

2. The extension line management device for the syringe pump of claim 1, wherein: the injection device (9) comprises a liquid storage pipe (901), a liquid guide hose (902), a first number mark (903) and a second number mark (904), wherein the outer wall of the liquid storage pipe (901) is fixedly connected with the inner side of the first number mark (903), one end of the liquid storage pipe (901) is fixedly connected with one end of the liquid guide hose (902), and the outer wall of the liquid guide hose (902) is fixedly connected with the inner side of the second number mark (904).

3. The extension line management device for the syringe pump of claim 1, wherein: fixed pipe device (10) include fixed connection piece (101), closing cap piece (102), extract piece (103) and connecting plate (104), the lower extreme of fixed connection piece (101) and the upper end fixed connection of connecting plate (104), the upper end of fixed connection piece (101) can be dismantled with the lower extreme of closing cap piece (102) and be connected, the upper end of closing cap piece (102) and the fixed connection of squatting of extracting piece (103).

4. The extension line management device for the syringe pump of claim 2, wherein: a connecting sealing ring is arranged between the liquid storage pipe (901) and the liquid guide hose (902), and one end of the liquid storage pipe (901) is fixedly connected with one end of the liquid guide hose (902) through the connecting sealing ring.

5. An extension line organizer for a syringe pump as claimed in claim 3, wherein: an R-shaped plastic rivet is arranged between the sealing cover block (102) and the extraction block (103), and the upper end of the sealing cover block (102) is fixedly connected with the lower end of the extraction block (103) through the R-shaped plastic rivet.

6. The extension line management device for the syringe pump of claim 1, wherein: be equipped with fixed triangle piece between the injection pump body (1) and impeller (6), the lower extreme fixed connection of the upper end of the injection pump body (1) through fixed triangle piece and impeller (6), be equipped with coiled hair machine screw between the injection pump body (1) and fixed pipe device (10), the lower extreme fixed connection of coiled hair machine screw and fixed pipe device (10) is passed through to the upper end of the injection pump body (1).
