Abstract

The utility model discloses a multifunctional combined cabinet, which relates to the technical field of furniture and solves the problems of single function and low space utilization rate of the existing furniture, the utility model comprises a cabinet body, wherein the bottom of the cabinet body is provided with a drawing cavity, a folding bed body assembly is arranged in the drawing cavity in a sliding way, the left side and the right side of the upper part of the cabinet body are respectively provided with a containing cabinet, a containing cavity is formed between the two containing cabinets, an ironing plate is arranged in the containing cavity, the bottom end of the ironing plate is hinged in the containing cavity, two sides of the top of the ironing plate are respectively hinged with a first bracket, one end of the two first brackets, which is far away from the ironing plate, is provided with a first horizontal object placing plate, and the; the utility model discloses collect and accomodate cabinet, the bed body, iron the table as an organic whole, effectively reduced indoor occupation space, more be suitable for compact structure's indoor use, overall structure easy operation, space occupy for a short time, the practicality is strong.

Description

A multifunctional combination cabinet

technical field

The utility model relates to the technical field of furniture, in particular to a multifunctional combined cabinet, which is used for the use of multifunctional furniture.

Background technique

There are various decoration methods for a variety of house types, and the demand for furniture is also diverse. Storage cabinets, wardrobes, and beds are the most commonly used furniture in daily life.

Nowadays, with the continuous innovation of life concepts and the changes in the demands of more and more young people, people's demand for furniture is no longer simple and practical and beautiful, but more focused on the multi-function and integration of furniture. On the one hand, Effectively save unnecessary furniture costs, on the other hand, pursue the highest possible space utilization rate, especially in small-sized houses with compact layout, placing multiple pieces of furniture will cause too much space waste, resulting in cramped living space, and If the necessary living furniture is reduced or exempted, the quality of life will not be guaranteed, so the requirements for the functional integration of furniture and the flexibility of space occupancy are getting higher and higher.

Under this premise, the traditional furniture with simple design and structure, fixed structure and single function can no longer keep up with the demand, because of its large space occupation, single fixed structure and function, low space utilization and other shortcomings, it will become more and more difficult to keep up with the demand. favored by people.

Utility model content

The purpose of the utility model is: in order to solve the problems of single function and low space utilization rate of the existing furniture, the utility model provides a multifunctional combined cabinet.

In order to achieve the above purpose, the present invention specifically adopts the following technical solutions: a multifunctional combined cabinet, comprising a cabinet body, a drawer cavity is arranged at the bottom of the cabinet body, and a folding bed assembly is slidably arranged in the drawer cavity, A storage cabinet is provided on the left and right sides of the upper part of the cabinet body, the upper part of the cabinet body is located between the two storage cabinets to form a accommodating cavity, and an ironing board is arranged in the accommodating cavity, and the ironing board The bottom end of the ironing board is hinged to the bottom of the accommodating cavity, a first bracket is hinged on both sides of the top of the ironing board, and the end of the two first brackets away from the ironing board is provided with a first horizontal storage board; the accommodating cavity The top has an ironing board fastening mechanism.

Further, the folding bed assembly includes a first support cavity that is horizontally slidably connected to the drawing cavity, the top of the first support cavity is provided with a first single mattress, and the first support cavity is horizontally slidably connected. There is a second support cavity with an opening at the top, a second single mattress is arranged in the second support cavity, and a lifting mechanism is arranged at the bottom of the second single mattress.

Further, the lifting mechanism includes a scissor lift frame, the bottom of the scissor lift frame is slidably connected to the inner bottom surface of the second support cavity, and the top of the scissor lift frame slides with the bottom surface of the second single mattress connect.

Further, the fastening mechanism includes a fastening strip hinged on the top of the rear wall of the accommodating cavity, and the free end of the fastening strip is fastened to the ironing board.

Further, a second support rod is hinged on both sides of the middle part of the ironing board, and a second horizontal object board is provided at one end of the two second brackets away from the ironing board.

Further, an openable and closable cabinet door is hinged on both of the two storage cabinets.

The beneficial effects of the present utility model are as follows:

1. The utility model is provided with a pull-out cavity at the bottom of the cabinet body, and a folding bed body assembly is slidably arranged in the pull-out cavity, which has strong storage and combination. When the bed body needs to be used, the folding bed body can be pulled out from the pull-out cavity. The components are unfolded to form a bed for use, and the bed is stored in the bottom of the cabinet at other times. Compared with the traditional fixed bed, the indoor space occupied is effectively reduced, and it is more suitable for indoor use with compact structure; in addition, the upper part of the cabinet is There is a storage cabinet on each of the left and right sides. The upper part of the cabinet is located between the two storage cabinets to form an accommodation cavity. The accommodation cavity is hinged with an ironing board that can be folded upward and stored in the accommodation cavity. Clothes can be stored in the storage cavity. When ironing clothes, the ironing board can be quickly unfolded to iron clothes, and the ironing board can be folded up after ironing to avoid occupying the horizontal area of the room; Brackets, one end of the two first brackets away from the ironing board is provided with a first horizontal storage board. When the ironing board is in a retracted state, the storage rack can be used for placing ornaments or storage, and when the ironing board needs to be unfolded, Pull the rack, the rack is kept horizontally supported on the ground, which not only plays the role of supporting the ironing board, but also does not affect the balance of the items placed on the rack.

2. The folding bed assembly of the present invention includes a first support cavity that is horizontally slidably connected to the pull-out cavity, the top of the first support cavity is provided with a first single mattress, and the first support cavity is horizontally slidably connected with a A second support cavity with an open top, a second single mattress is arranged in the second support cavity, and a lifting mechanism is arranged at the bottom of the second single mattress. Usually, the second support cavity is accommodated into the first support cavity, The first support cavity is stored into the pull-out cavity of the cabinet, which does not occupy space outside the cabinet and saves indoor space. When in use, the first support cavity and the first single mattress are pulled out from the pull-out cavity, and then the first support cavity and the first single mattress are pulled out from the pull-out cavity. A support cavity is drawn out of the second support cavity, and the second single mattress in the second support cavity is raised to the same height as the first single mattress to form a double bed. Strong practicability;

3. The lifting mechanism of the present utility model includes a scissor lift frame, the bottom of the scissor lift frame is slidably connected to the inner bottom surface of the second support cavity, and the top of the scissor lift frame is slidably connected to the bottom surface of the second single mattress. Pull the second single mattress up to make it rise, and place the second single mattress on the edge of the second support cavity to be level with the first single mattress, and pull up the outside of the second single mattress after use Then push down the second single mattress, and the scissor lift frame is lowered, so that it is stored in the second support cavity, and the operation is simple and convenient;

4. The fastening mechanism of the present invention includes a fastening strip hinged on the top of the rear wall of the accommodating cavity, the free end of the fastening strip is fastened to the ironing board, and when the ironing board is stowed, the fastening strip is rotated to make it free. The end is fastened on the ironing board to prevent the ironing board from unfolding automatically. When opening, the fastening strip is rotated to make the free end leave the ironing board, which is convenient for opening, and the structure is simple and the function is stable;

5. The utility model is provided with a second horizontal storage board parallel to the first horizontal storage rack, which effectively increases the storage strength in the accommodating cavity and further improves the space utilization rate;

Description of drawings

Fig. 1 is the front view of the present utility model;

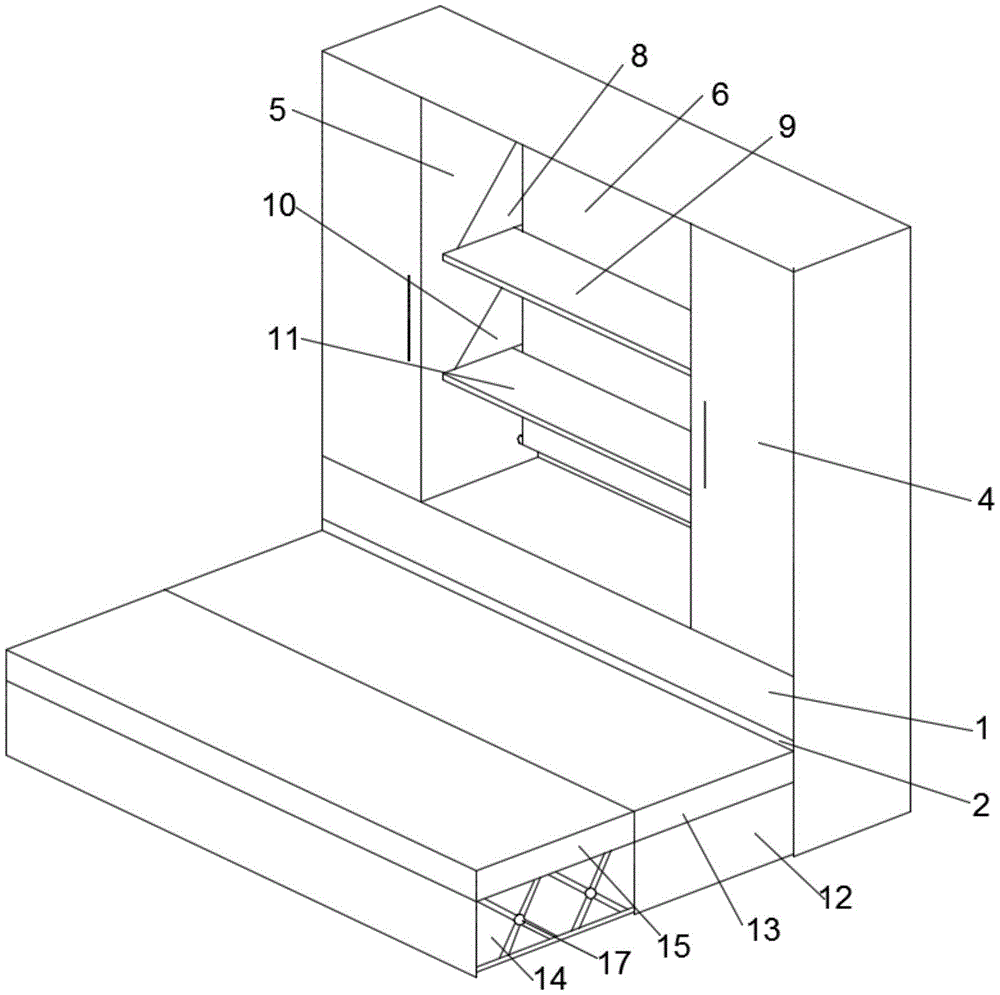

2 is a schematic structural diagram of the folding bed assembly of the present invention in an unfolded state;

3 is a schematic structural diagram of the ironing board of the present invention in an unfolded state;

4 is a schematic structural diagram of the scissor lift frame in a high-position state in Embodiment 3;

FIG. 5 is a schematic structural diagram of the scissor lift frame in a low position state in Embodiment 3. FIG.

Reference signs: 1-cabinet, 2-pulling cavity, 3-storage cabinet, 4-cabinet door, 5-accommodating cavity, 6-ironing board, 7-fastening strip, 8-first bracket, 9- First horizontal storage board, 10-second bracket, 11-second horizontal storage board, 12-first support cavity, 13-first single mattress, 14-second support cavity, 15-second single bed Pad, 16-Telescopic Sleeve Assembly, 17-Scissor Lift

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present utility model clearer, the technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. The embodiments described above are a part of the embodiments of the present invention, but not all of the embodiments. The components of the embodiments of the invention generally described and illustrated in the drawings herein may be arranged and designed in a variety of different configurations.

Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be noted that like numerals and letters refer to like items in the following figures, so once an item is defined in one figure, it does not require further definition and explanation in subsequent figures. Furthermore, the terms "first", "second", etc. are only used to differentiate the description and should not be construed to indicate or imply relative importance.

In the description of the embodiments of the present invention, it should be noted that the orientation or positional relationship indicated by the terms "inside", "outside", "upper", etc. is based on the orientation or positional relationship shown in the accompanying drawings, or the practical The orientation or positional relationship that is usually placed when the new product is used is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, Therefore, it cannot be construed as a limitation of the present invention.

Example 1

As shown in FIG. 1 to FIG. 3 , this embodiment provides a multifunctional combined cabinet, including a cabinet body 1, a drawer cavity 2 is provided at the bottom of the cabinet body 1, and a folding bed is arranged in the drawer cavity 2 through sliding rails. The sliding rails can use the existing telescopic sliding rails similar to those used in drawers. There is a storage cabinet 3 on the left and right sides of the upper part of the cabinet body 1. The storage cabinet 3 is hingedly connected to the cabinet through hinges. The door 4, the upper part of the cabinet 1 is located between the two storage cabinets 3 to form a accommodating cavity 5, the accommodating cavity 5 is provided with an ironing board 6, and the bottom end of the ironing board 6 is hinged to the bottom of the rear wall of the accommodating cavity 5 A first bracket 8 is hinged on both sides of the top of the ironing board 6, and a first horizontal object board 9 is provided at one end of the two first brackets 8 away from the ironing board 6. The panel of the first horizontal object board 9 is connected to the first horizontal object board 9. A bracket 8 is perpendicular to each other; the top of the accommodating cavity 5 is provided with a fastening mechanism of the ironing board 6 , in this embodiment, preferably, the fastening mechanism includes a fastening strip 7 hinged on the top of the rear wall of the accommodating cavity 5 , The free end of the fastening strip 7 can be rotatably fastened to the ironing board 6 .

When using the utility model, the foldable bed body assembly can be pulled out from the drawer cavity 2 and unfolded as a bed body, and the bed body can be stored in the bottom of the cabinet body 1 at other times. Compared with the traditional fixed bed body, the indoor occupation is effectively reduced. space; rotate the fastening strip 7 to make it away from the ironing board 6, and rotate the ironing board 6 down around the hinge line to make it horizontal. During this process, the first brackets 8 hinged on both sides of the ironing board 6 also face Move down until the first bracket 8 is vertical, and the first horizontal object board 9 is supported on the ground horizontally against the ground. Of course, in order to ensure the stability of the ironing board 6 when it is unfolded to the horizontal There is a limiter (not shown in the figure) at the hinge of the ironing board 6, which is temporarily limited and fixed when unfolding. This will not be repeated here.

Example 2

As shown in Figure 2, this embodiment is further optimized on the basis of Embodiment 1, specifically:

The folding bed assembly includes a first support cavity 12 that is horizontally slidably connected in the drawing cavity 2 through a sliding rail. The top of the first support cavity 12 is provided with a first single mattress 13, and the first support cavity 12 passes through The slide rail is horizontally slidably connected with a second support cavity 14 with an open top. The second support cavity 14 is provided with a second single mattress 15, and the bottom of the second single mattress 15 is provided with a lifting mechanism. In this embodiment, , the lifting mechanism can use the commonly used telescopic sleeve rod assembly 16, the structure of the telescopic sleeve rod assembly 16 is conventional, and will not be repeated. The lifting and positioning of the second single mattress 15 keeps the second single mattress 15 and the first single mattress 13 horizontal to form a double body. After use, the lifting and shrinking rod is lowered to make the second single mattress 15 It is stored in the second support cavity 14, the second support cavity 14 is stored in the first support cavity 12, and the first support cavity 12 is stored in the drawer cavity 2 of the cabinet 1, which does not occupy the space outside the cabinet 1 and saves indoor space.

In this embodiment, preferably, the first single mattress 13 and the second single mattress 15 are both 2 meters long and 0.9 meters wide. After unfolding, the first single mattress 13 and the second single mattress The mattresses 15 are placed side by side to form a double bed with a length of 2 meters and a width of 1.8 meters.

Example 3

As shown in Figure 4 and Figure 5, this embodiment is further optimized on the basis of Embodiment 1 and Embodiment 2, and the specific differences are:

The lifting mechanism includes a scissor lift frame 17, the bottom of the scissor lift frame 17 is slidably connected with the inner bottom surface of the second support cavity 14, and the top of the scissor lift frame 17 is slidably connected with the bottom surface of the second single mattress 15. Pull the second single mattress 15 upward to make the scissor lift frame 17 retract and extend upward, drive the second single mattress 15 to rise, and place the second single mattress 15 on the edge of the second support cavity 14 to The first single mattress 13 is horizontal. After use, pull up the outer side of the second single mattress 15 and then push the second single mattress 15 downward. The scissor lift frame 17 is lowered downward, so that it is stored in the second support cavity 14, the operation is simple and convenient, the scissor lift frame 17 belongs to the conventional lifting mechanism, and the specific structure is not repeated.

Example 4

As shown in Figure 1 to Figure 3, this embodiment is further optimized on the basis of Embodiment 1 to Embodiment 3, and the specific differences are:

A second bracket 10 is hinged on both sides of the middle of the ironing board 6. The lengths of the second bracket 10 and the first bracket 8 are equal. The ends of the two second brackets 10 away from the ironing board 6 are provided with a second horizontal storage board. 11. Effectively increase the storage strength in the accommodating cavity 5, and further improve the space utilization rate. After the ironing board 6 is unfolded, the stability of the support is further increased.

Claims (6)

1. A multifunctional combined cabinet, comprising a cabinet body (1), characterized in that: the bottom of the cabinet body (1) is provided with a drawing cavity (2), and the drawing cavity (2) is slidably provided with In the folding bed assembly, a storage cabinet (3) is provided on the left and right sides of the upper part of the cabinet body (1), and the upper part of the cabinet body (1) is located between the two storage cabinets (3) to form a accommodating cavity (5), the accommodating cavity (5) is provided with an ironing board (6), the bottom end of the ironing board (6) is hinged on the inner bottom of the accommodating cavity (5), and the ironing board (6) A first bracket (8) is hinged on both sides of the top of the plate, and a first horizontal object board (9) is provided at one end of the two first brackets (8) away from the ironing board (6); the accommodating cavity (5) The top of the ironing board (6) is provided with a fastening mechanism. 2 . The multifunctional combined cabinet according to claim 1 , wherein the folding bed assembly comprises a first support cavity ( 12 ) that is horizontally slidably connected with the drawing cavity ( 2 ). The top of the support cavity (12) is provided with a first single mattress (13), a second support cavity (14) with an open top is horizontally slidably connected in the first support cavity (12), and the second support cavity (14) A second single mattress (15) is provided inside, and the bottom of the second single mattress (15) is provided with a lifting mechanism. 3. A multifunctional combination cabinet according to claim 2, wherein the lifting mechanism comprises a scissor lift frame (17), the bottom of the scissor lift frame (17) and the second support cavity (17). 14) The inner bottom surface is slidably connected, and the top of the scissor lift frame (17) is slidably connected with the bottom surface of the second single mattress (15). 4. A multifunctional combination cabinet according to claim 1, characterized in that: the fastening mechanism comprises a fastening strip (7) hinged on the top of the rear wall of the accommodating cavity (5), and the fastening strip ( The free end of 7) is fastened on the ironing board (6). 5. A multifunctional combination cabinet according to claim 1, characterized in that: a second support rod is hinged on both sides of the middle of the ironing board (6), and the two second supports (10) are far away from One end of the ironing board (6) is provided with a second horizontal object board (11). 6. The multifunctional combined cabinet according to claim 1, characterized in that: an openable and closable cabinet door (4) is hinged on each of the two storage cabinets (3).
