Abstract

The utility model discloses a hydroponics device for radish seedlings, comprising a water holding part for holding a culture liquid containing nutrients; a holding part for holding seeds, the holding part is clamped in the water holding part, and the holding part is The bottom wall of the bottom wall is communicated with the water-containing part, and the culture solution in the water-containing part is consistent with the upper surface of the bottom wall, so that the top of the seed evenly spread on the bottom wall exposes the liquid surface of the culture solution; and a moisturizing cover body, its movable cover Set in the dressing room. The utility model has the advantages of ingenious structure, low processing cost, integrating germination and germination and budding cultivation, no need for secondary transplanting, which not only realizes the evenly spaced seeding of seeds, saves seeds, but also effectively avoids the accumulation of seeds. Waste and rotten buds can also ensure that most of the seeds are located in the positioning through holes and their tops are exposed. Aerobic respiration to avoid rotten buds.

Description

Radish seedling hydroponic device

technical field

The utility model relates to the field of seed hydroponics, in particular to a radish seedling hydroponics device.

Background technique

Seed germination refers to a series of ordered physiological and morphogenetic processes starting from imbibition. Seed germination requires proper temperature, proper amount of water, sufficient air, and proper amount of water to ensure that the seed coat swells and softens after the seed absorbs water, which can allow more water and oxygen to enter the seed embryo, and start the physiological activities of the seed embryo cells at the same time. Metabolic wastes and carbon dioxide are excreted through the seed coat; sufficient air meets the respiration needs of the seeds during the germination process, and suitable temperature ensures the respiration of the seeds.

At present, there are two main types of seed vegetables (such as radish seedlings), hydroponics and soil cultivation. Since hydroponics is not affected by the season and can precisely control the nutrients of vegetables, it has been widely used in agricultural production, large-scale Extraction and scientific research of nutrients from sprouts or seedlings.

The traditional hydroponic method for seed vegetables includes two steps of germination and germination: firstly, the seeds are laid on wet gauze or wet filter paper, and then two or more layers of wet gauze or wet filter paper are placed on the seeds, and the gauze is placed regularly. Or spray the culture solution on the filter paper; after the seeds are successfully germinated, the buds are transplanted into the nutrient solution for cultivation. This method has the following defects: (1) In the stage of germination and germination, a large amount of gauze or filter paper is required, which wastes consumables; during the germination process, by spraying nutrient solution on the gauze and the seeds are piled on the gauze or filter paper in large quantities, it is impossible to ensure that the seeds germinate. The required water and humidity, rotten buds and rotten seeds are more, and the seeds are wasted; (2) After the seeds germinate

SUMMARY OF THE INVENTION It is necessary to transplant young buds, which is complicated to operate and has a large workload. Moreover, due to the accumulation of seeds, the young buds are easily broken during the transplanting process, and the transplanting is difficult and the transplanting success rate is low. Therefore, how to design a hydroponic device integrating germination and sprout cultivation is a technical problem to be solved urgently by those skilled in the art.

Utility model content

The purpose of the utility model is to provide a radish seedling hydroponic device, which can effectively avoid waste and rotten buds caused by the accumulation of seeds, integrate germination and sprout cultivation, without secondary transplanting, and simplify the hydroponic steps.

To achieve the above object, the utility model adopts the following technical solutions:

The radish seedling hydroponic device according to the utility model comprises:

a water holding part, used to hold the culture medium containing nutrients;

a container part for containing seeds, which is clamped in the water container part, the bottom wall of the container part is communicated with the water container part, and the culture medium in the water container part is consistent with the upper surface of the bottom wall, so that the nutrient solution in the water container part is evenly spread on the bottom wall. The top of the seed on the bottom wall is exposed to the medium; and

A moisturizing cover body, the movable cover of which is arranged in the containing part, so that the moisturizing cover body and the water holding part enclose a cultivation space, so as to meet the requirement of humidity for seed germination and cultivation.

The radish seedling hydroponic device of the present invention further comprises a scraping piece, which is slidably arranged in the containing part, so that the seeds are evenly laid on the bottom wall.

The water holding part is a filter box, the moisturizing cover is a filter cover, and the filter box and the filter cover have the same structure.

The holding part is a seedling sieve that is clamped on the upper part of the filter box, the side wall of the seedling sieve is a stepped structure, and the outer table surface of the side wall is overlapped with the upper mouth of the filter box. On the upper edge, the bottom edge of the filter cover is placed on the inner table surface of the side wall; the tops of the two short side walls of the side wall are integrally formed with handles.

The bottom wall of the seedling raising screen is evenly provided with positioning through holes for clamping seeds, and the positioning through holes are circular truncated structures with large upper and lower lower.

The top diameter of the positioning through hole is 4.0-4.2 mm, the bottom diameter is 1.2-1.5 mm, and the height is 3.6-4.0 mm, so that the seeds fall into each positioning through hole correspondingly and the top of the seed is exposed to the positioning through hole; adjacent The distance between the two positioning through holes is 2mm.

A water injection through hole with a width of 0.5 cm is spaced apart from the bottom of the two short side walls of the side wall.

The flattening member includes a scraper arranged between the bottom edge and the bottom wall of the seedling raising screen, a pair of guide grooves are symmetrically opened on the two long side walls of the seedling raising screen, and the two sliding blades on the top of the scraper are guided along the guide The slot is translated to push the seeds into each of the positioning through holes respectively.

The length of the guide groove is smaller than the length of the seedling raising screen, and the scraper can be smoothly separated from the guide groove after the seeds are evenly sowed.

The utility model has the advantages that the structure is ingenious, the processing cost is low, the germination and germination promotion and the budding cultivation are integrated, the secondary transplanting is not required, and the hydroponics steps are simplified. Specifically, the bottom wall of the seedling sieve is evenly provided with positioning through holes that are large at the top and small at the bottom, and the seeds in the seedling sieve are pushed into each positioning through hole correspondingly by using a scraper, that is, the evenly spaced seeding is realized. , not only saves seeds, but also effectively avoids waste and rot budding caused by seed accumulation, and can also ensure that most of the seeds are located in the positioning through holes and the top of the positioning through holes are exposed. The top surface of the bottom wall of the sieve has a uniform height, so that most of each seed is located in the liquid surface and the top is exposed to the liquid surface, which effectively ensures the continuous aerobic respiration of the seeds and avoids rotten buds; in the seed germination stage, the filter box and filter light The space enclosed by the cover can not only meet the needs of the dark environment for seed germination, but also ensure the needs of water and humidity for seed germination; the structure of the filter box and the filter cover are exactly the same, which reduces the cost of mold opening.

Description of drawings

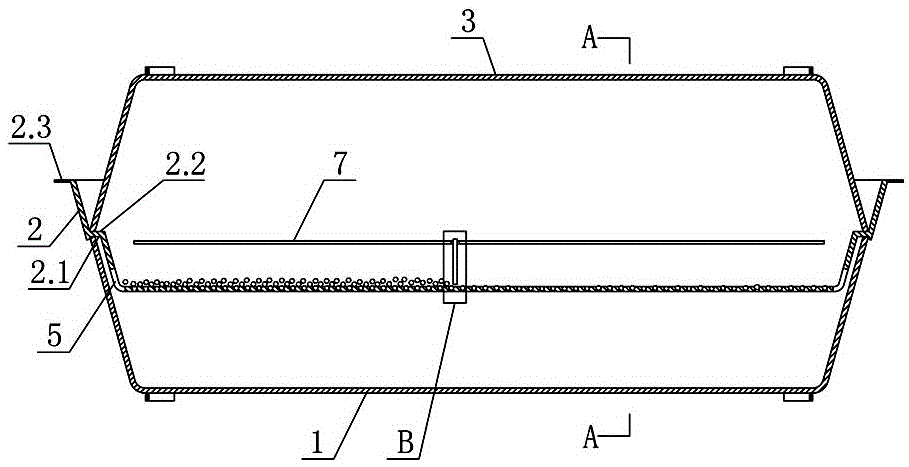

Figure 1 is a schematic structural diagram of the present invention.

FIG. 2 is an enlarged schematic view of the structure of part B in FIG. 1 .

FIG. 3 is a schematic cross-sectional structural diagram of FIG. 1 along A-A.

Detailed ways

As shown in Figures 1-3, the radish seedling hydroponic device according to the present invention includes:

a water-retaining part 1, used to hold the culture medium containing nutrients;

A container part 2 for containing radish seeds, the bottom of the container part 2 is clamped in the water container part 1, the bottom wall of the container part 2 is communicated with the water container part 1, and the culture medium in the water container part 1 is connected to the water container part 2. The upper surface of the bottom wall is consistent, so that the top of the radish seeds evenly spread on the bottom wall exposes the culture medium;

A scraping piece, which is slidably arranged in the containing part 2, for flatly pushing the radish seeds, so that the radish seeds are evenly spread on the bottom wall of the containing part; and

A moisturizing cover body 3, the movable cover is arranged in the container part 2, so that the moisturizing cover body 3 and the water holding part 1 enclose a cultivation space, so as to meet the humidity requirements of radish seed germination and cultivation.

As shown in FIG. 1 , the water storage part 1 is a filter box, and the moisturizing cover body 3 is a filter cover. The filter box and the filter cover have the same structure and are easy to assemble.

As shown in Figures 1 and 3, the holding part 2 is a seedling sieve placed on the filter box, the side wall of the seedling sieve is a stepped structure, and the outer table 2.1 of the side wall is overlapped on the upper opening of the filter box. Along the upper edge, the bottom opening of the filter cover is placed on the inner table 2.2 of the side wall; the tops of the two short sides of the side wall are integrally formed with handles 2.3 for easy operation;

There are positioning through holes 4 evenly distributed on the bottom wall of the seedling raising screen, and the positioning through holes 4 are circular truncated structures with a top diameter of 4.0 to 4.2 mm, a bottom diameter of 1.2 to 1.5 mm, and a height of 3.6 to 3.6 mm. 4.0mm, so that the radish seeds fall into each positioning through hole 4 correspondingly, so that most of the seeds are located in the positioning through hole 4 and the top of the seed exposes the positioning through hole 4; the spacing between two adjacent positioning through holes is 2mm, and each A radish seed is clamped in the positioning through hole 4, which not only avoids the accumulation of seeds, but also ensures that most of the seeds are clamped in the positioning through hole 4 and the positioning through hole is exposed on the top, thereby ensuring that most of the radish seeds are in contact with the nutrient solution. The top of the radish seeds exposes the culture solution to further ensure the nutrient solution required for the germination of the radish seeds. After the radish seeds germinate, the radicle grows downward and smoothly enters the nutrient solution, while the radish sprouts are exposed to the surface of the solution, effectively avoiding the rot caused by excessive soaking. bud;

Ten water injection through holes 5 are spaced at the bottom of the two short side walls of the side wall, and the width of the water injection through holes 5 is 0.5cm, which can not only meet the needs of supplementary filling of nutrient solution during the cultivation of radish seeds, but also when sowing radish seeds. It can make the excess radish seeds pass through smoothly and fall into the designated recycling container;

As shown in Figures 1-3, the flattening member includes a scraper 6 arranged between the bottom edge and the bottom wall of the seedling sieve, a pair of guide grooves 7 are symmetrically opened on the inner surfaces of a pair of long side walls of the side wall, and the top of the scraper 6 The two sliding vanes 8 are translated along the guide groove 7. During the translation process of the scraper 6, the seeds accumulated in front of it are pushed forward, and the radish seeds naturally fall into each positioning through hole 4 under the push of the scraper 6, and the scraper 6 There is a gap between the bottom and the radish seeds falling into the positioning through hole 4 to ensure the smooth passage of the scraper 6; wherein the length of the guide groove 7 is less than the length of the long side wall. Sprout culture.

In actual processing, the filter box and filter cover are made of green transparent plastic to meet the dark environment required for the germination and germination of radish seeds. Of course, according to the cultivation needs of different seeds, the filter box and filter cover can also use other colors. transparent plastic.

The concrete use process of the present utility model is as follows:

1), adjust the scraper 6 to the right end of the seedling sieve, sprinkle seeds into the seedling sieve, put the seedling sieve in the filter box, shake it gently, and initially adjust the radish seeds. Then use the scraper 6 to push the radish seeds from right to left, and push the radish seeds into the positioning through hole 4 during the translation process of the scraper 6. When the scraper 6 moves to the left, the scraper 6 removes the excess seeds from the water injection. The through hole 5 is pushed into the filter box below, and the scraper 6 is slid out of the guide groove 7; the excess radish seeds in the filter box 1 are recovered;

2) Add the prepared culture solution to the filter box, and the liquid level of the culture solution is lower than the corresponding height of the bottom wall of the seedling sieve;

3), install the seedling sieve with the radish seeds flat in the filter box, and add nutrient solution from the water injection hole 5, so that the liquid level of the nutrient solution is consistent with the upper surface of the bottom wall of the seedling sieve to ensure that each radish Most of the seeds are in the culture medium and the top is above the liquid level;

4), cover the filter cover on the seedling sieve, and then place the entire seedling device in the cultivation room or incubator for constant temperature cultivation;

5) After about 4 days, the radish seeds will sprout, the cotyledons will grow upward naturally, and the radicles of the radish seeds will enter the culture solution below through the positioning hole 4 to complete the germination of the radish seeds; then remove the filter cover and continue Cultivation, during the cultivation period, according to the seedling age, the loss of the culture medium, etc., supplement and add the culture medium or replace the culture medium until the seedling culture is completed.

The utility model integrates germination initiation and young shoot cultivation, and does not need secondary transplanting, which simplifies the cultivation steps and further reduces the cultivation workload. The utility model can make the radish seeds evenly stuck in each positioning through hole, and the density is uniform, which not only saves the amount of seeds, but also avoids rotten buds caused by the accumulation of seeds. The utility model is not only suitable for hydroponics of radish seedlings, but also suitable for hydroponics of seed vegetables such as rapeseed seedlings and spinach seedlings, and has a wide range of application.

Claims (9)

1. a radish seedling hydroponic device, is characterized in that: comprising: a water holding part, used to hold the culture medium containing nutrients; a container part for containing seeds, which is clamped in the water container part, the bottom wall of the container part is communicated with the water container part, and the culture medium in the water container part is consistent with the upper surface of the bottom wall, so that the nutrient solution in the water container part is evenly spread on the bottom wall. The top of the seed on the bottom wall is exposed to the medium level; and A moisturizing cover body, the movable cover of which is arranged in the containing part, so that the moisturizing cover body and the water holding part enclose a cultivation space, so as to meet the requirement of humidity for seed germination and cultivation. 2 . The radish seedling hydroponic device according to claim 1 , further comprising a flattening member, which is slidably arranged in the containing portion, so that the seeds are evenly laid on the bottom wall. 3 . 3. The radish seedling hydroponic device according to claim 2, wherein the water holding part is a filter box, the moisturizing cover body is a filter cover, the filter box and the filter cover structure is the same. 4. The radish seedling hydroponic device according to claim 3, characterized in that: the containing portion is a seedling sieve that is clamped on the upper part of the filter box, and the side wall of the seedling sieve is a stepped structure, The outer table surface of the side wall is overlapped on the upper edge of the filter box, and the bottom edge of the filter cover is overlapped on the inner table surface of the side wall; the two short side walls of the side wall are overlapped. The top is integrally formed with a handle. 5. The radish seedling hydroponic device according to claim 4, characterized in that: the bottom wall of the seedling raising screen is evenly provided with positioning through holes for clamping seeds, and the positioning through holes are the largest on the top A small truncated cone-shaped structure. 6. The radish seedling hydroponic device according to claim 5, wherein the top diameter of the positioning through hole is 4.0-4.2mm, the bottom diameter is 1.2-1.5mm, and the height is 3.6-4.0mm, so that the seeds Correspondingly falls into each positioning through hole and the top of the seed exposes the positioning through hole; the distance between two adjacent positioning through holes is 2mm. 7. The radish seedling hydroponic device according to any one of claims 4-6, wherein the bottom of the two short side walls of the side wall is spaced with water injection through holes with a width of 0.5 cm. 8 . The radish seedling hydroponic device according to claim 5 , wherein the flattening member comprises a scraper arranged between the bottom edge and the bottom wall of the seedling raising screen, and the two long side walls of the seedling raising screen are symmetrical. 9 . A pair of guide grooves are provided, and the two sliding blades on the top of the scraper move in translation along the guide grooves to push the seeds into each of the positioning through holes respectively. 9 . The radish seedling hydroponics device according to claim 8 , wherein the length of the guide groove is less than the length of the seedling sieve, and the scraper can smoothly escape from the guide groove after the seeds are evenly sowed. 10 .
