CN210983272U

CN210983272U - High-efficient heat abstractor is used to computer machine case

Info

Publication number: CN210983272U
Application number: CN201921476269.1U
Authority: CN
Inventors: 张开生
Original assignee: Xian Peihua University
Current assignee: Xian Peihua University
Priority date: 2019-09-05
Filing date: 2019-09-05
Publication date: 2020-07-10
Anticipated expiration: 2029-09-05

Abstract

The utility model is suitable for a computer fittings technical field provides a high-efficient heat abstractor is used to computer machine case, including casing subassembly, ventilation subassembly and radiator unit, the casing subassembly includes box, support column, mainboard, slide rail, connecting plate, slider, dust screen and fixed block; the two cooling pipes and the radiating fins are arranged, the two cooling pipes are arranged on two sides of the main board, cold water in the water tank is circulated in the cooling pipes by the two water pumps, and the radiating fins are tightly attached to the upper surface of the main board, so that the main board can radiate heat in all directions, and the radiating efficiency is higher; the fan can quickly introduce outside wind into the box body for air circulation, and the other fan discharges high temperature inside the box body from the other side of the box body; through setting up slide rail and slider for the connecting plate of box both sides and the both ends sliding connection of box, the person of facilitating the use carries out the dust clearance to the box inside, thereby has improved the life of host computer.

Description

High-efficient heat abstractor is used to computer machine case

Technical Field

The utility model belongs to the technical field of the computer accessory, especially, relate to a computer machine is high-efficient heat abstractor for case.

Background

The computer is an electronic computing machine for high-speed computation, and not only can perform numerical computation and logic computation, but also has a memory function. The computer case is equivalent to the brain of a computer, has the main function of placing and fixing computer accessories, plays a role in supporting and protecting, and has the important function of shielding electromagnetic radiation.

Original computer at the during operation, all kinds of electrical components of mainframe box inside can distribute out a large amount of heats, can cause the inside high temperature of mainframe box to lead to the computer to crash, and the mainframe box is because inconvenient dismantlement for inside dust can't in time be handled, leads to the radiating efficiency too slow.

SUMMERY OF THE UTILITY MODEL

The utility model provides a high-efficient heat abstractor is used to computer machine case aims at solving original computer at the during operation, and all kinds of electrical components of mainframe box inside can distribute out a large amount of heats, can cause the inside high temperature of mainframe box to lead to the computer to crash, and the mainframe box is because inconvenient dismantlement for the unable timely processing of inside dust leads to the problem that the radiating efficiency is too slow.

The utility model discloses a realize like this, a high-efficient heat abstractor is used to computer machine case, including casing subassembly, ventilation subassembly and radiator unit, the casing subassembly includes box, support column, mainboard, slide rail, connecting plate, slider, dust screen and fixed block, the lower surface of box is fixed with the support column, the inside bottom of box is provided with the mainboard, the upper surface both ends of box are fixed with the slide rail, the top of slide rail is provided with the connecting plate, the connecting plate passes through the slider with slide rail sliding connection, be provided with the dust screen on the connecting plate, the inside of box is provided with the fixed block, the fixed block is located the top of mainboard; the ventilation assemblies are divided into two groups, each group of ventilation assemblies comprises a rotating motor, a fixed rod, a rotating rod and a fan blade, the rotating motors are fixed inside the box body through the fixed rods and are located at two ends of the main board, the rotating rod is arranged at one end of the rotating motor, and the fan blade is arranged at one end, away from the rotating motor, of the rotating rod; the radiator unit includes cooling tube, water tank, outlet pipe, water pump, inlet tube and fin, the inside parallel arrangement side by side of box has two the cooling tube, and all is located the mainboard with between the flabellum, the last fixed surface of fixed block has the water tank, the lateral wall both ends of water tank are provided with the outlet pipe, the outlet pipe is kept away from the one end of water tank is provided with the water pump, the lower surface of water pump with the import one end fixed connection of cooling tube, the cooling tube is kept away from the one end of outlet pipe is provided with the inlet tube, the inlet tube with the export one end fixed connection of cooling tube, the last fixed surface of mainboard has the fin, the fin is kept away from the one end of mainboard extends into the inside of water tank.

The utility model provides an it is preferred, the box adopts metal material preparation to form.

The utility model provides a preferred, the casing subassembly still includes the slipmat, the bottom of support column is provided with the slipmat.

The utility model provides an it is preferred, the casing subassembly still includes the stopper, the lateral wall both ends of mainboard are provided with the stopper.

The utility model provides an it is preferred, two the shape of cooling tube is the S type.

The utility model provides an it is preferred, radiator unit still includes the sealing washer, the fin with the junction of water tank is provided with the sealing washer.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a high-efficient heat abstractor is used to computer machine case, through setting up two cooling tubes and fin, two cooling tubes are placed in the both sides of mainboard, utilize two water pumps to circulate the cold water in the water tank in the cooling tube, and the fin hugs closely on the upper surface of mainboard for the mainboard can the omnidirectional dispel the heat, and the radiating efficiency is stronger; the rotating rod drives the fan to rotate, so that outside air can be quickly introduced into the box body for air circulation, and the other rotating motor drives the fan to discharge high temperature inside the box body from the other side of the box body through the rotating rod, so that the heat dissipation speed is increased; through setting up slide rail and slider for the connecting plate of box both sides and the both ends sliding connection of box, the person of facilitating the use carries out the dust clearance to the box is inside, avoids the dust to block up the mainboard, and the heat is difficult to give off, thereby has improved the life of host computer.

Drawings

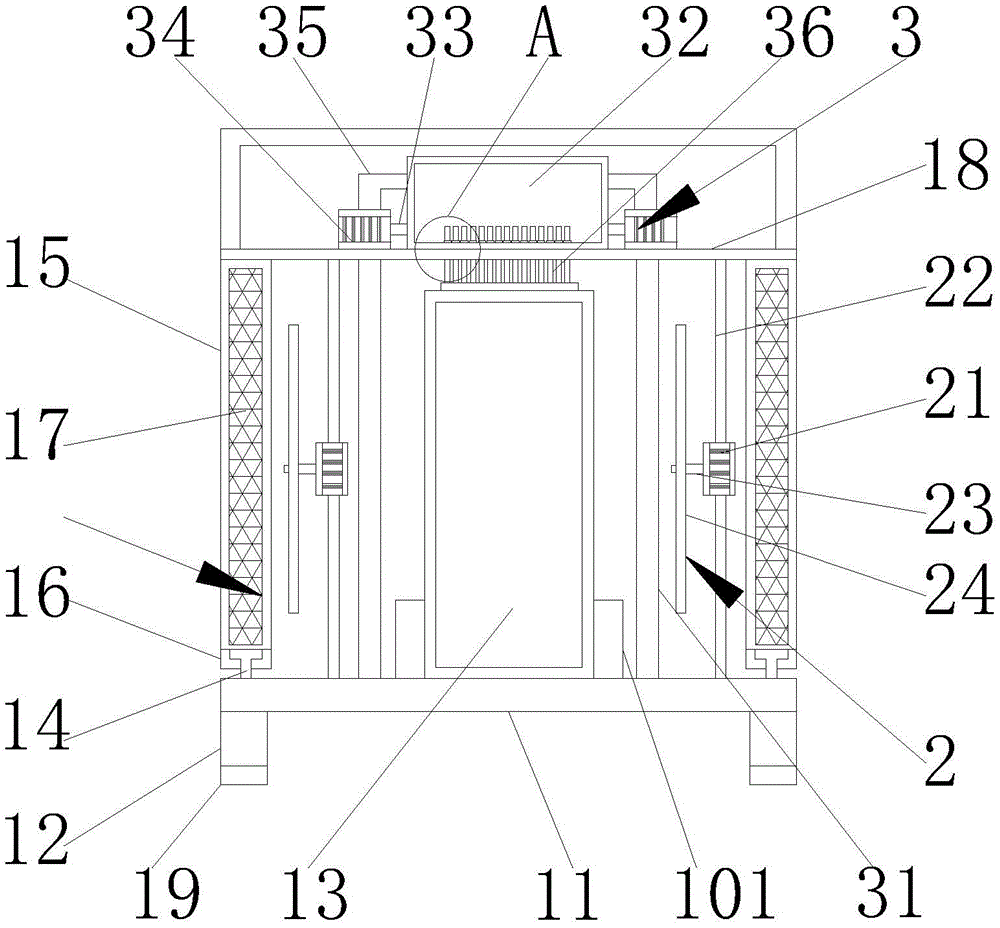

Fig. 1 is an overall front view of the present invention;

FIG. 2 is a side view of the inside of the case of the present invention;

FIG. 3 is an enlarged view of detail A in FIG. 1;

in the figure: 1-shell component, 11-box body, 12-support column, 13-main board, 14-slide rail, 15-connecting board, 16-slide block, 17-dust screen, 18-fixing board, 19-non-slip mat, 101-limiting block, 2-ventilation component, 21-rotating motor, 22-fixing rod, 23-rotating rod, 24-fan blade, 3-heat dissipation component, 31-cooling pipe, 32-water tank, 33-water outlet pipe, 34-water pump, 35-water inlet pipe, 36-heat dissipation plate and 37-sealing ring.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a computer machine is high-efficient heat abstractor for case, including housing assembly 1, ventilation unit 2 and radiator unit 3, housing assembly 1 includes box 11, support column 12, mainboard 13, slide rail 14, connecting plate 15, slider 16, dustproof net 17 and fixed block 18, the lower fixed surface of box 11 has support column 12, the inside bottom of box 11 is provided with mainboard 13, the upper surface both ends of box 11 are fixed with slide rail 14, the top of slide rail 14 is provided with connecting plate 15, connecting plate 15 passes through slider 16 and slide rail 14 sliding connection, be provided with dustproof net 17 on the connecting plate 15, the inside of box 11 is provided with fixed block 18, fixed block 18 is located the top of mainboard 13.

Ventilation assembly 2 is two sets of, and every ventilation assembly 2 of group all includes rotation motor 21, dead lever 22, bull stick 23 and flabellum 24, rotates motor 21 and passes through dead lever 22 to be fixed in the inside of box 11, and is located the both ends of mainboard 13, and the one end of rotating motor 21 is provided with bull stick 23, and the one end that the rotation motor 21 was kept away from to bull stick 23 is provided with flabellum 24.

Radiating component 3 includes cooling tube 31, the water tank 32, outlet pipe 33, water pump 34, inlet tube 35 and fin 36, the inside parallel arrangement of box 11 has two cooling tubes 31 side by side, and all be located between mainboard 13 and the flabellum 24, the last fixed surface of fixed block 18 has water tank 32, the lateral wall both ends of water tank 32 are provided with outlet pipe 33, the one end that water tank 32 was kept away from to outlet pipe 33 is provided with water pump 34, the lower surface of water pump 34 and the import one end fixed connection of cooling tube 31, the one end that outlet pipe 33 was kept away from to cooling tube 31 is provided with inlet tube 35, inlet tube 35 and the export one end fixed connection of cooling tube 31, the last fixed surface of mainboard 13 has fin 36, the one end that fin 36 kept away from mainboard 13 extends into.

In the present embodiment, the support column 12 is fixed to the lower surface of the case 11 by bolts, and supports the case 11; the mainboard 13 is used for receiving and processing instructions sent by a computer; the slide rails 14 are fixed at two ends of the box body 11 through bolts, and the slide blocks 16 are matched with the slide rails 14, so that the connecting plate 15 is convenient to disassemble and assemble; the dust screen 17 is used for preventing dust from entering the interior of the box body 11; the fixing plate 18 is fixed inside the case 11 by bolts for supporting the water tank 32 and the water pump 34; the rotating motor 21 is used for driving the fan blades 24 on the rotating rod 23 to provide power; the water tank 32 is fixed on the upper surface of the fixing plate 18 by bolts and is used for storing water; the water outlet pipe 33 is used for introducing water into the cooling pipe 31; the water pump 34 is used for circulating water; the water inlet pipe 35 serves to introduce the water of the cooling pipe 31 into the water tank 32.

Further, the box body 11 is made of a metal material.

In the present embodiment, the case 11 made of a metal material is convenient for heat dissipation and transportation.

Further, the housing assembly 1 further comprises a non-slip pad 19, and the bottom end of the supporting column 12 is provided with the non-slip pad 19.

In this embodiment, the anti-slip pad 19 is disposed at the bottom end of the supporting column 12, so as to increase the friction force with the ground, and make the box 11 more stable when supporting.

Further, the housing assembly 1 further includes a limiting block 101, and the two ends of the side wall of the main board 13 are provided with the limiting blocks 101.

In this embodiment, the limiting blocks 101 are disposed at two ends of the side wall of the main board 13, so that the main board 13 is more stably mounted inside the box 11.

Further, both the cooling pipes 31 are S-shaped.

In the present embodiment, the two cooling pipes 31 each having an S-shape increase the heat absorption area of the cooling pipe 31, and improve the heat dissipation effect.

Further, the heat sink assembly 3 further includes a sealing ring 37, and the sealing ring 37 is disposed at the joint of the heat sink 36 and the water tank 32.

In the present embodiment, the sealing ring 37 is disposed between the connection point of the heat sink 36 and the water tank 32, so that the water tank 32 has better sealing performance and water is prevented from flowing out of the main board 13.

The utility model discloses a theory of operation and use flow: after the utility model is installed, when heat is dissipated, the two cooling pipes 31 are arranged on the two sides of the main board by arranging the two cooling pipes 31 and the cooling fins 36, the two water pumps 34 are utilized to circulate cold water in the water tank 32 in the cooling pipes 31, and the cooling fins 36 are tightly attached to the upper surface of the main board 13, so that the main board 13 can dissipate heat in all directions, and the heat dissipation efficiency is higher; the fan 24 is driven to rotate by the rotating rod 23 through the rotating motor 21, so that outside air can be quickly introduced into the box body 11 for air circulation, and the high temperature in the box body 11 is discharged from the other side of the box body 11 by the rotating motor 21 which is driven by the rotating rod 23 through the fan 24, so that the heat dissipation speed is increased; through setting up slide rail 14 and slider 16 for the connecting plate 15 of box 11 both sides and the both ends sliding connection of box 11, the person of facilitating the use carries out the dust clearance to box 11 inside, avoids the dust to block up mainboard 13, and the heat is difficult to give off, thereby has improved the life of host computer.

The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.

Claims

1. The utility model provides a computer machine is high-efficient heat abstractor for case which characterized in that: comprises a shell component (1), a ventilation component (2) and a heat dissipation component (3), the shell component (1) comprises a box body (11), a supporting column (12), a main board (13), a sliding rail (14), a connecting plate (15), a sliding block (16), a dust screen (17) and a fixed block (18), the supporting column (12) is fixed on the lower surface of the box body (11), the main board (13) is arranged at the bottom end inside the box body (11), slide rails (14) are fixed at two ends of the upper surface of the box body (11), the connecting plate (15) is arranged above the slide rails (14), the connecting plate (15) is connected with the slide rail (14) in a sliding way through the slide block (16), the dustproof net (17) is arranged on the connecting plate (15), the fixed block (18) is arranged in the box body (11), and the fixed block (18) is positioned above the main board (13);

the ventilation assemblies (2) are divided into two groups, each group of ventilation assemblies (2) comprises a rotating motor (21), a fixing rod (22), a rotating rod (23) and fan blades (24), the rotating motors (21) are fixed inside the box body (11) through the fixing rods (22) and are located at two ends of the main board (13), the rotating rods (23) are arranged at one ends of the rotating motors (21), and the fan blades (24) are arranged at one ends, far away from the rotating motors (21), of the rotating rods (23);

the heat dissipation assembly (3) comprises cooling pipes (31), a water tank (32), water outlet pipes (33), a water pump (34), a water inlet pipe (35) and heat dissipation fins (36), two cooling pipes (31) are arranged in parallel in the box body (11) side by side and are located between the main board (13) and the fan blades (24), the water tank (32) is fixed on the upper surface of the fixing block (18), the water outlet pipes (33) are arranged at the two ends of the side wall of the water tank (32), the water pump (34) is arranged at one end, away from the water tank (32), of the water outlet pipes (33), the lower surface of the water pump (34) is fixedly connected with the inlet end of the cooling pipes (31), the water inlet pipe (35) is arranged at one end, away from the water outlet pipes (33), of the water inlet pipe (35) is fixedly connected with the outlet end of the cooling pipes (31), the radiating fins (36) are fixed on the upper surface of the main board (13), and one ends, far away from the main board (13), of the radiating fins (36) extend into the water tank (32).

2. The efficient heat dissipation device of claim 1, wherein: the box body (11) is made of metal materials.

3. The efficient heat dissipation device of claim 1, wherein: the shell assembly (1) further comprises a non-slip mat (19), and the bottom end of the supporting column (12) is provided with the non-slip mat (19).

4. The efficient heat dissipation device of claim 1, wherein: the shell assembly (1) further comprises limiting blocks (101), and the limiting blocks (101) are arranged at two ends of the side wall of the main board (13).

5. The efficient heat dissipation device of claim 1, wherein: the two cooling pipes (31) are S-shaped.

6. The efficient heat dissipation device of claim 1, wherein: the heat dissipation assembly (3) further comprises a sealing ring (37), and the sealing ring (37) is arranged at the joint of the heat dissipation sheet (36) and the water tank (32).
