Abstract

The utility model relates to a rapid dredging control device for an integrated pump station. A first L-shaped plastic hard pipe, a first L-shaped plastic hard pipe, a first L-shaped plastic hard pipe, a liquid outlet of a second submersible sewage pump and a liquid outlet of a second submersible sewage pump are respectively connected through and through. The second L-shaped plastic rigid pipe; the first L-shaped plastic rigid pipe and the second L-shaped plastic rigid pipe extend to the lower part of the cylinder of the pump station; the ejection port of the first L-shaped plastic rigid pipe Facing the position below the liquid inlet of the first submersible sewage pump, the ejection outlet of the second L-shaped plastic rigid pipe faces the position below the liquid inlet of the second submersible sewage pump; the first L-shaped plastic rigid pipe, the second A transverse communication pipe is arranged between the L-shaped plastic rigid pipes, and the first L-shaped plastic rigid pipe and the second L-shaped plastic rigid pipe are connected through the transverse communication pipe. The utility model solves the problem that the impurity accumulation at the bottom of the cylinder of the existing integrated pump station cannot be quickly removed, improves the sewage discharge efficiency of the pump station, and prolongs the service life of the water pump.

Description

An integrated pump station rapid dredging control device

technical field

The utility model relates to a rapid dredging control device for an integrated pumping station, which belongs to the technical field of prefabricated pumping stations.

Background technique

The traditional concrete pumping station has large investment, long construction period, consumes a lot of manpower and material resources, and occupies a large area, which is not conducive to the aesthetic requirements. As a new type of pumping station, the integrated pumping station has been well applied in the project by virtue of its flexibility, short construction period, no land occupation index, and easy installation. The integrated pumping station includes all the elements of the pumping station, which consists of pumps, pipes, valves, instruments, control equipment, stairs and other accessories. The main working principle is as follows: sewage enters into the cylinder of the pumping station through the water inlet pipeline. According to the continuous rise of the liquid level, the water pump system starts. In the process of sewage treatment, the accumulation of sludge inside the cylinder increases with time, resulting in a decrease in the sewage discharge effect. If the impurities deposited at the bottom of the pumping station can not be cleaned up in time, it will endanger the stability and safety of the integrated pumping station. At present, there are still technical bottlenecks for the sludge cleaning device in different operation modes of the integrated pumping station, and it is often difficult to meet the needs of the integrated pumping station to quickly clean up the sludge.

The integrated pumping station is generally equipped with two submersible sewage pumps. In this method, an L-shaped plastic hard pipe is connected under the liquid outlet of the two submersible sewage pumps in the integrated pumping station. A horizontal connecting pipe is added between each L-shaped plastic hard pipe. The water flow impacts the water body inside the cylinder body at the position below the pump body and forms a large-area vortex, which causes strong disturbance to the dirt, silt and scum at the bottom of the cylinder body, so as to achieve the purpose of quickly cleaning the impurities at the bottom of the cylinder. In addition, an automatic control valve is arranged at the horizontal communication pipe and the nozzles of the two L-shaped plastic rigid pipes, and is fixed to the bottom of the cylinder with a bracket. Generally speaking, the operation mode of the integrated pump station has two modes: single pump alternate operation and dual pump simultaneous operation. While dredging the running water pump, with the use of automatic control valve, it can also pre-clean the sludge and impurities at the bottom of another pump that is not running, so as to improve the sewage discharge efficiency of the integrated pump station in different operating modes. , prolong the service life of the pump. This method has novel structure and clear working principle, and uses the combined switch of automatic control valve to achieve the purpose of simple installation and rapid dredging. Compared with the traditional dredging device, the method has the advantages of low cost, high efficiency and remarkable dredging effect, and has high promotion significance.

Utility model content

The technical problem to be solved by the utility model is to solve the above problems, and to provide a rapid dredging control device for an integrated pump station, which solves the problem that the impurities deposited at the bottom of the cylinder of the integrated pump station cannot be quickly removed, improves the sewage discharge efficiency, and prolongs the service life of the water pump. .

The purpose of the utility model is achieved in this way, an integrated pump station rapid dredging control device, comprising a pump station cylinder and a first submersible sewage pump and a second submersible sewage pump arranged in the pump station cylinder; the pump station cylinder; The side wall of the body is provided with a water inlet pipe; the liquid outlet of the first submersible sewage pump and the liquid outlet of the second submersible sewage pump are respectively connected to the first water outlet pipe and the second water outlet pipe, and one end of the first water outlet pipe and the second water outlet pipe is connected. They are respectively connected with the liquid outlet of the first submersible sewage pump and the liquid outlet of the second submersible sewage pump, and the other ends are placed outside the cylinder of the pump station;

It is characterized in that: the liquid outlet of the first submersible sewage pump and the liquid outlet of the second submersible sewage pump are respectively connected with a first L-shaped plastic rigid pipe and a second L-shaped plastic rigid pipe; Both the L-shaped plastic rigid pipe and the second L-shaped plastic rigid pipe extend to the lower part of the pumping station cylinder;

The ejection port of the first L-shaped plastic rigid pipe faces the position below the liquid inlet of the first submersible sewage pump, and the ejection port of the second L-shaped plastic rigid pipe faces the position below the liquid inlet of the second submersible sewage pump;

A transverse communication pipe is arranged between the first L-shaped plastic rigid pipe and the second L-shaped plastic rigid pipe, and the first L-shaped plastic rigid pipe and the second L-shaped plastic rigid pipe are connected through the transverse communication pipe;

A first automatic control valve, a second automatic control valve and a third automatic control valve are respectively installed on the first L-shaped plastic rigid pipe, the second L-shaped plastic rigid pipe and the horizontal communication pipe.

The first L-shaped plastic rigid pipe and the second L-shaped plastic rigid pipe are fixed on the bottom of the cylinder of the pump station through a bracket.

The first automatic control valve and the second automatic control valve are respectively arranged at the ejection port of the first L-shaped plastic rigid pipe and the ejection port of the second L-shaped plastic rigid pipe, and the third automatic control valve is arranged in the horizontal direction. The middle position of the connecting pipe.

The diameters of the first L-shaped plastic rigid pipe and the second L-shaped plastic rigid pipe are both 60mm-80mm.

The length of the transverse communication pipe is 600mm-800mm.

The use method of the integrated pumping station rapid dredging control device is characterized in that: comprising the following steps:

Step 1), a large amount of sludge impurities enter the inside of the pump station cylinder and accumulate;

Sewage flows into the cylinder through the water inlet pipe on the side wall of the cylinder of the pump station. With the passage of time of use of the integrated pump station, a large amount of impurities accumulate in the bottom of the cylinder of the pump station, especially in the first submersible sewage pump and the second submersible sewage pump. Under the pump body of the sewage pump, the accumulation of a large amount of impurities is easy to form a water-conducting conical sludge body;

Step 2),

When opening the first automatic control valve and the second automatic control valve, and closing the third automatic control valve;

Start the first submersible sewage pump and the second submersible sewage pump for suction, the water flows into the first submersible sewage pump through the liquid inlet of the first submersible sewage pump, and flows through the liquid outlet of the first submersible sewage pump and the first water outlet pipe Discharge; part of the water flowing into the first submersible sewage pump flows into the first L-shaped plastic rigid pipe, and is ejected through the ejection port of the first L-shaped plastic rigid pipe, and the impact forms a first vortex;

The water flows into the second submersible sewage pump through the liquid inlet of the second submersible sewage pump, and is discharged through the liquid outlet of the second submersible sewage pump and the second water outlet pipe; part of the water flowing into the second submersible sewage pump flows into the second L The L-shaped plastic rigid pipe is ejected through the ejection port of the second L-shaped plastic rigid pipe, and the impact forms a second vortex;

The first vortex and the second vortex cause strong disturbance to the bottom sludge in the pump station cylinder, so as to remove the sludge at the bottom of the first submersible sewage pump and the second submersible sewage pump;

When opening the first automatic control valve, closing the second automatic control valve, and opening the third automatic control valve;

Start the first submersible sewage pump and the second submersible sewage pump for suction, the water flows into the first submersible sewage pump through the liquid inlet of the first submersible sewage pump, and flows through the liquid outlet of the first submersible sewage pump and the first water outlet pipe Discharge; part of the water flowing into the first submersible sewage pump flows into the first L-shaped plastic rigid pipe, and is ejected through the ejection port of the first L-shaped plastic rigid pipe, and the impact forms a first vortex;

The water flows into the second submersible sewage pump through the liquid inlet of the second submersible sewage pump, and is discharged through the liquid outlet of the second submersible sewage pump and the second water outlet pipe; part of the water flowing into the second submersible sewage pump flows into the second L The first L-shaped plastic rigid pipe flows into the first L-shaped plastic rigid pipe through the connecting pipe, and is ejected through the ejection port of the first L-shaped plastic rigid pipe to form a first vortex;

The first vortex causes strong disturbance to the bottom sludge in the pump station cylinder, and realizes the removal of the sludge at the bottom of the first submersible sewage pump;

When closing the first automatic control valve, opening the second automatic control valve, and opening the third automatic control valve;

Start the first submersible sewage pump and the second submersible sewage pump for suction, the water flows into the first submersible sewage pump through the liquid inlet of the first submersible sewage pump, and flows through the liquid outlet of the first submersible sewage pump and the first water outlet pipe Discharge; part of the water flowing into the first submersible sewage pump flows into the connecting pipe, and then flows into the second L-shaped plastic rigid pipe through the connecting pipe, and is ejected through the ejection port of the second L-shaped plastic rigid pipe. two vortex;

The water flows into the second submersible sewage pump through the liquid inlet of the second submersible sewage pump, and is discharged through the liquid outlet of the second submersible sewage pump and the second water outlet pipe; part of the water flowing into the second submersible sewage pump flows into the second L The L-shaped plastic rigid pipe is ejected through the ejection port of the second L-shaped plastic rigid pipe, and the impact forms a second vortex;

The second vortex causes strong disturbance to the sludge at the bottom of the cylinder of the pump station, so as to remove the sludge at the bottom of the second submersible sewage pump;

When opening the first automatic control valve, closing the second automatic control valve, and closing the third automatic control valve;

Start the first submersible sewage pump and the second submersible sewage pump for suction, the water flows into the first submersible sewage pump through the liquid inlet of the first submersible sewage pump, and flows through the liquid outlet of the first submersible sewage pump and the first water outlet pipe Discharge; part of the water flowing into the first submersible sewage pump flows into the first L-shaped plastic rigid pipe, and is ejected through the ejection port of the first L-shaped plastic rigid pipe, and the impact forms a first vortex;

The water flows into the second submersible sewage pump through the liquid inlet of the second submersible sewage pump, and is discharged through the liquid outlet of the second submersible sewage pump and the second water outlet pipe;

The first vortex causes strong disturbance to the bottom sludge in the pump station cylinder, and realizes the removal of the sludge at the bottom of the first submersible sewage pump;

When closing the first automatic control valve, opening the second automatic control valve, and closing the third automatic control valve;

Start the first submersible sewage pump and the second submersible sewage pump for suction, the water flows into the first submersible sewage pump through the liquid inlet of the first submersible sewage pump, and flows through the liquid outlet of the first submersible sewage pump and the first water outlet pipe discharge;

The water flows into the second submersible sewage pump through the liquid inlet of the second submersible sewage pump, and is discharged through the liquid outlet of the second submersible sewage pump and the second water outlet pipe; part of the water flowing into the second submersible sewage pump flows into the second L The L-shaped plastic rigid pipe is ejected through the ejection port of the second L-shaped plastic rigid pipe, and the impact forms a second vortex;

The second vortex causes strong disturbance to the sludge at the bottom of the cylinder of the pump station, so as to remove the sludge at the bottom of the second submersible sewage pump;

Step 3), water circulation treatment;

After the accumulated impurities deposited at the bottom of the pump station cylinder are stirred, they are sucked by the first submersible sewage pump and the second submersible sewage pump. The sewage flows out of the pump station cylinder through the first water outlet pipe and the second water outlet pipe respectively and enters the subsequent treatment unit .

The utility model has reasonable structure and scientific method. Through the utility model, the integrated pump station rapid dredging control device comprises the following steps:

Step 1), a large amount of sludge impurities enter the cylinder of the pump station and accumulate.

The sewage flows into the inside of the cylinder through the inlet pipe on the side wall of the cylinder of the pump station. With the passage of time of the integrated pump station, a large amount of impurities accumulate in the bottom of the pump station barrel. Especially under the pump body of the submersible sewage pump (including the first submersible sewage pump and the second submersible sewage pump), the accumulation of a large amount of impurities tends to form a water-conducting conical sludge body.

Step 2), connect an L-shaped plastic hard pipe (respectively the first L-shaped plastic hard pipe, the second L-shaped plastic hard pipe).

Each of the two submersible sewage pumps in the integrated pump station is connected with an L-shaped plastic hard pipe below the liquid outlet, and extends it to the position below the pump body, and uses a bracket to fix it on the bottom of the cylinder. When the water pump is started for suction operation, the water flow impacts the water body inside the pump station cylinder at the position below the pump body (the first submersible sewage pump, the second submersible sewage pump) and forms vortices (the first vortex, the second vortex), The dirt, silt and dregs at the bottom of the pumping station cylinder will cause strong disturbance, so as to achieve the purpose of clearing the impurities at the bottom of the cylinder.

Step 3), set up a horizontal connecting pipe to connect 2 L plastic rigid pipes (the first L-shaped plastic rigid pipe and the second L-shaped plastic rigid pipe), and install an automatic control unit on each pipe part Valves (respectively the first automatic control valve and the second automatic control valve).

One automatic control valve, namely 1# valve and 2# valve, is set at each of the two L-shaped plastic hard pipe nozzles. One automatic control valve (the third automatic control valve), namely the 3# valve, is set in the middle of the horizontal communication pipe. Due to the long-term use of the pump station, a large amount of water-conducting conical sludge is easily accumulated under the submersible sewage pump body. At the moment when the pump is turned on, a large amount of impurities pour into the pump body through the pump suction port (liquid inlet), and the submersible sewage pump cannot be cleaned in time, which may easily cause the sewage discharge efficiency of the pump to drop and the pump body to be damaged. Through the rapid dredging control device, the accumulated impurities under the pump can be pre-treated, thereby improving the sewage discharge efficiency.

Step 4), in different operating modes, perform combined control on automatic control valves at different positions.

According to the user's needs or the operation status of the pump station, the pump station can choose different operation modes. For the alternate operation of single pump and simultaneous operation of dual pumps in the pumping station, the rapid dredging control device can improve the sewage discharge efficiency of the pumping station.

①In the single pump alternate operation mode, open the 1# valve, close the 2# valve or close the 1# valve, open the 2# valve, and open the 3# valve in the middle of the horizontal communication pipe at the same time. While dredging the running pump, it can also pre-clean the sludge impurities at the bottom of another pump that is not running, which greatly improves the dredging efficiency.

②In the mode of simultaneous operation of the two pumps, only the 3# valve can be closed to flush and clean the sludge and impurities under the respective pump bodies.

Step 5), liquid flow circulation treatment.

After the sludge deposited at the bottom of the pump station cylinder is stirred, it is sucked by the submersible sewage pump, and the sewage flows out of the pump station cylinder through the water outlet pipes (the first water outlet pipe and the second water outlet pipe) and enters the next unit.

As a further limitation of this method, the 1# valve and the 2# valve need to be arranged at the nozzle of the corresponding L-shaped pipe, and the 3# valve should be arranged at the middle position of the horizontal communication pipe.

As a further limitation of the method, the automatic control valves (the first automatic control valve, the second automatic control valve, and the third automatic control valve) can be combined on and off according to user needs or the operating state of the pump station.

As a further limitation of this method, the diameter of the L-shaped plastic rigid tube (the first L-shaped plastic rigid tube, the second L-shaped plastic rigid tube) is controlled between 60mm and 80mm, and the length of the horizontal connecting tube is adjusted according to the actual pump spacing. Adjustment, generally controlled between 600mm to 800mm.

Beneficial effects, compared with the prior art, the beneficial effects of the present utility model are:

The rapid dredging control device is composed of a rigid plastic pipe, an automatic control valve and a bracket. The installation is simple, the cost is low, the dredging efficiency is high, and it is also convenient for overall processing and production, and can be widely used in integrated pump station projects. Compared with the traditional dredging device, the device focuses on cleaning the sedimentation at the bottom of the integrated pump station, pre-treats the impurity sludge under the non-operating pump, prolongs the service life of the pump, achieves simple installation, convenient operation, and improves sewage efficiency.

Description of drawings

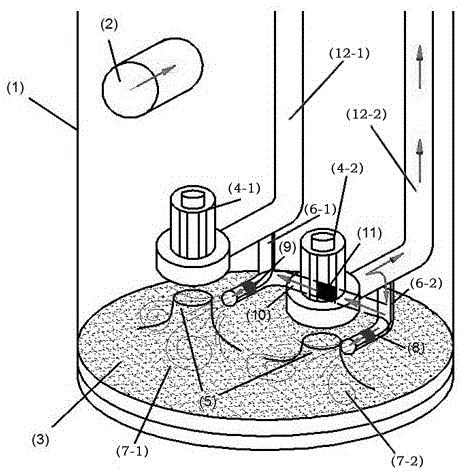

1 is a schematic structural diagram of a rapid dredging control device for an integrated pump station in the utility model;

Figure 2a is a schematic diagram of the principle of the rapid dredging control device for an integrated pump station in the utility model;

Figure 2b is a schematic diagram of the principle of the rapid dredging control device of the integrated pump station in the utility model;

3 is a schematic structural diagram of the first L-shaped plastic rigid pipe, the second L-shaped plastic rigid pipe, and the horizontal connecting pipe part in the present invention;

In the picture: 1 pumping station cylinder, 2 water inlet pipe, 3 impurities, 4-1 first submersible sewage pump, 4-2 second submersible sewage pump, 5 sludge body, 6-1 first L-shaped plastic hard pipe , 6-2 second L-shaped plastic hard pipe, 7-1 first whirlpool, 7-2 second whirlpool, 8 first automatic control valve, 9 second automatic control valve, 10 horizontal communication pipe, 11 third automatic control valve Control valve, 12 brackets, 12-1 first water outlet pipe, 12-2 second water outlet pipe.

Detailed ways

The present utility model will be further described below in conjunction with the accompanying drawings and the description of the accompanying drawings.

An integrated pump station rapid dredging control device includes a pump station cylinder 1 and a first submersible sewage pump 4-1 and a second submersible sewage pump 4-2 arranged in the pump station cylinder 1; The side wall of the body 1 is provided with a water inlet pipe 2; the liquid outlet of the first submersible sewage pump 4-1 and the liquid outlet of the second submersible sewage pump 4-2 are respectively connected to the first water outlet pipe 12-1 and the second water outlet pipe 12 -2, one end of the first water outlet pipe 12-1 and the second water outlet pipe 12-2 respectively communicate with the liquid outlet of the first submersible sewage pump 4-1 and the liquid outlet of the second submersible sewage pump 4-2, and the other end They are all placed outside the pump station cylinder 1.

Below the liquid outlet of the first submersible sewage pump 4-1 and the liquid outlet of the second submersible sewage pump 4-2 are respectively connected a first L-shaped plastic rigid pipe 6-1 and a second L-shaped plastic rigid pipe 6-1. The pipeline 6-2; the first L-shaped plastic rigid pipeline 6-1 and the second L-shaped plastic rigid pipeline 6-2 all extend to the lower position in the cylinder body 1 of the pump station. The outlet of the first L-shaped plastic rigid pipe 6-1 faces the position below the liquid inlet of the first submersible sewage pump 4-1, and the outlet of the second L-shaped plastic rigid pipe 6-2 faces the second submersible sewage pump 4-2 below the liquid inlet. A transverse communication pipe 10 is arranged between the first L-shaped plastic rigid pipe 6-1 and the second L-shaped plastic rigid pipe 6-2. The first L-shaped plastic rigid pipe 6-1 and the second L-shaped plastic rigid pipe 6-1 The mass pipe 6 - 2 passes through the transverse communication pipe 10 . The first L-shaped plastic rigid pipe 6-1, the second L-shaped plastic rigid pipe 6-2, and the transverse communication pipe 10 are respectively installed with a first automatic control valve 8, a second automatic control valve 9, and a third automatic control valve valve 11.

Further, the first L-shaped plastic rigid pipe 6-1 and the second L-shaped plastic rigid pipe 6-2 are fixed to the bottom of the cylinder body 1 of the pump station through the bracket 12 . The first automatic control valve 8 and the second automatic control valve 9 are respectively arranged at the discharge port of the first L-shaped plastic rigid pipe 6-1, the discharge port of the second L-shaped plastic rigid pipe 6-2, and the third The automatic control valve 11 is provided in the middle position of the transverse communication pipe 10 . The diameters of the first L-shaped plastic rigid pipe 6-1 and the second L-shaped plastic rigid pipe 6-2 are both 60mm-80mm. The length of the transverse communication pipe 10 is 600mm-800mm.

When used, include the following steps:

Step 1), a large amount of sludge impurities enter the inside of the pump station cylinder 1 and accumulate;

The sewage flows into the inside of the cylinder through the water inlet pipe 2 on the side wall of the pump station cylinder 1. With the passage of time of the integrated pump station, a large amount of impurities 3 accumulate in the bottom of the pump station cylinder 1, especially in the first submerged sewage. Below the pump body of the pump 4-1 and the second submersible sewage pump 4-2, the accumulation of a large amount of impurities is likely to form a water-conducting conical sludge body 5;

Step 2),

When opening the first automatic control valve 8, the second automatic control valve 9, and closing the third automatic control valve 11;

Start the first submersible sewage pump 4-1 and the second submersible sewage pump 4-2 for suction, the water flows into the first submersible sewage pump 4-1 through the liquid inlet of the first submersible sewage pump 4-1, and passes through the first submersible sewage pump 4-1. The liquid outlet of the submersible sewage pump 4-1 and the first water outlet pipe 12-1 are discharged; part of the water flowing into the first submersible sewage pump 4-1 flows into the first L-shaped plastic hard pipe 6-1, and passes through the first L-shaped plastic hard pipe 6-1. The ejection port of the plastic hard pipe 6-1 is ejected, and the impact forms the first vortex 7-1; the water flows through the liquid inlet of the second submersible sewage pump 4-2 into the second submersible sewage pump 4-2, and passes through the The liquid outlet of the second submersible sewage pump 4-2 and the second water outlet pipe 12-2 are discharged; part of the water flowing into the second submersible sewage pump 4-2 flows into the second L-shaped plastic hard pipe 6-2, and passes through the second submersible sewage pump 4-2. The ejection port of the L-shaped plastic hard pipe 6-2 is ejected, and the impact forms a second vortex 7-2;

The first vortex 7-1 and the second vortex 7-2 cause strong disturbance to the bottom sludge 5 in the cylinder body 1 of the pump station, so as to remove the sludge at the bottom of the first submersible sewage pump 4-1 and the second submersible sewage pump 4-2 5.

When the first automatic control valve 8 is opened, the second automatic control valve 9 is closed, and the third automatic control valve 11 is opened;

Start the first submersible sewage pump 4-1 and the second submersible sewage pump 4-2 for suction, the water flows into the first submersible sewage pump 4-1 through the liquid inlet of the first submersible sewage pump 4-1, and passes through the first submersible sewage pump 4-1. The liquid outlet of the submersible sewage pump 4-1 and the first water outlet pipe 12-1 are discharged; part of the water flowing into the first submersible sewage pump 4-1 flows into the first L-shaped plastic hard pipe 6-1, and passes through the first L-shaped plastic hard pipe 6-1. The ejection port of the plastic hard pipe 6-1 is ejected, and the impact forms the first vortex 7-1; the water flows through the liquid inlet of the second submersible sewage pump 4-2 into the second submersible sewage pump 4-2, and passes through the The liquid outlet of the second submersible sewage pump 4-2 and the second water outlet pipe 12-2 are discharged; a part of the water flowing into the second submersible sewage pump 4-2 flows into the second L-shaped plastic hard pipe 6-2, and then flows through the horizontal The communication pipe 10 flows into the first L-shaped plastic rigid pipe 6-1, and is ejected through the ejection port of the first L-shaped plastic rigid pipe 6-1, and the impact forms a first vortex 7-1; the first vortex 7-1 pairs The bottom sludge body 5 in the cylinder body 1 of the pump station causes strong disturbance, and the bottom sludge body 5 of the first submersible sewage pump 4-1 is removed.

When the first automatic control valve 8 is closed, the second automatic control valve 9 is opened, and the third automatic control valve 11 is opened;

Start the first submersible sewage pump 4-1 and the second submersible sewage pump 4-2 for suction, the water flows into the first submersible sewage pump 4-1 through the liquid inlet of the first submersible sewage pump 4-1, and passes through the first submersible sewage pump 4-1. The liquid outlet of the submersible sewage pump 4-1 and the first water outlet pipe 12-1 are discharged; a part of the water flow that flows into the first submersible sewage pump 4-1 flows into the lateral communication pipe 10, and then flows into the second L-shaped through the lateral communication pipe 10. The plastic hard pipe 6-2 is ejected through the ejection port of the second L-shaped plastic hard pipe 6-2, and the impact forms a second vortex 7-2; the water flows into the liquid inlet of the second submersible sewage pump 4-2 The second submersible sewage pump 4-2 is discharged through the liquid outlet of the second submersible sewage pump 4-2 and the second water outlet pipe 12-2; part of the water flowing into the second submersible sewage pump 4-2 flows into the second L The second vortex 7-2 is formed by the impact of the second L-shaped plastic hard pipe 6-2; the second vortex 7-2 affects the inner bottom of the pump station cylinder The sludge body 5 causes strong disturbance, and realizes the removal of the sludge body 5 at the bottom of the second submersible sewage pump 4-2.

When the first automatic control valve 8 is opened, the second automatic control valve 9 is closed, and the third automatic control valve 11 is closed;

Start the first submersible sewage pump 4-1 and the second submersible sewage pump 4-2 for suction, the water flows into the first submersible sewage pump 4-1 through the liquid inlet of the first submersible sewage pump 4-1, and passes through the first submersible sewage pump 4-1. The liquid outlet of the submersible sewage pump 4-1 and the first water outlet pipe 12-1 are discharged; part of the water flowing into the first submersible sewage pump 4-1 flows into the first L-shaped plastic hard pipe 6-1, and passes through the first L-shaped plastic hard pipe 6-1. The ejection port of the plastic hard pipe 6-1 is ejected, and the impact forms the first vortex 7-1; the water flows through the liquid inlet of the second submersible sewage pump 4-2 into the second submersible sewage pump 4-2, and passes through the The liquid outlet of the second submersible sewage pump 4-2 and the second water outlet pipe 12-2 are discharged; the first vortex 7-1 causes strong disturbance to the bottom sludge 5 in the cylinder body 1 of the pump station, and realizes the removal of the first submersible sewage pump 4 -1 Bottom sludge 5.

When the first automatic control valve 8 is closed, the second automatic control valve 9 is opened, and the third automatic control valve 11 is closed;

Start the first submersible sewage pump 4-1 and the second submersible sewage pump 4-2 for suction, the water flows into the first submersible sewage pump 4-1 through the liquid inlet of the first submersible sewage pump 4-1, and passes through the first submersible sewage pump 4-1. The liquid outlet of the submersible sewage pump 4-1 and the first water outlet pipe 12-1 are discharged; the water flows into the second submersible sewage pump 4-2 through the liquid inlet of the second submersible sewage pump 4-2, and passes through the second submersible sewage pump 4-2. The liquid outlet of the pump 4-2 and the second water outlet pipe 12-2 are discharged; a part of the water flowing into the second submersible sewage pump 4-2 flows into the second L-shaped plastic hard pipe 6-2, and passes through the second L-shaped plastic hard pipe 6-2. The ejection port of the hard pipe 6-2 ejects, and the impact forms a second vortex 7-2. The second vortex 7-2 causes strong disturbance to the bottom sludge 5 in the pump station cylinder 1, so as to remove the sludge 5 at the bottom of the second submersible sewage pump 4-2.

Step 3), water circulation treatment;

After the accumulated impurities 3 deposited on the inner bottom of the cylinder body 1 of the pump station are stirred, they are sucked by the first submersible sewage pump 4-1 and the second submersible sewage pump 4-2. The second water outlet pipe 12-2 flows out of the cylinder body 1 of the pump station and enters the subsequent processing unit.

Claims (5)

1. An integrated pump station rapid dredging control device comprises a pump station barrel (1), and a first submersible sewage pump (4-1) and a second submersible sewage pump (4-2) which are arranged in the pump station barrel (1); a water inlet pipeline (2) is arranged on the side wall of the pump station cylinder body (1); a liquid outlet of the first submersible sewage pump (4-1) and a liquid outlet of the second submersible sewage pump (4-2) are respectively connected with a first water outlet pipe (12-1) and a second water outlet pipe (12-2), one ends of the first water outlet pipe (12-1) and the second water outlet pipe (12-2) are respectively communicated with the liquid outlet of the first submersible sewage pump (4-1) and the liquid outlet of the second submersible sewage pump (4-2), and the other ends are arranged outside the pump station cylinder (1);

the device is characterized in that a first L-shaped plastic hard pipeline (6-1) and a second L-shaped plastic hard pipeline (6-2) are respectively connected below a liquid outlet of the first submersible sewage pump (4-1) and a liquid outlet of the second submersible sewage pump (4-2) in a run-through manner, and the first L-shaped plastic hard pipeline (6-1) and the second L-shaped plastic hard pipeline (6-2) extend to the lower position in the pump station cylinder (1);

the spray port of the first L-shaped plastic hard pipeline (6-1) faces to the position below the liquid inlet of the first submersible sewage pump (4-1), and the spray port of the second L-shaped plastic hard pipeline (6-2) faces to the position below the liquid inlet of the second submersible sewage pump (4-2);

a transverse communicating pipe (10) is arranged between the first L-shaped plastic hard pipeline (6-1) and the second L-shaped plastic hard pipeline (6-2), and the first L-shaped plastic hard pipeline (6-1) and the second L-shaped plastic hard pipeline (6-2) are communicated through the transverse communicating pipe (10);

and a first automatic control valve (8), a second automatic control valve (9) and a third automatic control valve (11) are respectively arranged on the first L-shaped plastic hard pipeline (6-1), the second L-shaped plastic hard pipeline (6-2) and the transverse communicating pipe (10).

2. the rapid dredging control device of the integrated pump station according to claim 1, wherein the first L-shaped plastic hard pipeline (6-1) and the second L-shaped plastic hard pipeline (6-2) are fixed at the bottom of the pump station cylinder (1) through a bracket (12).

3. the rapid dredging control device of the integrated pump station according to claim 1, wherein the first automatic control valve (8) and the second automatic control valve (9) are respectively arranged at the outlet of the first L-shaped plastic hard pipeline (6-1) and the outlet of the second L-shaped plastic hard pipeline (6-2), and the third automatic control valve (11) is arranged in the middle of the transverse communicating pipe (10).

4. the rapid dredging control device of the integrated pump station according to claim 1, wherein the diameters of the first L-shaped plastic hard pipeline (6-1) and the second L-shaped plastic hard pipeline (6-2) are both 60mm-80 mm.

5. The integrated pump station rapid dredging control device according to claim 1, characterized in that: the length of the transverse communicating pipe (10) is 600mm-800 mm.
