Abstract

The utility model discloses a low-noise processing machine tool, which comprises a processing machine table, an isolation shell is installed on the top of the processing machine table, a cooling fan is installed on the top of the processing machine table, and a sound insulation is connected on one side of the processing machine table through hinges. The glass, the processing machine table and the inner wall of the isolation shell are provided with sound-absorbing panels, the interior of the processing machine table and the isolation shell are provided with a cavity, and the interior of the cavity is provided with sound-absorbing cotton and a sound insulation board. The sound-absorbing panel of the utility model can effectively absorb and reduce the noise generated by the processing machine tool, the sound-absorbing cotton and the sound insulation board can further absorb and isolate the noise generated by the processing machine tool, and the isolation shell can prevent the noise generated by the processing machine tool from spreading out. To the outside, reduce noise pollution and improve the working environment. The buffer spring can make the machine tool buffer when the vibration is large, avoid large noise, and improve the service life of the support legs and buffer pads of the machine tool.

Description

A low-noise machining machine

technical field

The utility model relates to the technical field of processing machine tools, in particular to a low-noise processing machine tool.

Background technique

Machine tool processing refers to the process of relying on the machine tool to ensure the relative motion relationship between the tool and the fixture, and at the same time using the tool (or other tools) to process the workpiece installed on the fixture. However, this process is not necessarily cutting machining but may also be press machining. For example, knurling or spinning is performed on a lathe. Machine tools refer to mechanical devices manufactured by power. They are usually used for precision cutting of metals to produce other machines or processed metal parts. During the machining of machine tools, certain noises will be generated. In order to reduce Small noise pollution requires the use of noise reduction devices.

The processing machine tools in the prior art cannot effectively absorb and reduce the noise generated by the processing machine tools, and the noise generated by the processing machine tools cannot be effectively adsorbed and isolated. Therefore, the noise generated by the processing machine tools is transmitted to the outside, causing noise pollution. lead to a decrease in the working environment.

Therefore, it is urgent to design a low-noise processing machine tool to solve the above problems.

Utility model content

The purpose of the utility model is to propose a low-noise processing machine tool in order to solve the shortcomings existing in the prior art.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A low-noise processing machine tool includes a processing machine table, an isolation shell is installed on the top of the processing machine table, a cooling fan is installed on the top of the processing machine table, and one side of the processing machine table is rotatably connected with a hinge. In the sound insulation glass, sound-absorbing panels are installed on the inner walls of the processing machine table and the isolation shell, and a cavity is arranged inside the processing machine table and the isolation shell, and sound-absorbing cotton and a sound insulation board are installed inside the cavity.

Further, an operation table is installed on one side of the processing machine table, a switch and an indicator light are installed on the top of the operation table, and anti-collision cotton is installed at the four corners of the processing machine table.

Further, two support legs are installed on the bottom of the processing machine table, and buffer pads are installed on the bottom of the support legs.

Further, two exhaust fans are installed on the top of the isolation shell, an exhaust hood is installed on the top of the exhaust fan, an air duct is installed on the top of the air hood, and an exhaust pipe is installed on one side of the air duct. .

Further, two fixing plates are installed inside the buffer pad, a plurality of buffer springs are installed inside the two fixing plates, and a limit rod is installed at the bottom of one of the fixed plates, and the limit rod is inserted in the Inside the buffer spring.

Further, a filter cover is installed on the top of the cooling fan, adsorption cotton is installed inside the filter cover, and a protective net is installed on the top of the filter cover.

The beneficial effects of the present utility model are:

1. By setting the sound-absorbing cotton, sound-absorbing board, sound-absorbing board and isolation shell, the sound-absorbing board can effectively absorb and reduce the noise generated by the processing machine tool, and the sound-absorbing cotton and sound-absorbing board can effectively further absorb the noise generated by the processing machine tool. And isolation, the isolation shell can prevent the noise generated by the processing machine from being transmitted to the outside, reduce noise pollution and improve the working environment.

2. By setting the buffer pad, buffer spring and limit rod, the buffer pad can effectively buffer the processing machine tool, and the buffer spring can buffer the processing machine tool when the vibration is large to avoid large noise. The limit rod can prevent the buffer pad and buffer spring from being damaged due to excessive deformation, and improve the service life of the support leg and buffer pad of the machining machine.

3. Through the set cooling fan and exhaust fan, the cooling fan can dissipate the heat generated by the processing machine tool at work, reduce the working stability of the processing machine tool, and the exhaust fan can extract the odor generated by the processing machine tool, so as to prevent the staff from opening it. Unpleasant gas is produced when soundproofing glass.

4. Through the sound insulation glass, the sound insulation glass can not only observe the internal processing status of the processing machine, but also soundproof the noise generated by the processing machine, so as to improve the good working environment of the staff.

Description of drawings

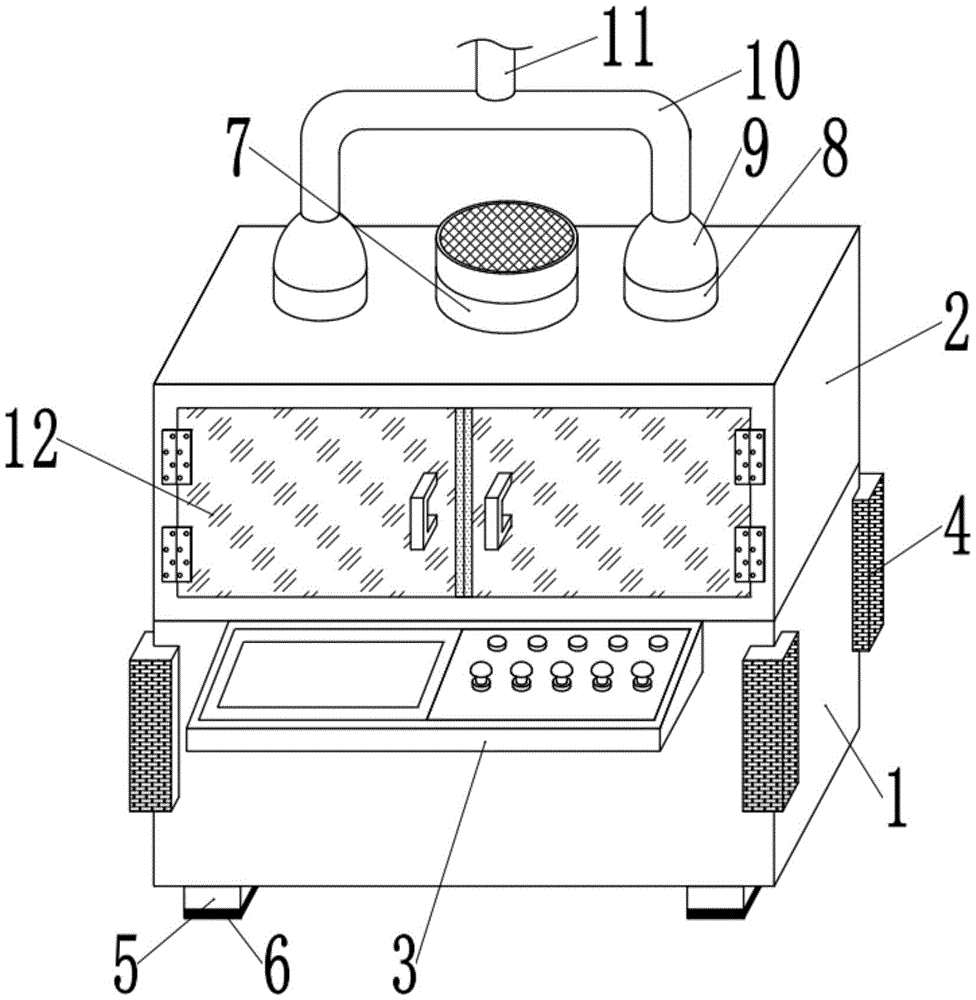

Fig. 1 is the overall structure schematic diagram of a kind of low noise processing machine tool proposed by the utility model;

FIG. 2 is a schematic structural diagram of a buffer spring of a low-noise processing machine tool proposed by the utility model;

3 is a schematic structural diagram of a cooling fan of a low-noise processing machine tool proposed by the utility model;

4 is a schematic view of the cavity structure of a low-noise machining machine tool proposed by the present invention.

In the picture: 1 processing machine table, 2 isolation shell, 3 operating table, 4 anti-collision cotton, 5 supporting legs, 6 buffer pads, 7 cooling fans, 8 exhaust fans, 9 exhaust hoods, 10 air ducts, 11 exhaust pipes, 12 sound insulation glass, 13 fixed plate, 14 buffer spring, 15 limit rod, 16 filter cover, 17 adsorption cotton, 18 protective net, 19 cavity, 20 sound absorption cotton, 21 sound insulation board, 22 sound absorption board, 23.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be noted that when a component is referred to as being "fixed to" another component, it can be directly on the other component or there may also be a centered component. When a component is considered to be "connected" to another component, it may be directly connected to the other component or there may be a co-existence of an intervening component. When a component is considered to be "set on" another component, it may be directly set on the other component or there may be a co-existing centered component. The terms "vertical," "horizontal," "left," "right," and similar expressions are used herein for illustrative purposes only.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field to which the present invention belongs. The terms used in the description of the present invention herein are only for the purpose of describing specific embodiments, and are not intended to limit the present invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

Please refer to FIGS. 1 to 4 at the same time, a low-noise processing machine tool includes a processing machine table 1, an isolation shell 2 is installed on the top of the processing machine table 1, a cooling fan 7 is installed on the top of the processing machine table 1, and the cooling fan 7 can The heat generated by the processing machine tool is dissipated during operation, and the working stability of the processing machine tool is reduced. One side of the processing machine tool table 1 is connected with a soundproof glass 12 through hinge rotation. The soundproof glass 12 can not only observe the internal processing conditions of the processing machine tool, but also The noise generated by the processing machine can be sound-insulated. The inner walls of the processing machine table 1 and the isolation shell 2 are equipped with sound-absorbing panels 22. The sound-absorbing panels 22 can effectively absorb and reduce the noise generated by the processing machine tools. The interior of the isolation shell 2 is provided with a cavity 19, and a sound-absorbing cotton 20 and a sound insulation board 21 are installed inside the cavity 19. The sound-absorbing cotton 20 and the sound insulation board 21 can effectively further absorb and isolate the noise generated by the processing machine, and the isolation shell 2 It can prevent the noise generated by the processing machine from being transmitted to the outside, reduce noise pollution and improve the working environment.

Further, an operating table 3 is installed on one side of the processing machine table 1, and switches and indicator lights are installed on the top of the operating table 3, and anti-collision cotton 4 is installed at the four corners of the processing machine table 1. The anti-collision cotton 4 can prevent The processing machine table 1 is subject to shocks to a minimum.

Further, two support legs 5 are installed on the bottom of the processing machine table 1 , and a buffer pad 6 is installed on the bottom of the support legs 5 , and the buffer pad 6 can effectively buffer the processing machine tool.

Further, two exhaust fans 8 are installed on the top of the isolation shell 2. The exhaust fans 8 can extract the odor generated by the processing machine tool to avoid unpleasant gas when the staff opens the soundproof glass 12. The top of the exhaust fan 8 is installed with The ventilation hood 9 is provided with an air duct 10 on the top of the ventilation hood 9 , and an exhaust pipe 11 is installed on one side of the air duct 10 .

Further, two fixed plates 13 are installed inside the buffer pad 6, and a number of buffer springs 14 are installed inside the two fixed plates 13. The buffer springs 14 can buffer the machining machine tool when the vibration is large and avoid large vibrations. Noise, the limit rod 15 is installed at the bottom of one of the fixed plates 13, and the limit rod 15 is inserted into the interior of the buffer spring 14, the limit rod 15 can prevent the buffer pad 6 and the buffer spring 14 from being deformed too much and cause damage. The service life of the support legs 5 and the buffer pads 6 of the machine tool.

Further, a filter cover 16 is installed on the top of the cooling fan 7, and an adsorption cotton 17 is installed inside the filter cover 16. The adsorption cotton 17 can filter the air entering the machine tool table 1, and the top of the filter cover 16 is installed with a protective cover. Net 18.

Working principle: When in use, open the soundproof glass 12 by the handle, put the parts to be processed on the processing machine table 1, and then close the soundproof glass 12. The noise generated by the processing machine tool is soundproofed, which improves the good working environment of the staff. The processing machine tool equipment is started through the button on the console 3. The processing machine tool will generate noise when processing the processing parts. The sound-absorbing cotton set in the isolation shell 2 20. The sound-insulating board 21 and the sound-absorbing board 22, the sound-absorbing board 22 can effectively absorb and reduce the noise generated by the processing machine tool, and the sound-absorbing cotton 20 and the sound-absorbing board 21 can effectively further absorb and isolate the noise generated by the processing machine tool. The shell 2 can prevent the noise generated by the machine tool from being transmitted to the outside, reduce noise pollution and improve the working environment, the buffer pad 6 can effectively buffer the machine tool, and the buffer spring 14 can buffer the machine tool when the vibration is large. To avoid the generation of large noise, at the same time, the limit rod 15 can prevent the buffer pad 6 and the buffer spring 14 from being deformed too much and cause damage, improve the service life of the support legs 5 and the buffer pad 6 of the processing machine tool, and the cooling fan 7 can prevent the processing machine tool. The heat generated during work is dissipated to reduce the working stability of the processing machine tool. The exhaust fan 8 can extract the odor generated by the processing machine tool to avoid unpleasant gas when the staff opens the soundproof glass 12 .

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. The utility model provides a low noise machine tool, includes processing machine tool platform (1), its characterized in that, separation shell (2) are installed at the top of processing machine tool platform (1), radiator fan (7) are installed at the top of processing machine tool platform (1), one side of processing machine tool platform (1) is connected with soundproof glass (12) through the hinge rotation, abatvoix (22) are installed to the inner wall of processing machine tool platform (1) and separation shell (2), the inside of processing machine tool platform (1) and separation shell (2) is provided with cavity (19), the internally mounted of cavity (19) has sound absorption cotton (20) and acoustic celotex board (21).

2. A low noise processing machine tool according to claim 1, characterized in that an operation table (3) is installed on one side of the processing machine tool table (1), switches and indicator lamps are installed on the top of the operation table (3), and anti-collision cotton (4) is installed on four corners of the processing machine tool table (1).

3. A machine tool with low noise according to claim 1, characterized in that two support legs (5) are mounted at the bottom of the machine tool table (1), and that a cushion pad (6) is mounted at the bottom of the support legs (5).

4. A low noise processing machine tool according to claim 1, characterized in that two exhaust fans (8) are installed at the top of the isolation shell (2), an exhaust hood (9) is installed at the top of the exhaust fans (8), an air duct (10) is installed at the top of the exhaust hood (9), and an exhaust pipe (11) is installed at one side of the air duct (10).

5. A machine tool with low noise as defined in claim 3, characterized in that two fixing plates (13) are mounted inside the buffer (6), a plurality of buffer springs (14) are mounted inside the two fixing plates (13), a limiting rod (15) is mounted at the bottom of one of the fixing plates (13), and the limiting rod (15) is inserted inside the buffer springs (14).

6. A low noise processing machine tool according to claim 1, characterized in that a filter hood (16) is installed on top of the heat dissipation fan (7), the filter hood (16) is internally installed with adsorption cotton (17), and a protective screen (18) is installed on top of the filter hood (16).
