Abstract

The utility model discloses a novel terminal nose grinding auxiliary tool, which comprises a saw frame, a file, a first installation rod and a second installation rod. The first installation rod and the second installation rod are arranged at two ends of the saw frame, and the first installation rod There is a fixing block 1, a square accommodating hole 1 is arranged on the fixing block 1, a threaded hole is arranged on the mounting rod 2, and a screw rod is arranged in the threaded hole, and the screw rod is close to one end of the installation rod 1 The second fixed block is rotatably provided, and the second fixed block is provided with a square receiving hole 2, and the two ends of the file are provided with a square guide block 1 and a guide block 2, and the guide block 1 is matched with the accommodating hole 1 , the second guide block is matched with the second accommodating hole. The utility model has the advantages of simple structure, high work efficiency, convenient operation, and convenient installation and disassembly of the file.

Description

A New Type of Wiring Nose Grinding Aid Tool

technical field

The utility model relates to the technical field of electric construction auxiliary tools, in particular to a novel terminal nose grinding auxiliary tool.

Background technique

In the process of emergency repair of power equipment, power supply companies often pre-predict that the equipment wiring nose and the JP cabinet of the distribution transformer cannot match the remaining current protector. During the repair process, they go back and forth to the processing plant for processing and then return to the site to solve the matching problem between the wiring nose and the power equipment. This results in long repair time, high safety risks, time-consuming and labor-intensive, and lays a solid foundation for effectively solving the problem of long repair time and vehicle safety hidden dangers on the back and forth circuit, thereby improving the high-quality services of electric power enterprises. We have invented a new type of Wiring nose grinding aids are mainly used in low-voltage power equipment in power companies. At present, it is one of the important auxiliary tools for the State Grid Xingan County Power Supply Company to safely and quickly solve the problem of mismatch between the wiring nose and the power equipment. Among them, the novel terminal nose grinding auxiliary tool is an important auxiliary tool for safely and quickly solving the problem of mismatch between the terminal nose and the power equipment. The tools for the matching problem between the existing wiring nose and the power equipment are usually repaired by the emergency repair personnel to the processing factory and then returned to the fault site to solve the problem. In the process of applying traditional methods, it often results in long power outages, inconvenient emergency repairs at night, and easy occurrence of safety accidents, with great safety risks and low efficiency. As electricity customers have higher and higher requirements for safety and civilian use, the traditional solution to the problem of matching the wiring nose and power equipment can no longer meet the requirements of current emergency repair operations. Therefore, there is an urgent need for an auxiliary tool for grinding the terminal lug with high efficiency and simple operation.

SUMMARY OF THE INVENTION

The problem to be solved by the utility model is to provide a novel terminal nose grinding auxiliary tool, which has the advantages of simple structure, high work efficiency, convenient operation, and convenient installation and disassembly of the file.

The technical scheme provided by the utility model to solve the above problems is: a novel terminal nose grinding auxiliary tool, comprising a saw frame, a file, a first installation rod and a second installation rod, and the first installation rod and the second installation rod are arranged on the saw frame separately. The first two ends of the mounting rod are provided with a fixing block 1, the fixing block 1 is provided with a square accommodating hole 1, the mounting rod 2 is provided with a threaded hole, and the threaded hole is provided with a screw rod, One end of the screw rod close to the first mounting rod is rotatably provided with a second fixing block, and the second fixing block is provided with a square receiving hole 2, and the two ends of the file are provided with a square guide block 1 and a guide block 2, so The first guide block is matched with the accommodating hole 1, and the guide block 2 is matched with the accommodating hole 2.

Preferably, the second fixing block is provided with a T-shaped accommodating cavity, one end of the screw rod extends into the T-shaped accommodating cavity, and one end of the screw rod located in the T-shaped accommodating cavity is provided with a push plate. When the screw is rotated, the push plate follows the rotation of the screw to push the second fixed block to move.

Preferably, a handle is provided at one end of the screw rod away from the second fixing block. The handle is convenient for the staff to turn the screw, which is more labor-saving.

Compared with the prior art, the advantages of the utility model are as follows: the utility model adopts the combination of the saw frame and the file, so that the device can conveniently grind the terminal lugs, with simple structure, high work efficiency and convenient operation; When fixing the file, the utility model only needs to align the guide block 1 on the file with the accommodating hole 1, put the guide block 1 into the accommodating hole 1, and then screw the screw, so that the guide block 2 enters the fixing block. In the accommodating hole 2 on the 2nd, continue to tighten the screw rod to complete the fixing of the file. The fixing method is simple. Compared with the traditional bolt and nut, it is more convenient to assemble and disassemble, and the work efficiency is improved.

Description of drawings

The accompanying drawings described here are used to provide a further understanding of the present utility model and constitute a part of the present utility model. The schematic embodiments of the present utility model and their descriptions are used to explain the present utility model and do not constitute an improper limitation to the present utility model. .

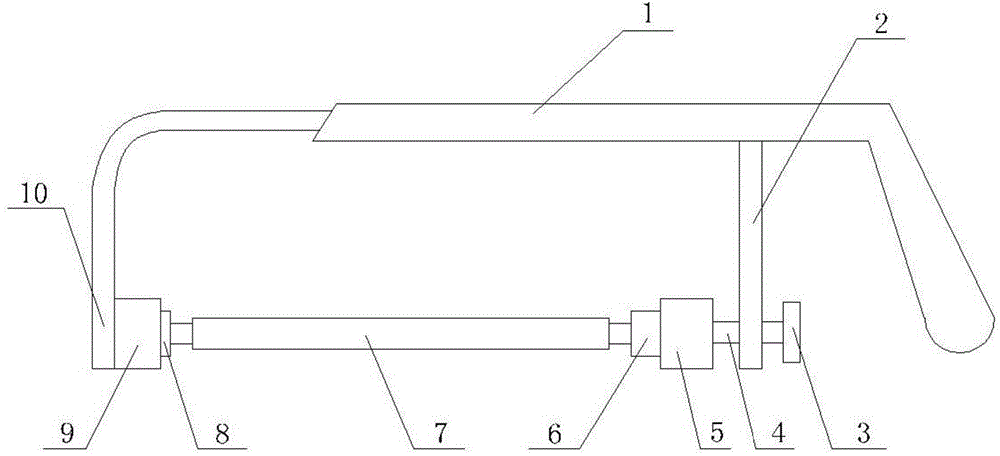

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is the enlarged cross-sectional view of the second fixing block of the present invention and the screw rod;

Fig. 3 is the schematic diagram of the fixed block one of the present utility model;

Notes: 1, saw frame, 2, mounting rod 2, 3, handle, 4, screw rod, 5, fixed block 2, 6, guide block 2, 7, file, 8, guide block 1, 9, fixed block 1 , 10, one installation rod, 11, one holding hole, 12, two holding holes, 13, T-shaped holding cavity, 14, push plate.

Detailed ways

The embodiments of the present invention will be described in detail below with reference to the accompanying drawings and examples, so as to fully understand and implement the implementation process of how the present invention applies technical means to solve technical problems and achieve technical effects.

Specific embodiments of the present utility model are shown in Figures 1 to 3, a new type of auxiliary tool for grinding the terminal nose, comprising a saw frame 1, a file 7, a first installation rod 10 and a second installation rod 2, the first installation rod 10 and the installation rod The second rod 2 is arranged at both ends of the saw frame 1, the mounting rod one 10 is provided with a fixing block 1 9, the fixing block 1 9 is provided with a square receiving hole 11, and the mounting rod 2 2 is provided with a square accommodating hole 11. There is a threaded hole, a screw 4 is arranged in the threaded hole, and one end of the screw 4 close to the installation rod 1 10 is rotatably provided with a fixing block 2 5, and the fixing block 2 5 is provided with a square accommodating hole 2 12, The two ends of the file 7 are provided with a square guide block one 8 and a guide block two 6 .

Further, the second fixing block 5 is provided with a T-shaped accommodating cavity 13 , one end of the screw 4 extends into the T-shaped accommodating cavity 13 , and the screw 4 is located in the T-shaped accommodating cavity 13 . One end is provided with a push plate 14 .

Further, a handle 3 is provided at one end of the screw 4 away from the second fixing block 5 .

The beneficial effects of the utility model are as follows: the utility model adopts the combination of the saw frame and the file, so that the device can conveniently grind the terminal lug, with simple structure, high work efficiency and convenient operation; when the utility model is used for fixing the file , just align the guide block 1 on the file with the accommodating hole 1, put the guide block 1 into the accommodating hole 1, and then screw the screw, so that the guide block 2 enters the accommodating hole 2 on the fixing block 2 Inside, continue to tighten the screw, so as to complete the fixing of the file, the fixing method is simple, it is more convenient to assemble and disassemble than the traditional bolt and nut, and the work efficiency is improved.

The above only describes the best embodiment of the present utility model, but should not be construed as a limitation on the claims. The present invention is not limited to the above embodiments, and its specific structure is allowed to be changed. All changes made within the protection scope of the independent claims of the present utility model are all within the protection scope of the present utility model.

Claims (3)

1. A novel terminal nose grinding auxiliary tool is characterized in that: comprising a saw frame (1), a file (7), a mounting rod (10) and a mounting rod two (2), the mounting rod one (10) and The second mounting rod (2) is arranged at both ends of the saw frame (1), the mounting rod one (10) is provided with a fixing block one (9), and the fixing block one (9) is provided with a square accommodating hole One (11), the mounting rod two (2) is provided with a threaded hole, the screw hole is provided with a screw (4), and one end of the screw (4) close to the mounting rod one (10) is rotatably provided with The second fixing block (5) is provided with a square receiving hole two (12), and the two ends of the file (7) are provided with a square guide block one (8) and a guide block two (6), the first guide block (8) is matched with the first accommodating hole (11), and the second guide block (6) is matched with the second accommodating hole (12). 2. A novel terminal lug grinding auxiliary tool according to claim 1, characterized in that: the second fixing block (5) is provided with a T-shaped accommodating cavity (13), and one end of the screw (4) extends into the T-shaped accommodating cavity (13), and a push plate (14) is provided at one end of the screw rod (4) located in the T-shaped accommodating cavity (13). 3. A novel terminal lug grinding auxiliary tool according to claim 1, characterized in that: a handle (3) is provided at one end of the screw rod (4) away from the second fixing block (5).
