Abstract
The utility model discloses a novel energy-saving environment-friendly sound insulation building material, which relates to the technical field of building materials and comprises a bottom plate and a wear-resistant plate, wherein the wear-resistant plate is fixedly connected with one side of the bottom plate, the other side of the bottom plate is sequentially provided with a heat insulation plate, a sound insulation layer and a decoration layer, one side of the fixed plate is provided with a plurality of tensile balls, the fixed plate is fixedly connected with the decoration plate through the plurality of tensile balls, and the sound insulation layer consists of the sound insulation plate and the sound insulation plate; the utility model discloses a fixed heat insulating board that sets up in bottom plate one side, the fixed noise damping layer that sets up in heat insulating board one side, the noise damping layer comprises acoustical panel and acoustic celotex board, the acoustic celotex board can tentatively carry out the separation to the noise, the acoustical panel can absorb the sound energy, convert the sound energy into heat energy, be favorable to increasing the syllable-dividing effect of panel, and the heat insulating board is mirror surface aluminium foil, can effectively reflect the heat energy that reachs the heat insulating board surface, play fine heat preservation effect, be favorable to improving the heat preservation effect and the energy-conserving effect.
Description
Technical Field
The utility model relates to a building material technical field, in particular to novel energy-concerving and environment-protective sound insulation building material.
Background
The environment is a biosphere that every life depends on to live, more and more people continuously advocate green and environment protection, and in the building field, advocate the use of environment-friendly and energy-saving building materials. Most of the existing building materials only have single environmental protection and energy saving properties, one building material only has a certain environmental protection and energy saving property, the sound insulation building material only can play a sound insulation effect and does not have heat insulation and fire prevention properties, the heat insulation and fire prevention building material only has heat insulation and fire prevention properties and does not have a sound insulation effect, the building material usually costs a large amount of material cost during building and only can obtain a material with the environmental protection and energy saving properties, and the waste on the building material is serious; and many building materials do not have the function of finishing, and can not play the effect of decoration and fitment while building.
Therefore, it is necessary to invent a new energy-saving and environment-friendly sound-insulating building material to solve the above problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a novel energy-concerving and environment-protective syllable-dividing building material to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a novel energy-concerving and environment-protective syllable-dividing building material, includes bottom plate and antifriction plate, antifriction plate fixed connection and one side of bottom plate, the bottom plate opposite side has set gradually heat insulating board, noise damping layer and decorative layer, the decorative layer comprises fixed plate and decorative board, fixed plate one side is provided with a plurality of tensile balls, and fixed plate and decorative board pass through a plurality of tensile ball fixed connection, the noise damping layer comprises noise damping board and acoustic celotex board, and one side of noise damping board and one side fixed connection of acoustic celotex board.
Preferably, the bottom plate is an alloy steel plate, the heat insulation plate is fixedly connected to one side of the bottom plate, and the heat insulation plate is a mirror aluminum foil.
Preferably, a silencing layer is fixedly arranged on one side of the heat insulation plate, the silencing plate is an aluminum honeycomb perforated sound-absorbing plate, and the sound-absorbing plate is a sound-insulating lead plate.
Preferably, a decorative layer is fixedly arranged on one side of the noise reduction layer, the fixed plate is an aluminum alloy plate, the tensile ball is made of industrial plastics, and the decorative plate is made of thermosetting laminated plastics.
Preferably, the wear-resisting plate is a polyethylene plate, a plurality of wear-resisting protrusions are arranged on one side of the wear-resisting plate, and the plurality of wear-resisting protrusions are distributed in a rectangular array.
Preferably, the tensile balls are ellipsoid bodies, and the tensile balls are distributed between the fixing plate and the decorative plate in a rectangular array.
The utility model discloses a technological effect and advantage:
1. the utility model discloses a fixedly set up the heat insulating board in bottom plate one side, heat insulating board one side is fixed to set up the noise reduction layer, the noise reduction layer comprises acoustical panel and acoustic celotex board, the acoustic celotex board can tentatively carry out the separation to the noise, the acoustical panel can absorb the sound energy, change the sound energy into heat energy, be favorable to increasing the sound insulation effect of panel, and the heat insulating board is mirror surface aluminium foil, can effectively reflect the heat energy that reaches the surface of heat insulating board, play fine heat preservation effect, be favorable to improving the heat preservation effect and the energy-conserving effect of;
2. the utility model discloses a fixed decorative layer that sets up in amortization layer one side, the decorative layer passes through tensile ball fixed connection by fixed plate and decorative board and constitutes, and the decorative board is thermosetting laminated plastics, and thermosetting laminated plastics's face has various wood grain or pattern, and is bright and smooth, and the color and luster is bright-colored pleasing to the eye, has increased the aesthetic measure of building materials, and the fixed plate is aluminum alloy plate, can prevent the deformation of decorative board, and tensile ball is industrial plastic simultaneously, and resistance to deformation and restorability are fine, have wholly improved the resistance to compression tensile ability of building materials.
Drawings

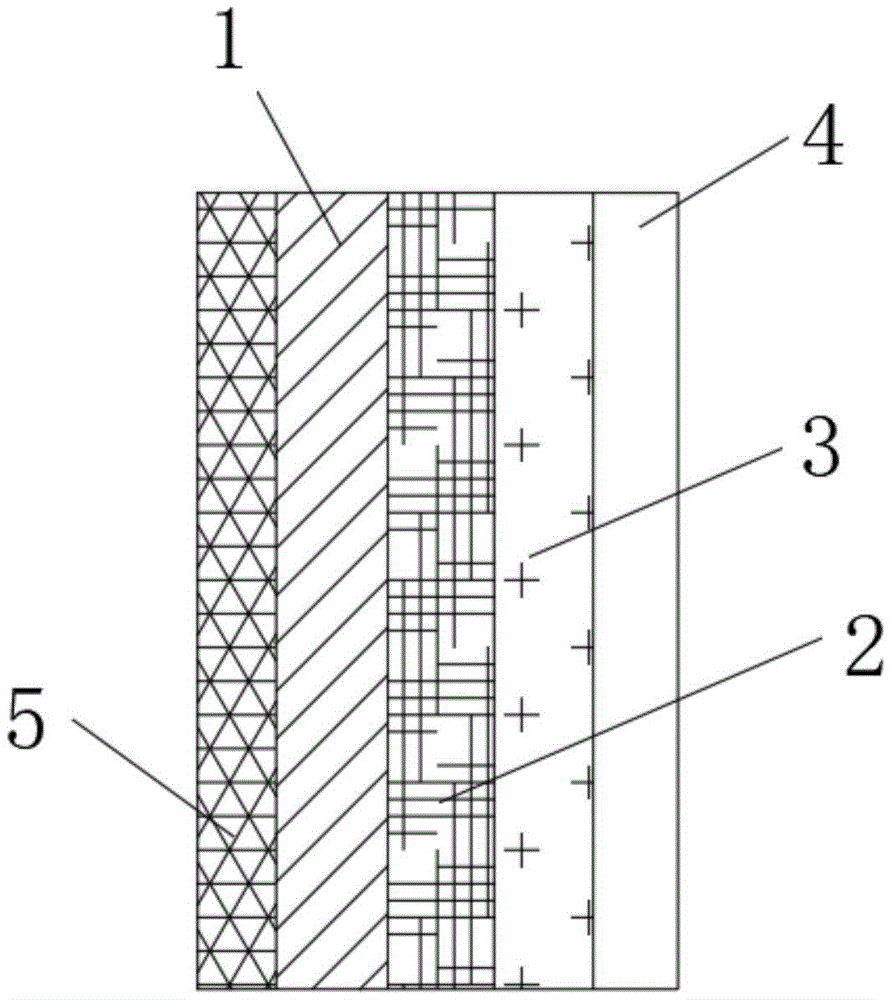

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic view of the structure of the decoration layer of the present invention.
Fig. 3 is a schematic view of the structure of the silencing layer of the present invention.
Fig. 4 is a schematic view of the structure of the wear-resistant layer of the present invention.
In the figure: 1. a base plate; 2. a heat insulation plate; 3. a sound-deadening layer; 4. a decorative layer; 5. a wear plate; 6. a fixing plate; 7. a tensile ball; 8. a decorative plate; 9. a sound-absorbing panel; 10. a sound insulating board; 11. wear-resistant protrusions.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a as shown in fig. 1-4 novel energy-concerving and environment-protective sound insulation building material, as shown in fig. 1, including bottom plate 1 and antifriction plate 5, bottom plate 1 adopts low alloy structure steel, possess high strength, high tenacity and corrosion resistance, be favorable to the anticorrosive of building materials, antifriction plate 5 fixed connection and one side of bottom plate 1, bottom plate 1 opposite side has set gradually heat insulating board 2, amortization layer 3 and decorative layer 4, 2 fixed connection in bottom plate 1 one side of heat insulating board, heat insulating board 2 adopts high purity mirror surface aluminium foil, can effectively reflect the heat that arrives the material surface, reduce the heat radiation loss by a wide margin, improve the heat preservation ability of building materials, thereby reach energy saving and emission reduction's effect, be favorable to improving the feature of environmental protection of building materials, 2 fixed noise reduction layers 3 that are provided with in heat insulating board one.
As shown in fig. 2, the decorative layer 4 is composed of a fixing plate 6 and a decorative plate 8, the fixing plate 6 is an aluminum alloy plate with low density but high strength, and can keep the building material from deforming well, and the aluminum alloy plate has good corrosion resistance, so that the building material further improves the corrosion resistance, the decorative plate 8 is a thermosetting laminated plastic, the surface of the thermosetting laminated plastic has various wood grains or patterns, and is bright and flat, bright and beautiful in color, and the beauty of the building material is improved, which is beneficial to the wide application of the building material, meanwhile, the thermosetting laminated plastic has good physical properties of wear resistance, heat resistance, cold resistance, fire resistance, and the like, and is beneficial to increasing the service life of the building material, a plurality of tensile balls 7 are arranged on one side of the fixing plate 6, the fixing plate 6 and the decorative plate 8 are fixedly connected through the plurality of tensile balls 7, the tensile balls 7 are ellipsoid bodies, the stability is improved, the tensile ball 7 is made of high-strength industrial plastic, the high-strength industrial plastic has excellent deformation resistance and restoration performance, and the compression resistance and tensile resistance of the building materials can be greatly improved, and the service life of the building materials can be greatly prolonged.
As shown in fig. 3, the sound-absorbing layer 3 is composed of a sound-absorbing plate 9 and a sound-insulating plate 10, one side of the sound-absorbing plate 9 is fixedly connected with one side of the sound-insulating plate 10, the sound-absorbing plate 9 is an aluminum honeycomb perforated sound-absorbing plate, the aluminum honeycomb perforated sound-absorbing plate has the characteristics of large plate surface, high flatness, high plate strength, light weight, good sound-absorbing effect, fire resistance, water resistance and simplicity and convenience in installation, building materials can be enabled to have good fireproof, waterproof and sound-insulating capabilities, the aluminum honeycomb perforated sound-absorbing plate can convert sound energy into heat energy, the heat-insulating capability of the building materials is improved, the sound-insulating plate 10 is a sound-insulating lead plate, and the sound-insulating lead plate not only has a.
As shown in fig. 4, the wear-resistant plate 5 is a polyethylene plate, the polyethylene plate is a high-density polyethylene plate enhanced by boron, and has the advantages of high impact strength, low friction coefficient, excellent self-lubricating performance and the like, and is beneficial to increasing the wear resistance of the building material, the wear-resistant protrusions 11 are arranged on one side of the wear-resistant plate 5, the wear-resistant protrusions 11 are distributed in a rectangular array, and the wear-resistant protrusions 11 can increase the wear resistance of the building material.
The utility model discloses the theory of operation: when in use, the wear-resisting plate 5 is fixedly arranged on one side of the bottom plate 1 of the utility model, the bottom plate 1 is made of low alloy structural steel, which has high strength, high toughness and corrosion resistance and is beneficial to corrosion resistance of building materials, the wear-resisting plate 5 is made of polyethylene plate and has the characteristics of high impact resistance and low friction coefficient and is beneficial to increasing the wear resistance of the building materials, the heat insulating plate 2 is fixedly arranged on the other side of the bottom plate 1, the heat insulating plate 2 is mirror aluminum foil and can effectively reflect heat reaching the surface of the materials, thereby greatly reducing heat radiation loss and improving the heat insulation effect of the building materials, the sound insulating layer 3 is fixedly arranged on one side of the heat insulating plate 2, the sound insulating layer 3 consists of the sound insulating plate 9 and the sound insulating plate 10, the sound insulating plate 9 is an aluminum honeycomb perforated sound insulating plate, which has the characteristics of good sound absorbing effect, fire resistance and water resistance, the sound insulating plate 10 is a, the fixed decorative layer 4 that is provided with in 3 one sides of noise damping layer, decorative layer 4 comprises fixed plate 6 and decorative board 8 through tensile ball 7 fixed connection, fixed plate 6 is the aluminum alloy plate, possess the density low, but the higher characteristics of intensity, can be fine keep the building materials indeformable, tensile ball 7 is industrial plastic, possess fabulous resistance to deformation and resilience, can promote the resistance to compression tensile ability and the life of building materials greatly, decorative board 8 is thermosetting laminated plastics, possess pleasing to the eye pattern, the aesthetic measure of building materials has been improved.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (6)
1. The utility model provides a novel energy-concerving and environment-protective syllable-dividing building material which characterized in that: including bottom plate (1) and antifriction plate (5), one side of antifriction plate (5) fixed connection and bottom plate (1), bottom plate (1) opposite side has set gradually heat insulating board (2), amortization layer (3) and decorative layer (4), decorative layer (4) comprise fixed plate (6) and decorative board (8), fixed plate (6) one side is provided with a plurality of tensile balls (7), and fixed plate (6) and decorative board (8) through a plurality of tensile balls (7) fixed connection, amortization layer (3) comprise acoustical panel (9) and acoustic celotex board (10), and one side of acoustical panel (9) and one side fixed connection of acoustic celotex board (10).
2. The novel energy-saving environment-friendly sound insulation building material as claimed in claim 1, wherein: the heat insulation plate is characterized in that the bottom plate (1) is an alloy steel plate, the heat insulation plate (2) is fixedly connected to one side of the bottom plate (1), and the heat insulation plate (2) is a mirror aluminum foil.
3. The novel energy-saving environment-friendly sound insulation building material as claimed in claim 1, wherein: the sound-absorbing plate is characterized in that a sound-absorbing layer (3) is fixedly arranged on one side of the heat-insulating plate (2), the sound-absorbing plate (9) is an aluminum honeycomb perforated sound-absorbing plate, and the sound-insulating plate (10) is a sound-insulating lead plate.
4. The novel energy-saving environment-friendly sound insulation building material as claimed in claim 1, wherein: the sound attenuation layer (3) is characterized in that a decorative layer (4) is fixedly arranged on one side of the sound attenuation layer, the fixing plate (6) is an aluminum alloy plate, the tensile balls (7) are made of industrial plastics, and the decorative plate (8) is made of thermosetting laminated plastics.
5. The novel energy-saving environment-friendly sound insulation building material as claimed in claim 1, wherein: the wear-resisting plate (5) is a polyethylene plate, a plurality of wear-resisting protrusions (11) are arranged on one side of the wear-resisting plate (5), and the plurality of wear-resisting protrusions (11) are distributed in a rectangular array mode.
6. The novel energy-saving environment-friendly sound insulation building material as claimed in claim 1, wherein: the tensile balls (7) are ellipsoid bodies, and the tensile balls (7) are distributed between the fixing plate (6) and the decorative plate (8) in a rectangular array.
