Abstract

The utility model discloses a compacting and forming device for colored asphalt concrete, which comprises a mounting plate, one side of the mounting plate is fixedly provided with an upwardly inclined push rod, and two outer walls of the bottom end of the mounting plate are fixedly provided with vertical The vertical plates are provided with threaded holes, rollers are placed between the vertical plates, and sockets corresponding to the threaded holes are provided on both sides of the rollers. A threaded rod is inserted between the corresponding sockets. Beneficial effect: The solar panel charges the battery, and then transmits the electric energy to the electric heating block, so the electric heating block generates heat energy and concentrates on the inner wall of the installation cavity. The compaction of the concrete pavement is carried out simultaneously with dehumidification and drying, which improves the efficiency of the construction, and the battery and solar panels are installed to save a lot of electric energy.

Description

A compacting and forming device for colored asphalt concrete

technical field

The utility model relates to the field of concrete, in particular to a compacting and forming device for colored asphalt concrete.

Background technique

Colored asphalt is mixed with various colored stones, pigments, additives and other materials at a specific temperature, which can be configured into various colored asphalt mixtures, and then paved and rolled to form a certain strength and road performance. For high-performance concrete pavement, after the colored asphalt concrete is laid, the pavement needs to be compacted and flattened by equipment until the surface of the pavement is smooth and does not have uneven indentations. For large areas of concrete pavement, special large-scale compaction machinery is generally used. However, in the case of narrow roads, large-scale machinery often cannot enter the construction site and cannot play a role; when laying concrete on a colored asphalt pavement with a small construction area, the use of large-scale machinery to compact the pavement will increase the construction cost, and it is often used in construction. Manpower is supplemented by simple flat tools to compact and flatten the road surface. During the process of compaction, it is difficult for workers to accurately grasp the magnitude of the force, which will cause the road surface to be uneven. In addition, after the road is compacted, the method of waiting for the concrete to solidify naturally is often used, which takes a long time. During the solidification process, it is easy for other people to step on the road, resulting in uneven road surface and affecting the effect of road paving.

For the problems in the related technologies, no effective solutions have been proposed so far.

Utility model content

The purpose of the present utility model is to provide a compacting and forming device for colored asphalt concrete to solve the problems raised in the above-mentioned background technology.

To achieve the above object, the utility model provides the following technical solutions:

A device for compacting and forming colored asphalt concrete, comprising a mounting plate, one side of the mounting plate is fixed with an upwardly inclined push rod, and vertical plates are fixed on the outer walls of both sides of the bottom end of the mounting plate, and the vertical plate is fixed. There are threaded holes on the plates, rollers are placed between the vertical plates, and sockets corresponding to the threaded holes are opened on both sides of the rollers. A threaded rod is inserted between the holes, a fan is fixed at the top of the mounting plate, the air duct on the fan is connected to the installation cavity, the inner wall of the installation cavity is installed with an electric heating block, and the installation cavity is provided with hot air The bottom end of the hot air pipe runs through the installation cavity and is in the same horizontal position as the bottom end of the mounting plate, the bottom end of the hot air pipe is connected with a heat exhaust pipe, the top of the mounting plate is fixed with a battery, and the battery is installed Inside the protective cover, a solar panel is installed on the top of the protective cover, the solar panel is electrically connected to the battery through wires, the battery is connected to the electric heating block through wires and switches, and both sides of the outer wall of the installation board are connected. Both are fixed with support mechanism.

Further, a protective glove is sleeved on the push rod.

Further, first mounting blocks are fixed on both sides of the outer wall of the protective cover, and each of the first mounting blocks is provided with mounting holes to cooperate with first mounting nails to fix the protective cover on the mounting plate.

Further, second mounting blocks are fixed on both sides of the solar panel, and mounting holes are opened on the second mounting blocks to cooperate with second mounting nails to fix the solar panel on the top of the protective cover.

Further, the support mechanism is composed of a threaded plate and a threaded screw, the threaded plates are respectively fixed on both sides of the outer wall of the mounting plate, the number of the threaded plates on each side of the mounting plate is two, the The threaded plates are all provided with wire holes, and the threaded screw rods are inserted into the wire holes.

Further, the bottom ends of the threaded screw rods are all fixed with support pads.

Compared with the prior art, the utility model has the following beneficial effects:

The push rod plays the role of pushing the mounting plate forward and backward. During operation, the staff holds the push rod and pushes and pulls the mounting plate back and forth to make the roller roll back and forth on the concrete pavement, and use the gravity of the roller itself to complete the compaction of the concrete pavement. , Through the design of rollers at the front and rear, it can form a uniformly distributed pressure on the road surface and produce a better compaction effect. When it is not working, the entire device is supported by the support mechanism. The bottom end of the support mechanism is lowered to the ground, and the support mechanism is also On the ground, turn the threaded rod out of the threaded hole and the corresponding socket to facilitate disassembly and cleaning of the roller, so as to facilitate subsequent reuse. The threaded rod passes through the threaded hole and abuts inside the socket, making The roller rotates on the threaded rod;

The solar panel charges the battery, and then transmits the electric energy to the electric heating block. The electric heating block generates heat energy and concentrates on the inner wall of the installation cavity. The wind energy generated by the fan finally discharges the heat from the heat exhaust pipe, and blows the hot air to the road surface. Compaction, dehumidification and drying are carried out synchronously, which improves the efficiency of construction, and the battery and solar panels are installed to save a lot of electrical energy.

Description of drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only of the present invention. For some embodiments of the present invention, for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

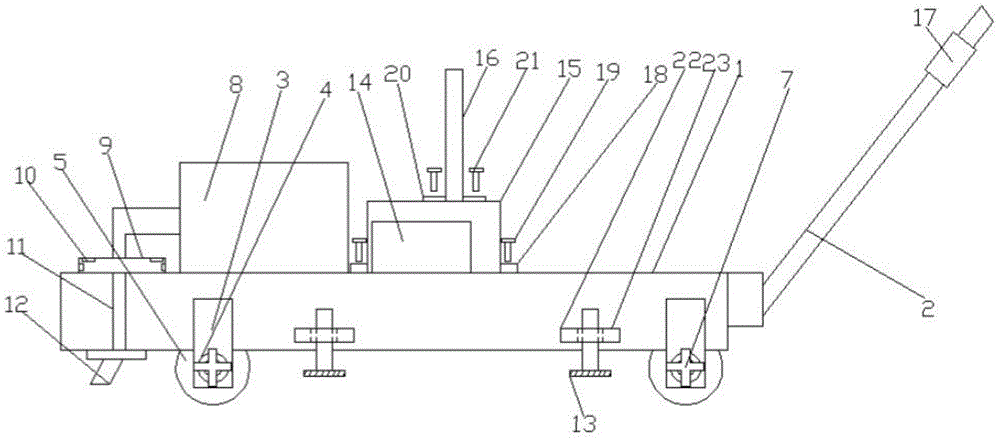

Fig. 1 is the front view of a kind of colored asphalt concrete compaction molding device according to the embodiment of the present utility model;

FIG. 2 is a schematic view of the rollers of a compacting and forming device for colored asphalt concrete according to an embodiment of the present invention.

Reference number:

1. Mounting plate; 2. Push rod; 3. Vertical plate; 4. Threaded hole; 5. Roller; 6. Jack; 7. Threaded rod; 8. Fan; 9. Installation cavity; 10. Electric heating block; 11 , hot air pipe; 12, heat exhaust pipe; 13, support pad; 14, battery; 15, protective cover; 16, solar panel; 17, protective gloves; 18, first installation block; 19, first installation nail; 20, The second installation block; 21, the second installation nail; 22, the threaded plate; 23, the threaded screw.

Detailed ways

Below, in conjunction with the accompanying drawings and specific embodiments, the utility model is further described:

In order to be able to understand the above-mentioned objects, features and advantages of the present invention more clearly, the present invention will be further described below with reference to the accompanying drawings and embodiments. It should be noted that the embodiments of the present application and the features in the embodiments may be combined with each other in the case of no conflict.

In the following description, many specific details are set forth in order to fully understand the present invention. However, the present invention can also be implemented in other ways different from those described herein. Therefore, the present invention is not limited to the specific details of the following disclosure. Example limitations.

Example 1:

Please refer to FIGS. 1-2 , a device for compacting and forming colored asphalt concrete according to an embodiment of the present invention includes a mounting plate 1 , and an upwardly inclined push rod 2 is fixed on one side of the mounting plate 1 . Vertical plates 3 are fixed on the outer walls on both sides of the bottom end of the plate 1. The vertical plates 3 are all provided with threaded holes 4. A roller 5 is placed between the vertical plates 3, and the rollers 5 are on both sides. A socket 6 corresponding to the threaded hole 4 is opened, a threaded rod 7 is inserted between the threaded hole 4 and the corresponding socket 6, and a fan 8 is fixed at the top of the mounting plate 1. The air duct on the fan 8 communicates with the installation cavity 9. The electric heating block 10 is installed on the inner wall of the installation cavity 9. The installation cavity 9 is provided with a hot air pipe 11, and the bottom end of the hot air pipe 11 penetrates the The mounting cavity 9 and the bottom end of the mounting plate 1 are in the same horizontal position, the bottom end of the hot air pipe 11 is connected with the heat exhaust pipe 12 , the top of the mounting plate 1 is fixed with a battery 14 , and the battery 14 is installed in the protective cover 15 , a solar panel 16 is installed on the top of the protective cover 15, the solar panel 16 is electrically connected to the battery 14 through wires, and the battery 14 is connected to the electric heating block 10 through wires and switches. Both sides of the outer wall are fixedly provided with support mechanisms.

Embodiment 2:

Referring to FIG. 1 , for the push rod 2 , a protective glove 17 is sleeved on the push rod 2 .

Through the above scheme of the present invention, the beneficial effect is that the protective glove 17 has a certain protective effect on the hand.

Embodiment three:

Referring to FIG. 1 , as for the protective cover 15 , first mounting blocks 18 are fixed on both sides of the outer wall of the protective cover 15 , and the first mounting blocks 18 are provided with mounting holes to cooperate with the first mounting nails 19 to attach all the The protective cover 15 is fixed on the mounting plate 1 .

Through the above solutions of the present invention, the beneficial effects are as follows: the protective cover 15 is fixed on the mounting plate 1 through the first mounting block 18 and the first mounting nails 19, and is also easy to disassemble.

Embodiment 4:

Referring to FIG. 2 , for the solar panel 16 , second mounting blocks 20 are fixed on both sides of the solar panel 16 , and mounting holes are provided on the second mounting blocks 20 to cooperate with the second mounting nails 21 The solar panel 16 is fixed on the top of the protective cover 15 .

Through the above solution of the present invention, the beneficial effects are as follows: the solar panel 16 is fixed on the protective cover 15 through the second mounting block 20 and the second mounting nails 21, and is also easy to disassemble.

Embodiment 5:

Referring to FIG. 1 , for the support mechanism, the support mechanism is composed of a threaded plate 22 and a threaded screw 23 , the threaded plate 22 is respectively fixed on both sides of the outer wall of the mounting plate 1 , and each side of the mounting plate 1 is The number of the threaded plates 22 is two, the threaded plates 22 are all provided with wire holes, and the threaded screw rods 23 are inserted into the wire holes.

Through the above scheme of the present invention, the beneficial effects are as follows: the threaded screw 23 rotates in the screw hole of the threaded plate 22, and the bottom end of the threaded screw 23 contacts the ground, so that the threaded screw 23 supports the entire device.

Embodiment 6:

Referring to FIG. 1 , for the threaded screw 23 , the bottom end of the threaded screw 23 is fixedly provided with a support pad 13 .

Through the above solution of the present invention, the beneficial effects are as follows: the bottom end of the threaded screw 23 is in contact with the ground, and the support pad 13 finally provided supports the device.

In order to facilitate the understanding of the above-mentioned technical solutions of the present utility model, the working principle or operation mode of the present utility model in the actual process is described in detail below:

In practical application, the push rod 2 plays the role of pushing the mounting plate 1 to move back and forth. During operation, the staff holds the push rod 2 and pushes and pulls the mounting plate 1 back and forth to make the roller 5 roll back and forth on the concrete road. 5. The gravity of itself completes the compaction of the concrete pavement. By setting the rollers 5 at the front and rear, it can form an evenly distributed pressure on the pavement and produce a better compaction effect. When not working, the whole device is supported by the support mechanism. , the bottom end of the support mechanism is lowered to the ground, and the support mechanism is also on the ground, and the threaded rod 7 is rotated out from the threaded hole 4 and the corresponding socket 6 to facilitate the disassembly and cleaning of the roller 5, so as to facilitate the subsequent re-operation. Utilizing, the threaded rod 7 passes through the threaded hole 4 and is in contact with the inside of the socket 6, so that the roller 5 rotates on the threaded rod 7;

The solar panel 16 charges the battery 14, and then transmits the electric energy to the electric heating block 10. The electric heating block 10 thus generates heat energy and concentrates on the inner wall of the installation cavity 9. The wind energy generated by the fan 8 finally discharges the heat from the heat exhaust pipe 12, and the hot air is discharged. Blowing to the road, the concrete road is compacted, dehumidified and dried simultaneously, which improves the construction efficiency, and the battery 14 and the solar panel 16 are provided to save a lot of electric energy.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The color asphalt concrete compaction forming device is characterized by comprising a mounting plate (1), wherein one side of the mounting plate (1) is fixedly provided with a push rod (2) which inclines upwards, the outer walls of the two sides of the bottom end of the mounting plate (1) are fixedly provided with vertical plates (3), the vertical plates (3) are provided with threaded holes (4), rolling shafts (5) are placed between the vertical plates (3), the two sides of each rolling shaft (5) are provided with jacks (6) corresponding to the threaded holes (4), threaded rods (7) are inserted between the threaded holes (4) and the corresponding jacks (6), the top end of the mounting plate (1) is fixedly provided with a fan (8), an air pipe on the fan (8) is communicated with a mounting cavity (9), an electric heating block (10) is installed on the upper inner wall of the mounting cavity (9), and hot air pipes (11) are arranged on the mounting cavity (9, hot-blast main (11) bottom is run through installation cavity (9) with mounting panel (1) bottom is in same horizontal position, hot-blast main (11) bottom intercommunication has heat extraction pipe (12), mounting panel (1) top fixed battery (14), install in safety cover (15) battery (14), solar panel (16) are installed on safety cover (15) top, solar panel (16) pass through the wire with battery (14) electric connection, battery (14) pass through wire and switch with electric heat piece (10) are connected, mounting panel (1) outer wall both sides are all fixed and are equipped with supporting mechanism.

2. A coloured asphalt concrete compacting and forming device as claimed in claim 1, characterized in that the push rod (2) is sleeved with a protective glove (17).

3. The colored asphalt concrete compaction forming device according to claim 1, wherein first mounting blocks (18) are fixedly arranged on two sides of the outer wall of the protective cover (15), and mounting holes are formed in the first mounting blocks (18) and matched with first mounting nails (19) to fix the protective cover (15) on the mounting plate (1).

4. The colored asphalt concrete compaction forming device according to claim 1, wherein second mounting blocks (20) are fixedly arranged on both sides of the solar panel (16), and mounting holes are formed in the second mounting blocks (20) and matched with second mounting nails (21) to fix the solar panel (16) on the top end of the protective cover (15).

5. The compacting and forming device for the colored asphalt concrete according to claim 1, wherein the supporting mechanism is composed of thread plates (22) and thread screws (23), the thread plates (22) are respectively fixed on two sides of the outer wall of the mounting plate (1), the number of the thread plates (22) on each side of the mounting plate (1) is two, the thread plates (22) are provided with screw holes, and the thread screws (23) are inserted into the screw holes.

6. The compaction forming device for colored asphalt concrete according to claim 5, wherein the bottom ends of the threaded screws (23) are fixedly provided with supporting pads (13).
