A kind of ecological treatment advanced oxidation sewage treatment equipment

technical field

The utility model relates to the technical field of sewage treatment, in particular to an advanced oxidation sewage treatment equipment for ecological treatment.

Background technique

Sewage treatment: The process of purifying sewage in order to make it meet the water quality requirements for discharge into a water body or for reuse. Sewage treatment is widely used in construction, agriculture, transportation, energy, petrochemical, environmental protection, urban landscape, medical treatment, catering and other fields, and is increasingly entering the daily life of ordinary people.

Nowadays, used water or industrial sewage is introduced into urban sewage treatment systems that produce environmentally safe water discharges. Improper sewage treatment, which makes the waste water with internal pollutants directly placed in natural water bodies, this polluted water can be harmful to the environment. Adverse effects on aquatic organisms and environmental pollution.

Utility model content

Based on the technical problem that the existing sewage cannot be well treated and will cause environmental pollution, the utility model proposes an ecological treatment advanced oxidation sewage treatment equipment.

The advanced oxidation sewage treatment equipment for ecological management proposed by the utility model comprises support legs, a connection frame is fixedly connected to the upper surface of the support leg, and a filter barrel is fixedly connected to the inner surface of the connection frame, and the filter barrel is The upper surface is provided with a first connection port, the inner wall of the first connection port is fixedly connected with a water inlet pipe, the inner bottom wall of the filter bucket is provided with a water outlet, and the inner wall of the water outlet is fixedly connected with a water outlet pipe, the A receiving box is arranged below the filter barrel;

The outer surface of the filter barrel is provided with a mounting hole, the inner wall of the mounting hole is fixedly connected with a mounting block, the inner surface of the mounting block is provided with a threaded hole, and the inner wall of the threaded hole is threadedly connected with a connecting block. An operation block is fixedly connected to one side surface of the connection block, and a waterproof cover is fixedly connected to the inner surface of one end of the installation hole close to the inner wall of the filter barrel;

The outer surfaces of the plurality of waterproof covers are fixedly sleeved with spiral pipes, the upper surface of the filter barrel is provided with a third connection port, and one end of the spiral pipe extends to the upper surface of the filter barrel through the third connection port.

Preferably, the inner wall of the lower end of the water inlet pipe is fixedly sleeved with a diversion block, and the upper surface of the diversion block is provided with a diversion hole.

Preferably, an air pump is provided on the upper surface of the filter barrel, and the model of the air pump is AKS-5501.

Preferably, there are multiple mounting holes, and the mounting holes are distributed in a spiral form.

Preferably, the material of the waterproof cover is a light-transmitting material, and the outer surface of one end of the mounting block is screwed to the inner surface of the waterproof cover.

Preferably, a lamp tube is fixedly connected to the other side surface of the connection block, and one end of the lamp tube extends into the interior of the waterproof cover.

Preferably, one end of the spiral pipe is fixedly sleeved with the air outlet of the air pump through a connecting pipe, the inner bottom wall of the filter barrel is provided with a fourth connection port, and the lower end of the spiral pipe extends to the filter through the fourth connection port. the lower surface of the barrel.

Preferably, the inner surface of the spiral tube is provided with photocatalyst particles, and the outer surface of the spiral tube is provided with a communication port.

Preferably, contact holes are formed on the outer surfaces of the photocatalyst particles, and bumps are fixedly connected to the outer surfaces of the photocatalyst particles.

The beneficial effects in the utility model are:

1. A lamp tube is fixedly connected to the other side surface of the connecting block, and one end of the lamp tube extends into the inside of the waterproof cover to achieve the effect of illuminating the photocatalyst particles, thus solving the problem that the photocatalyst particles cannot be irradiated without light. Purification issues.

2. By setting the inner surface of the spiral tube with photocatalyst particles, and the outer surface of the spiral tube with a communication port, the effect of purifying the sewage is achieved, thereby solving the problem that the sewage cannot be contacted with the photocatalyst particles and cannot achieve the purification effect.

3. By setting the contact holes on the outer surface of the photocatalyst particles, the outer surfaces of the photocatalyst particles are fixedly connected with bumps, which achieves the effect of fully reacting the photocatalyst particles and sewage, thus solving the problem that the interior of the photocatalyst particles cannot be fully volatilized. .

Description of drawings

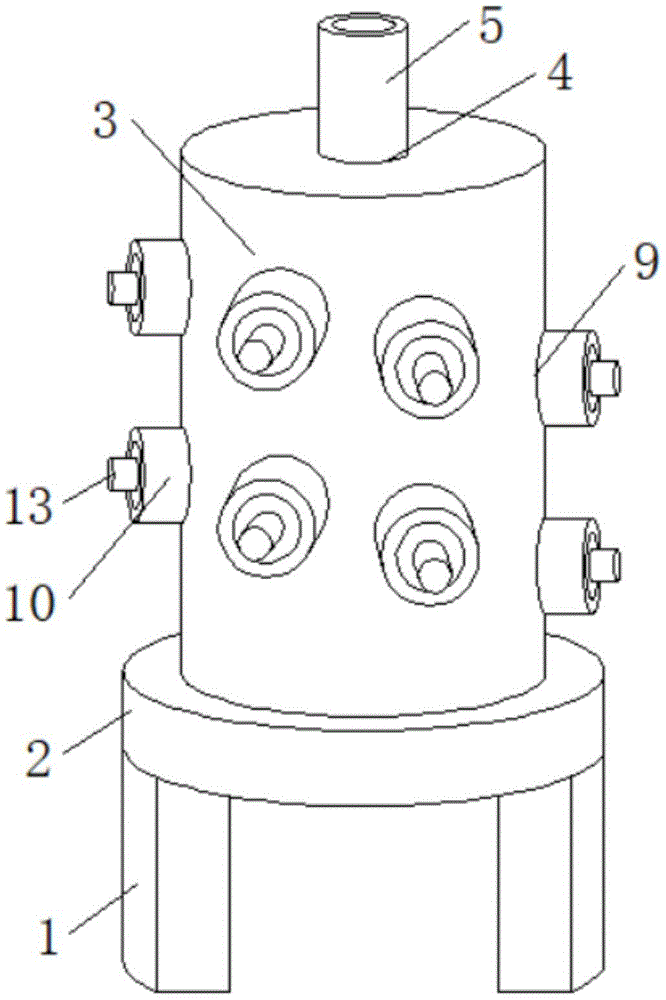

Fig. 1 is the schematic diagram of a kind of ecological management advanced oxidation sewage treatment equipment proposed by the utility model;

2 is a cross-sectional view of the filter barrel structure of a kind of ecological treatment advanced oxidation sewage treatment equipment proposed by the utility model;

3 is a sectional view of the installation block structure of a kind of ecological treatment advanced oxidation sewage treatment equipment proposed by the utility model;

Fig. 4 is an enlarged view of the structure at place A in Fig. 1 of a kind of ecological treatment advanced oxidation sewage treatment equipment proposed by the utility model;

5 is an enlarged view of the structure at B in FIG. 1 of a kind of ecological treatment advanced oxidation sewage treatment equipment proposed by the utility model;

FIG. 6 is an enlarged view of the structure at C in FIG. 3 of a kind of ecological treatment advanced oxidation sewage treatment equipment proposed by the utility model.

In the figure: 1. Supporting legs; 2. Connection frame; 3. Filter barrel; 4. The first connection port; 5. Water inlet pipe; 6. Water outlet; 7. Water outlet pipe; 8. Material receiving box; 9. Installation hole ;10, installation block; 11, threaded hole; 12, connection block; 13, operation block; 14, waterproof cover; 15, spiral pipe; 16, third connection port; 17, diversion block; 18, diversion hole; 19, air pump; 20, lamp tube; 21, fourth connection port; 22, photocatalyst particle; 23, communication port; 24, contact hole; 25, bump.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

Referring to Figures 1-6, an ecological treatment advanced oxidation sewage treatment equipment, as shown in Figures 1-2 and 4, includes a support leg 1, the upper surface of the support leg 1 is fixedly connected with a connection frame 2, and the inner surface of the connection frame 2 is fixedly connected. The surface of the filter barrel 3 is fixedly connected, the upper surface of the filter barrel 3 is provided with a first connection port 4, the inner wall of the first connection port 4 is fixedly connected with a water inlet pipe 5, and the inner wall of the lower end of the water inlet pipe 5 is fixedly sleeved with a guide block 17. , the upper surface of the guide block 17 is provided with a guide hole 18, the upper surface of the filter barrel 3 is provided with an air pump 19, the model of the air pump 19 is AKS-5501, and the inner bottom wall of the filter barrel 3 is provided with a water outlet 6, the water outlet The inner wall of 6 is fixedly connected with a water outlet pipe 7, and a material receiving box 8 is arranged below the filter barrel 3;

As shown in Fig. 2-3, the outer surface of the filter barrel 3 is provided with mounting holes 9. There are a plurality of mounting holes 9. The mounting holes 9 are distributed in a spiral form. The inner wall of the mounting hole 9 is fixedly connected with a mounting block 10. A threaded hole 11 is opened on the inner surface of the threaded hole 11, the inner wall of the threaded hole 11 is threadedly connected with a connecting block 12, one side surface of the connecting block 12 is fixedly connected with an operating block 13, and the inner surface of one end of the mounting hole 9 close to the inner wall of the filter barrel 3 is fixedly connected with a The waterproof cover 14, the material of the waterproof cover 14 is a light-transmitting material, the outer surface of one end of the mounting block 10 is screwed with the inner surface of the waterproof cover 14, and the other side surface of the connecting block 12 is fixedly connected with the lamp tube 20. One end extends to the inside of the waterproof cover 14;

As shown in FIG. 2 and FIGS. 5-6 , the outer surfaces of the plurality of waterproof covers 14 are fixedly sleeved with a spiral tube 15 , the upper surface of the filter barrel 3 is provided with a third connection port 16 , and one end of the spiral tube 15 passes through the third connection port 16 . The connection port 16 extends to the upper surface of the filter barrel 3, one end of the spiral pipe 15 is fixedly sleeved with the air outlet of the air pump 19 through the connection pipe, and the inner bottom wall of the filter barrel 3 is provided with a fourth connection port 21. The lower end of the spiral pipe 15 The fourth connection port 21 extends to the lower surface of the filter barrel 3 , the inner surface of the spiral tube 15 is provided with photocatalyst particles 22 , the outer surface of the spiral tube 15 is provided with a communication port 23 , and the outer surface of the photocatalyst particle 22 is provided with contact holes 24 , the outer surface of the photocatalyst particles 22 is fixedly connected with the bumps 25, which achieves the effect of illuminating the photocatalyst particles 22, thereby solving the problem that the photocatalyst particles 22 cannot purify the sewage without light, and achieves the effect of purifying the sewage. , so as to solve the problem that the sewage cannot contact with the photocatalyst particles 22 and the purification effect cannot be achieved;

As shown in FIG. 6 , the manufacturing method of the photocatalyst particles 22 includes raw material preparation, step 1, raw material preparation, and the raw materials include nano-titanium dioxide, activated carbon, biological enzymes, amino acids, and montmorillonite particles;

The weight part of nano titanium dioxide is 52%-54%, the weight part of activated carbon is 27%-32%, the weight part of biological enzyme is 10%-17%, the weight part of amino acid is 3.5%, and the weight part of montmorillonite particles is 3.5%. is 0.5%;

Step 2, mixing the raw materials in the step 1 through the reactor, and drying the mixed materials;

Step 3, put the dried material in step 2 into the granulator for granulation;

Step 4, stirring the used photocatalyst particles through the stirring tank, and supplementing the photocatalyst particles in the stirring tank with biological enzymes through high-speed rotation;

In the present invention, the contact holes 24 are formed on the outer surface of the photocatalyst particles 22, and the outer surfaces of the photocatalyst particles 22 are fixedly connected with bumps 25, so as to achieve the effect of fully reacting the photocatalyst particles 22 and sewage, thereby solving the problem of the photocatalyst particles 22. The problem that the interior cannot be fully volatilized.

Example 1

Referring to Figures 1-6, an ecological treatment advanced oxidation sewage treatment equipment, as shown in Figures 1-2 and 4, includes a support leg 1, the upper surface of the support leg 1 is fixedly connected with a connection frame 2, and the inner surface of the connection frame 2 is fixedly connected. The surface of the filter barrel 3 is fixedly connected, the upper surface of the filter barrel 3 is provided with a first connection port 4, the inner wall of the first connection port 4 is fixedly connected with a water inlet pipe 5, and the inner wall of the lower end of the water inlet pipe 5 is fixedly sleeved with a guide block 17. , the upper surface of the guide block 17 is provided with a guide hole 18, the upper surface of the filter barrel 3 is provided with an air pump 19, the model of the air pump 19 is AKS-5501, and the inner bottom wall of the filter barrel 3 is provided with a water outlet 6, the water outlet The inner wall of 6 is fixedly connected with a water outlet pipe 7, and a material receiving box 8 is arranged below the filter barrel 3;

As shown in Fig. 2-3, the outer surface of the filter barrel 3 is provided with mounting holes 9. There are a plurality of mounting holes 9. The mounting holes 9 are distributed in a spiral form. The inner wall of the mounting hole 9 is fixedly connected with a mounting block 10. A threaded hole 11 is opened on the inner surface of the threaded hole 11, the inner wall of the threaded hole 11 is threadedly connected with a connecting block 12, one side surface of the connecting block 12 is fixedly connected with an operating block 13, and the inner surface of one end of the mounting hole 9 close to the inner wall of the filter barrel 3 is fixedly connected with a The waterproof cover 14, the material of the waterproof cover 14 is a light-transmitting material, the outer surface of one end of the mounting block 10 is screwed with the inner surface of the waterproof cover 14, and the other side surface of the connecting block 12 is fixedly connected with the lamp tube 20. One end extends to the inside of the waterproof cover 14;

As shown in FIG. 2 and FIGS. 5-6 , the outer surfaces of the plurality of waterproof covers 14 are fixedly sleeved with a spiral tube 15 , the upper surface of the filter barrel 3 is provided with a third connection port 16 , and one end of the spiral tube 15 passes through the third connection port 16 . The connection port 16 extends to the upper surface of the filter barrel 3, one end of the spiral pipe 15 is fixedly sleeved with the air outlet of the air pump 19 through the connection pipe, and the inner bottom wall of the filter barrel 3 is provided with a fourth connection port 21. The lower end of the spiral pipe 15 The fourth connection port 21 extends to the lower surface of the filter barrel 3 , the inner surface of the spiral tube 15 is provided with photocatalyst particles 22 , the outer surface of the spiral tube 15 is provided with a communication port 23 , and the outer surface of the photocatalyst particle 22 is provided with contact holes 24 , the outer surface of the photocatalyst particles 22 is fixedly connected with the bumps 25, which achieves the effect of illuminating the photocatalyst particles 22, thereby solving the problem that the photocatalyst particles 22 cannot purify the sewage without light, and achieves the effect of purifying the sewage. , so as to solve the problem that the sewage cannot contact with the photocatalyst particles 22 and the purification effect cannot be achieved;

As shown in FIG. 6 , the manufacturing method of the photocatalyst particles 22 includes raw material preparation, step 1, raw material preparation, and the raw materials include nano-titanium dioxide, activated carbon, biological enzymes, amino acids, and montmorillonite particles;

The weight part of nano titanium dioxide is 52%, the weight part of activated carbon is 27%, the weight part of biological enzyme is 17%, the weight part of amino acid is 3.5%, and the weight part of montmorillonite particles is 0.5%;

Step 2, mixing the raw materials in the step 1 through the reactor, and drying the mixed materials;

Step 3, put the dried material in step 2 into the granulator for granulation;

Step 4, stirring the used photocatalyst particles through the stirring tank, and supplementing the photocatalyst particles in the stirring tank with biological enzymes through high-speed rotation;

In the present invention, the contact holes 24 are formed on the outer surface of the photocatalyst particles 22, and the outer surfaces of the photocatalyst particles 22 are fixedly connected with bumps 25, so as to achieve the effect of fully reacting the photocatalyst particles 22 and sewage, thereby solving the problem of the photocatalyst particles 22. The problem that the interior cannot be fully volatilized.

Embodiment 2

Referring to Figures 1-6, an ecological treatment advanced oxidation sewage treatment equipment, as shown in Figures 1-2 and 4, includes a support leg 1, the upper surface of the support leg 1 is fixedly connected with a connection frame 2, and the inner surface of the connection frame 2 is fixedly connected. The surface of the filter barrel 3 is fixedly connected, the upper surface of the filter barrel 3 is provided with a first connection port 4, the inner wall of the first connection port 4 is fixedly connected with a water inlet pipe 5, and the inner wall of the lower end of the water inlet pipe 5 is fixedly sleeved with a guide block 17. , the upper surface of the guide block 17 is provided with a guide hole 18, the upper surface of the filter barrel 3 is provided with an air pump 19, the model of the air pump 19 is AKS-5501, and the inner bottom wall of the filter barrel 3 is provided with a water outlet 6, the water outlet The inner wall of 6 is fixedly connected with a water outlet pipe 7, and a material receiving box 8 is arranged below the filter barrel 3;

As shown in Fig. 2-3, the outer surface of the filter barrel 3 is provided with mounting holes 9. There are a plurality of mounting holes 9. The mounting holes 9 are distributed in a spiral form. The inner wall of the mounting hole 9 is fixedly connected with a mounting block 10. A threaded hole 11 is opened on the inner surface of the threaded hole 11, the inner wall of the threaded hole 11 is threadedly connected with a connecting block 12, one side surface of the connecting block 12 is fixedly connected with an operating block 13, and the inner surface of one end of the mounting hole 9 close to the inner wall of the filter barrel 3 is fixedly connected with a The waterproof cover 14, the material of the waterproof cover 14 is a light-transmitting material, the outer surface of one end of the mounting block 10 is screwed with the inner surface of the waterproof cover 14, and the other side surface of the connecting block 12 is fixedly connected with the lamp tube 20. One end extends to the inside of the waterproof cover 14;

As shown in FIG. 2 and FIGS. 5-6 , the outer surfaces of the plurality of waterproof covers 14 are fixedly sleeved with a spiral tube 15 , the upper surface of the filter barrel 3 is provided with a third connection port 16 , and one end of the spiral tube 15 passes through the third connection port 16 . The connection port 16 extends to the upper surface of the filter barrel 3, one end of the spiral pipe 15 is fixedly sleeved with the air outlet of the air pump 19 through the connection pipe, and the inner bottom wall of the filter barrel 3 is provided with a fourth connection port 21. The lower end of the spiral pipe 15 The fourth connection port 21 extends to the lower surface of the filter barrel 3 , the inner surface of the spiral tube 15 is provided with photocatalyst particles 22 , the outer surface of the spiral tube 15 is provided with a communication port 23 , and the outer surface of the photocatalyst particle 22 is provided with contact holes 24 , the outer surface of the photocatalyst particles 22 is fixedly connected with the bumps 25, which achieves the effect of illuminating the photocatalyst particles 22, thereby solving the problem that the photocatalyst particles 22 cannot purify the sewage without light, and achieves the effect of purifying the sewage. , so as to solve the problem that the sewage cannot contact with the photocatalyst particles 22 and the purification effect cannot be achieved;

As shown in FIG. 6 , the manufacturing method of the photocatalyst particles 22 includes raw material preparation, step 1, raw material preparation, and the raw materials include nano-titanium dioxide, activated carbon, biological enzymes, amino acids, and montmorillonite particles;

The weight part of nano titanium dioxide is 53%, the weight part of activated carbon is 29%, the weight part of biological enzyme is 14%, the weight part of amino acid is 3.5%, and the weight part of montmorillonite particles is 0.5%;

Step 2, mixing the raw materials in the step 1 through the reactor, and drying the mixed materials;

Step 3, put the dried material in step 2 into the granulator for granulation;

Step 4, stirring the used photocatalyst particles through the stirring tank, and supplementing the photocatalyst particles in the stirring tank with biological enzymes through high-speed rotation;

In the present invention, the contact holes 24 are formed on the outer surface of the photocatalyst particles 22, and the outer surfaces of the photocatalyst particles 22 are fixedly connected with bumps 25, so as to achieve the effect of fully reacting the photocatalyst particles 22 and sewage, thereby solving the problem of the photocatalyst particles 22. The problem that the interior cannot be fully volatilized.

Embodiment 3

Referring to Figures 1-6, an ecological treatment advanced oxidation sewage treatment equipment, as shown in Figures 1-2 and 4, includes a support leg 1, the upper surface of the support leg 1 is fixedly connected with a connection frame 2, and the inner surface of the connection frame 2 is fixedly connected. The surface of the filter barrel 3 is fixedly connected, the upper surface of the filter barrel 3 is provided with a first connection port 4, the inner wall of the first connection port 4 is fixedly connected with a water inlet pipe 5, and the inner wall of the lower end of the water inlet pipe 5 is fixedly sleeved with a guide block 17. , the upper surface of the guide block 17 is provided with a guide hole 18, the upper surface of the filter barrel 3 is provided with an air pump 19, the model of the air pump 19 is AKS-5501, and the inner bottom wall of the filter barrel 3 is provided with a water outlet 6, the water outlet The inner wall of 6 is fixedly connected with a water outlet pipe 7, and a material receiving box 8 is arranged below the filter barrel 3;

As shown in Fig. 2-3, the outer surface of the filter barrel 3 is provided with mounting holes 9. There are a plurality of mounting holes 9. The mounting holes 9 are distributed in a spiral form. The inner wall of the mounting hole 9 is fixedly connected with a mounting block 10. A threaded hole 11 is opened on the inner surface of the threaded hole 11, the inner wall of the threaded hole 11 is threadedly connected with a connecting block 12, one side surface of the connecting block 12 is fixedly connected with an operating block 13, and the inner surface of one end of the mounting hole 9 close to the inner wall of the filter barrel 3 is fixedly connected with a The waterproof cover 14, the material of the waterproof cover 14 is a light-transmitting material, the outer surface of one end of the mounting block 10 is screwed with the inner surface of the waterproof cover 14, and the other side surface of the connecting block 12 is fixedly connected with the lamp tube 20. One end extends to the inside of the waterproof cover 14;

As shown in FIG. 2 and FIGS. 5-6 , the outer surfaces of the plurality of waterproof covers 14 are fixedly sleeved with a spiral tube 15 , the upper surface of the filter barrel 3 is provided with a third connection port 16 , and one end of the spiral tube 15 passes through the third connection port 16 . The connection port 16 extends to the upper surface of the filter barrel 3, one end of the spiral pipe 15 is fixedly sleeved with the air outlet of the air pump 19 through the connection pipe, and the inner bottom wall of the filter barrel 3 is provided with a fourth connection port 21. The lower end of the spiral pipe 15 The fourth connection port 21 extends to the lower surface of the filter barrel 3 , the inner surface of the spiral tube 15 is provided with photocatalyst particles 22 , the outer surface of the spiral tube 15 is provided with a communication port 23 , and the outer surface of the photocatalyst particle 22 is provided with contact holes 24 , the outer surface of the photocatalyst particles 22 is fixedly connected with the bumps 25, which achieves the effect of illuminating the photocatalyst particles 22, thereby solving the problem that the photocatalyst particles 22 cannot purify the sewage without light, and achieves the effect of purifying the sewage. , so as to solve the problem that the sewage cannot contact with the photocatalyst particles 22 and the purification effect cannot be achieved;

As shown in FIG. 6 , the manufacturing method of the photocatalyst particles 22 includes raw material preparation, step 1, raw material preparation, and the raw materials include nano-titanium dioxide, activated carbon, biological enzymes, amino acids, and montmorillonite particles;

The weight part of nano titanium dioxide is 54%, the weight part of activated carbon is 29%, the weight part of biological enzyme is 10%, the weight part of amino acid is 3.5%, and the weight part of montmorillonite particles is 0.5%;

Step 2, mixing the raw materials in the step 1 through the reactor, and drying the mixed materials;

Step 3, put the dried material in step 2 into the granulator for granulation;

Step 4, stirring the used photocatalyst particles through the stirring tank, and supplementing the photocatalyst particles in the stirring tank with biological enzymes through high-speed rotation;

In the present invention, the contact holes 24 are formed on the outer surface of the photocatalyst particles 22, and the outer surfaces of the photocatalyst particles 22 are fixedly connected with bumps 25, so as to achieve the effect of fully reacting the photocatalyst particles 22 and sewage, thereby solving the problem of the photocatalyst particles 22. The problem that the interior cannot be fully volatilized.

Working principle: When in use, the staff connects the upper end of the spiral pipe 15 to the air outlet of the air pump 19 through the connecting pipe, and then energizes the air pump 19 and the lamp tube 20, and the sewage enters the water inlet pipe 5, and then passes through the guide block 17. The flow hole 18 flows out, flows on the spiral tube 15, and enters the interior of the spiral tube 15 through the communication port 23 on the surface of the spiral tube 15. The lamp tube 20 illuminates the photocatalyst particles 22, and the sewage contacts the photocatalyst particles 22. The action of the air pump 19 slowly moves to the end of the spiral tube 15, the bump 25 helps the photocatalyst particles 22 to roll, and then falls into the receiving box 8, and the purified water flows out from the water outlet pipe 7 and flows into the river or water storage tank.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.
