Abstract

The utility model discloses a horizontal numerically controlled drilling machine which is easy to clean and belongs to the technical field of drilling equipment. The utility model comprises a base. Both ends of the top surface of the base are provided with a drilling mechanism for drilling. A fixing table for fixing the shackle is connected. The top surface of the base surrounds the fixing table and is provided with a water trough arranged in a ring shape. The position of the fixing table close to the water trough is provided with an inner inclined surface. The top surface of the base is provided with an external inclined surface, and the external inclined surface is inclined upward from the end close to the sink to the edge of the top surface of the base. The effect of performing a clean collection.

Description

An easy-to-clean horizontal CNC drilling machine

technical field

The utility model relates to the technical field of drilling equipment, in particular to a horizontal numerical control drilling machine which is convenient for cleaning.

Background technique

At present, in the production of shackles, it is necessary to open holes at both ends of the shackles. At this time, a drilling machine is usually used for drilling operations. When drilling, there are currently two main equipments, one is a vertical drilling machine, One is the horizontal drilling machine, which is more efficient in terms of efficiency.

For the prior art, reference may be made to the Chinese utility model patent with the authorization announcement number CN207952683U, which discloses a double-headed horizontal drilling machine for processing vehicle stabilizer bars, which belongs to the technical field of horizontal drilling machines, including a drilling machine body, a spindle box, and a motor. , transmission box, main shaft, sleeve, drill bit, worktable, base, fixture, shock absorber and stabilizer bar, the main shaft is fixed on one side of the main shaft box, the transmission box is located on the outside of the main shaft box, the transmission box It is integrated with the spindle box, the output shaft of the motor is combined with the transmission box, the upper part of the drilling machine body is provided with three clamps for clamping the stabilizer bar, and the clamps are arranged above the spindle box. It is arranged in the center of the body of the drilling machine. Both ends of the spindle box are connected with a sleeve that can be fixedly connected with the spindle box. The drill bit includes a tool holder, a tool holder and a tool head, and the tool holder is located inside the sleeve.

The above-mentioned prior art solutions have the following defects: at present, the horizontal drilling machine is used for drilling operations, and compared with the vertical drilling machine, the drilling efficiency of the shackle is higher, but at the same time, the top surface area of the drilling floor is larger, As a result, the debris will splash into a larger area, and it is more difficult and time-consuming to manually clean the surface of the drilling machine, and there is a lack of a horizontal drilling machine that can easily clean the surface of the drilling machine.

Utility model content

The purpose of the utility model is to provide a horizontal numerical control drilling machine which is easy to clean, and has the effect of efficiently cleaning and collecting the waste materials and cooling liquid produced in the drilling process.

The above-mentioned technical purpose of the present utility model is achieved through the following technical solutions:

A horizontal CNC drilling machine that is easy to clean, comprising a base, both ends of the top surface of the base are provided with drilling mechanisms for drilling, the middle of the top surface of the base is fixedly connected with a fixing table for fixing shackles, and the top surface of the base surrounds The fixed table is provided with a ring-shaped sink, and the fixed platform is provided with an inner slope at the position close to the sink, and the inner slope is inclined downward from the end close to the fixed platform to the direction close to the sink; the top surface of the base is provided with an outer slope. , the outer slope is inclined upward from the end near the sink to the edge of the top surface of the base.

By adopting the above scheme, when drilling, drip water to the drill bit to cool the drill bit. At this time, the water will carry the debris generated by the drilling and fall into the water tank from the inner slope and the outer slope together, so as to ensure the fixing table. Always keep the top surface clean, reduce the impact of debris on subsequent drilling operations, and clean the debris on the top surface of a large area of the base.

The utility model is further configured as follows: a water storage tank is fixedly connected to the bottom of a side wall of the base, a main water outlet pipe is fixedly connected to the bottom of the water storage tank, and one end of the main water outlet pipe away from the water storage tank is fixedly connected to the position of the top of the base close to the fixing table, and the main outlet pipe A water pump is fixedly connected to the water pipe.

By adopting the above solution, when drilling, the water pump can be conveniently used to conduct the cooling liquid in the water storage tank to the position of the drilling mechanism through the main water outlet pipe, so that the top surface of the base can be easily cleaned and cleaned. Drilling operations are cooled.

The utility model is further configured as follows: one end of the main water outlet pipe away from the water storage tank is fixedly connected with two branch water outlet pipes, and one end of the two branch water outlet pipes away from the main water outlet pipe is fixedly connected to the position of the corresponding fixing platform above the base and close to the two drilling mechanisms respectively. place.

By adopting the above solution, the setting of the branch water pipe can better match the drilling operation performed on both sides of the shackle drilling hole at the same time, and guide the cooling liquid to the positions of the drilling mechanisms on both sides at the same time, so as to efficiently cool the drilling operation. , and flush the debris into the sink in time.

The utility model is further configured as follows: a water drain pipe is fixedly connected at the position of the base close to the water tank; The direction is inclined downward, and the water pipe is connected to the water tank and the inner space of the water storage tank.

By adopting the above solution, the arrangement of the water conduit can guide the liquid in the water tank to the water storage tank, thereby realizing the recycling of the cooling liquid, saving resources and facilitating the collection of the cooling liquid.

The utility model is further configured as follows: a filter groove is opened in the middle of a side wall of the water storage tank, a filter drawer is slidably connected in the filter groove, the filter drawer can slide in a horizontal direction, a filter port is opened on the bottom surface of the filter drawer, and the filter drawer is close to the filter port A filter screen covering the filter port is fixedly connected at the position of the filter.

By adopting the above solution, the arrangement of the filter drawer can filter the cooling liquid that is re-introduced into the water storage tank, and filter out the residue in it, thereby reducing the probability of the damage of the water pump caused by the residue.

The utility model is further configured as follows: the position of the base close to the sink is fixedly connected with a filter layer arranged in a ring shape capable of covering the sink, and the filter layer is arranged in a net shape.

By adopting the above solution, the setting of the filter layer can effectively reduce the probability of debris entering the sink with the water flow, so as to ensure the smooth progress of the subsequent recovery process of the cooling liquid, and the clamping of the filter layer can also facilitate the operator to remove the debris. Cleaning, to ensure the cleaning efficiency of the equipment.

The utility model is further provided as follows: the middle of the top surface of the filter layer is provided with a waste groove arranged in a ring shape.

By adopting the above solution, the setting of the waste chute can facilitate the collection of debris, and the debris flushed on the filter layer is concentrated in the waste chute, which can make the debris more concentrated, thereby making the debris cleaning more convenient.

The utility model is further configured as follows: the fixing table is fixedly connected with a lower concave die, the upper concave die matched with the lower concave die is slidably connected at a position above the fixing table corresponding to the lower concave die, and the upper concave die can slide in the vertical direction .

By adopting the above scheme, when the shackle needs to be drilled, the shackle is placed on the lower die, and the upper die is slid to press the shackle, so that the effect of conveniently fixing the shackle can be achieved, thereby facilitating the Drill the holes for the shackle.

The utility model is further provided that: the lower concave die is made of magnets, and the upper concave die is made of ferromagnetic material.

By adopting the above solution, the lower die made of magnets will attract the ferromagnetic upper die, so that when the shackle is fixed, the stability is higher, and the operation stability of the equipment can be effectively guaranteed.

The utility model is further arranged as follows: the position of the fixing table corresponding to the upper part of the upper die is fixedly connected to the cylinder body of the limiting cylinder; Ends.

By adopting the above solution, when it is necessary to drive the upper die to slide, the limit cylinder can be activated to drive the upper die to slide efficiently, and the upper die can be slid when the upper die is attracted by the lower die due to ferromagnetism. open.

To sum up, the utility model has the following beneficial effects:

1. It has the effect of cleaning and collecting the waste and coolant generated during the drilling process efficiently;

2. The shackle can be efficiently fixed to facilitate stable drilling operations;

3. The cooling liquid after use can be re-collected into the water storage tank through filtration, so as to realize the recycling of the cooling liquid.

Description of drawings

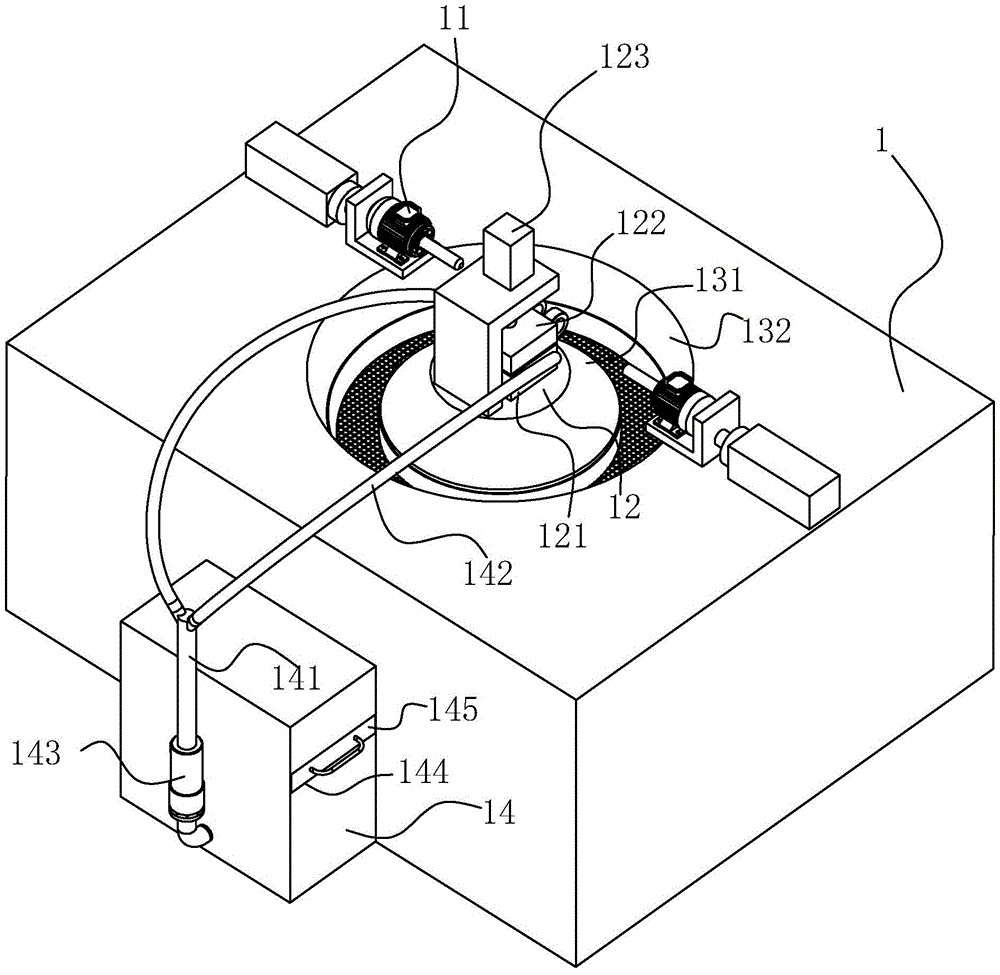

Fig. 1 is the overall schematic diagram of this embodiment;

2 is a cross-sectional view of a protruding internal structure in an embodiment;

FIG. 3 is a cross-sectional view of the protruding water conduit structure in the embodiment.

In the figure, 1, base; 11, drilling mechanism; 12, fixed table; 121, lower die; 122, upper die; 123, limit cylinder; 13, water tank; 131, inner slope; 132, outer slope ; 133, filter layer; 134, waste tank; 135, water pipe; 14, water storage tank; 141, main outlet pipe; 142, branch outlet pipe; 143, suction pump; 144, filter tank; 145, filter drawer; 146 , filter port; 147, filter.

Detailed ways

Example: a horizontal CNC drilling machine that is easy to clean, as shown in Figures 1 and 2, comprising a base 1, both ends of the top surface of the base 1 are provided with a drilling mechanism 11 for drilling, and the top surface of the base 1 is provided with a drilling mechanism 11. The middle part is fixedly connected with a fixing platform 12 for fixing the shackle. When in use, the shackle is fixed on the fixing table 12, and the drilling mechanism 11 can be used to drill the two ends of the shackle.

As shown in FIG. 1 and FIG. 2 , a lower die 121 is fixedly connected to the fixing table 12 , and an upper die 122 is slidably connected to the fixing table 12 at a position above the lower die 121 . The lower die 121 is made of magnets, and the upper die 122 is made of ferromagnetic material. The fixing table 12 is fixedly connected to the cylinder body of the limiting cylinder 123 at a position above the upper die 122 , the piston rod of the limiting cylinder 123 is vertically downwardly arranged, and the upper die 122 is fixedly connected to the piston rod end of the limiting cylinder 123 department.

As shown in FIG. 1 and FIG. 2 , the top surface of the base 1 is provided with a ring-shaped water trough 13 around the fixed table 12 , and the fixed table 12 is provided with an inner slope 131 at a position close to the water trough 13 . One end of the 12 is inclined downward in the direction close to the sink 13 . The top surface of the base 1 is provided with an outer inclined surface 132 , and the outer inclined surface 132 is inclined upward from one end close to the sink 13 toward the edge of the top surface of the base 1 . When the top surface of the base 1 needs to be cleaned, rinse with water, and the water will flush the debris into the sink 13 along the inner slope 131 and the outer slope 132, so as to efficiently clean the debris on the base 1.

As shown in FIGS. 1 and 2 , a water storage tank 14 is fixedly connected to the bottom of one side wall of the base 1 , a main water outlet pipe 141 is fixedly connected to the bottom of the water storage tank 14 , and the end of the main water outlet pipe 141 away from the water storage tank 14 is fixedly connected to the top of the base 1 . A water pump 143 is fixedly connected to the main water outlet pipe 141 at a position close to the fixing table 12 . One end of the main water outlet pipe 141 away from the water storage tank 14 is fixedly connected with two branch water outlet pipes 142 . location. When drilling, the two water outlet pipes 142 are aligned with the two sides of the shackle respectively, so that the drilling mechanism 11 can be cooled and cooled while the debris on the shackle can be washed away at the same time.

As shown in FIG. 2 and FIG. 3 , a water drain pipe 135 is fixedly connected to the base 1 near the water drain tank 13 . The water drain pipe 135 is inclined downward from one end close to the water tank 13 to the direction close to the water storage tank 14 . A filter slot 144 (see FIG. 1 ) is opened in the middle of a side wall of the water storage tank 14 , and a filter drawer 145 is slidably connected to the filter slot 144 . The filter drawer 145 can slide in the horizontal direction, the bottom surface of the filter drawer 145 is provided with a filter port 146 , and a filter screen 147 covering the filter port 146 is fixedly connected to the position of the filter drawer 145 close to the filter port 146 . If debris enters the water tank 13 with the water flow or the cooling liquid, it will be brought into the water pipe 135 and finally transported to the water storage tank 14. At this time, the filter screen 147 on the filter drawer 145 will remove the debris It is filtered from the water to facilitate the recycling of the water.

As shown in FIG. 2 and FIG. 3 , a ring-shaped filter layer 133 that can cover the water channel 13 is fixedly connected to the base 1 near the sink 13 , and the filter layer 133 is arranged in a mesh shape. The middle of the top surface of the filter layer 133 is provided with a waste groove 134 arranged in a ring shape. During cleaning, the debris can be effectively prevented from entering the water storage tank 14 with the water flow. When the debris is brought to the filter layer 133, it will be concentrated and blocked in the waste tank 134, which is convenient for unified cleaning.

How to use, when using, first add enough water to the water storage tank 14, put the shackle on the lower die 121, drive the upper die 122 to cooperate with the lower die 121 to clamp the shackle, and then put the two The separate water pipes 142 are aligned with the two sides of the shackle, respectively, and the water pump 143 is turned on. At the same time, the shackle can be drilled by the drilling mechanism 11. When drilling, the debris will be flushed by the water on the filter layer 133 and washed away. Accumulated in the waste tank 134, at this time, the water will flow back to the water storage tank 14 along the water pipe 135 to realize recycling.

The examples of this specific embodiment are all preferred embodiments of the present invention, and are not intended to limit the protection scope of the present invention. Therefore: all equivalent changes made according to the structure, shape and principle of the present invention are not It should be covered within the protection scope of the present invention.

Claims (10)

1. The utility model provides a horizontal numerical control drilling machine convenient to it is clean, includes base (1), base (1) top surface both ends all are provided with drilling mechanism (11) that are used for drilling, and base (1) top surface middle part fixedly connected with is used for fixed station (12) of breaking out, its characterized in that: the top surface of the base (1) is provided with a water trough (13) which is annularly arranged around the fixed platform (12), the position of the fixed platform (12) close to the water trough (13) is provided with an inner inclined plane (131), and the inner inclined plane (131) is obliquely downwards arranged from one end close to the fixed platform (12) to the direction close to the water trough (13);

an outer inclined plane (132) is arranged on the top surface of the base (1), and the outer inclined plane (132) is arranged in an upward inclined manner from one end close to the water trough (13) to the edge close to the top surface of the base (1).

2. The horizontal numerical control drilling machine convenient to clean as claimed in claim 1, characterized in that: a water storage tank (14) is fixedly connected to the bottom of one side wall of a base (1), a main water outlet pipe (141) is fixedly connected to the bottom of the water storage tank (14), one end, far away from the water storage tank (14), of the main water outlet pipe (141) is fixedly connected to the position, close to a fixed table (12), of the top of the base (1), and a water suction pump (143) is fixedly connected to the main water outlet pipe (141).

3. The horizontal numerical control drilling machine convenient to clean as claimed in claim 2, characterized in that: one end of the main water outlet pipe (141) far away from the water storage tank (14) is fixedly connected with two branch water outlet pipes (142), and one ends of the two branch water outlet pipes (142) far away from the main water outlet pipe (141) are respectively and fixedly connected to the positions, close to the two drilling mechanisms (11), of the corresponding fixing table (12) above the base (1).

4. The horizontal numerical control drilling machine convenient to clean as claimed in claim 3, characterized in that: the position department fixedly connected with of base (1) near trough (13) walks water pipe (135), and the one end fixed connection of trough (13) is kept away from in water pipe (135) is in storage water tank (14) top, walks water pipe (135) and is set up to the orientation downward sloping that is close to storage water tank (14) by the one end that is close to trough (13), walks water pipe (135) intercommunication trough (13) and storage water tank (14) inner space.

5. The horizontal numerical control drilling machine convenient to clean as claimed in claim 4, characterized in that: filter tank (144) have been seted up in storage water tank (14) lateral wall middle part, sliding connection has in filter tank (144) filters drawer (145), filters drawer (145) and can slide on the horizontal direction, filters the bottom surface of drawer (145) and has seted up filtration mouth (146), filters drawer (145) and is close to filter the filter screen (147) of filter mouth (146) of position department fixedly connected with cover filtration mouth (146).

6. The horizontal numerical control drilling machine convenient to clean as claimed in claim 1, characterized in that: the position of the base (1) close to the water trough (13) is fixedly connected with a filter layer (133) which can cover the water trough (13) and is arranged in an annular shape, and the filter layer (133) is arranged in a net shape.

7. The horizontal numerical control drilling machine convenient to clean as claimed in claim 1, characterized in that: the middle part of the top surface of the filter layer (133) is provided with a waste material groove (134) which is arranged annularly.

8. The horizontal numerical control drilling machine convenient to clean as claimed in claim 1, characterized in that: a lower concave die (121) is fixedly connected to the fixed table (12), an upper concave die (122) matched with the lower concave die (121) is slidably connected to the position, corresponding to the upper portion of the lower concave die (121), of the fixed table (12), and the upper concave die (122) can slide in the vertical direction.

9. The horizontal numerical control drilling machine convenient to clean as claimed in claim 8, characterized in that: the lower die (121) is made of a magnet, and the upper die (122) is made of a material having ferromagnetism.

10. The horizontal numerical control drilling machine convenient to clean as claimed in claim 9, characterized in that: the fixed station (12) corresponds to a cylinder body of a limiting cylinder (123) fixedly connected to the position above the upper female die (122), a piston rod of the limiting cylinder (123) is vertically arranged downwards, and the upper female die (122) is fixedly connected to the end part of the piston rod of the limiting cylinder (123).
