CN210934546U - Aquatic product processing stirrer convenient for removing floating impurities - Google Patents

Abstract

The utility model discloses a mixer for processing aquatic products which is convenient for removing floating impurities, which comprises a casing, a feeding box, a discharging box, a second motor and a baffle. The top end of the casing is provided with a sliding rail, the bottom end of the connecting block is welded with a hydraulic rod, the bottom end of the connecting rod is provided with a salvage plate with a porous structure inside, and the feeding box is located at the bottom of the casing. The left end, the discharge box is located at the right end of the casing, the second motor is located on the right side of the casing, and the output end of the second motor is connected with a rotating rod, the baffle is located at the bottom end of the casing, and the blocking The bottom end of the plate is provided with a receiving plate, and the interior of the baffle is screwed with a material cover. The agitator for processing aquatic products, which is easy to remove floating impurities, is convenient for comprehensively removing floating impurities on the material through the left and right movement of the salvage plate and the push plate, and can quickly open the casing to facilitate the cleaning of the stirring rod and the rotating rod.

Description

A mixer for aquatic product processing that is easy to remove floating impurities

technical field

The utility model relates to the technical field of aquatic product processing, in particular to a mixer for aquatic product processing which is convenient for removing floating impurities.

Background technique

There are many surimi products on the market, such as fish balls, fish cakes, fish sausages and fish rolls. Suitable for urban consumption, such products can be manufactured in large-scale factories and hand-made at home, which can improve the economic value of low-value fish and be accepted by the people, so it is a promising aquatic product. , In the production process, it is necessary to put the crushed fish meat, an appropriate amount of water and an appropriate amount of salt together and stir, so that the fish meat, water and salt are fully mixed, but during the process of standing after stirring, floating impurities are prone to appear on the surface of the material. .

In the process of cleaning the floating impurities in the existing mixer for aquatic product processing, the staff need to use tools to collect the floating impurities on the upper surface of the material again and again, which is time-consuming and laborious, and the material has a viscous structure, which is easy to adhere to the stirring rod. Above, when cleaning the stirring rod, the whole mixer needs to be disassembled, which makes the stirring rod difficult to clean. Therefore, we propose a mixer for aquatic product processing that is easy to remove floating impurities, so as to solve the above problems.

Utility model content

The purpose of the present utility model is to provide a mixer for processing aquatic products that is convenient for removing floating impurities, so as to solve the problem that the existing mixers for processing aquatic products proposed in the above-mentioned background technology require workers to use tools to collect on the upper surface of the material again and again. Floating impurities is time-consuming and labor-intensive, and the material has a viscous structure, which is easy to adhere to the stirring rod. When cleaning the stirring rod, the entire mixer needs to be disassembled, which makes the stirring rod difficult to clean.

In order to achieve the above purpose, the utility model provides the following technical solutions: a mixer for processing aquatic products that is convenient for removing floating impurities, comprising a casing, a feeding box, a discharging box, a second motor and a baffle, and the The left side is provided with a first motor, and the output end of the first motor is connected with a screw rod, and the outer side of the screw rod is screwed with a connecting block, the top of the casing is provided with a slide rail, and the interior of the slide rail is provided with a connection block The bottom end of the connecting block is welded with a hydraulic rod, and the bottom end of the hydraulic rod is fixedly connected with a connecting rod, the bottom end of the connecting rod is provided with a salvage plate with a porous structure inside, and the right end of the salvage plate is installed There is a push plate, the feed box is located at the left end of the casing, and a first sealing block is installed inside the feed box, the discharge box is located at the right end of the casing, and the inside of the discharge box is installed by clamping There is a second sealing block, the second motor is located on the right side of the casing, the output end of the second motor is connected with a rotating rod, and the outer end of the rotating rod is connected with a stirring rod, and the baffle is located at the bottom of the casing The bottom end of the baffle is provided with a receiving plate, and the interior of the baffle is screwed with a material cover.

Preferably, the screw rod and the casing form a rotating structure, and the connecting block forms a left-right sliding structure through the screw rod and the casing.

Preferably, the longitudinal section of the salvage plate is in a circular arc structure, and the front and rear outer surfaces of the salvage plate are in contact with the inner wall of the casing. The right end of the salvage plate.

Preferably, the feeding box and the discharging box are respectively installed obliquely at the left and right ends of the casing, the inclination directions of the feeding box and the discharging box are opposite, and the length of the discharging box is equal to the length of the salvage plate.

Preferably, the connection mode of the stirring rod and the rotating rod is threaded connection, and the stirring rods are arranged at the outer end of the rotating rod at equal intervals, and the center line of the rotating rod and the center line of the hydraulic rod are perpendicular to each other.

Preferably, the connection between the baffle and the casing is a snap connection, the longitudinal section of the baffle is in a "T" shape, and the material cover penetrates through the baffle.

Compared with the prior art, the beneficial effect of the present utility model is that: the mixer for processing aquatic products, which is convenient for removing floating impurities, is convenient for comprehensively removing floating impurities on the material through the left and right movement of the salvage plate and the push plate, and can quickly Open the casing to facilitate cleaning of the stirring rod and rotating rod;

1. A first motor, a screw rod and a connecting block are provided. The first motor drives the screw rod to rotate. The screw rod and the connecting block are connected in a threaded connection. The connecting block slides left and right on the screw rod through the rotation of the screw rod. Drive the salvage plate and the push plate indirectly connected with the connecting block to slide left and right in the casing, and the salvage plate and the push plate slide left and right on the material to collect the floating impurities on the material, which is convenient for removing the floating impurities on the material;

2. A hydraulic rod, a salvage plate and a push plate are provided. By adjusting the height of the hydraulic rod, the height of the salvage plate and the push plate can be adjusted, so that the salvage plate and the push plate can be in contact with floating impurities, and the longitudinal section of the salvage plate is arc. The shape structure can collect the floating impurities in the salvage plate to avoid the floating impurities falling during the process of removing the floating impurities, and the front and rear outer surfaces of the salvage plate are in contact with the inner wall of the casing, which can comprehensively collect materials. floating impurities on the upper surface;

3. A feeding box and a discharging box are provided. The feeding box and the discharging box are respectively installed obliquely on the left and right ends of the casing, and the inclination directions of the feeding box and the discharging box are opposite, and the opening of the feeding box is upward. The opening of the discharge box is downward, so that the material can be quickly put into the casing through the feeding box, and the floating impurities can quickly flow out of the casing through the discharge box;

4. A baffle and a material cover are provided. Since the connection between the baffle and the casing is a snap connection, pushing the baffle upward can completely place the baffle in the casing, thereby opening the casing, and the rotating rod is connected to the stirring rod. The connection method of the rod is threaded connection, which is convenient to remove the stirring rod from the rotating rod, and take out the stirring rod through the bottom end of the casing, so as to facilitate the cleaning of the stirring rod and the rotating rod.

Description of drawings

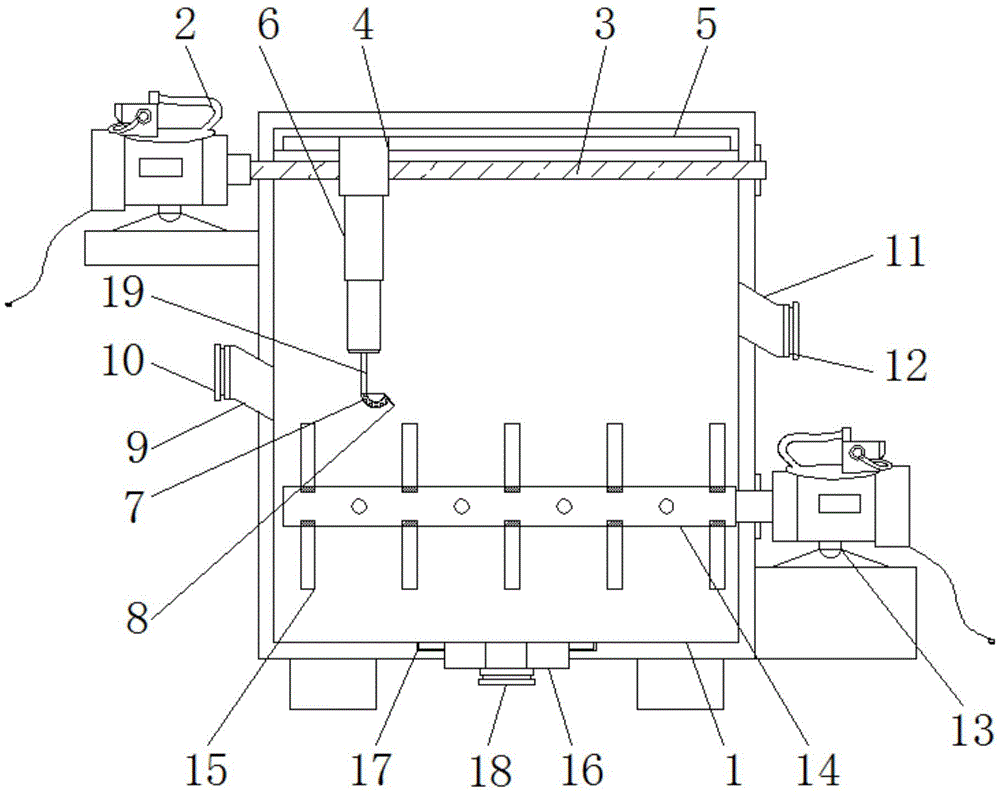

Fig. 1 is the front view sectional structure schematic diagram of the present utility model;

Figure 2 is a schematic diagram of the left side cut structure of the utility model;

Fig. 3 is the structural representation of the right side of the utility model;

4 is a schematic top view of the cutaway structure of the present utility model;

FIG. 5 is a schematic diagram of the connection structure of the baffle plate and the casing of the present invention.

In the figure: 1, the casing; 2, the first motor; 3, the lead screw; 4, the connecting block; 5, the slide rail; 6, the hydraulic rod; 7, the salvage plate; 8, the push plate; 9, the feed box; 10, the first sealing block; 11, the discharge box; 12, the second sealing block; 13, the second motor; 14, the rotating rod; 15, the stirring rod; ; 19. Connecting rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-5 , the present utility model provides a technical solution: a mixer for processing aquatic products that is convenient for removing floating impurities, comprising a casing 1, a first motor 2, a screw rod 3, a connecting block 4, and a slide rail 5 , hydraulic rod 6, salvage plate 7, push plate 8, feed box 9, first sealing block 10, discharge box 11, second sealing block 12, second motor 13, rotating rod 14, stirring rod 15, baffle 16. The receiving plate 17, the material cover 18 and the connecting rod 19, the left side of the casing 1 is provided with a first motor 2, and the output end of the first motor 2 is connected with a lead screw 3, and the outer side of the lead screw 3 is threadedly connected with a The connecting block 4, the screw rod 3 and the casing 1 form a rotating structure, and the connecting block 4 forms a left-right sliding structure through the screw rod 3 and the casing 1. The movement of the connecting block 4 drives the salvage plate 7 and the push plate 8 on the material Move left and right to collect the floating impurities on the material. The top of the casing 1 is provided with a slide rail 5, and a connecting block 4 is installed inside the slide rail 5. The bottom end of the connecting block 4 is welded with a hydraulic rod 6, and the hydraulic rod 6 The bottom end is fixedly connected with a connecting rod 19, and the bottom end of the connecting rod 19 is provided with a salvage plate 7 with a porous structure inside, and a push plate 8 is installed on the right end of the salvage plate 7, and the longitudinal section of the salvage plate 7 has a circular arc structure. , and the front and rear outer surfaces of the salvage plate 7 are in contact with the inner wall of the casing 1, the salvage plate 7 is a lifting structure in the casing 1, and the push plate 8 is installed obliquely on the right end of the salvage plate 7, which can comprehensively collect materials Floating impurities on the top, the feed box 9 is located at the left end of the casing 1, and the inside of the feed box 9 is fitted with a first sealing block 10, the discharge box 11 is located at the right end of the casing 1, and the discharge box 11 A second sealing block 12 is installed inside by snapping, the second motor 13 is located on the right side of the casing 1, and the output end of the second motor 13 is connected with a rotating rod 14, and the outer end of the rotating rod 14 is connected with a stirring rod 15, The connection mode of the stirring rod 15 and the rotating rod 14 is threaded connection, and the stirring rods 15 are arranged at the outer end of the rotating rod 14 at equal intervals, and the center line of the rotating rod 14 and the center line of the hydraulic rod 6 are perpendicular to each other. During the left and right movement, the rotating rod 14 will not hinder the movement of the salvage plate 7, the baffle plate 16 is located at the bottom end of the casing 1, and the bottom end of the baffle plate 16 is provided with a receiving plate 17, and the inner part of the baffle plate 16 is threadedly connected with a Material cover 18;

As shown in FIG. 1, the feeding box 9 and the discharging box 11 are respectively installed obliquely at the left and right ends of the casing 1, and the inclination directions of the feeding box 9 and the discharging box 11 are opposite, and the length of the discharging box 11 is equal to the salvage plate 7, so that the material can be quickly put into the casing 1 through the feeding box 9, and the floating impurities can quickly flow out of the casing 1 through the discharging box 11;

As shown in FIG. 5 , the connection between the baffle 16 and the casing 1 is a snap connection, and the longitudinal section of the baffle 16 has a "T"-shaped structure. The stirring rod 15 is taken out, and the stirring rod 15 and the rotating rod 14 are cleaned.

Working principle: When using the mixer for aquatic product processing, which is easy to remove floating impurities, first connect the first motor 2 of the model Y90S-2 and the second motor 13 of the model IHSS57-36-20 to the external power supply. The connection between the feeding box 9 and the first sealing block 10 is a snap connection. The first sealing block 10 is removed from the feeding box 9, and then the crushed fish meat, an appropriate amount of water and For salt, since the feeding box 9 is installed obliquely at the left end of the casing 1, and the opening of the feeding box 9 is upward, the fish, water and salt can quickly enter the casing 1. After the fish, water and salt are put in, the first The sealing block 10 is installed in the feeding box 9;

Then turn on the second motor 13, the second motor 13 drives the stirring rod 15 to rotate at a slow speed in the casing 1 through the rotating rod 14, so that the stirring rod 15 drives the material in the casing 1 to rotate, and after the fish meat, water and salt are fully mixed, Turn off the second motor 13, let the material in the casing 1 stand for a period of time, and floating impurities appear on the upper surface of the material. According to the height of the floating impurities, the height of the salvage plate 7 and the push plate 8 is adjusted by the hydraulic rod 6, and the salvage The bottom ends of the plate 7 and the push plate 8 are adjusted to the bottom end of the floating impurities, and then the first motor 2 is turned on, and the first motor 2 drives the screw rod 3 to rotate. The rotation of the screw rod 3, the connecting block 4 slides left and right on the screw rod 3, and drives the hydraulic rod 6, the salvage plate 7 and the push plate 8 to slide left and right inside the casing 1, and the push plate 8 pushes the floating impurities to the bottom of the casing 1. The right end, and then under the action of the hydraulic rod 6, the salvage plate 7 continues downward, and the floating impurities are collected by the salvage plate 7. Then, under the action of the hydraulic rod 6, the salvage plate 7 is lifted upwards to reach the discharge box 11. At the same height, due to the porous structure inside the salvage plate 7, the water salvaged in the salvage plate 7 can be filtered out, and then the second sealing block 12 can be removed from the discharge box 11. Since the length of the salvage plate 7 is equal to the first The length of the second sealing block 12, the salvage plate 7 can be placed inside the discharge box 11, and the workers remove the floating impurities in the salvage plate 7 in the discharge box 11 through external tools, because the opening of the discharge box 11 is downward , and the discharge box 11 is installed obliquely on the right end of the casing 1, which is convenient to take out the impurities inside the discharge box 11;

When the stirred fish meat needs to be taken out, since the material cover 18 and the baffle 16 are connected in a threaded connection, the material cover 18 is removed from the baffle 16, thereby opening the inner space of the casing 1, and the material flows out of the casing 1. When it is necessary to clean the rotating rod 14 and the stirring rod 15, push the baffle 16 upwards so that the baffle 16 completely enters the casing 1, and the staff's hand extends into the casing 1 from the bottom end of the casing 1. The connection mode of the stirring rod 15 and the rotating rod 14 is threaded connection, which is convenient to remove the stirring rod 15 from the rotating rod 14, so as to take out the stirring rod 15 from the casing 1, and clean the stirring rod 15 and the rotating rod 14. The above completes a series of operations of the mixer for processing aquatic products which is convenient for removing floating impurities. Contents not described in detail in this specification belong to the prior art known to those skilled in the art.

The standard parts used in the utility model can be purchased from the market, the special-shaped parts can be customized according to the description in the specification and the drawings, and the specific connection method of each part adopts the mature bolts, rivets and welding in the prior art. and other conventional means, the machinery, parts and equipment all adopt the conventional models in the prior art, and the circuit connection adopts the conventional connection manner in the prior art, which will not be described in detail here.

Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principle of the present utility model, any modifications, equivalent replacements, improvements, etc. made shall be included within the protection scope of the present utility model.

Claims (6)

1. A mixer for processing aquatic products that is convenient for removing floating impurities, comprising a casing (1), a feeding box (9), a discharging box (11), a second motor (13) and a baffle plate (16), which It is characterized in that: the left side of the casing (1) is provided with a first motor (2), the output end of the first motor (2) is connected with a lead screw (3), and the outer side of the lead screw (3) is threadedly connected There is a connecting block (4), the top end of the casing (1) is provided with a sliding rail (5), and a connecting block (4) is installed inside the sliding rail (5), and the bottom end of the connecting block (4) is provided A hydraulic rod (6) is welded, and a connecting rod (19) is fixedly connected to the bottom end of the hydraulic rod (6). The bottom end of the connecting rod (19) is provided with a salvage plate (7) with a porous structure inside, And the right end of the salvage plate (7) is installed with a push plate (8), the feed box (9) is located at the left end of the casing (1), and the inside of the feed box (9) is fitted with a first sealing block. (10), the discharge box (11) is located at the right end of the casing (1), and the inside of the discharge box (11) is fitted with a second sealing block (12), the second motor (13) Located on the right side of the casing (1), and the output end of the second motor (13) is connected with a rotating rod (14), and the outer end of the rotating rod (14) is connected with a stirring rod (15), the baffle ( 16) It is located at the bottom end of the casing (1), and the bottom end of the baffle plate (16) is provided with a receiving plate (17), and the interior of the baffle plate (16) is screwed with a material cover (18). 2. A mixer for aquatic product processing according to claim 1, characterized in that: the screw (3) and the casing (1) constitute a rotating structure, and the connecting block (4) passes through The lead screw (3) and the casing (1) form a left-right sliding structure. 3. A mixer for processing aquatic products that is convenient for removing floating impurities according to claim 1, characterized in that: the longitudinal section of the salvage plate (7) is in a circular arc structure, and the front and rear of the salvage plate (7) Both outer surfaces are in contact with the inner wall of the casing (1), the salvage plate (7) is a lifting structure in the casing (1), and the push plate (8) is installed obliquely on the right end of the salvage plate (7). 4. A mixer for aquatic product processing according to claim 1, characterized in that: the feeding box (9) and the discharging box (11) are respectively installed obliquely on the casing (1) The left and right ends of the feed box (9) and the discharge box (11) are opposite to each other, and the length of the discharge box (11) is equal to the length of the salvage plate (7). 5. A kind of mixer for aquatic product processing according to claim 1, characterized in that: the connection mode of the stirring rod (15) and the rotating rod (14) is a threaded connection, and the stirring rod (15) is threaded. 15) are arranged at the outer end of the rotating rod (14) at equal intervals, and the center line of the rotating rod (14) and the center line of the hydraulic rod (6) are perpendicular to each other. 6. The mixer for aquatic product processing according to claim 1, characterized in that: the connection between the baffle (16) and the casing (1) is a snap connection, and the baffle (16) is connected by a snap connection. The longitudinal section of (16) is in a "T" shape, and the material cover (18) penetrates the baffle plate (16).
