Abstract
The utility model discloses a novel precast concrete stair experiment frame, including fixed stay bottom plate and vertical frame, bearing diagonal structure is installed to fixed stay bottom plate's top, and one side of bearing diagonal structure installs the support, hoisting device is installed to one side of vertical frame, and vertical frame is located the top of support. This novel precast concrete stair experiment frame purpose is that the simulation floor uses stair actual effect, the atress process that makes the experiment more presses close to on-the-spot result of use, the precast stair who makes the experiment are placed on the girder steel on the experiment frame, the effect of making the movable support, precast stair assemble at the job site also and make into the movable support, so the experimental effect can be almost unanimous with the job site, the effect of experiment more presses close to actually, in addition, the experimental pressure of the more horizontal shelf of load can reduce 40%, material resources and manpower have been reduced, owing to subtract heavy reduction, the time of surcharge year experiment also can reduce 40%, time saving and labor saving.
Description
Technical Field
The utility model relates to a precast concrete stair experiment technical field specifically is a novel precast concrete stair experiment frame.
Background
The stair experiment of prefabricated component factory adopts horizontal experiment frame at present stage, adopts two horizontal rectangle framves of channel-section steel welding promptly, places prefabricated stair on it, places the load article again. The stress of the experimental frame is linear stress and large stress, and the function and the stress characteristic of using the staircase on a real floor cannot be compared. In addition, the horizontal experiment frame has larger load weight, and more load-carrying parts need to be prepared before the experiment; in the experimental process, the stress loading is graded loading, the experimental time is about 1 hour when each time of loading is carried out, the heavier the loading is, the experimental time can be correspondingly increased, and thus, the related manpower and material resources are increased.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a novel precast concrete stair experiment frame to it is current to provide in solving above-mentioned background art, the user demand problem that satisfies people that can not be fine.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a novel precast concrete stair experiment frame, includes fixed stay bottom plate and vertical frame, bearing diagonal structure is installed to fixed stay bottom plate's top, and one side of bearing diagonal structure installs the support, hoisting device is installed to one side of vertical frame, and vertical frame is located the top of support.
Preferably, the fixed supporting bottom plate is perpendicular to the vertical frame, and the fixed supporting bottom plate is connected with the vertical frame.
Preferably, the fixed supporting bottom plate forms a triangular structure with the vertical frame through the inclined supporting structure, and the fixed supporting bottom plate is connected with the vertical frame through the inclined supporting structure.
Preferably, the front end and the rear end of the lifting device are both provided with rail wheels, and the lifting device is perpendicular to the vertical frame.
Preferably, the brackets are symmetrically distributed around the vertical central line of the vertical frame, and a triangular structure is formed between the brackets and the vertical frame.
Preferably, the support is connected with the fixed supporting bottom plate and the vertical frame.
Compared with the prior art, the beneficial effects of the utility model are as follows:
the test rack is manufactured to simulate the actual effect of using the stairs on floors, so that the stress process of an experiment is closer to the field use effect, the prefabricated stairs of the experiment are placed on steel beams on the test rack to form the effect of a movable support, and the prefabricated stairs are assembled on a construction site to form the movable support, so that the experiment effect can be almost consistent with that of the construction site, and the experiment effect is closer to the reality;
the novel precast concrete stair experimental frame is provided with the support, the stability of the support of the experimental frame can be effectively enhanced through the triangular structure between the support and the vertical frame, the vertical frame is prevented from deflecting, the vertical frame can be effectively kept in a vertical state, and the moving direction and the track of the lifting device can be effectively controlled;
this novel precast concrete stair experiment frame is provided with vertical frame, and the vertical frame that the channel-section steel welding was accomplished can reciprocate by oneself, so adopt the channel-section steel, because the channel-section steel not only can regard as load-carrying members, can regard as the track moreover, has the guide effect.
Drawings

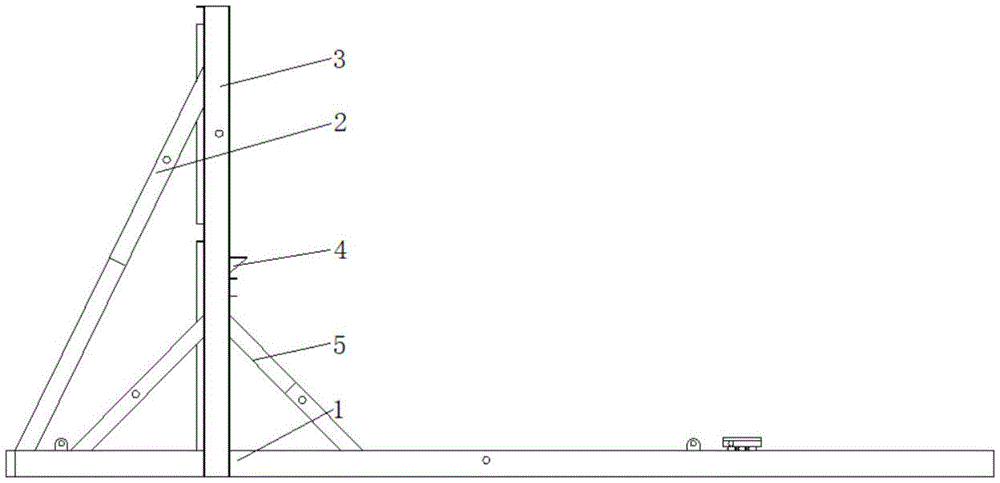

FIG. 1 is a schematic view of the structure of the present invention;
FIG. 2 is a left side view of the structure of the present invention;
fig. 3 is a schematic rear view of the present invention;
FIG. 4 is a right side view of the structure of the present invention;
fig. 5 is a schematic top view of the present invention.
In the figure: 1. fixing the support base plate; 2. an inclined support structure; 3. a vertical frame; 4. a lifting device; 5. and (4) a bracket.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a novel precast concrete stair experimental frame comprises a fixed supporting base plate 1 and a vertical frame 3, wherein an inclined supporting structure 2 is arranged above the fixed supporting base plate 1, a support 5 is arranged on one side of the inclined supporting structure 2, the supports 5 are symmetrically distributed around the vertical central line of the vertical frame 3, and a triangular structure is formed between the support 5 and the vertical frame 3; the support stability of the experimental frame can be effectively enhanced through the triangular structure between the support 5 and the vertical frame 3, the vertical frame 3 is prevented from deflecting, the vertical frame 3 can be effectively kept in a vertical state, and the moving direction and the track of the lifting device 4 can be effectively controlled;
be connected between support 5 and the fixed bolster bottom plate 1, and be connected between support 5 and the vertical frame 3, hoisting device 4 is installed to one side of vertical frame 3, and vertical frame 3 is located the top of support 5, 1 perpendicular to vertical frame 3 of fixed bolster bottom plate, and be connected between fixed bolster bottom plate 1 and the vertical frame 3, constitute the triangle-shaped structure between fixed bolster bottom plate 1 through bearing diagonal structure 2 and the vertical frame 3, and be connected between fixed bolster bottom plate 1 through bearing diagonal structure 2 and the vertical frame 3, the rail wheel is all installed at both ends around hoisting device 4, and hoisting device 4 perpendicular to vertical frame 3.
When the novel precast concrete stair experimental frame is used, firstly, the precast stairs are different in split size and height in different projects, the experimental device can be used for adjusting the vertical direction and the horizontal direction according to the size of the precast stairs, the stair experiments with different sizes are met, and the novel precast concrete stair experimental frame is multifunctional, efficient and convenient;
secondly, before installation, firstly, the height and the horizontal length of the stair are mastered, according to the size, the lifting device 4 is lifted to the height of the stair by a crane, rail wheels are installed on two sides of the lifting device 4, the vertical frame 3 welded by channel steel can move up and down, channel steel is adopted, the channel steel not only can be used as a bearing structure, but also can be used as a rail and has a guiding function, and secondly, the lifting device 4 is fixed by a gear meshing mode and is fixed by fastening bolts to prevent sliding downwards, and then, a horizontally movable distance adjusting plate is adjusted to meet the horizontal size of the stair and is fixed;
and finally, placing the stairs on an experimental frame for experimental operation, which is the working principle of the novel precast concrete stair experimental frame.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a novel precast concrete stair experiment frame, includes fixed stay bottom plate (1) and vertical (3), its characterized in that: inclined supporting structure (2) is installed to the top of fixed stay bottom plate (1), and support (5) are installed to one side of inclined supporting structure (2), hoisting device (4) are installed to one side of vertical frame (3), and vertical frame (3) are located the top of support (5).
2. The novel precast concrete stair experimental frame of claim 1, wherein: the fixed supporting bottom plate (1) is perpendicular to the vertical frame (3), and the fixed supporting bottom plate (1) is connected with the vertical frame (3).
3. The novel precast concrete stair experimental frame of claim 1, wherein: the fixed supporting bottom plate (1) forms a triangular structure with the vertical frame (3) through the inclined supporting structure (2), and the fixed supporting bottom plate (1) is connected with the vertical frame (3) through the inclined supporting structure (2).
4. The novel precast concrete stair experimental frame of claim 1, wherein: rail wheels are installed at the front end and the rear end of the lifting device (4), and the lifting device (4) is perpendicular to the vertical frame (3).
5. The novel precast concrete stair experimental frame of claim 1, wherein: the brackets (5) are symmetrically distributed around the vertical central line of the vertical frame (3), and a triangular structure is formed between the brackets (5) and the vertical frame (3).
6. The novel precast concrete stair experimental frame of claim 1, wherein: the support (5) is connected with the fixed supporting bottom plate (1), and the support (5) is connected with the vertical frame (3).
