Abstract
The utility model discloses a testing platform is used in ball processing, including the test rack, be equipped with pan feeding board and conveyer belt in the test rack inner chamber, its outside wall fixed welding has the motor, still is equipped with driving shaft and driven shaft in it, the driving shaft runs through the test rack and is connected with motor drive, the both sides of driven shaft are connected with test rack inner chamber both sides transmission respectively, it has the weeping hole that runs through its both sides to open on the pan feeding board, the equal fixed welding in both sides of test rack outer wall has the water storage box, install communicating liquid feeding pipeline with it on the water storage box. This testing platform is used in ball processing through having set up water storage box, water pump and honeycomb duct, and the drive water pump is taken the water in the water storage box out and is spout from the honeycomb duct, can wash the ball on the pan feeding board, makes the sample that is taken out at last keep clean and tidy relatively to it is more convenient to make the detection of ball sample.
Description
Technical Field
The utility model belongs to the technical field of ball processing, concretely relates to testing platform is used in ball processing.
Background
The ball screw is a mechanical component that converts rotational motion into linear motion, or converts linear motion into rotational motion. When the ball screw is used as an active body, the nut can be converted into linear motion along with the rotation angle of the screw rod according to the lead of the corresponding specification, and the passive workpiece can be connected with the nut through the nut seat, so that the corresponding linear motion is realized.
After the ball screw is machined, sampling detection needs to be carried out on the ball screw, and the detection process is finished on a detection platform. Most of the current detection platforms can not clean the ball screw, so that burrs, chips and other objects attached to the surface of the ball screw can not be removed, and the detection for personnel is troublesome.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a testing platform is used in ball processing to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a detection platform for ball screw processing comprises a detection frame, wherein a feeding plate and a conveying belt are arranged in an inner cavity of the detection frame, a motor is fixedly welded on the outer side wall of the detection frame, a driving shaft and a driven shaft are further arranged in the detection frame, the driving shaft penetrates through the detection frame and is in transmission connection with the motor, two sides of the driven shaft are respectively in transmission connection with two sides of the inner cavity of the detection frame, liquid leakage holes penetrating through two sides of the feeding plate are formed in the feeding plate, water storage tanks are fixedly welded on two sides of the outer wall of the detection frame, liquid feeding pipelines communicated with the water storage tanks are mounted on the water storage tanks, two groups of guide plates symmetrically distributed on two sides of the conveying belt are further arranged in the detection frame, the guide plates are fixedly bonded with the side wall of the inner cavity of the detection frame, hinges in transmission connection with the guide plates are mounted on one side, close to the center of the conveying belt, a storage groove is formed in, the push plate is installed to one side that the second telescopic link is close to the conveyer belt center, the lateral wall of test rack is opened has and is got the thing groove, and its lateral wall fixed mounting has and gets the flitch down that the thing groove meets.
Preferably, the two sides of the feeding plate are respectively welded and fixed with the two sides of the inner cavity of the detection frame, one side of the feeding plate, which is close to the conveying belt, inclines downwards and is located above the conveying belt, and one side of the feeding plate, which is far away from the conveying belt, keeps horizontal.
Preferably, a water pump is installed in the inner cavity of the water storage tank, a flow guide pipe is arranged on the water pump, the flow guide pipe penetrates through the top wall of the water storage tank and is connected with the water pump, and one side of the flow guide pipe, which is far away from the water storage tank, is arranged above the feeding plate.
Preferably, a limiting plate is fixedly bonded to the outer wall of the hinge, and a first telescopic rod is arranged on one side, away from the hinge, of the limiting plate.
Preferably, the rollers are installed at two ends of the first telescopic rod, the rollers are in transmission connection with the limiting plate through one group of rollers, and the first telescopic rod is in transmission connection with the detection frame through another group of rollers.
Preferably, a liquid collecting groove is formed in one side, below the feeding plate, of the bottom wall of the inner cavity of the detection frame, and a discharge hole penetrating through the detection frame is formed in the bottom wall of the liquid collecting groove.
The utility model discloses a technological effect and advantage: according to the detection platform for processing the ball screw, the water storage tank, the water pump and the guide pipe are arranged, the water pump is driven to pump water in the water storage tank out and spray the water out of the guide pipe, the ball screw on the feeding plate can be cleaned, and a finally taken out sample is kept relatively clean, so that the ball screw sample is more convenient to detect; by arranging the guide plates, the hinges and the limiting plates, when the ball screw runs on the conveying belt, the ball screw can be close to the center of the conveying belt under the action of the two groups of guide plates, so that the conveying belt is relatively orderly arranged, and personnel can conveniently collect and arrange the tail end of the conveying belt; through having set up second telescopic link, push pedal, getting the thing groove and down the flitch, drive the extension of second telescopic link and promote the ball sample to getting the thing inslot and discharging from the flitch down, can accomplish a sample to the trouble of artifical sample has been saved.
Drawings
Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic structural diagram of a limiting plate of the present invention;

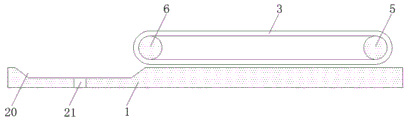

fig. 3 is a vertical sectional view of the inspection rack of the present invention.
In the figure: the device comprises a detection frame 1, a feeding plate 2, a conveying belt 3, a motor 4, a driving shaft 5, a driven shaft 6, a liquid leaking hole 7, a water storage tank 8, a flow guide pipe 9, a liquid feeding pipeline 10, a guide plate 11, a hinge 12, a limiting plate 13, a first telescopic rod 14, a rolling shaft 15, a second telescopic rod 16, a push plate 17, a fetching groove 18, a blanking plate 19, a liquid collecting groove 20 and a discharge hole 21.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a ball screw processing detection platform as shown in figures 1-3, which comprises a detection frame 1, wherein a feed plate 2 and a conveyor belt 3 are arranged in the inner cavity of the detection frame 1, a motor 4 is fixedly welded on the outer side wall of the detection frame, a drive shaft 5 and a driven shaft 6 are also arranged in the detection frame, the drive shaft 5 penetrates through the detection frame 1 and is in transmission connection with the motor 4, one side of the drive shaft 5, which is far away from the motor 4, is also in transmission connection with the side wall of the inner cavity of the detection frame 1, two sides of the driven shaft 6 are respectively in transmission connection with two sides of the inner cavity of the detection frame 1, a liquid leakage hole 7 penetrating through two sides of the feed plate 2 is arranged on the feed plate 2, water storage tanks 8 are fixedly welded on two sides of the outer wall of the detection frame 1, liquid adding pipelines 10 communicated with the water storage tanks 8 are arranged on the water storage tanks, the guide plate 11 is fixedly bonded with the side wall of the inner cavity of the detection frame 1, one side of the guide plate, which is close to the center of the conveying belt 3, is provided with a hinge 12 in transmission connection with the conveying belt 3, the bottom wall of the guide plate 11 is not contacted with the conveying belt 3 but is close to the conveying belt 3, thereby guiding the ball screw on the conveying belt 3 under the condition of not influencing the running of the conveying belt 3, one side of the inner cavity of the detection frame 1, which is far away from the feeding plate 2, is provided with a containing groove, the side wall of the containing groove is fixedly welded with a second telescopic rod 16, a push plate 17 is arranged on one side of the second telescopic rod 16 close to the center of the conveying belt 3, the push plate 17 is not contacted with the conveying belt 3 but is close to the conveying belt 3, therefore, the movement of the detection frame can push the ball screw on the conveyer belt 3, the outer side wall of the detection frame 1 is provided with a fetching groove 18, the outer side wall of the detection frame is fixedly provided with a blanking plate 19 connected with the fetching groove 18, and the blanking plate 19 is welded and fixed with the outer side wall of the detection frame 1.
Specifically, the both sides of pan feeding board 2 respectively with the both sides welded fastening of test rack 1 inner chamber, its one side downward sloping that is close to conveyer belt 3 and be located the conveyer belt 3 top, pan feeding board 2 keeps the level in one side of keeping away from conveyer belt 3, and when ball discharged to pan feeding board 2 on, it kept horizontally one side at pan feeding board 2 and removed, and water from honeycomb duct 9 spun can wash it, and later ball rolls behind the decurrent one side of pan feeding board 2 slope and falls on conveyer belt 3.
Specifically, install the water pump in the inner chamber of water storage box 8, be equipped with honeycomb duct 9 on it, honeycomb duct 9 runs through the roof of water storage box 8 and is connected with the water pump, and its one side of keeping away from water storage box 8 is established in the top of pan feeding board 2, and the water pump is connected with external power electric connection to guarantee its normal work, can follow water storage box 8 inner chamber bottom after the water pump work and begin to draw water, and send water into in the honeycomb duct 9.
Specifically, a limiting plate 13 is fixedly bonded to the outer wall of the hinge 12, a first telescopic rod 14 is arranged on one side, away from the hinge 12, of the limiting plate 13, and the first telescopic rod 14 and the second telescopic rod 16 are driven by electric power.
Specifically, the rollers 15 are mounted at two ends of the first telescopic rod 14 and are in transmission connection with the limiting plate 13 through one group of rollers 15, and the first telescopic rod 14 is in transmission connection with the detection frame 1 through the other group of rollers 15.
Specifically, one side of the bottom wall of the inner cavity of the detection frame 1, which is positioned below the feeding plate 2, is provided with a liquid collecting tank 20, the bottom wall of the liquid collecting tank 20 is provided with a discharge hole 21 which penetrates through the detection frame 1, and water falling from the liquid leakage hole 7 can directly fall into the liquid collecting tank 20 and finally fall from the discharge hole 21 to be discharged out of the detection frame 1.
Specifically, when the detection platform for processing the ball screw is installed, firstly, the detection frame 1 is arranged at the discharge end of ball screw processing equipment, the ball screw can directly fall on one side of the feeding plate 2 which is kept horizontal after being discharged, then the detection platform can work, the ball screw can still have certain kinetic energy after being discharged from the processing equipment to the feeding plate 2 in a group, therefore, the ball screw can move from one side of the feeding plate 2 which is horizontal to one side of the feeding plate which is inclined downwards (the side of the feeding plate 2 which is kept horizontal does not need to be overlong, the situation that the ball screw stays on the feeding plate 2 and cannot move to the conveying belt 3 is prevented), before the ball screw is driven to work, water in the two groups of water storage tanks 8 is pumped out and is sprayed on the ball screw on the feeding plate 2 through the two groups of guide pipes 9 (note that the two groups of liquid feeding pipes 10 are connected with an external tap water pipe at the same time, make the running water pipe constantly supply water to the water storage tank 8), most burrs, scraps and other objects on the ball screw are cleaned, the ball screw is cleaned by water in the rolling process and finally falls on the conveying belt 3 (a part of water on the feeding plate 2 falls from the liquid leakage hole 7), the driving motor 4 works to drive the driving shaft 5 and the conveying belt 3 to run, so that the top of the conveying belt 3 runs towards one side far away from the feeding plate 2 (at the moment, the driven shaft 6 also rotates along with the running of the driving shaft 5), the ball screw is guided to one side close to the center of the conveying belt 3 under the action of the two groups of guide plates 11, personnel drive the two groups of first telescopic rods 14 to extend according to actual needs, drive the two groups of limiting plates 13 to move to proper positions, so as to limit the ball screw, after one group of ball screws are discharged from the limiting plates 13, the motor 4 can stop running, then drive the second telescopic rods 16 to extend and drive the push plate 17 to move so as to push the ball, and falls from the blanking plate 19 (immediately thereafter the motor 4 is operated) to complete the sampling of a group of samples, and the other ball screws fall from the end of the conveyor belt 3 where they can be collected by a person.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (6)
1. The utility model provides a ball is testing platform for screw processing, includes testing stand (1), its characterized in that: the detection device is characterized in that a feeding plate (2) and a conveying belt (3) are arranged in an inner cavity of the detection frame (1), a motor (4) is fixedly welded on the outer side wall of the detection frame, a driving shaft (5) and a driven shaft (6) are further arranged in the detection frame, the driving shaft (5) penetrates through the detection frame (1) and is in transmission connection with the motor (4), two sides of the driven shaft (6) are respectively in transmission connection with two sides of the inner cavity of the detection frame (1), liquid leakage holes (7) penetrating through two sides of the feeding plate (2) are formed in the feeding plate, water storage boxes (8) are fixedly welded on two sides of the outer wall of the detection frame (1), liquid adding pipelines (10) communicated with the water storage boxes are mounted on the water storage boxes (8), two guide plates (11) symmetrically distributed on two sides of the conveying belt (3) are further arranged in the detection frame (1), the guide plates (11) are fixedly bonded with the inner cavity side wall of the detection frame (1), and a hinge (, it has the groove of accomodating to open one side that pan feeding board (2) were kept away from to detection frame (1) inner chamber, the fixed welding of the lateral wall in groove has second telescopic link (16), push pedal (17) are installed to one side that second telescopic link (16) are close to conveyer belt (3) center, the lateral wall of detection frame (1) is opened and is had and gets thing groove (18), its lateral wall fixed mounting have with get lower flitch (19) that thing groove (18) meet.
2. The detection platform for processing the ball screw according to claim 1, wherein: the two sides of the feeding plate (2) are respectively welded and fixed with the two sides of the inner cavity of the detection frame (1), one side of the feeding plate, which is close to the conveying belt (3), inclines downwards and is positioned above the conveying belt (3), and one side of the feeding plate (2), which is far away from the conveying belt (3), keeps horizontal.
3. The detection platform for processing the ball screw according to claim 1, wherein: the water pump is installed in the inner cavity of the water storage tank (8), the flow guide pipe (9) is arranged on the water pump, the flow guide pipe (9) penetrates through the top wall of the water storage tank (8) and is connected with the water pump, and one side, far away from the water storage tank (8), of the flow guide pipe is arranged above the feeding plate (2).
4. The detection platform for processing the ball screw according to claim 1, wherein: a limiting plate (13) is fixedly bonded to the outer wall of the hinge (12), and a first telescopic rod (14) is arranged on one side, away from the hinge (12), of the limiting plate (13).
5. The detection platform for processing the ball screw according to claim 4, wherein: roller bearing (15) are all installed at the both ends of first telescopic link (14), and it is connected with limiting plate (13) transmission through one of them set of roller bearing (15), first telescopic link (14) are connected with testing stand (1) transmission through another set of roller bearing (15).
6. The detection platform for processing the ball screw according to claim 1, wherein: a liquid collecting groove (20) is formed in one side, located below the feeding plate (2), of the bottom wall of the inner cavity of the detection frame (1), and a discharge hole (21) penetrating through the detection frame (1) is formed in the bottom wall of the liquid collecting groove (20).
