Abstract

The utility model discloses a front storage box structure of an electric vehicle. In the utility model, through the cooperation of the first connecting rod, the first fixing block, the second connecting rod, the first adjusting screw, the second adjusting screw, the third adjusting screw, the connecting block and the clamping plate, the screwing The function of adjusting the position of the clamping plate by moving the adjusting screw realizes the function of clamping and fixing the spherical or cylindrical objects by the two clamping plates. The clamping plate can also cooperate with the inner side wall of the storage box body. Spherical or cylindrical objects are clamped and fixed to prevent the objects from hitting the inside of the storage box body and affecting the driving experience of the driver. The rod, the first adjustment screw, the second adjustment screw, the third adjustment screw, the connection block and the clamping plate are stored to avoid affecting the use space inside the storage box body when not in use.

Description

Electric vehicle front storage box structure

technical field

The utility model relates to the technical field of storage box structures, in particular to a front storage box structure of an electric vehicle.

Background technique

In recent years, with the improvement of people's awareness of environmental protection, the electric vehicle market has continued to expand, competition has become increasingly fierce, more and more brands have been used, and more and more people use electric vehicles to travel, and people's requirements for electric vehicles to store goods are also Higher and higher.

Traditional cars generally use the trunk to store cargo and luggage, but since electric vehicles do not have an engine device, there is a lot of space in the front cabin of the vehicle to install a front storage box. At present, some electric vehicles have been installed with front storage boxes, with different structural designs, but almost all of the existing front storage boxes have the same problem, that is, when some cylindrical or spherical objects are placed inside the front storage box, the vehicle starts , during driving and braking, these objects will collide with the inner wall of the front reserve tank, which will bring a very bad driving experience to the driver.

To this end, we propose an electric vehicle front storage box structure to solve the above problems.

Utility model content

The purpose of the utility model is to solve the problems existing in the prior art, and proposes the structure of the front storage box of the electric vehicle.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

The electric vehicle front storage box structure includes a storage box body, two first fixing blocks are fixedly connected to one side inner wall of the storage box body, and the first fixing blocks are connected with a first connecting rod through a first adjusting screw, The top of one end of the first connecting rod away from the first fixing block is connected with a second connecting rod through a second adjustment screw, and the bottom of one end of the second connecting rod away from the first connecting rod is connected with a connecting block through a third adjustment screw, An arc-shaped clamping plate is fixedly connected to the outer side wall of the connecting block, and an elastic band is installed on the inner side wall of the storage box body on one side away from the first fixing block.

Preferably, the inner side wall of the storage box body is provided with a protective layer.

Preferably, an inner side wall of one side of the storage box body close to the first fixing block is provided with a receiving groove.

Preferably, a protective layer is provided on the side of the clamping plate away from the connection block.

Preferably, both ends of the elastic band are fixedly connected with a second fixing block, and the second fixing block is fixedly connected with the inner side wall of the storage box body through a fixing screw.

The technical solutions provided by the embodiments of the present utility model may include the following beneficial effects:

1. Through the cooperation of the first connecting rod, the first fixing block, the second connecting rod, the first adjusting screw, the second adjusting screw, the third adjusting screw, the connecting block and the clamping plate, it is possible to achieve the The function of adjusting the position of the clamping plate realizes the function of clamping and fixing spherical or cylindrical objects by two clamping plates. The storage box body is also provided with a storage slot, which is convenient for the second connecting rod, the first connecting rod, the third connecting rod and the third connecting rod. An adjustment screw, a second adjustment screw, a third adjustment screw, a connection block and a clamping plate are stored to avoid affecting the use space inside the storage box body when not in use;

2. Through the cooperation of the elastic belt, the second fixing block and the fixing screw, the effect of fixing the two ends of the elastic belt on the inner side wall of the storage box body is achieved, and the function of facilitating the fixing of cylindrical items is realized. It also facilitates the replacement of damaged elastic straps.

Description of drawings

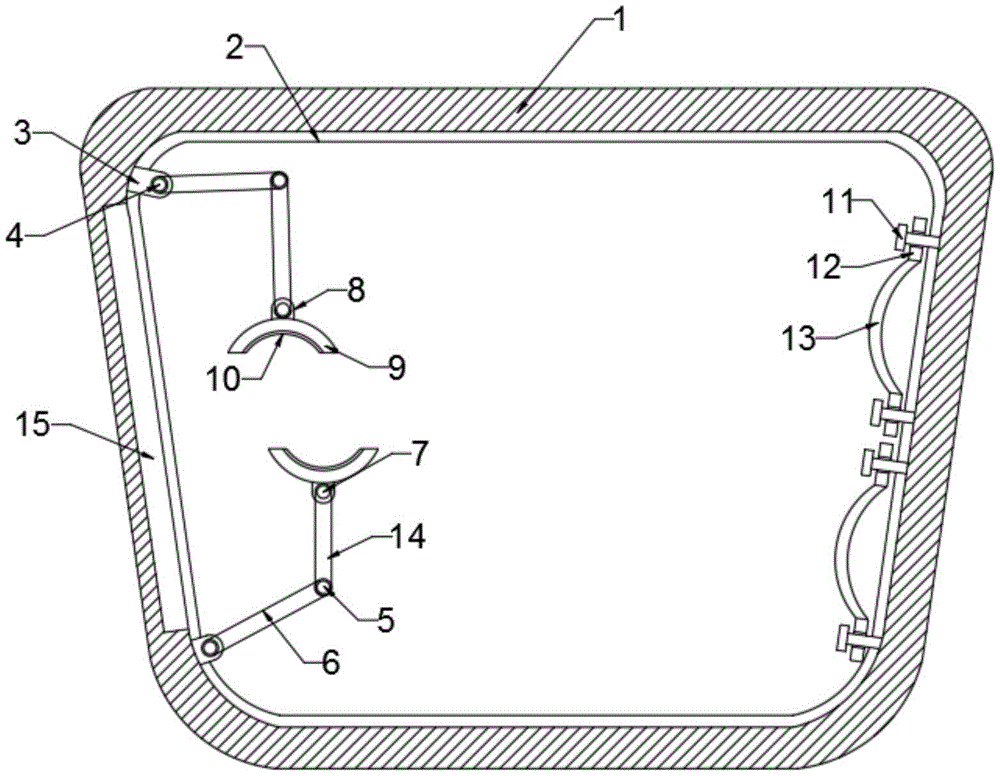

Fig. 1 is the structural representation of the electric vehicle front storage box structure proposed by the utility model;

2 is the first fixing block, the first adjusting screw, the first connecting rod, the second adjusting screw, the second connecting rod, the third adjusting screw, the connecting block and the clamping rod in the electric vehicle front storage box structure proposed by the present invention Schematic diagram of the connection structure of the board.

In the figure: 1. Storage box body; 2. Protective layer; 3. First fixing block; 4. First adjusting screw; 5. Second adjusting screw; 6. First connecting rod; 7. Third adjusting screw; 8 , connecting block; 9, clamping plate; 10, protective layer; 11, fixing screw; 12, second fixing block; 13, elastic band; 14, second connecting rod; 15, receiving slot.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-2 , the electric vehicle front storage box structure includes a storage box body 1 , and two first fixing blocks 3 are fixedly connected to one side inner wall of the storage box body 1 , and the first fixing blocks 3 are connected by a first adjusting screw 4 A first connecting rod 6 is connected, the top of one end of the first connecting rod 6 away from the first fixing block 3 is connected with a second connecting rod 14 through the second adjusting screw 5, and the bottom of one end of the second connecting rod 14 is far away from the first connecting rod 6 A connecting block 8 is connected through the third adjusting screw 7, and the outer side wall of the connecting block 8 is fixedly connected with a clamping plate 9 arranged in an arc shape. The function of the first adjusting screw 4 is to adjust one end of the first connecting rod 6 to the first Rotating between the fixing blocks 3, at the same time, one end of the first connecting rod 6 and the first fixing block 3 can be stably fixed together. The function of the second adjusting screw 5 and the third adjusting screw 7 is the same as that of the first adjusting screw 4. The function is the same. It should be noted that the first adjusting screw 4, the second adjusting screw 5 and the third adjusting screw 7 are all handle screws, the purpose is to facilitate the adjustment of the position of the clamping plate 9, so that the two clamping plates The spherical or cylindrical objects can be clamped and fixed. The clamping plate 9 can also cooperate with the inner side wall of the storage box body 1 to clamp and fix the spherical or cylindrical objects, so as to prevent the objects from hitting the storage box body 1. Inside, it affects the driver's driving experience.

The inner side wall of the storage box body 1 is provided with a protective layer 2 to protect the inner side wall of the storage box body 1 .

Among them, the inner side wall of the storage box body 1 close to the first fixing block 3 is provided with a receiving slot 15, the second connecting rod 14, the first adjusting screw 4, the second adjusting screw 5, the third adjusting screw 7, the first connecting rod The rod 6 , the connecting block 8 and the clamping plate 9 are stored to avoid affecting the use space inside the storage box body 1 when not in use.

A protective layer 10 is provided on the side of the clamping plate 9 away from the connection block 8 to prevent the clamping plate 9 from causing damage to the outer surface of the object.

An elastic band 13 is installed on the inner side wall of the storage box body 1 away from the first fixing block 3 , and both ends of the elastic band 13 are fixedly connected with a second fixing block 12 . The inner side wall of the box body 1 is fixedly connected, and the elastic band 13 cooperates with the inner side wall of the storage box body 1 to support and fix the cylindrical article. Both ends of the elastic band 13 are connected to the storage box through the fixing screw 11 and the second fixing block 12. The inner side walls of the main body 1 are fixedly connected to facilitate the installation and disassembly of the elastic band 13 and to facilitate the replacement of the damaged elastic band 13 .

In the present invention, when spherical or cylindrical objects need to be clamped and fixed, two clamping plates 9 can be selected according to the size of the spherical or cylindrical objects and the remaining available space inside the storage box body 1 . Cooperate to clamp and fix spherical or cylindrical items, or use a clamping plate 9 to cooperate with the inner side wall of the storage box body 1 to clamp and fix spherical or cylindrical items. When holding and fixing, you can choose to use two clamping plates 9 to clamp and fix cylindrical objects, one clamping plate 9 to cooperate with the inner side wall of the storage box body 1 to clamp and fix cylindrical objects, or elastic belt 13 to clamp and fix cylindrical objects. The inner side wall of the storage box body 1 cooperates to clamp and fix the cylindrical objects. The electric vehicle front storage box structure has a simple fixing method for spherical or cylindrical objects, which can avoid the spherical or cylindrical objects in the process of starting, running or braking of the electric vehicle. Or cylindrical objects roll inside the storage box body 1 and collide with the inner side wall of the storage box body 1, which affects the driver's driving experience, and can also prevent spherical or cylindrical objects from inside the storage box body 1. Items are damaged due to the collision between rolling and the inner side wall of the storage box body 1. In addition, the electric vehicle front storage box structure will not affect the use space inside the storage box body 1 when not in use. practicality.

The standard parts used in the utility model can be purchased from the market, the special-shaped parts can be customized according to the description in the specification and the drawings, and the specific connection method of each part adopts the mature bolts, rivets and welding in the prior art. and other conventional means, the machinery, parts and equipment all use conventional models in the prior art, which will not be described in detail here.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.
