Abstract

The utility model discloses a powder food raw material mixing mixer, comprising a body, a motor is fixedly connected to the right side of the body, a transmission rod is movably connected to the output end of the motor, and the surface of the transmission rod is from top to bottom A first pulley and a first bevel gear are arranged in sequence, a water tank is arranged at the bottom of the body, a second bevel gear is meshed and connected to the left side of the first bevel gear, and the left side of the second bevel gear is connected. The side is fixedly connected with a rotating shaft, the bottom of the body is provided with a second pulley, the top of the second pulley is fixedly connected with a stirring shaft, and the top of the stirring shaft penetrates the body and extends to the inner cavity. It solves the problem that solid residues are easily left on the inner wall of the traditional food raw material mixing mixer after use, and the traditional cleaning method has poor cleaning effect, which leads to the problem of bacteria being easily grown inside the machine.

Description

A kind of powder food raw material mixing mixer

technical field

The utility model relates to the technical field of food processing equipment, in particular to a powder food raw material mixing mixer.

Background technique

In the process of processing food raw materials, it is often necessary to use corresponding processing equipment. Food machinery can process food raw materials into finished products or semi-finished products. There are many kinds of them, and stirring equipment is one of them. The existing stirring equipment mechanism is relatively simple , after stirring and mixing one or more raw materials, the inner wall of the machine is prone to have food residues, and the existing cleaning method of the inner wall of the machine is to spray the inner wall of the machine through a high-pressure nozzle, and the cleaning efficiency is low. As a result, the residue on the inner wall cannot be cleaned in time, which easily leads to the growth of bacteria inside the machine, which affects the product quality of the finished product. For this reason, we propose a powder food raw material mixing mixer.

Utility model content

The purpose of the utility model is to provide a powder food raw material mixing mixer, which has the advantages of high cleaning efficiency and avoids the breeding of bacteria inside the machine, and solves the problem of the traditional food raw material mixing mixer. , and the traditional cleaning method, the cleaning effect is poor, resulting in the problem of bacteria breeding inside the machine.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a powder food raw material mixing mixer, comprising a body, the right side of the body is fixedly connected with a motor, and the output end of the motor is movably connected with a transmission rod, the A first pulley and a first bevel gear are arranged on the surface of the transmission rod in sequence from top to bottom, a water tank is arranged at the bottom of the body, and a second bevel gear is meshed and connected to the left side of the first bevel gear, so The left side of the second bevel gear is fixedly connected with a rotating shaft, the bottom of the body is provided with a second pulley, the top of the second pulley is fixedly connected with a stirring shaft, and the top of the stirring shaft penetrates the body and extends to the inside The surface of the stirring shaft is fixedly connected with a plurality of connecting rods, and one end of the connecting rods away from the stirring shaft is fixedly connected with a flexible brush. The side of the flexible brush facing the inner wall of the body is provided with a flexible scraper. The left side is fixedly connected with a water pump, the bottom and the top of the water pump are respectively movably connected with a first conduit and a second conduit, the right side of the body is fixedly connected with a control mechanism, the back of the body is provided with a filter box, the The output end of the control mechanism is electrically connected in one direction with the input end of the motor and the water pump, respectively.

Preferably, a transmission belt is drivingly connected between the first pulley and the second pulley.

Preferably, the surface of the rotating shaft is fixedly connected with a helical blade, and the bottom of the first conduit penetrates the water tank and extends to the inner cavity of the water tank.

Preferably, the middle and upper part of the inner cavity of the stirring shaft and the connecting rod are both hollow structures, and the bottom of the inner cavity of the stirring shaft is a solid structure, the end of the second conduit away from the water pump is provided with a high-pressure nozzle, and the The top penetrates the body and extends to the outside, and a hollow vessel is movably installed on the top of the stirring shaft.

Preferably, the surface of the stirring shaft is fixedly connected with a plurality of stirring blades, the back of the body is provided with a water outlet pipe, the top of the water outlet pipe is provided with a valve, and the bottom of the water outlet pipe penetrates the filter box and extends to the inside cavity.

Preferably, an impurity filter screen is movably installed in the inner cavity of the filter box, a water conduit is arranged at the bottom of the filter box, and the end of the water conduit away from the filter box penetrates the water tank and extends to the inner cavity.

Preferably, the top and bottom of the left side of the front of the body are respectively provided with a feeding nozzle and a discharging nozzle, the front of the body is provided with a viewing window, and the top and bottom of the front of the water tank are respectively provided with water inlet nozzles and a water outlet, and the control mechanism is a PLC controller.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

In the utility model, when the staff needs to clean the inside of the body, the control mechanism controls the motor, the motor drives the transmission rod to run, the transmission rod drives the first pulley and the first bevel gear to run, and the first pulley, the transmission rod and the The cooperation of the second pulley drives the stirring shaft, the connecting rod, the flexible brush and the flexible scraper to clean the inner wall of the body, and through the cooperation of the first bevel gear, the second bevel gear, the rotating shaft and the helical blade, the inside of the water tank is cleaned. The cleaning liquid is evenly stirred, and the stirred liquid is exported through the water pump, the first conduit and the second conduit, and the liquid is introduced into the stirring shaft and connecting rod through the hollow vessel through the high-pressure nozzle. The connecting rods are all hollow structures, which are convenient for the circulation of cleaning liquid, and the end of the connecting rods away from the stirring shaft runs through the flexible brush, so that the liquid can contact the inner wall of the machine, and the inner wall is cleaned by the flexible scraper. The water outlet pipe is convenient to export the cleaned liquid, and filter the impurities in the liquid through the filter box and the impurity filter screen, and then reuse the liquid for many times, thus saving the water source.

Description of drawings

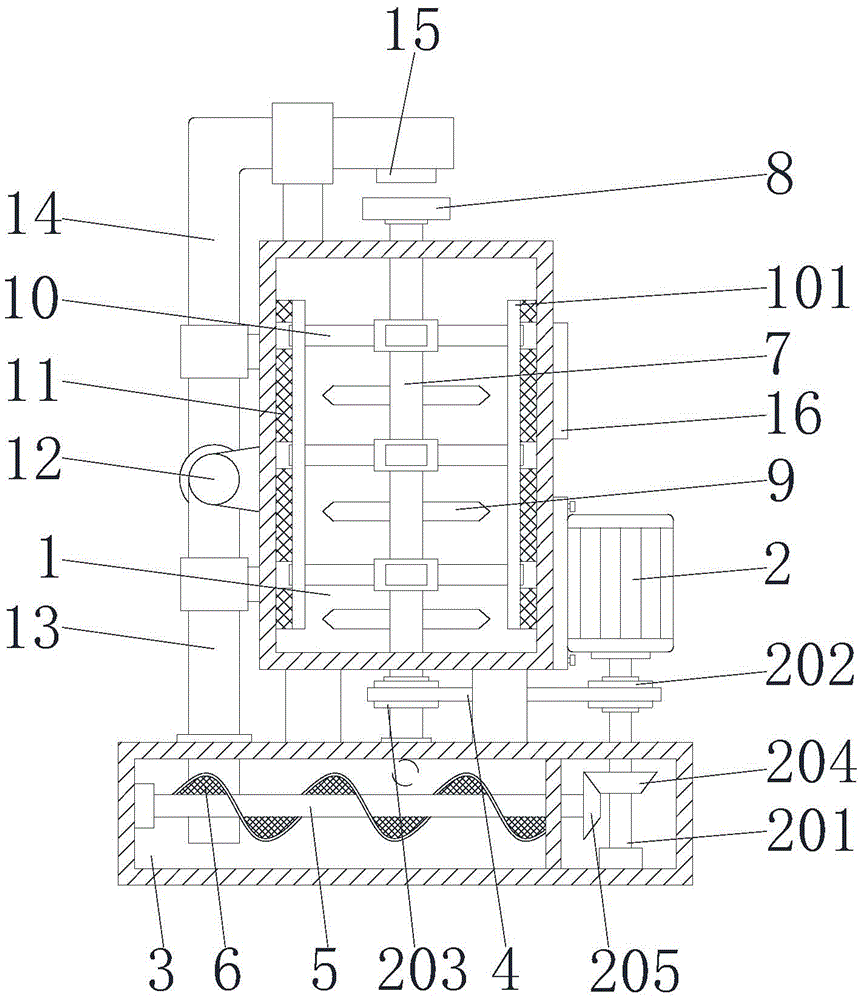

Fig. 1 is the structural representation of the utility model;

2 is a schematic diagram of the back of the utility model;

Fig. 3 is the front view of the utility model;

Fig. 4 is the top view of the utility model body;

Fig. 5 is the internal schematic diagram of the stirring shaft and the connecting rod of the present invention.

In the figure: 1 body, 2 motor, 201 transmission rod, 202 first pulley, 203 second pulley, 204 first bevel gear, 205 second bevel gear, 3 water tank, 4 transmission belt, 5 rotating shaft, 6 spiral blades, 7 stirring shaft, 8 hollow vessel, 9 stirring blade, 10 connecting rod, 101 flexible brush, 11 flexible scraper, 12 water pump, 13 first conduit, 14 second conduit, 15 high pressure nozzle, 16 control mechanism, 17 filter box, 18 water outlet pipes, 19 impurity filters.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Please refer to Figures 1-5, a powder food raw material mixing mixer, including a body 1, a motor 2 is fixedly connected to the right side of the body 1, and a transmission rod 201 is movably connected to the output end of the motor 2, and the surface of the transmission rod 201 is from above. A first pulley 202 and a first bevel gear 204 are arranged in sequence from the bottom, a water tank 3 is arranged at the bottom of the body 1, a second bevel gear 205 is meshed and connected to the left side of the first bevel gear 204, and the second bevel gear The left side of 205 is fixedly connected with the rotating shaft 5, the bottom of the body 1 is provided with a second pulley 203, the top of the second pulley 203 is fixedly connected with a stirring shaft 7, and the top of the stirring shaft 7 runs through the body 1 and extends to the inner cavity. The surface of 7 is fixedly connected with a plurality of connecting rods 10, and one end of the connecting rod 10 away from the stirring shaft 7 is fixedly connected with a flexible brush 101. The side of the flexible brush 101 facing the inner wall of the body 1 is provided with a flexible scraper 11, and the left side of the body 1 is fixed A water pump 12 is connected, the bottom and the top of the water pump 12 are respectively connected with a first conduit 13 and a second conduit 14, the right side of the body 1 is fixedly connected with a control mechanism 16, the back of the body 1 is provided with a filter box 17, the control mechanism 16 The output terminals of the motor 2 and the input terminals of the water pump 12 are unidirectionally electrically connected respectively.

Preferably, a transmission belt 4 is drivingly connected between the first pulley 202 and the second pulley 203 , and the first pulley 202 can drive the second pulley 203 to run synchronously through the transmission belt 4 .

Preferably, the surface of the rotating shaft 5 is fixedly connected with a helical blade 6 , and the bottom of the first conduit 13 penetrates the water tank 3 and extends to the inner cavity of the water tank 3 .

Preferably, the middle and upper part of the inner cavity of the stirring shaft 7 and the connecting rod 10 are both hollow structures, and the bottom of the inner cavity of the stirring shaft 7 is a solid structure. The top of the stirring shaft 7 runs through the body 1 and extends to the outside, and the top of the stirring shaft 7 is movably installed with a hollow vessel 8. By setting the stirring shaft 7 and the connecting rod 10 with a hollow structure, it is convenient for the cleaning liquid to be introduced into the body 1, so that the cleaning liquid can be fully mixed with the body 1. The inner wall of the body 1 is in contact with the flexible scraper 11, thereby achieving better cleaning efficiency.

Preferably, the surface of the stirring shaft 7 is fixedly connected with a plurality of stirring blades 9, the back of the body 1 is provided with a water outlet pipe 18, the top of the water outlet pipe 18 is provided with a valve, and the bottom of the water outlet pipe 18 penetrates the filter box 17 and extends to the inner cavity , through the stirring blade 9, the mixing efficiency of the body 1 to the food raw materials is improved, and the cleaning liquid can be discharged through the water outlet pipe 18 and the valve.

Preferably, an impurity filter screen 19 is movably installed in the inner cavity of the filter box 17 , a water conduit is arranged at the bottom of the filter box 17 , and the end of the water conduit away from the filter box 17 penetrates the water tank 3 and extends to the inner cavity, passing through the impurity filter screen 19 , to filter the solid impurities remaining in the cleaning liquid, and the filtered liquid is returned to the water tank 3 through the aqueduct for recycling.

Preferably, the top and bottom of the left side of the front of the body 1 are respectively provided with a feeding nozzle and a discharging nozzle, the front of the body 1 is provided with a visual window, and the top and bottom of the front of the water tank 3 are respectively provided with a water inlet and outlet pipes The control mechanism 16 is a PLC controller.

When in use, when the staff needs to clean the inside of the body 1, the motor 2 is controlled by the control mechanism 16, the transmission rod 201 is driven by the motor 2 to run, and the first pulley 202 and the first bevel gear 204 are driven by the transmission rod 201 to run. The cooperation of the first pulley 202, the transmission rod 201 and the second pulley 203 drives the stirring shaft 7, the connecting rod 10, the flexible brush 101 and the flexible scraper 11 to clean the inner wall of the body 1, and the first bevel gear 204, The cooperation of the second conical gear 205, the rotating shaft 5 and the helical blade 6 uniformly stirs the cleaning liquid inside the water tank 3, and the stirred liquid is led out through the water pump 12, the first conduit 13 and the second conduit 14, And through the high-pressure nozzle 15, the liquid is introduced into the stirring shaft 7 and the connecting rod 10 through the hollow vessel 8. Since the stirring shaft 7 and the connecting rod 10 are both hollow structures, the circulation of the cleaning liquid is convenient, and the connecting rod 10 is far away from the stirring shaft 7. One end runs through the flexible brush 101, so that the liquid can be in contact with the inner wall of the body 1, and the inner wall is cleaned by the flexible scraper 11, and through the water outlet pipe 18, the cleaned liquid can be easily led out and passed through the filter box. 17 and the impurity filter 19, filter the impurities in the liquid, and then use the liquid for many times, thus achieving the effect of saving water sources.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a mixed mixer of likepowder food raw materials, includes organism (1), the right side fixedly connected with motor (2) of organism (1), its characterized in that: the output end swing joint of motor (2) has transfer line (201), the surface of transfer line (201) has set gradually first belt pulley (202) and first conical gear (204) from last to down, the bottom of organism (1) is provided with water tank (3), the left side meshing of first conical gear (204) is connected with second conical gear (205), the left side fixedly connected with pivot (5) of second conical gear (205), the bottom of organism (1) is provided with second belt pulley (203), the top fixedly connected with (mixing) shaft (7) of second belt pulley (203), the top of (mixing) shaft (7) runs through organism (1) and extends to the inner chamber, the fixed surface of (mixing) shaft (7) is connected with a plurality of connecting rods (10), the one end fixedly connected with flexible brush (101) of (mixing) shaft (7) are kept away from to connecting rod (10), the flexible brush (101) is provided with flexible doctor-bar (11) towards the one side of organism (1) inner wall, the left side fixedly connected with water pump (12) of organism (1), the bottom and the top of water pump (12) respectively swing joint have first pipe (13) and second pipe (14), the right side fixedly connected with control mechanism (16) of organism (1), the back of organism (1) is provided with filter box (17), the output of control mechanism (16) respectively with the one-way electric connection of input of motor (2) and water pump (12).

2. The mixing and stirring machine for powdery food materials according to claim 1, wherein: a transmission belt (4) is connected between the first belt pulley (202) and the second belt pulley (203) in a transmission way.

3. The mixing and stirring machine for powdery food materials according to claim 1, wherein: the surface of the rotating shaft (5) is fixedly connected with a helical blade (6), and the bottom of the first conduit (13) penetrates through the water tank (3) and extends to the inner cavity of the water tank (3).

4. The mixing and stirring machine for powdery food materials according to claim 1, wherein: the middle-upper part of (mixing) shaft (7) inner chamber and connecting rod (10) are hollow structure, and the bottom in (mixing) shaft (7) inner chamber is solid construction, the one end that water pump (12) were kept away from in second pipe (14) is provided with high pressure nozzle (15), the top of (mixing) shaft (7) runs through organism (1) and extends to the outside, the top movable mounting of (mixing) shaft (7) has hollow household utensils (8).

5. The mixing and stirring machine for powdery food materials according to claim 1, wherein: the surface fixed connection of (mixing) shaft (7) has a plurality of stirring vane (9), the back of organism (1) is provided with outlet pipe (18), the top of outlet pipe (18) is provided with the valve, the bottom of outlet pipe (18) runs through filter box (17) and extends to the inner chamber.

6. The mixing and stirring machine for powdery food materials according to claim 1, wherein: the inner chamber movable mounting of filter box (17) has impurity filter screen (19), the bottom of filter box (17) is provided with the aqueduct, and the one end that the aqueduct kept away from filter box (17) runs through water tank (3) and extends to the inner chamber.

7. The mixing and stirring machine for powdery food materials according to claim 1, wherein: the machine body (1) is provided with a feeding pipe opening and a discharging pipe opening at the top and the bottom on the left side of the front side respectively, the front side of the machine body (1) is provided with a visual window, the top and the bottom on the front side of the water tank (3) are provided with a water inlet pipe opening and a water outlet pipe opening respectively, and the control mechanism (16) is a PLC (programmable logic controller).
