Abstract

The utility model discloses an efficient energy-saving purification treatment device for industrial smoke and dust, which comprises an installation box body, the bottom end of the inner side of the installation box body is filled with water, and the outer side walls of the top end and the bottom end of the installation box body are respectively inserted with a water inlet pipe and a water inlet pipe. A drain pipe, and the bottom end of the water inlet pipe extends to the bottom end of the inside of the installation box. The end of the drain pipe away from the installation box is connected with a pumping device. The water inlet pipe is respectively connected with a water injection pipe and an air intake pipe. A water injection device and an air pump are respectively connected, a stirring device is installed in the installation box, and a dust filter cloth is detachably installed at the top of the installation box. In the utility model, the waste gas and water are injected into the water of the installation box together. After the water and the waste gas contact each other, the soluble harmful substances and dust in the waste gas can be adsorbed, and the insoluble waste gas is filtered by a dust filter cloth and then removed from the installation box. The top flows out, so that the smoke and dust can be completely treated to avoid the occurrence of smoke and dust residues.

Description

An efficient energy-saving purification treatment device for industrial smoke and dust

technical field

The utility model relates to the technical field of industrial fume and waste gas treatment, in particular to an efficient energy-saving purification treatment device for industrial fume and dust.

Background technique

Industrial waste gas refers to the general term for various pollutant-containing gases discharged into the air generated during the fuel combustion and production process in the factory area of the enterprise. These waste gases include carbon dioxide, carbon disulfide, hydrogen sulfide, fluoride, nitrogen oxides, chlorine, hydrogen chloride, Carbon monoxide, sulfuric acid, lead and mercury, beryllium compounds, soot and productive dust will pollute the air when they are discharged into the atmosphere. These substances enter the human body through the respiratory tract through different channels, some directly cause harm, and some also accumulate, which will cause more Serious harm to human health, different substances will have different effects, there are still a lot of smoke and dust in a lot of industrial waste gas.

Existing industrial waste gas treatment devices are not only unable to completely treat the smoke and dust, resulting in the residue of smoke and dust, thereby causing pollution to the environment, and the treatment efficiency is low, so it needs to be improved.

Utility model content

The purpose of the utility model is to solve the problems that the industrial waste gas treatment device in the prior art cannot completely treat the smoke and the treatment efficiency is low, and proposes an efficient energy-saving purification treatment device for industrial smoke.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

An efficient industrial smoke and dust energy-saving purification treatment device includes an installation box, the bottom end of the inside of the installation box is filled with water, and the outer side walls of the top and bottom ends of the installation box are respectively inserted with a water inlet pipe and a drain. The bottom end of the water inlet pipe extends to the bottom end of the inside of the installation box, the end of the drain pipe away from the installation box is connected with a water pumping device, and the water inlet pipe is respectively connected with a water injection pipe and an air intake pipe. A water injection device and an air pump are respectively connected to the water pipe and the air inlet pipe, a stirring device is installed in the installation box, a dust filter cloth is detachably installed on the top of the installation box, and a drainage port is opened on the bottom wall of the installation box , a solenoid valve is installed in the water outlet, and an observation window is installed on the outer side wall of the installation box.

Preferably, a ferrule that cooperates with the water inlet pipe is fixedly installed on the inner side wall of the bottom end of the installation box.

Preferably, one-way valves are installed on both ends of the water injection pipe and the air inlet pipe close to the water inlet pipe.

Preferably, the stirring device includes a mounting plate fixedly installed in the mounting box, the mounting plate is rotatably mounted with a stirring shaft, the outer side wall of the mounting box is fixedly mounted with a drive motor, and the output of the drive motor The end is connected with a rotating shaft, and the rotating shaft extends into the installation box. The adjacent ends of the stirring shaft and the rotating shaft are respectively fixedly installed with a first bevel gear and a second bevel gear, and the first bevel gear and the second bevel gear are meshed with each other.

Preferably, the mounting plate is provided with a movable groove that cooperates with the stirring shaft, an annular limit block is fixedly installed on the outer side wall of the stirring shaft, and the annular limit block is inserted on the inner side wall of the movable groove, The inner side wall of the movable groove is provided with an annular limit groove which cooperates with the annular limit block.

Preferably, an installation frame is placed on the top of the installation box, the dust filter cloth is fixedly installed on the inner side wall of the installation frame, and a plurality of fastening screws are evenly inserted on the top wall of the installation frame, and the fastening screws They all penetrate the installation frame and are screwed on the top wall of the installation box.

Compared with the prior art, the utility model has the following beneficial effects:

1. Inject the waste gas and water into the water of the installation box together. After the water and the waste gas contact each other, the soluble harmful substances and dust in the waste gas can be adsorbed. The insoluble waste gas is filtered by the dust filter cloth and then flows out from the top of the installation box. , so that the smoke and dust can be thoroughly treated to avoid the occurrence of smoke and dust residues;

2. There is a stirring device in the installation box. The stirring device can accelerate the flow of water in the installation box, which not only improves the adsorption effect of water on soluble harmful substances, but also improves the adsorption efficiency of soluble harmful substances, thereby greatly improving The treatment efficiency of exhaust gas is improved, and the design is reasonable.

Description of drawings

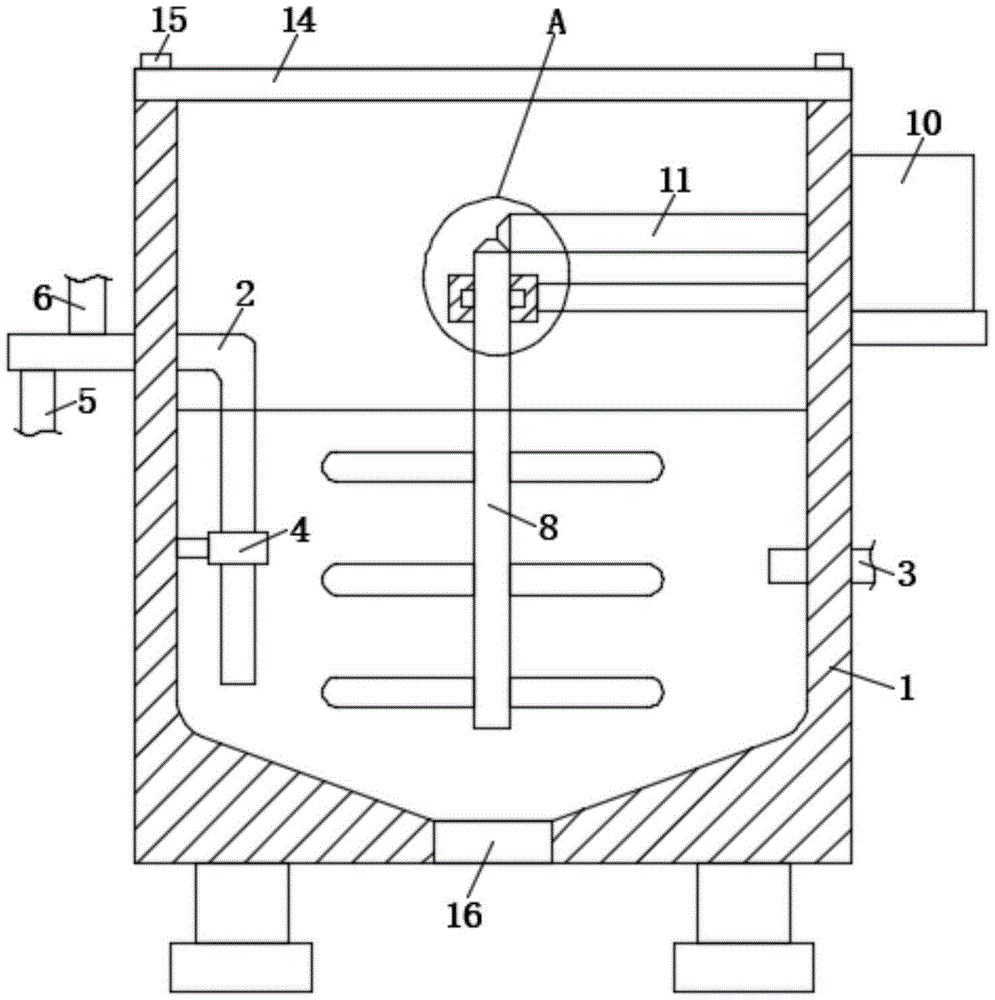

1 is a schematic cross-sectional view of the front structure of an efficient industrial soot energy-saving purification treatment device proposed by the utility model;

Fig. 2 is the front structure schematic diagram of a kind of efficient industrial fume energy-saving purification treatment device proposed by the utility model;

3 is an enlarged view of the structure of part A of an efficient industrial fume energy-saving purification treatment device proposed by the utility model.

In the picture: 1 installation box, 2 water inlet pipe, 3 drain pipe, 4 ferrule, 5 water injection pipe, 6 air inlet pipe, 7 mounting plate, 8 stirring shaft, 9 annular limit block, 10 driving motor, 11 rotating shaft, 12 First bevel gear, 13 second bevel gear, 14 mounting frame, 15 fastening screws, 16 solenoid valve.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation , are constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

1-3, an efficient industrial smoke and dust energy-saving purification treatment device includes an installation box 1, the bottom end of the inside of the installation box 1 is filled with water, and the outer side walls of the top and bottom ends of the installation box 1 are respectively inserted. There are a water inlet pipe 2 and a drain pipe 3, and the bottom end of the water inlet pipe 2 extends to the bottom end of the inside of the installation box 1, and the inner side wall of the bottom end of the installation box 1 is fixedly installed with a ferrule 4 that cooperates with the water inlet pipe 2. The installation stability of the water inlet pipe 2 can be improved. The end of the drain pipe 3 away from the installation box 1 is connected with a water pumping device. The water inlet pipe 2 is connected with a water injection pipe 5 and an air intake pipe 6 respectively. There are water injection equipment and air pump. The water injection equipment and air pump inject water and waste gas into the water inlet pipe 2 and the installation box 1 through the water injection pipe 5 and the air inlet pipe 6 respectively. For adsorption, water injection equipment, air pump and water pumping equipment are all commonly used equipment, which are not limited here.

One end of the water injection pipe 5 and the air inlet pipe 6 near the water inlet pipe 2 is equipped with a one-way valve, which can prevent gas and water from flowing back into the water injection pipe 5 and the air inlet pipe 6 .

A stirring device is installed in the installation box 1, and the stirring device includes a mounting plate 7 fixedly installed in the installation box 1, and a stirring shaft 8 is rotatably installed on the mounting plate 7, and a stirring shaft 8 is provided on the mounting plate 7 to cooperate with each other. In the movable groove, an annular limit block 9 is fixedly installed on the outer side wall of the stirring shaft 8, and the annular limit block 9 is inserted on the inner side wall of the movable groove. The matching annular limit groove makes the stirring shaft 8 only rotate without moving up and down.

A drive motor 10 is fixedly installed on the outer side wall of the installation box 1, the output end of the drive motor 10 is connected with a rotating shaft 11, and the rotating shaft 11 extends into the installation box 1, and the adjacent ends of the stirring shaft 8 and the rotating shaft 11 are respectively fixed and installed There are a first bevel gear 12 and a second bevel gear 13, and the first bevel gear 12 and the second bevel gear 13 are meshed with each other, and the drive motor 10 is activated. The bevel gear 12 and the second bevel gear 13 mesh with each other, so the rotation of the first bevel gear 12 can drive the second bevel gear 13 and the stirring shaft 8 to rotate, and the rotation of the stirring shaft 8 can agitate the water in the installation box 1, not only The adsorption effect of water on soluble harmful substances is improved, and the adsorption efficiency of soluble harmful substances is improved, thereby greatly improving the treatment efficiency of waste gas, and the design is reasonable.

The top of the installation box 1 is detachably installed with a dust filter cloth, the top of the installation box 1 is placed with an installation frame 14, and the dust filter cloth is fixedly installed on the inner side wall of the installation frame 14, and the top wall of the installation frame 14 is evenly inserted. There are a plurality of fastening screws 15, and the fastening screws 15 all penetrate the installation frame 14 and are threadedly connected to the top wall of the installation box 1, so that the installation frame 14 and the dust filter cloth can be easily installed and removed, and the dust filter can be easily installed and removed. The cloth is cleaned and replaced, and the installation box 1 can be easily cleaned from the top of the installation box 1. The bottom wall of the installation box 1 is provided with a drain port, and a solenoid valve 16 is installed in the drain port, which is convenient for the installation box. The impurities after cleaning in the body 1 are discharged, and an observation window is installed on the outer side wall of the installation box 1 to facilitate the intuitive observation of the installation box 1 .

In the utility model, the water injection equipment and the air pump inject water and waste gas into the water inlet pipe 2 and the installation box 1 through the water injection pipe 5 and the air inlet pipe 6 respectively. Adsorption, the insoluble waste gas flows to the water surface and then flows out from the top of the installation box 1 after being filtered by a dust filter cloth. The water pumping equipment can extract the water in the installation box 1. The water surface is kept at a fixed height, and the water in the installation box 1 can be pumped out by the pumping equipment in time to prevent the soluble harmful substances in the water in the installation box 1 from reaching saturation and unable to continue to absorb.

It is further stated that the above-mentioned fixed connection should be understood in a broad sense unless otherwise specified and limited. For example, it may be welding, gluing, or a conventional means known to those skilled in the art, such as integral molding.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. The utility model provides an energy-conserving purification unit of efficient industrial smoke and dust, includes installation box (1), its characterized in that: the bottom end of the inner side of the installation box body (1) is filled with water, a water inlet pipe (2) and a water outlet pipe (3) are respectively inserted on the outer side wall of the top end and the bottom end of the installation box body (1), the bottom end of the water inlet pipe (2) extends to the bottom end of the inner side of the mounting box body (1), one end of the water outlet pipe (3) far away from the mounting box body (1) is connected with a water pumping device, the water inlet pipe (2) is respectively connected with a water injection pipe (5) and an air inlet pipe (6), the water injection pipe (5) and the air inlet pipe (6) are respectively connected with a water injection device and an air pump, a stirring device is arranged in the mounting box body (1), the top end of the mounting box body (1) is detachably provided with dust filtering cloth, the water outlet is formed in the bottom wall of the installation box body (1), the electromagnetic valve (16) is installed in the water outlet, and the observation window is installed on the outer side wall of the installation box body (1).

2. The high-efficiency energy-saving industrial smoke purifying treatment device according to claim 1, characterized in that: the clamping sleeve (4) matched with the water inlet pipe (2) is fixedly arranged on the inner side wall of the bottom end of the mounting box body (1).

3. The high-efficiency energy-saving industrial smoke purifying treatment device according to claim 1, characterized in that: the one-way valve is all installed to the one end that water injection pipe (5) and intake pipe (6) are close to inlet tube (2).

4. The high-efficiency energy-saving industrial smoke purifying treatment device according to claim 1, characterized in that: agitating unit includes mounting panel (7) of fixed mounting in installation box (1), it installs (mixing) shaft (8) to rotate on mounting panel (7), fixed mounting has driving motor (10) on the lateral wall of installation box (1), the output of driving motor (10) is connected with pivot (11), and pivot (11) extend to in installation box (1), the one end that (mixing) shaft (8) and pivot (11) are adjacent is fixed mounting respectively has first bevel gear (12) and second bevel gear (13), and first bevel gear (12) and second bevel gear (13) intermeshing.

5. The high-efficiency energy-saving industrial smoke purifying treatment device according to claim 4, wherein: offer the activity groove of mutually supporting with (mixing) shaft (8) on mounting panel (7), fixed mounting has annular stopper (9) on the lateral wall of (mixing) shaft (8), and annular stopper (9) insert and establish on the inside wall in activity groove, set up the annular spacing groove of mutually supporting with annular stopper (9) on the inside wall in activity groove.

6. The high-efficiency energy-saving industrial smoke purifying treatment device according to claim 1, characterized in that: mounting frame (14) have been placed on the top of installation box (1), and strain dirt cloth fixed mounting on the inside wall of mounting frame (14), evenly insert on the roof of mounting frame (14) and be equipped with a plurality of fastening screw (15), and fastening screw (15) all run through mounting frame (14) and threaded connection on the roof of installation box (1).
