CN210903107U - A urine collector for men to collect urine samples from the front, middle and back sections - Google Patents

Abstract

The utility model discloses a urine collector for men to collect urine samples from the front, middle and back sections, in particular to the technical field of medical care, comprising a urinary catheter, a drainage tube is arranged at the bottom of the urinary catheter, and the drainage A urine collecting device is arranged at the bottom of the tube; the urine collecting device includes a urine guiding bag, and a first dividing plate and a second dividing plate are arranged inside the urine guiding bag. The utility model divides the urine collector into three storage areas by arranging the first and second partitions, the second partition is closed after the urine of the front section is discharged during the urination process of the patient, and the first partition is closed after the urine of the middle section is discharged, so that the front section of the urine is discharged. The urine of the third, second and first storage areas are respectively reserved in the third, second and first storage areas, and outflow pipes are arranged at the bottom of the third, second and first storage areas. One segment of urine can be collected from the front, middle, and rear segments at the same time, and the catheter can be directly fixed on the penis, which can effectively prevent the urine collection device from falling off, resulting in contamination and failure of specimen collection.

Description

A urine collector for men to collect urine samples from the front, middle and back sections

technical field

The utility model relates to the technical field of medical care, and more particularly, the utility model relates to a urine collector for men to collect urine samples from the front, middle and back sections.

Background technique

A urine test is a medical test. Including urine routine, urine enzyme measurement, urine bacterial culture, three-stage urine measurement, etc. Urine examination is of great value for disease diagnosis and selection of medical measures. Different urine examination items have different requirements for urine specimen collection. Routine urine, urine enzyme determination, and urine bacterial culture routinely collect mid-segment urine from the first urine after getting up in the morning, and mid-segment urine from random urine can also be collected for emergency examination. The three-stage urine measurement must be collected from the front, middle and back parts of the urine to determine the abnormality of the urinary system such as the ureter, bladder and urethra.

The utility model patent of Patent Application Publication No. CN 201945479 U discloses a urine sampler for men, comprising a urine collecting groove, a concave blocking surface is arranged on the upper part of the urine collecting groove, and a urine guiding tube is arranged on the lower end of the urine collecting groove. A switch is provided. The beneficial effects of the utility model: the male urine sampler adopts the above-mentioned technology to avoid leakage of urine, contaminating the patient's arm, sampler, bed sheet and other items, preventing the patient from being nervous and unable to urinate due to the naked body, and making it easy for the patient to urinate. Take a sample.

However, in actual use, there are still many shortcomings. For example, most urine tests require mid-section urine, and the device cannot perform segmental interception of urine, and requires multiple interceptions to accurately collect mid-section urine.

Utility model content

In order to overcome the above-mentioned defects of the prior art, the embodiment of the present utility model provides a urine collector for men to collect urine samples from front, middle and rear sections. Three storage areas, close the second partition after expelling the front section of urine during the patient's urination process, and close the first partition after expelling the middle section of urine, so that the front, middle and rear sections of urine are kept in the third, second and first storage areas respectively. There are outflow pipes at the bottom of the third, second and first storage areas. By opening the control valve on the outflow pipe, the urine of a certain section is taken out respectively, and the urine of the front, middle and rear sections can be collected at the same time. In addition, the urinary catheter is directly fixed on the penis, which can effectively prevent the urine collection device from falling off, causing pollution and failure of specimen collection, so as to solve the problems raised in the above-mentioned background art.

In order to achieve the above purpose, the utility model provides the following technical solutions: a urine collector for men to collect urine samples from the front, middle and rear sections, comprising a urinary catheter, the bottom of the urinary catheter is provided with a drainage tube, the The bottom of the drainage tube is provided with a urine collection device;

The urine collecting device comprises a urine guiding bag, a first dividing plate and a second dividing plate are arranged inside the urine guiding bag, the first dividing plate is arranged on the top of the second dividing plate, and the The first partition board and the second partition board divide the inside of the urine bag into three separate storage areas, and the three storage areas are the first storage area, the second storage area and the third storage area from top to bottom. One end of the first partition plate and the second partition plate is provided with a sealing device, the sealing device includes a first sealing plate, a second sealing plate is arranged on one side of the first sealing plate, and the first sealing plate is The side of a sealing plate facing the second sealing plate is provided with a sealing groove, the side of the second sealing plate facing the first sealing plate is provided with a sealing strip, the sealing groove is matched with the sealing strip, and the lead The side of the urine bag close to the first sealing plate is provided with a first pull ring, the side of the urine bag close to the second sealing plate is provided with a second pull ring, and the side of the first storage area and the second storage area is provided with a second pull ring Outflow pipes are arranged at the bottom of the third storage area and the third storage area, and control valves are arranged in the middle of the three outflow pipes;

In a preferred embodiment, a three-way valve is arranged in the middle of the drainage tube, and a handle is arranged on one side of the top of the urine drainage bag.

In a preferred embodiment, the urine-inducing bag is made of medical plastic material, and the first and second partitions are arranged obliquely.

In a preferred embodiment, the cross-sectional shapes of the first pull ring and the second pull ring are set as semicircles, and friction pads are provided on both sides of the urine bag close to the first pull ring and the second pull ring , the friction pad is made of rubber material.

In a preferred embodiment, the first partition plate and the second partition plate are made of plastic material, and the volumes of the first partition plate and the second partition plate are equal.

In a preferred embodiment, the urinary catheter is made of natural rubber material.

In a preferred embodiment, the cross-sectional shape of the urine-inducing bag is set to be rectangular, and the first sealing plate and the second sealing plate are respectively disposed on both sides of the inner wall of the urine-inducing bag.

Technical effects and advantages of the present utility model:

1. By being provided with a urine collection device, since both the first and second partition plates are provided with a sealing device at one end, when in use, pulling the first and second pulling rings can make the first sealing plate and the A gap is formed between the second sealing plates. After the urine enters the urine bag, it will enter the bottom layer of the urine bag along the gap, so that the urine will fill the third storage area and the second storage area in turn. And the first storage area, put your fingers into the first pull ring and the second pull ring, squeeze the urine bag, so that the sealing groove and the sealing clip are stuck, so that the third storage area, the second The storage area and the first storage area are sealed and separated, so that the urine can be divided into three sections, so that the urine that has been urinated at one time can be divided into three sections: front, middle and rear according to the order of excretion. Squeeze the second pull ring, expel the urine in the middle section and squeeze the first pull ring, so that the urine of the front, middle and rear sections is retained in the third, second and first storage areas in turn, instead of being divided into three equal parts, and the first storage area There are outflow pipes on one side of the second storage area and the bottom of the third storage area. By opening the control valve on the outflow pipe, a certain section of urine can be taken out separately, which improves the efficiency of urine collection and avoids repetition. The act of collecting urine and directly covering the penis with a catheter can effectively prevent urine from spilling and causing pollution;

2. By setting a three-way valve, since the third storage area drains the urine in the front section, and the second storage area drains the urine in the middle section, when the urine fills the third storage area at the lowest end of the urine drainage bag, turn the middle part of the drainage tube. The three-way valve makes the urine in the catheter flow out through the other outlet of the three-way valve, so that the urine in the middle section can be collected directly, which improves the collection efficiency.

Description of drawings

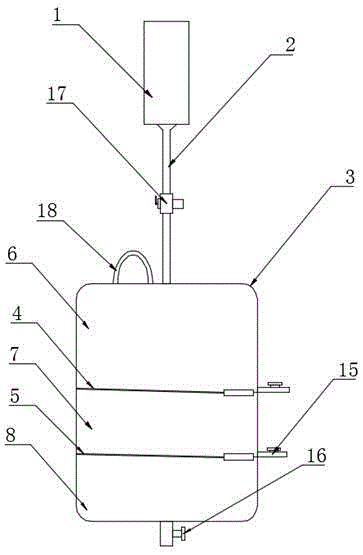

FIG. 1 is a schematic diagram of the overall structure of the present invention.

FIG. 2 is a cross-sectional view of the structure of the urine-inducing bag of the present invention.

3 is a cross-sectional view of the structure of the first sealing plate and the second sealing plate of the present invention.

FIG. 4 is a schematic structural diagram of the outlet pipe and the control valve of the present invention.

Figure 5 is a schematic structural diagram of the urinary catheter of the present invention.

Reference signs are: 1 catheter, 2 drainage tube, 3 urine drainage bag, 4 first partition plate, 5 second partition plate, 6 first storage area, 7 second storage area, 8 third storage area , 9 first sealing plate, 10 second sealing plate, 11 sealing groove, 12 sealing clip, 13 first pull ring, 14 second pull ring, 15 outlet pipe, 16 control valve, 17 three-way valve, 18 handle , 19 friction pads.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in Figures 1-5, a urine collector for men to collect urine samples from the front, middle and rear sections includes a urinary catheter 1, and a drainage tube 2 is arranged at the bottom of the urinary catheter 1. The drainage tube 2 The bottom is provided with a urine collection device;

The urine collection device includes a urine bag 3, and the urine bag 3 is provided with a first partition plate 4 and a second partition plate 5, and the first partition plate 4 is provided with a second partition plate. 5, the first partition plate 4 and the second partition plate 5 divide the inside of the urine bag 3 into three separate storage areas, and the three storage areas are the first storage areas from top to bottom. 6. The second storage area 7 and the third storage area 8, the first partition plate 4 and the second partition plate 5 are provided with a sealing device at one end, the sealing device includes a first sealing plate 9, the A second sealing plate 10 is provided on one side of a sealing plate 9 , a sealing groove 11 is provided on the side of the first sealing plate 9 facing the second sealing plate 10 , and the second sealing plate 10 faces the first sealing plate 9 . One side is provided with a sealing strip 12, the sealing groove 11 is matched with the sealing strip 12, the urine bag 3 is provided with a first pull ring 13 on the side close to the first sealing plate 9, and the urine bag 3 is provided with a first pull ring 13. 3. One side close to the second sealing plate 10 is provided with a second pull ring 14, and one side of the first storage area 6 and the second storage area 7 and the bottom of the third storage area 8 are provided with outflow pipes 15. There are three The middle of the outflow pipe 15 is provided with a control valve 16;

The urine-inducing bag 3 is made of medical plastic material, and the first partition plate 4 and the second partition plate 5 are inclined;

The first partition plate 4 and the second partition plate 5 are made of plastic materials, and the volumes of the first partition plate 4 and the second partition plate 5 are equal;

The urinary catheter 1 is made of natural rubber material, that is, the material used for making condoms.

The cross-sectional shape of the urine guiding bag 3 is set to be rectangular, and the first sealing plate 9 and the second sealing plate 10 are respectively arranged on both sides of the inner wall of the inner cavity of the urine guiding bag 3 .

The specific embodiment is: when the utility model is in use, the user's penis is placed in the urinary catheter 1, the urinary catheter 1 collects urine, and the urine in the urinary catheter 1 enters along the drainage tube 2. In the urine bag 3, because the inside of the urine bag 3 is provided with the first partition plate 4 and the second partition plate 5, and one end of the first partition plate 4 and the second partition plate 5 is provided with a sealing device, During use, the first pull ring 13 and the second pull ring 14 can be pulled to separate the sealing groove 11 from the sealing clip 12, so that a gap is formed between the first sealing plate 9 and the second sealing plate 10. After the liquid enters the urine bag 3, it will enter the bottom layer of the urine bag 3 along the gap, and the urine of one-time urination can be divided into three sections: front, middle and rear according to the order of discharge. Press the second pull ring 14 to discharge the urine in the middle section and squeeze the first pull ring 13, so that the urine of the front, middle and rear sections is retained in the third, second and first areas in turn, and the first pull ring 13 and the second pull ring are squeezed. 14 The sealing groove 11 and the sealing clip 12 can be stuck, so as to seal and separate the third storage area 8, the second storage area 7 and the first storage area 6, and the first storage area 6 and the second storage area One side of the area 7 and the bottom of the third storage area 8 are provided with an outflow pipe 15. By opening the control valve 16 on the outflow pipe 15, a certain section of urine can be taken out separately, which improves the efficiency of collecting urine and avoids the need for Repeatedly collecting urine, and directly using the catheter 1 over the penis, can effectively prevent urine from spilling and causing pollution.

As shown in FIG. 1 , a urine collector for men to collect urine samples from the front, middle and rear sections also includes a three-way valve 17, and the three-way valve 17 is arranged in the middle of the drainage tube 2. The urine drainage bag 3. A handle 18 is provided on one side of the top;

The cross-sectional shape of the first pull ring 13 and the second pull ring 14 is set to be semicircle, and the side of the urine bag 3 close to the first pull ring 13 and the second pull ring 14 is provided with a friction pad 19, so The friction pad 19 is made of rubber material.

The specific embodiment is as follows: when the utility model is in use, when the middle section of urine needs to be collected, after the urine fills the third storage area 8 at the lowest end of the urine bag 3, the three-way valve in the middle of the drainage tube 2 can be rotated. 17. The urine in the urinary catheter 1 flows out through the other outlet of the three-way valve 17, so that the urine in the middle section can be directly collected, and the collection efficiency is improved.

The working principle of the utility model:

Referring to the accompanying drawings 1-5 of the description, when the utility model is in use, the user's penis is placed in the urinary catheter 1, the urinary catheter 1 collects the urine, and the urine in the urinary catheter 1 is drained along the The tube 2 enters the urine bag 3. When in use, the first pull ring 13 and the second pull ring 14 can be pulled to separate the sealing groove 11 from the sealing clip 12, so that the first sealing plate 9 and the second sealing A gap is formed between the plates 10, and when the urine enters the urine bag 3, it will enter the bottom layer of the urine bag 3 along the gap, and the urine that has been urinated at one time can be divided into front and middle according to the order of discharge. The latter three sections are retained, and the urine of the front section is discharged, and the second pull ring 14 is squeezed, and the urine of the middle section is squeezed and the first pull ring 13 is squeezed. The first pull ring 13 and the second pull ring 14 can lock the sealing groove 11 and the sealing clip 12, so as to seal and separate the third storage area 8, the second storage area 7 and the first storage area 6, And the first storage area 6 and the second storage area 7 and the bottom of the third storage area 8 are provided with an outflow pipe 15. By opening the control valve 16 on the outflow pipe 15, a certain section of urine can be taken out separately. The efficiency of collecting urine is improved, and repeated collection of urine is avoided, and the catheter 1 is directly placed on the penis, which can effectively prevent urine from spilling and causing pollution. When the middle part of urine needs to be collected, When the urine fills the third storage area 8 at the lowest end of the urine bag 3, the three-way valve 17 in the middle of the drainage tube 2 is rotated, so that the urine in the urinary catheter 1 flows out from another outlet of the three-way valve 17, Thereby, the mid-section urine can be directly collected, and the collection efficiency is improved.

The last points to be noted are: First of all, in the description of this application, it should be noted that, unless otherwise specified and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, and may be mechanical connection. or electrical connection, or internal communication between two components, or direct connection, "up", "down", "left", "right", etc. are only used to indicate relative positional relationship, when the absolute position of the object being described changes, the relative positional relationship may change;

Secondly: in the drawings of the disclosed embodiments of the present invention, only the structures involved in the embodiments of the present invention are involved, and other structures may refer to the general design. In the case of no conflict, the same embodiment and different embodiments of the present invention can be mutually combination;

Finally: the above is only the preferred embodiment of the present utility model, and is not intended to limit the present utility model, all within the spirit and principle of the present utility model, any modification, equivalent replacement, improvement, etc. made, should include within the scope of protection of the present invention.

Claims (7)

1. The utility model provides a man stays and gets collection urine ware of preceding, middle and back three-section urine sample, includes catheter (1), its characterized in that: a drainage tube (2) is arranged at the bottom of the catheter (1), and a urine collecting device is arranged at the bottom of the drainage tube (2);

the urine collection device comprises a urine guide bag (3), a first partition plate (4) and a second partition plate (5) are arranged inside the urine guide bag (3), the first partition plate (4) is arranged at the top of the second partition plate (5), the first partition plate (4) and the second partition plate (5) divide the urine guide bag (3) into three independent storage areas, the three storage areas are a first storage area (6), a second storage area (7) and a third storage area (8) from top to bottom in sequence, sealing devices are arranged at one ends of the first partition plate (4) and the second partition plate (5) respectively, each sealing device comprises a first sealing plate (9), a second sealing plate (10) is arranged on one side of the first sealing plate (9), and a sealing groove (11) is arranged on one side of the first sealing plate (9) facing the second sealing plate (10), second closing plate (10) is provided with sealed card strip (12) towards one side of first closing plate (9), seal groove (11) and sealed card strip (12) phase-match, one side that urine bag (3) are close to first closing plate (9) is provided with first pull ring (13), one side that urine bag (3) are close to second closing plate (10) is provided with second pull ring (14), first storage area (6) and second storage area (7) one side all are provided with outlet pipe (15), three with third storage area (8) bottom outlet pipe (15) middle part all is provided with control valve (16).

2. The urine collector for men to take three urine specimens of the front section, the middle section and the back section according to claim 1, which is characterized in that: the middle part of the drainage tube (2) is provided with a three-way valve (17), and one side of the top of the urine drainage bag (3) is provided with a handle (18).

3. The urine collector for men to take three urine specimens of the front section, the middle section and the back section according to claim 1, which is characterized in that: the urine guiding bag (3) is made of medical plastic materials, and the first partition plate (4) and the second partition plate (5) are obliquely arranged.

4. The urine collector for men to take three urine specimens of the front section, the middle section and the back section according to claim 1, which is characterized in that: the cross-sectional shapes of the first pull ring (13) and the second pull ring (14) are semicircular, friction pads (19) are arranged on one sides of the urine drainage bag (3) close to the first pull ring (13) and the second pull ring (14), and the friction pads (19) are made of rubber materials.

5. The urine collector for men to take three urine specimens of the front section, the middle section and the back section according to claim 1, which is characterized in that: the first partition plate (4) and the second partition plate (5) are made of plastic materials, and the volumes of the first partition plate (4) and the second partition plate (5) are equal.

6. The urine collector for men to take three urine specimens of the front section, the middle section and the back section according to claim 1, which is characterized in that: the catheter (1) is made of natural rubber materials.

7. The urine collector for men to take three urine specimens of the front section, the middle section and the back section according to claim 1, which is characterized in that: the cross section of the urine guiding bag (3) is rectangular, and the first sealing plate (9) and the second sealing plate (10) are respectively arranged on two sides of the inner wall of the inner cavity of the urine guiding bag (3).
