Abstract

The utility model discloses a globe with a world time query function, comprising a globe base shell, a globe sphere, a mainboard module, a display screen, a battery, a speaker, a capacitive touch panel and a transmitter. The upper part of the globe base shell is fixedly installed There is a first fixing block, and two sets of speakers are arranged on both sides of the inner bottom end of the globe base shell, a display screen is inserted into the outer wall of the globe base shell, and a motherboard module is arranged inside the globe base shell, and the back of the motherboard module is A battery compartment is arranged, and a battery is arranged inside the battery compartment, a globe sphere is arranged on the inner surface of the spherical protective film, and a capacitive touch panel is arranged inside the globe sphere, and a transmission compartment is opened inside the capacitive touch panel, And a transmitter is fixedly installed inside the transmission bin. The utility model has a simple structure, can reduce the manufacturing cost, reduce the power consumption, is convenient to use, is more popular, and has stronger independence and adaptability.

Description

A globe with world time query function

technical field

The utility model relates to the technical field of globes, in particular to a globe with a world time query function.

Background technique

In recent years, many types of globes with functions such as world time query have emerged on the market, but most of these products have not been promoted. This new type of globe is mainly divided into two categories: intelligent and mechanical. In 2004, "Technology and Markets" published that American experts have created a new type of globe: when you touch this globe with a special pen, it will display the name, population, climate and other conditions of the country you are pointing at. Statistics, and even play a short piece of the country's national anthem and national music for you, the specific location, you can also calculate the time difference between you and the country, the distance, and the time required for flight; there are also some new globes trying to introduce AR technology, with the help of the demonstration of the AR globe, helps to build a visual dynamic situation, and provides users with realistic three-dimensional vision, hearing, touch and other sensory forms to form a virtual world;

The relatively mechanized new globe is mainly composed of a globe, a ring support, a support and a time scale ring. The two poles of the globe are rotated and supported on the ring support, the support is connected to the bottom of the ring support, and the time scale ring and the ring support are connected vertically and surround. Around the globe, the time scale ring is provided with time numbers from 1 to 24 that are evenly distributed along the circumference; the surface of the globe in the world time zone is divided into 24 according to the actual administrative area graphics of each time zone in the world Time zones, adjacent time zones are distinguished by time zone boundaries or different colors. It can clearly indicate the time and relative relationship of various time zones in the world;

Some of these new globes are still traditional globes in nature, with poor portability; some need to be used with special tools or need to download application software to use, and have high requirements for networking (there may be a risk of privacy leakage); There are many technical and theoretical difficulties in the complete realization of , and the cost is very high. Therefore, in order to solve the above problems, a globe with a world time query function is proposed.

Utility model content

The purpose of the present invention is to provide a globe with a world time query function, so as to solve the problems of poor portability of the current new globes proposed in the above background technology, high requirements for networking, risk of privacy leakage, and high cost.

In order to achieve the above purpose, the utility model provides the following technical solutions: a globe with a world time query function, comprising a globe base shell, a globe sphere, a motherboard module, an SD card slot, a display screen, a battery compartment, a battery, a speaker, a first A fixed block, a second fixed block, a capacitive touch panel, a transmission bin, a transmitter, a sphere protective film and a third fixed block, the first fixed block is fixedly installed on the top of the globe base shell, and the Two sets of speakers are arranged on both sides of the inner bottom end, a display screen is inserted into the outer wall of the globe base shell, a motherboard module is arranged inside the globe base shell, and an SD card slot is fixedly installed at the bottom end of the motherboard module. The back of the mainboard module is provided with a battery compartment, a battery is arranged inside the battery compartment, a second fixing block is arranged above the first fixing block, and the second fixing block is inserted inside the third fixing block, so the The bottom end of the third fixing block is fixedly installed with a spherical protective film, the inner surface of the spherical protective film is provided with a globe sphere, the interior of the globe sphere is provided with a capacitive touch panel, and the capacitive touch panel is provided with a transmission The inside of the transport bin is fixedly installed with a transporter.

Preferably, the bottom end of the mainboard module is fixedly mounted with a mainboard base, and the bottom end of the mainboard base is provided with an I-shaped handle.

Preferably, the bottom end of the globe base shell is provided with two sets of chutes, the outer wall of the bottom end of the globe base shell is provided with a fixing plate, and the interior of the fixing plate is provided with two sets of sliding blocks.

Preferably, a card slot is formed above the first fixing block, and the first fixing block and the second fixing block are connected through the card slot.

Preferably, the bottom end of the back of the globe base shell is provided with a USB interface, and the input end of the USB interface is provided inside the battery compartment.

Preferably, the third fixed block is provided with a card slot, the second fixed block and the third fixed block are connected through the card slot, and the spherical protective film can form a rotating structure through the third fixed block and the second fixed block.

Compared with the prior art, the beneficial effects of the present utility model are:

1. In view of the shortcoming that similar products on the market are highly dependent on external devices, our globe stores the information that users need to know in the SD card module connected to the single-chip microcomputer. Users only need to touch the capacitive touch buttons on the surface of the sphere to control the globe without using any APP and external devices. In this way, it is not only convenient to use, but also has the intuitive characteristics of traditional globes, and also avoids privacy leakage when connecting external devices. In terms of technology, it is the first attempt to arrange capacitive touch buttons under the spherical surface of the globe. After the button controller feels the touch, it outputs the corresponding electrical signal to the core microcontroller. After screening and judging the signal, the microcontroller controls the voice module and the display module to simultaneously broadcast and display the content stored in the SD card. Most of the technologies involved in the work process are relatively mature. Therefore, there are not many technical and theoretical problems; because the related technologies are widely used in the market, the raw materials are relatively cheap, which greatly reduces the manufacturing cost. In terms of structure, all circuits and control structures are placed inside the base, which can better Reduce the size of the product and increase the portability of the product; in terms of power consumption, due to the use of microcontroller control technology, the power consumption is greatly reduced compared to similar products on the market.

2. The new globe has a simple structure, can reduce manufacturing costs, reduce power consumption, is easy to use, more popular, and has stronger independence and adaptability; it can be used as a new type of teaching tool to make teaching activities or course content more vivid and reduce the need for teachers. It helps to cultivate students' interest in courses, enhances the interaction between students and teachers, children and parents, improves teaching efficiency, opens a convenient door for geography teaching, and is expected to drive the innovation of traditional teaching aids; the new globe As a high-end decoration, it can also be used as a practical tool in public places to avoid waste of resources.

3. By setting the motherboard base, the I-shaped handle and the fixed plate, when the SD card needs to be replaced, the fixed plate can be opened and taken out through the slider above the fixed plate, and the motherboard module can be pulled down and replaced through the I-shaped handle, which is convenient for replacement. It is very convenient for SD card and checking if the motherboard module is faulty.

4. By setting the sphere protective film, the globe sphere can be protected to prevent some bumps during transportation and the damage to the globe sphere caused by oil stains and liquids on the hands during normal use, and prolong the service life of the globe sphere. It is very practical. The interface can charge the battery, which is convenient to carry.

Description of drawings

Fig. 1 is the structural three-dimensional schematic diagram of the present utility model;

Fig. 2 is the structural side view plan schematic diagram of the utility model;

Fig. 3 is the structural front sectional schematic diagram of the globe base shell in Fig. 1 of the utility model;

Fig. 4 is the structural side sectional schematic diagram of the globe base shell in Fig. 1 of the present utility model;

Fig. 5 is the structural side sectional schematic diagram of the globe sphere in Fig. 1 of the utility model;

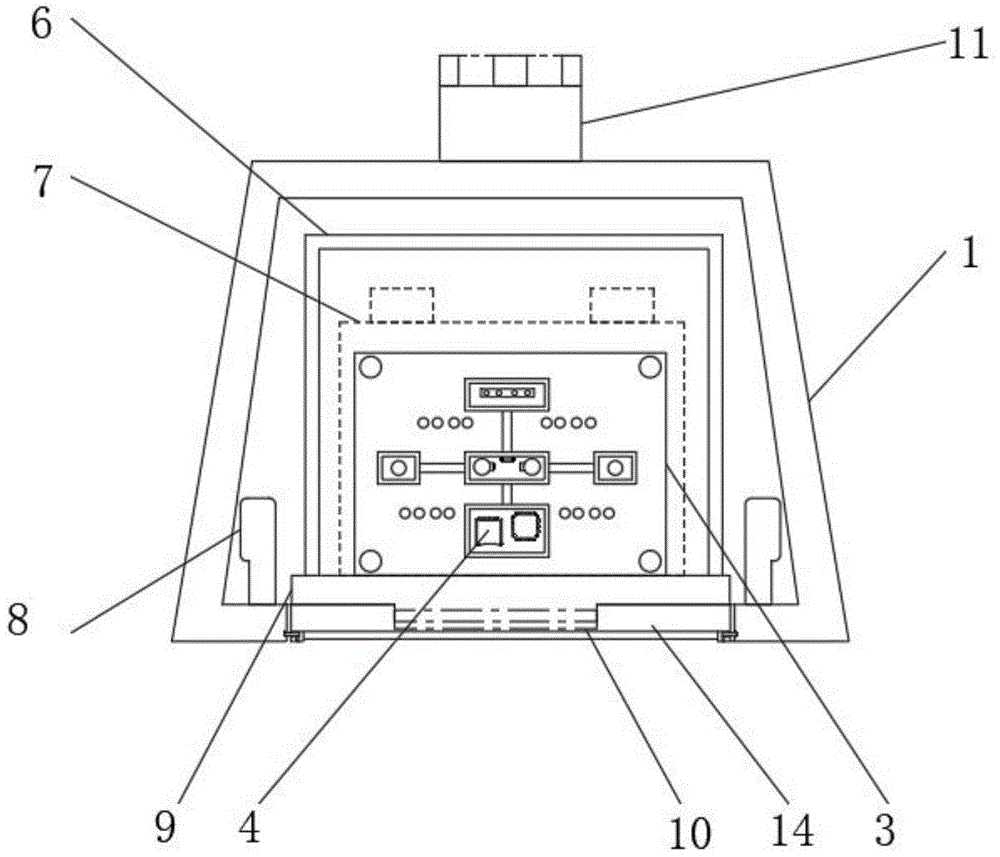

Fig. 6 is the back sectional schematic diagram of the globe base shell in Fig. 1 of the present utility model;

Fig. 7 is the front view schematic diagram of the globe base shell in Fig. 1 of the utility model;

Fig. 8 is the bottom view schematic diagram of the globe base shell in Fig. 1 of the present utility model;

9 is a schematic top view of the globe base shell and the first fixing block in FIG. 1 of the present utility model;

FIG. 10 is a schematic bottom view of the second fixing block in FIG. 1 of the present invention.

In the picture: 1. Globe base shell; 2. Globe sphere; 3. Mainboard module; 4. SD card slot; 5. Display screen; 6. Battery compartment; 7. Battery; 8. Speaker; 9. Mainboard base; 10. I-shaped handle; 11, the first fixing block; 12, the second fixing block; 13, the capacitive touch panel; 14, the fixing plate; 15, the transmission bin; 16, the transmitter; 17, the sphere protective film; 18, the third Fixed block; 19. USB interface.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1-10, an embodiment provided by the present utility model:

A globe with a world time query function, comprising a globe base shell 1, a globe sphere 2, a motherboard module 3, an SD card slot 4, a display screen 5, a battery compartment 6, a battery 7, a speaker 8, a first fixing block 11, a first Two fixed blocks 12 , capacitive touch panel 13 , transmission bin 15 , transmitter 16 , spherical protective film 17 and third fixed block 18 , a first fixed block 11 is fixed above the globe base shell 1 , and the globe base shell 1 Two sets of speakers 8 are arranged on both sides of the inner bottom end of the globe base shell 1, a display screen 5 is inserted into the outer wall of the globe base shell 1, a motherboard module 3 is arranged inside the globe base shell 1, and an SD card slot 4 is fixedly installed at the bottom end of the motherboard module 3, The bottom end of the main board module 3 is fixedly installed with a main board base 9, the bottom end of the main board base 9 is provided with an I-shaped handle 10, the bottom end of the globe base shell 1 is provided with two sets of chutes, and the bottom end outer wall of the globe base shell 1 is provided with fixed The board 14 and the fixed board 14 are provided with two sets of sliders. When the SD card needs to be replaced, the fixed board 14 can be opened and taken out through the slider above the fixed board 14, and the main board module 3 can be pulled down through the I-shaped handle 10. It is very convenient to take out and replace the SD card and check whether the main board module 3 is faulty.

The back of the mainboard module 3 is provided with a battery compartment 6, the interior of the battery compartment 6 is provided with a storage battery 7, the bottom end of the back of the globe base shell 1 is provided with a USB interface 19, and the input end of the USB interface 19 is provided inside the battery compartment 6, and a USB interface is provided. 19 The battery 7 can be charged, which is convenient to carry.

A second fixing block 12 is arranged above the first fixing block 11 , a card slot is formed above the first fixing block 11 , the first fixing block 11 and the second fixing block 12 are connected through the card slot, and the second fixing block 12 is inserted Inside the third fixing block 18, a spherical protective film 17 is fixedly installed at the bottom end of the third fixing block 18, a card slot is formed inside the third fixing block 18, and the second fixing block 12 and the third fixing block 18 are connected through the card slot. The spherical protective film 17 can form a rotating structure through the third fixed block 18 and the second fixed block 12. The inner surface of the spherical protective film 17 is provided with a globe 2, and the interior of the globe 2 is provided with a capacitive touch pad 13. Capacitive touch The inside of the plate 13 is provided with a transmission bin 15, and the interior of the transmission bin 15 is fixedly installed with a transmitter 16. By setting the spherical protective film 17, the globe 2 can be protected to prevent some bumps during transportation and oil stains on hands during normal use. It is very practical to prolong the service life of the globe sphere 2 and the damage caused by the liquid to the globe sphere 2.

Working principle: When working, the staff connects the device to the external power supply through the USB interface 19, so that the external power supply provides power support for the device, and then the staff can touch the spherical protective film 17 to make the capacitive touch pad inside the globe sphere 2. 13 is induced to activate the device;

When working, the staff touches the spherical protective film 17 to make the capacitive touch panel 13 sense, and sends the information that the user needs to know to the mainboard module 3 through the transmitter 16 inside the transmission bin 15, and then the mainboard module 3 can read the information. It is stored in the internal SD with the SD card slot 4 fixedly installed on the front of the main board module 3, and then the time picture is displayed on the display screen 5 through the main board module 3, and the sound is heard by the speaker 8, without using any APP and external equipment. In this way, it is not only convenient to use, but also has the intuitive characteristics of traditional globes, and also avoids problems such as privacy leakage caused by connecting external devices;

When working, the battery 7 inside the battery compartment 6 can be charged through the USB interface 19, which is convenient to carry and go out, and can be used as a clock;

If the main board module 3 is damaged or the SD card needs to be replaced and installed during operation, first push the sliders on both sides of the fixing plate 14 to the middle, remove the fixing plate 14, and then pull down the I-shaped handle 10 to pull the main board module 3 through the main board. The base 9 is pulled out, replaced and checked, and the reverse operation can be performed during installation.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A globe with a world time query function, comprising a globe base shell (1), a globe sphere (2), a motherboard module (3), an SD card slot (4), a display screen (5), and a battery compartment (6) , battery (7), speaker (8), first fixed block (11), second fixed block (12), capacitive touch panel (13), transmission compartment (15), transmitter (16), sphere protective film (17) and the third fixing block (18), characterized in that: a first fixing block (11) is fixedly installed above the globe base shell (1), and the inner bottom end of the globe base shell (1) Two sets of speakers (8) are provided on both sides, a display screen (5) is inserted into the outer wall of the globe base shell (1), and a mainboard module (3) is arranged inside the globe base shell (1). (3) An SD card slot (4) is fixedly installed at the bottom end, a battery compartment (6) is arranged on the back of the motherboard module (3), and a battery (7) is arranged inside the battery compartment (6). A second fixing block (12) is provided above the first fixing block (11), the second fixing block (12) is inserted inside the third fixing block (18), and the third fixing block (18) The bottom end is fixedly installed with a spherical protective film (17), the inner surface of the spherical protective film (17) is provided with a globe (2), and the interior of the globe (2) is provided with a capacitive touch panel (13), A transmission compartment (15) is opened inside the capacitive touch panel (13), and a transmitter (16) is fixedly installed inside the transmission compartment (15). 2. a kind of globe with world time inquiry function according to claim 1, is characterized in that: the bottom end of described mainboard module (3) is fixedly installed with mainboard base (9), the The bottom end is provided with an I-shaped handle (10). 3. a kind of globe with a world time inquiry function according to claim 1, is characterized in that: the bottom end of described globe base shell (1) is provided with two groups of chutes, and the bottom of described globe base shell (1) A fixing plate (14) is arranged on the outer wall of the end, and two sets of sliding blocks are arranged inside the fixing plate (14). 4. A globe with a world time query function according to claim 1, characterized in that: a card slot is provided above the first fixing block (11), and the first fixing block (11) and the second The fixing blocks (12) are connected through the card slots. 5. a kind of globe with world time inquiry function according to claim 1, is characterized in that: described globe base shell (1) back bottom end is provided with USB interface (19), and described USB interface (19) is provided with USB interface (19). The input terminal is opened inside the battery compartment (6). 6. A globe with a world time query function according to claim 1, characterized in that: the third fixed block (18) is provided with a card slot inside, and the second fixed block (12) and the third fixed block (12) are The blocks (18) are connected through the card slot, and the spherical protective film (17) can form a rotating structure through the third fixing block (18) and the second fixing block (12).
