The utility model discloses a quality of water COD detects uses adjustable connection structure of spectrometer, including the spectrum appearance, the below of spectrum appearance is established has mounting structure, and mounting structure's bottom is connected with adjusts the structure, and the one side of adjusting the structure is established and is had extension structure, and extension structure keeps away from the one end bottom fixedly connected with support column of adjusting the structure, the utility model discloses the beneficial effect who reaches is: can be with the firm connection of spectrum appearance on appointed position through mounting structure, it is more convenient to establish the recess and can make the spectrum appearance installation, can control mounting structure through adjusting the structure and carry out diversified regulation, it can provide the support to mounting structure to establish prop and ball, and can not influence the normal rotatory function of mounting structure, can make the spectrum appearance collect more extensive quality of water information through the cooperation between regulation structure and the extension structure, mounting structure then can guarantee the firm of spectrum appearance, can control the flexible function of adjusting the structure through the extension structure.
Description
Technical Field
The utility model relates to a connection structure, in particular to quality of water COD detects uses adjustable connection structure of spectrometer belongs to the mounting structure technical field of water quality testing spectrum appearance.
Background
Water is a source for the growth of all things, the demand of terrestrial organisms on water is high, water is also an essential living resource in daily life, but not all water can be used, the used fresh water resources are very few, and the water quality is detected by the fresh water resources found in nature and the known fresh water resources if the water needs to be used, so that the safety is ensured.
At present, a plurality of water quality detection methods are provided, and hardware devices related to detection are also eight-door, wherein COD spectrum detection is one of the methods, collected water quality spectrum modeling is utilized to be compared with existing water quality safety data, so that whether water quality can be put into use is judged, related hardware is a spectrometer, data collection modeling is carried out through the spectrometer, and subsequent detection is facilitated.
Present spectrum appearance is convenient for detect quality of water in the open air, and its volume and weight are all more low, make its convenient to carry, but examine time measuring in the open air, because of some waters are wider for the waters is some places can't detect, and secondly also is not simple and convenient enough to the erection joint structure of spectrum appearance, can bring the trouble for detecting, delays time.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome prior art's defect, provide a quality of water COD detects uses adjustable connection structure of spectrometer, through mounting structure, extension structure and regulation structure, can effectual solution foretell but examine time measuring in the open air, because of some waters are wider for the waters is some places unable to detect, and secondly also not simple and convenient enough to the installation connection structure of spectrometer, can bring the trouble for the detection, delays the problem of time.
In order to solve the technical problem, the utility model provides a following technical scheme:
the utility model relates to a quality of water COD detects uses adjustable connection structure of spectrometer, including the spectrum appearance, the below of spectrum appearance is established there is mounting structure, mounting structure's bottom is connected with adjusts the structure, adjust one side of structure and establish extending structure, extending structure keeps away from the one end bottom fixedly connected with support column of adjusting the structure.
As a preferred technical scheme, mounting structure includes the mounting groove, equal screw rotation is connected with the adjusting screw bolt in the middle of the both sides lateral wall that the mounting groove was kept away from each other, the one end that the adjusting screw bolt is located the mounting groove is rotated and is connected with splint, sliding connection has spacing post in the bottom of splint, the one end fixed connection of spacing post is on the lateral wall of mounting groove, set up the recess in the middle of one side curb plate of mounting groove, spectrum appearance detachable connections is in the mounting groove.
As a preferred technical scheme of the utility model, adjust the structure and include the bottom plate, the inside groove has been seted up in the middle of the inside of bottom plate, fixedly connected with retainer plate in the middle of the inside of inside groove, fixedly connected with motor in the retainer plate, the output fixed connection of motor is in the middle of mounting structure's bottom, the equal fixedly connected with dagger in top four corners department of bottom plate, every the equal roll connection in top of dagger has the ball, the one end of ball contacts with mounting structure's bottom all the time.
As a preferred technical scheme, the extension structure includes the fixed column, the fixed column passes through bottom detachable connections on the top of support column, the inside flexible swing joint of fixed column has the movable column, edge fixedly connected with connection platform below the activity post front end, adjust the structure through bottom detachable connections on connection platform's top, the bottom of activity post is established there is the fagging, the fagging passes through one end fixed connection on support column side lateral wall top.
As a preferred technical scheme of the utility model, the activity groove has been seted up in the middle of the interior of fixed column, the inside fixedly connected with telescopic link of activity inslot, the output fixedly connected with gusset plate of telescopic link, the telescopic link passes through the one end fixed connection of gusset plate and activity post.
The utility model discloses the beneficial effect who reaches is: can be with the firm connection of spectrum appearance on appointed position through mounting structure, it is more convenient to establish the recess and can make the spectrum appearance installation, can control mounting structure through adjusting the structure and carry out diversified regulation, it can provide the support to mounting structure to establish prop post and ball, and can not influence the normal rotatory function of mounting structure, cooperation through adjusting between structure and the extension structure can make the spectrum appearance collect more extensive quality of water information, and mounting structure then can guarantee the firm of spectrum appearance, can control the flexible function of adjusting the structure through the extension structure, it can make the more smooth steady of activity post function to establish the fagging, can improve the stability of being connected between telescopic link and the activity post through the gusset plate.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.
In the drawings:

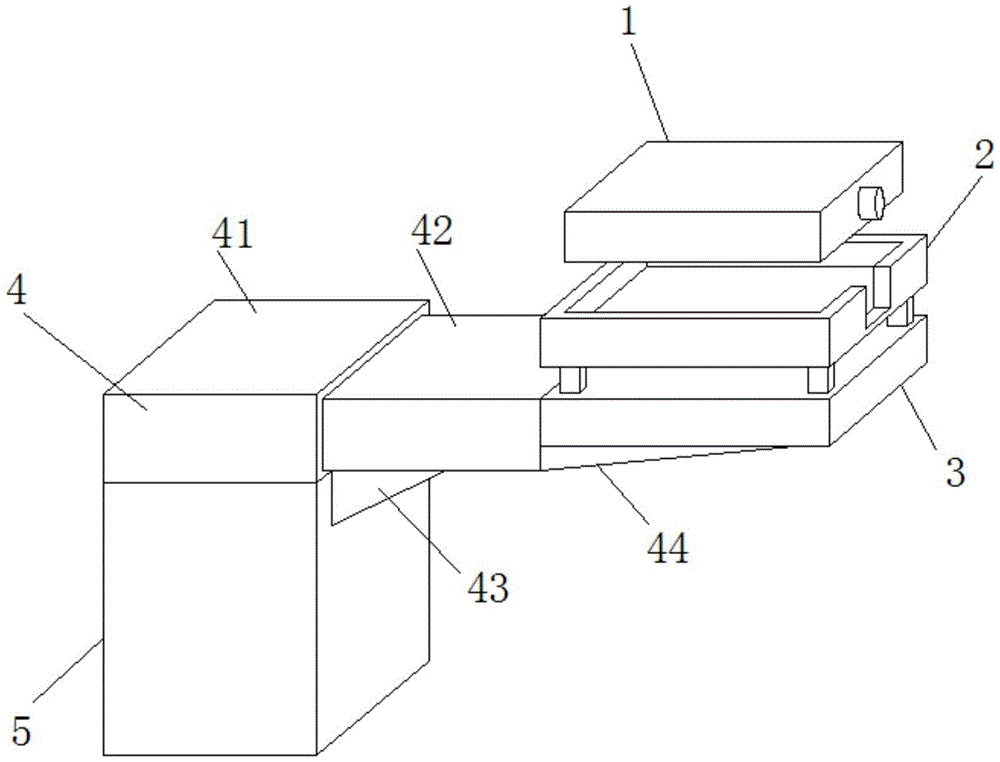

fig. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic sectional structure view of the installation structure of the present invention;
fig. 3 is a schematic plan structure diagram of the adjusting structure of the present invention;
fig. 4 is a schematic structural view of an extended structure of the present invention.
In the figure: 1. a spectrometer; 2. a mounting structure; 21. mounting grooves; 22. a groove; 23. adjusting the stud; 24. a splint; 25. a limiting column; 3. an adjustment structure; 31. a base plate; 32. an inner tank; 33. a stationary ring; 34. a motor; 35. bracing columns; 36. a ball bearing; 4. an extension structure; 41. fixing a column; 411. a movable groove; 412. a telescopic rod; 413. a reinforcing plate; 42. a movable post; 43. a diagonal bracing plate; 44. connecting the platform; 5. and (4) a support column.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Examples
As shown in figures 1-4, a quality of water COD detects uses adjustable connection structure of spectrometer, including spectrum appearance 1, the below of spectrum appearance 1 is established mounting structure 2, can be with spectrum appearance 1 firm connection on appointed position through mounting structure 2, mounting structure 2's bottom is connected with adjusts structure 3, can control mounting structure 2 through adjusting structure 3 and carry out diversified regulation, one side of adjusting structure 3 is established extension structure 4, can control the flexible function of adjusting structure 3 through extension structure 4, extension structure 4 keeps away from the one end bottom fixedly connected with support column 5 of adjusting structure 3.
The mounting structure 2 comprises a mounting groove 21, the middle of the two side walls of the mounting groove 21, which are far away from each other, is in threaded connection with an adjusting stud 23, one end of the adjusting stud 23, which is positioned in the mounting groove 21, is in threaded connection with a clamping plate 24, the bottom of the clamping plate 24 is in sliding connection with a limiting column 25, one end of the limiting column 25 is fixedly connected to the side wall of the mounting groove 21, a groove 22 is arranged in the middle of one side plate of the mounting groove 21, the groove 22 is arranged to enable the spectrometer 1 to be mounted more conveniently, the spectrometer 1 is detachably connected in the mounting groove 21, the adjusting structure 3 comprises a bottom plate 31, an inner groove 32 is arranged in the middle of the bottom plate 31, a fixing ring 33 is fixedly connected in the middle of the inner groove 32, a motor 34 is fixedly connected in the fixing ring 33, the output end of the motor 34 is fixedly, one end of the ball 36 is always contacted with the bottom of the mounting structure 2, the support column 35 and the ball 36 are arranged to support the mounting structure 2, the extension structure 4 comprises a fixed column 41, the fixed column 41 is detachably connected to the top end of the support column 5 through the bottom, a movable column 42 is flexibly and movably connected inside the fixed column 41, a connecting platform 44 is fixedly connected to the lower edge of the front end of the movable column 42, the adjusting structure 3 is detachably connected to the top of the connecting platform 44 through the bottom, an inclined support plate 43 is arranged at the bottom of the movable column 42, the inclined support plate 43 is arranged to enable the movable column 42 to operate smoothly and stably, the inclined support plate 43 is fixedly connected to the top end of a side wall of the support column 5 through one end, the spectrometer 1 can collect more extensive water quality information through the matching between the adjusting structure 3 and the extension structure 4, and the mounting structure 2 can ensure the firmness, the middle of the fixed column 41 is provided with a movable groove 411, the inside of the movable groove 411 is fixedly connected with an expansion link 412, the output end of the expansion link 412 is fixedly connected with a reinforcing plate 413, the stability of connection between the expansion link 412 and the movable column 42 can be improved through the reinforcing plate 413, and the expansion link 412 is fixedly connected with one end of the movable column 42 through the reinforcing plate 413.
Specifically, when water quality detection is carried out outdoors, the extension structure 4 is connected to the top end of the support column 5 through the fixing column 41, detachable connection is realized between the extension structure 4 and the support column 5, so that the device is convenient and fast to transport and carry, the occupied public space is reduced, the adjusting structure 3 is connected to the connecting platform 44 through the bottom, finally, the spectrometer 1 is placed into the mounting groove 21 of the mounting structure 2, the groove 22 is arranged in the middle of the front side plate of the mounting groove 21, the probe of the spectrometer 1 can be just placed into the groove 22 to avoid influencing the overall installation of the spectrometer 1 due to the probe, after the spectrometer 1 is placed stably, the adjusting stud 23 is rotated, the threaded connection relation between the adjusting stud 23 and the side wall of the mounting groove 21 is utilized, the adjusting stud 23 can move towards the middle of the mounting groove 21 along with rotation, and meanwhile, the clamp plate 24 is driven to move, realize the centre gripping of spectrometer 1 to fix, make spectrometer 1 can be firm on mounting structure 2, can use after debugging, mounting structure 2 is fixed connection in the middle of the bottom on the output of motor 34, can drive the rotation of mounting structure 2 through the drive of motor 34, make spectrometer 1 can carry out diversified observation, it is more comprehensive to collect data information, and motor 34 can carry out the operation of just reversing, it is wider to get the collection scope, in order to guarantee that mounting structure 2 rotates smoothly, all fixedly connected with the stay 35 in the four corners department at bottom plate 31 top, and roll connection has the ball 36 on the top of stay 35, one end of ball 36 contacts with the bottom of mounting structure 2 all the time, can not influence the rotatory operation of mounting structure 2 when providing the support to mounting structure 2 through stay 35 and ball 36, because of adjusting structure 3 and connecting on connection platform 44, therefore, when the movable post 42 performs the telescopic motion, the movable post can drive the adjusting structure 3 to move, thereby realizing the telescopic adjustment operation of the spectrometer 1, enabling the spectrometer 1 to capture the information of water quality at a distance, in order to ensure that the movable column 42 is smoothly operated, the inclined supporting plate 43 is arranged at the bottom of the movable column 42, the top of the inclined supporting plate 43 is contacted with the bottom of the movable column 42, and can provide a certain support for the movable column 42, and avoid accidents caused by the operation of the movable column 42, the rear end of the movable column 42 extends into the movable groove 411 and is fixedly connected with the output end of the telescopic rod 412, the telescopic rod 412 is used for driving the movable column 42 to operate, the connection stability of the telescopic rod 412 and the movable column 42 is ensured, the reinforcing plate 413 is fixedly connected to the output end of the telescopic rod 412, only the reinforcing plate 413 is fixedly connected with the movable column 42, and the connection stability between the movable column 42 and the telescopic rod 412 is ensured.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (5)
1. The utility model provides a quality of water COD detects uses adjustable connection structure of spectrometer, a serial communication port, including spectrum appearance (1), the below of spectrum appearance (1) is established mounting structure (2), the bottom of mounting structure (2) is connected with adjusts structure (3), one side of adjusting structure (3) is established extending structure (4), extending structure (4) are kept away from one end bottom fixedly connected with support column (5) of adjusting structure (3).
2. A quality of water COD detects adjustable connection structure of spectrometer of using according to claim 1, characterized in that, mounting structure (2) includes mounting groove (21), equal screw thread rotation in the middle of the both sides lateral wall that mounting groove (21) kept away from each other is connected with regulation double-screw bolt (23), the one end that regulation double-screw bolt (23) is located mounting groove (21) is rotated and is connected with splint (24), sliding connection has spacing post (25) in the bottom of splint (24), the one end fixed connection of spacing post (25) is on the lateral wall of mounting groove (21), set up recess (22) in the middle of one side lateral plate of mounting groove (21), spectrometer (1) detachable connection is in mounting groove (21).
3. The adjustable connecting structure of the spectrometer for detecting the COD in the water quality is characterized in that the adjusting structure (3) comprises a bottom plate (31), an inner groove (32) is formed in the middle of the inside of the bottom plate (31), a fixed ring (33) is fixedly connected to the middle of the inside of the inner groove (32), a motor (34) is fixedly connected to the inside of the fixed ring (33), the output end of the motor (34) is fixedly connected to the middle of the bottom of the mounting structure (2), supporting columns (35) are fixedly connected to four corners of the top of the bottom plate (31), a ball (36) is connected to the top end of each supporting column (35) in a rolling mode, and one end of each ball (36) is always in contact with the bottom of the mounting structure (2).
4. The adjustable connecting structure of a spectrometer for water quality COD detection according to claim 1, wherein the extension structure (4) comprises a fixed column (41), the fixed column (41) is detachably connected to the top end of the supporting column (5) through the bottom, a movable column (42) is flexibly and telescopically connected inside the fixed column (41), a connecting platform (44) is fixedly connected to the lower edge of the front end of the movable column (42), the adjusting structure (3) is detachably connected to the top of the connecting platform (44) through the bottom, an inclined supporting plate (43) is arranged at the bottom of the movable column (42), and the inclined supporting plate (43) is fixedly connected to the top end of a side wall of the supporting column (5) through one end.
5. The adjustable connecting structure of the spectrometer for detecting the COD in the water quality according to the claim 4 is characterized in that a movable groove (411) is formed in the middle of the fixed column (41), a telescopic rod (412) is fixedly connected inside the movable groove (411), a reinforcing plate (413) is fixedly connected to the output end of the telescopic rod (412), and the telescopic rod (412) is fixedly connected with one end of the movable column (42) through the reinforcing plate (413).
