Abstract

A new type of compact position adjustment mechanism, including a mechanism mounting plate, a fixing ring, a supporting guide post, a fixing seat, an adjusting base, a set of adjusting washers, a set of adjusting screw rods, a set of auxiliary adjusting blocks and a mounting plate to support the guide post The fixing base is fixed on the adjustment base by bolts, a group of adjustment washers is arranged on the adjustment base by bolts, a group of auxiliary adjustment blocks are fixedly arranged on the mounting plate, and a group of adjustment screws are arranged on the auxiliary adjustment blocks, and One end of a group of adjusting screws is abutted against the side wall of the adjusting base. The novel compact position adjustment mechanism of the present utility model often encounters that the base needs to be adjusted due to various machining accuracy and product positioning accuracy errors during the bracket installation of the mechanical structure. It solves the above problems very well, and can reduce the space required for adjustment, so as to reduce the occupied position and meet the requirements under the condition of unchanged strength.

Description

A New Type of Compact Position Adjustment Mechanism

technical field

The utility model belongs to the technical field of general mechanical equipment manufacturing, in particular to a novel compact position adjustment mechanism.

Background technique

With the limited requirements of the customer's site, the equipment manufacturing is becoming more and more precise and compact, and the overall size of the equipment has to be reduced by reducing the equipment bracket. Almost every piece of equipment will have a mechanism support, and the more complex the equipment, the more mechanism support will be required. As the equipment is more complex, the space for placing the adjustment support is narrower, and the traditional method is to increase the flat pad above the pad. Obviously, this method has many shortcomings, which are as follows: it has limitations, there is not much space for adjusting the position, and it takes up a lot of bottom space.

And at present, the existing equipment support structure mainly has the following problems:

1. The traditional welding bracket has factors such as large volume, large cumulative error of processing size, and long delivery time. Due to processing errors or design errors, it will cause high later modification costs;

2. The traditional combined assembly type has a single adjustment position. The larger the adjustment range, the larger the volume.

Utility model content

Purpose of the utility model: The purpose of the utility model is to provide a new compact position adjustment mechanism, which solves the problems of the traditional bracket fixing method with limitations, single adjustment position, large volume, long delivery period and large error.

Technical scheme: The utility model provides a novel compact position adjustment mechanism, which includes a mechanism mounting plate, a fixing ring, a supporting guide column, a fixing seat, an adjustment base, a set of adjustment washers, a set of adjustment screws, and a set of auxiliary adjustment The upper end of the support guide column is connected to the mechanism mounting plate through a fixing ring, and the lower end of the support guide column is set on a fixed seat, and the fixed seat is fixed on the adjustment base by bolts. A group of adjustment washers are arranged on the adjustment base through bolts, the group of auxiliary adjustment blocks are fixedly arranged on the mounting plate, a group of adjustment screws are arranged on the auxiliary adjustment blocks, and one end of the adjustment screws is connected with the adjustment base. sidewalls meet. The novel compact position adjustment mechanism of the utility model often encounters that the base needs to be adjusted due to various machining accuracy and product positioning accuracy errors during the bracket installation of the mechanical structure. It solves the above problems very well, and can reduce the space required for adjustment, so as to reduce the occupied position and meet the requirements under the condition of unchanged strength.

Further, in the above-mentioned novel compact position adjustment mechanism, a U-shaped groove is provided on the adjustment washer, and the opening of the U-shaped groove extends to the edge of the adjustment washer, and a position adjustment bolt is arranged in the U-shaped groove, The position adjusting bolt can be screwed to the mounting plate through the U-shaped groove and the adjusting base. A large hole is opened on the adjustment base, and a large spacer with a U-shaped groove is placed above to maximize the space for position adjustment.

Further, in the above-mentioned novel compact position adjustment mechanism, the section of the adjustment base is square, and the four corners of the adjustment base are provided with first through holes, the section of the adjustment gasket is circular, and U. The opening of the groove extends to the outer circumference of the adjusting washer, the inner wall of the upper end of the first through hole is provided with a first groove, the adjusting washer is arranged in the first groove, and the position adjusting bolt It is screwed to the mounting plate through the U-shaped groove and the first through hole. The provided first groove can provide a space for placing the adjusting washer, and the provided first through hole can allow the position adjusting bolt to pass through so as to be fixedly connected with the mounting plate.

Further, in the above-mentioned novel compact position adjustment mechanism, the number of the set of auxiliary adjustment blocks is two, and the auxiliary adjustment blocks are respectively arranged opposite to the two side walls adjacent to the adjustment base, and the auxiliary adjustment blocks are arranged by bolts. on the mounting plate. It is optimal to set auxiliary adjustment blocks on the two adjacent side walls of the adjustment base to adjust the position of the adjustment base from two directions, thereby adjusting the position of the support guide post.

Further, in the above-mentioned novel compact position adjustment mechanism, the adjusting screw is provided with a locking nut, the adjusting screw is connected with the auxiliary adjusting block, and the adjusting screw is locked on the auxiliary adjusting block by the locking nut. The set lock nut confines the adjustment screw to the auxiliary adjustment block.

Further, in the above-mentioned novel compact position adjustment mechanism, a spacer is provided between the position adjustment bolt and the adjustment spacer. The provided gasket can play a tightening role to prevent the position adjustment bolt from loosening.

Further, in the above-mentioned novel compact position adjustment mechanism, the fixing ring is annular, and the fixing ring is fixedly connected with the mechanism mounting plate through a set of screws.

Further, in the above-mentioned novel compact position adjustment mechanism, a guide post installation sleeve is provided on the upper end surface of the fixed seat, and the lower end of the support guide post is arranged on the guide post installation sleeve. The guide post installation sleeve adopts a clamp structure, and the lower end of the support guide post can be locked in the guide post installation sleeve by bolts.

It can be seen from the above technical solutions that the present utility model has the following beneficial effects: the novel compact position adjusting mechanism described in the present utility model has simple and reasonable structure, convenient use, low application cost and good adaptability, and can effectively integrate the integrated Parts are split into multiple independent parts for easy maintenance. Moreover, the structure is simple, the cost performance is high, and the space is small. The adjustment and fixing method of this scheme can greatly increase the effective utilization of equipment space. This scheme can effectively avoid the bad factors caused by traditional brackets, can meet the requirements of process parameters of products, and has high promotion value.

Description of drawings

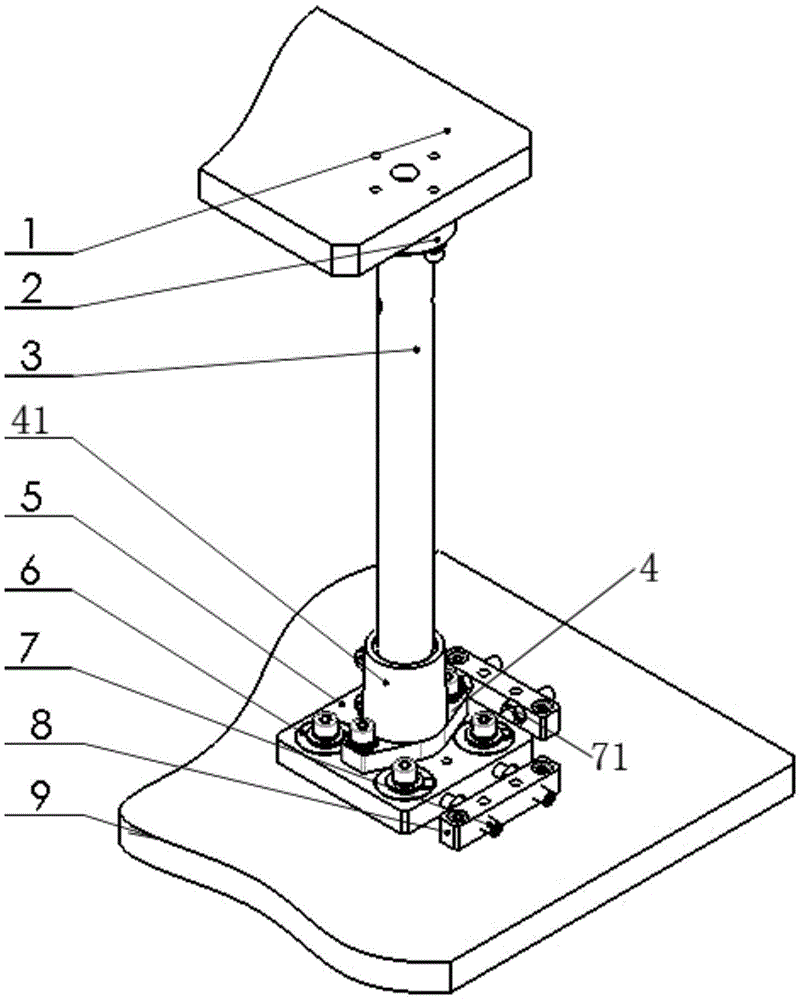

Fig. 1 is the structural representation of the novel compact position adjustment mechanism of the utility model;

FIG. 2 is a partial enlarged view of the novel compact position adjustment mechanism according to the present invention.

In the figure: mechanism mounting plate 1, fixing ring 2, supporting guide post 3, fixing base 4, guide post mounting sleeve 41, adjusting base 5, first through hole 51, first groove 52, adjusting gasket 6, U-shaped Slot 61 , position adjusting bolt 62 , washer 63 , adjusting screw 7 , locking nut 71 , auxiliary adjusting block 8 , and mounting plate 9 .

Detailed ways

The following describes in detail the embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein the same or similar reference numerals refer to the same or similar elements or elements having the same or similar functions throughout. The embodiments described below with reference to the accompanying drawings are exemplary, and are intended to be used to explain the present invention, but should not be construed as a limitation of the present invention.

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", The orientation or positional relationship indicated by "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inside", "clockwise", "counterclockwise", etc. is based on The orientation or positional relationship shown in the accompanying drawings is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be understood To limit the utility model.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first" or "second" may expressly or implicitly include one or more of that feature. In the description of the present invention, unless otherwise specified, the meaning of "plurality" is two or more, unless otherwise expressly defined.

In the present utility model, unless otherwise expressly specified and limited, the terms "installation", "connection", "connection", "fixed" and other terms should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection Connection, or integral connection; can be mechanical connection, can also be electrical connection; can be directly connected, can also be indirectly connected through an intermediate medium, can be internal communication between two elements. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

In the present invention, unless otherwise expressly specified and limited, a first feature "on" or "under" a second feature may include the first and second features in direct contact, or may include the first and second features The features are not in direct contact but through additional features between them. Also, the first feature being "above", "over" and "above" the second feature includes the first feature being directly above and obliquely above the second feature, or simply means that the first feature is level higher than the second feature. The first feature is "below", "below" and "below" the second feature includes the first feature being directly below and diagonally below the second feature, or simply means that the first feature has a lower level than the second feature.

Example

The new compact position adjustment mechanism shown in Figures 1 and 2 includes a mechanism mounting plate 1, a fixed ring 2, a support guide column 3, a fixed seat 4, an adjustment base 5, a set of adjustment washers 6, and a set of adjustment screws 7 , a set of auxiliary adjustment blocks 8 and mounting plates 9, the upper end of the support guide column 3 is connected with the mechanism mounting plate 1 through the fixing ring 2, and the lower end of the support guide column 3 is set on the fixed seat 4, the fixed The seat 4 is fixed on the adjusting base 5 by bolts, the set of adjusting washers 6 is set on the adjusting base 5 by bolts, the set of auxiliary adjusting blocks 8 are fixed on the mounting plate 9, and the auxiliary adjusting blocks 8 is provided with a group of adjusting screws 7 , and one end of a group of adjusting screws 7 is in contact with the side wall of the adjusting base 5 .

In the above structure, the specific structure for realizing the position adjustment of the supporting guide post is that the adjusting washer 6 is provided with a U-shaped groove 61, and the opening of the U-shaped groove 61 extends to the edge of the adjusting washer 6, and the U-shaped groove Position adjustment bolts 62 are provided in the 61 , and the position adjustment bolts 62 can pass through the U-shaped groove 61 and the adjustment base 5 to be threadedly connected to the mounting plate 9 . The section of the adjustment base 5 is square, and the four corners of the adjustment base 5 are provided with first through holes 51 , the section of the adjustment washer 6 is circular, and the opening of the U-shaped groove 61 extends to the adjustment At the outer circumference of the gasket 6, a first groove 52 is provided on the inner wall of the upper end of the first through hole 51, the adjusting gasket 6 is arranged in the first groove 52, and the position adjusting bolt 62 passes through. It is screwed to the mounting plate 9 through the U-shaped groove 61 and the first through hole 51 . A washer 63 is provided between the position adjusting bolt 62 and the adjusting washer 6 .

In addition, the number of the set of auxiliary adjustment blocks 8 is two, and the auxiliary adjustment blocks 8 are respectively arranged opposite to the two adjacent side walls of the adjustment base 5 , and the auxiliary adjustment blocks 8 are arranged on the mounting plate 9 by bolts. The adjusting screw 7 is provided with a locking nut 71 , the adjusting screw 7 is connected with the auxiliary adjusting block 8 , and the adjusting screw 7 is locked on the auxiliary adjusting block 8 by the locking nut 71 .

In addition, the fixing structure of the fixing ring 2 and the fixing seat 4 to realize the supporting guide post 3 is that the fixing ring 2 is annular, and the fixing ring 2 is fixedly connected with the mechanism mounting plate 1 through a set of screws. A guide post mounting sleeve 41 is provided on the upper end surface of the fixing base 4 , and the lower end of the supporting guide post 3 is provided on the guide post mounting sleeve 41 .

The principle of the novel compact position adjustment mechanism of the present utility model is as follows:

The mechanism mounting plate 1, the fixing ring 2 and the supporting guide column 3 are the main components of the frame, and the fixing ring 2 is a special reinforced part, which can enhance the stability of the mechanism. The main moving parts are installed on the mechanism mounting plate 1, and the entire mechanism is mainly a fixed mounting seat for load-bearing. By adjusting the rotational position of the U-shaped groove 61 of the adjusting washer 6, the position adjustment of the mechanism in various ranges is realized.

The above are only the preferred embodiments of the present utility model. It should be pointed out that for those skilled in the art, some improvements can be made without departing from the principles of the present utility model, and these improvements should also be regarded as This is the scope of protection of the utility model.

Claims (8)

1. A novel compact position adjustment mechanism, its characterized in that: comprises a mechanism mounting plate (1), a fixed ring (2), a supporting guide post (3), a fixed seat (4), an adjusting base (5), a group of adjusting gaskets (6), a group of adjusting screw rods (7), a group of auxiliary adjusting blocks (8) and a mounting plate (9), the upper end part of the supporting guide post (3) is connected with the mechanism mounting plate (1) through a fixing ring (2), the lower end part of the supporting guide post (3) is arranged on a fixed seat (4), the fixed seat (4) is fixedly arranged on an adjusting base (5) through a bolt, the group of adjusting gaskets (6) is arranged on the adjusting base (5) through bolts, the group of auxiliary adjusting blocks (8) is fixedly arranged on the mounting plate (9), a group of adjusting screws (7) are arranged on the auxiliary adjusting blocks (8), and one end of the group of adjusting screw rods (7) is propped against the side wall of the adjusting base (5).

2. The new compact position adjustment mechanism of claim 1, characterized in that: be equipped with U type groove (61) on adjusting shim (6) to the opening in U type groove (61) extends to the edge of adjusting shim (6), be equipped with position control bolt (62) in U type groove (61), position control bolt (62) can pass U type groove (61) and adjust base (5) and mounting panel (9) threaded connection.

3. The new compact position adjustment mechanism of claim 2, characterized in that: the cross-section of adjusting base (5) is the square to be equipped with first through-hole (51) on four bights of adjusting base (5), the cross-section of adjusting shim (6) is circular to the outer circumference department of opening extension to adjusting shim (6) in U type groove (61), be equipped with first recess (52) on the upper end inner wall of first through-hole (51), adjusting shim (6) set up in first recess (52), position control bolt (62) pass U type groove (61) and first through-hole (51) and mounting panel (9) threaded connection.

4. The new compact position adjustment mechanism of claim 3, characterized in that: the number of the auxiliary adjusting blocks (8) is two, the auxiliary adjusting blocks (8) are respectively arranged opposite to two adjacent side walls of the adjusting base (5), and the auxiliary adjusting blocks (8) are arranged on the mounting plate (9) through bolts.

5. The new compact position adjustment mechanism of claim 2, characterized in that: the adjusting device is characterized in that a locking nut (71) is arranged on the adjusting screw rod (7), the adjusting screw rod (7) is connected with the auxiliary adjusting block (8), and the adjusting screw rod (7) is locked on the auxiliary adjusting block (8) through the locking nut (71).

6. The new compact position adjustment mechanism of claim 2, characterized in that: and a gasket (63) is arranged between the position adjusting bolt (62) and the adjusting gasket (6).

7. The new compact position adjustment mechanism of claim 1, characterized in that: the fixing ring (2) is annular, and the fixing ring (2) is fixedly connected with the mechanism mounting plate (1) through a group of screws.

8. The new compact position adjustment mechanism of claim 1, characterized in that: the upper end face of the fixed seat (4) is provided with a guide pillar mounting sleeve (41), and the lower end part of the support guide pillar (3) is arranged on the guide pillar mounting sleeve (41).
