Abstract

The utility model discloses a solar sunroof for an automobile, which comprises a frame and a sunroof body slidably connected to the side wall of the frame, the side wall of the frame is provided with a first groove, and the side wall of the first groove is rotatably connected with a reciprocating wire A cleaning device for cleaning the sunroof body is installed on the reciprocating screw. In the case of the utility model, the wind flow generated by the car while driving will cause the fan blades to rotate, so that the second bevel gear meshing with the first bevel gear rotates, the slider will move back and forth on the reciprocating screw, and the bristles on the horizontal plate will be driven to rotate. The surface of the sunroof is cleaned, and an electric push rod is set. When the sunroof body needs to be cleaned, the electric push rod is adjusted so that the fan blades extend from the second groove to the meshing of the first bevel gear and the second bevel gear, so as to prevent the sunroof body For cleaning, when cleaning is not required, the fan blade can be retracted into the second groove, so that the car is beautiful.

Description

A solar sunroof for automobiles

technical field

The utility model relates to the technical field of automobile sunroofs, in particular to a solar sunroof for automobiles.

Background technique

The car sunroof is installed on the roof, which can effectively circulate the air in the car and increase the entry of fresh air. At the same time, the car window can also broaden the field of vision and the shooting needs of mobile photography. The car sunroof can be roughly divided into: external sliding, internal Tibetan-style, inside-outside-out, panoramic and curtain-style, etc., are mainly installed on commercial SUVs, cars and other models. In recent years, with the popularization of environmental protection concepts, there are also solar-powered car sunroofs for car sunroofs. .

Since the sunroof is located on the top of the car, it is not easy to clean up when there are sundries accumulated on the sunroof, and the existence of these sundries will affect the working efficiency of the solar energy inside the sunroof, and these sundries will cast shadows on the solar surface when the sun is working. This will cause local overheating on the surface of the solar energy, which will affect the service life of the solar energy.

Utility model content

The purpose of the utility model is to propose a solar sunroof for automobiles in order to solve the shortcomings existing in the prior art.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A solar sunroof for an automobile comprises a frame and a sunroof body slidably connected to a side wall of the frame, wherein a first groove is formed on the side wall of the frame, a reciprocating screw is rotatably connected to the side wall of the first groove, and the frame The upper end side wall near the first groove is provided with a second groove, the reciprocating screw penetrates the side wall of the frame and extends into the second groove, and the second groove is installed in the second groove to drive the reciprocating screw to rotate. A driving device, a cleaning device for cleaning the sunroof body is installed on the reciprocating screw.

Preferably, the first driving device comprises a flat plate slidably connected to the side wall of the second groove, a cross bar is fixedly connected to the upper end side wall of the flat plate, a connecting rod is rotatably connected to the cross bar, and the connecting rod penetrates through The side wall of the cross bar extends to the outside thereof, one end of the connecting rod is fixedly connected with a first bevel gear, one end of the reciprocating screw is fixedly connected with a second bevel gear that meshes with the first bevel gear, and the second groove A second driving device for driving the connecting rod to rotate is installed inside.

Preferably, the second driving device includes a plurality of fan blades, the plurality of fan blades are evenly distributed and fixedly connected to the side wall of the end of the connecting rod away from the first bevel gear, and the inner bottom of the second groove is fixedly connected with a An electric push rod, the movable end of the electric push rod is fixedly connected with the side wall of the lower end of the flat plate.

Preferably, the cleaning device includes a slider screwed on the reciprocating screw, the side wall of the slider is fixedly connected with a transverse plate, and the sidewall of the lower end of the transverse plate is evenly distributed and fixedly connected with a plurality of surfaces attached to the sunroof body. Close bristles.

Preferably, the side wall of the frame is provided with a third groove corresponding to the first groove, and one end of the transverse plate away from the slider is slidably connected to the side wall of the third groove.

Preferably, the number of the fan blades is 3-6.

The utility model has the following beneficial effects:

1. The wind flow generated by the car while driving will cause the fan blade to rotate, thereby driving the first bevel gear to rotate, so that the second bevel gear meshing with the first bevel gear rotates, and the slider will move back and forth on the reciprocating screw, driving the The bristles on the horizontal plate clean the surface of the sunroof;

2. By setting the electric push rod, when the sunroof body needs to be cleaned, adjust the electric push rod so that the fan blade extends from the second groove to the meshing of the first bevel gear with the second bevel gear, so as to clean the sunroof body , when cleaning is not required, the fan blade can be contracted into the second groove, making the car beautiful;

3. The air flow generated by the driving of the car makes the bristles move back and forth on the surface of the sunroof body to clean it, avoiding the use of electricity to clean it, which is in line with the concept of environmental protection.

Description of drawings

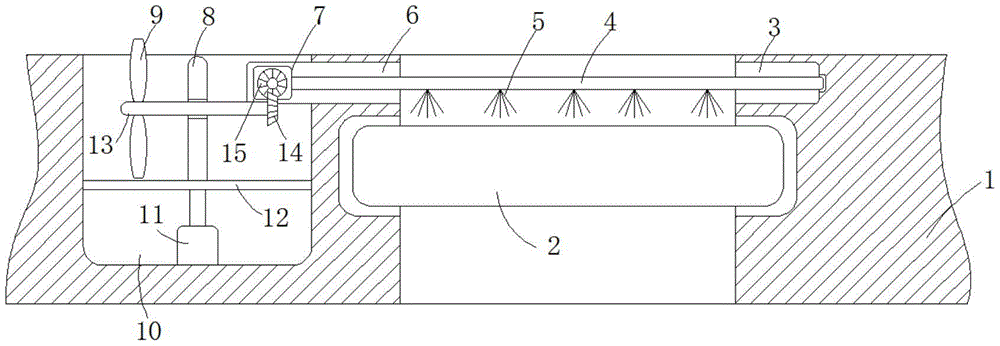

1 is a schematic structural diagram of a solar sunroof for automobiles proposed by the utility model;

Fig. 2 is the top sectional structure schematic diagram of a kind of solar sunroof for automobiles proposed by the utility model;

FIG. 3 is an enlarged schematic view of the structure at A in FIG. 2 .

In the picture: 1 frame, 2 sunroof body, 3 third groove, 4 horizontal plate, 5 bristles, 6 first groove, 7 slider, 8 cross bar, 9 fan blades, 10 second groove, 11 electric pusher Rod, 12 flat plate, 13 connecting rod, 14 first bevel gear, 15 second bevel gear, 16 reciprocating screw.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-3, a solar sunroof for an automobile includes a frame 1 and a sunroof body 2 slidably connected to the side wall of the frame 1. The side wall of the frame 1 is provided with a first groove 6, and the side wall of the first groove 6 is rotatably connected There is a reciprocating screw 16, a second groove 10 is formed on the upper end side wall of the frame 1 close to the first groove 6, the reciprocating screw 16 penetrates the side wall of the frame 1 and extends into the second groove 10, and the second groove 10 A first driving device for driving the reciprocating screw 16 to rotate is installed inside. The first driving device includes a flat plate 12 slidably connected to the side wall of the second groove 10 . A connecting rod 13 is rotatably connected, the connecting rod 13 penetrates the side wall of the cross bar 8 and extends to the outside thereof, one end of the connecting rod 13 is fixedly connected with the first bevel gear 14, and one end of the reciprocating screw 16 is fixedly connected with the first bevel gear 14. The second bevel gear 15, the second groove 10 is installed with a second driving device for driving the connecting rod 13 to rotate, the second driving device includes a plurality of fan blades 9, and the plurality of fan blades 9 are evenly distributed and fixedly connected to the connecting rod 13 The number of fan blades 9 on the side wall at one end away from the first bevel gear 14 is 3-6, the inner bottom of the second groove 10 is fixedly connected with an electric push rod 11, and the movable end of the electric push rod 11 is fixed to the side wall of the lower end of the flat plate 12 Connection, the electric push rod 11 is electrically connected with the control system in the vehicle, when the electric push rod 11 runs upward to the maximum displacement, the first bevel gear 14 and the second bevel gear 15 are just meshed.

A cleaning device for cleaning the sunroof body 2 is installed on the reciprocating screw 16. The cleaning device includes a sliding block 7 threaded on the reciprocating screw 16. The side wall of the sliding block 7 is fixedly connected with a transverse plate 4, and the lower end side of the transverse plate 4 is fixedly connected. The walls are evenly distributed and fixedly connected with a plurality of bristles 5 that fit on the surface of the sunroof body 2. The side wall of the frame 1 is provided with a third groove 3 corresponding to the first groove 6. The side walls of the third groove 3 are slidably connected.

In the present invention, when the surface of the sunroof body 2 needs to be cleaned, the electric push rod 11 is adjusted so that the fan blade 9 extends into the second groove 10 and the first bevel gear 14 is meshed with the second bevel gear 15. During driving, the wind flow generated around the car will make the fan blade 9 rotate, so that the second bevel gear 15 meshing with the first bevel gear 14 will rotate, driving the reciprocating screw 16 to rotate, and the slider 7 will come up on the reciprocating screw 16. Move back to drive the bristles 5 on the side wall of the lower end of the transverse plate 4 to clean the surface of the sunroof body 2. When there is no need to clean the surface of the sunroof body 2, adjust the electric push rod 11 to make the first bevel gear 14 and the second bevel gear 15. separated, so as to stop cleaning the surface of the sunroof body 2 .

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. A solar sunroof for an automobile, comprising a frame (1) and a sunroof body (2) slidably connected to the side wall of the frame (1), wherein the side wall of the frame (1) is provided with a first groove ( 6), the side wall of the first groove (6) is rotatably connected with a reciprocating screw (16), and the upper end side wall of the frame (1) close to the first groove (6) is provided with a second groove (10). ), the reciprocating screw (16) penetrates the side wall of the frame (1) and extends into the second groove (10), and the second groove (10) is equipped with a drive for driving the reciprocating screw (16) to rotate In the first driving device, a cleaning device for cleaning the sunroof body (2) is installed on the reciprocating screw (16). 2. The solar sunroof for automobiles according to claim 1, wherein the first driving device comprises a flat plate (12) slidably connected to the side wall of the second groove (10), the flat plate (12) ) A crossbar (8) is fixedly connected to the sidewall of the upper end, and a connecting rod (13) is rotatably connected to the crossbar (8), and the connecting rod (13) penetrates the sidewall of the crossbar (8) and extends to the outside thereof One end of the connecting rod (13) is fixedly connected with a first bevel gear (14), and one end of the reciprocating screw (16) is fixedly connected with a second bevel gear (15) meshing with the first bevel gear (14), A second driving device for driving the connecting rod (13) to rotate is installed in the second groove (10). 3. The solar sunroof for an automobile according to claim 2, wherein the second driving device comprises a plurality of fan blades (9), and the plurality of the fan blades (9) are evenly distributed and fixedly connected in the connection On the side wall of one end of the rod (13) away from the first bevel gear (14), an electric push rod (11) is fixedly connected to the inner bottom of the second groove (10), and the movable end of the electric push rod (11) is connected with the electric push rod (11). The lower end side wall of the flat plate (12) is fixedly connected. 4. The solar sunroof for an automobile according to claim 1, wherein the cleaning device comprises a slider (7) threaded on the reciprocating screw (16), the slider (7) side A horizontal plate (4) is fixedly connected to the wall, and a plurality of bristles (5) attached to the surface of the skylight body (2) are uniformly distributed and fixedly connected to the side wall of the lower end of the horizontal plate (4). 5 . The solar sunroof for automobiles according to claim 4 , wherein a third groove ( 3 ) corresponding to the first groove ( 6 ) is formed on the side wall of the frame ( 1 ), so that the One end of the transverse plate (4) away from the slider (7) is slidably connected with the side wall of the third groove (3). 6 . The solar sunroof for an automobile according to claim 3 , wherein the number of the fan blades ( 9 ) is 3-6. 7 .
