CN210857662U - A green energy-saving building curtain wall structure - Google Patents

Abstract

The utility model provides a green and energy-saving building curtain wall structure, comprising a curtain wall panel frame and an assembly board; the curtain wall panel frame is a square frame structure, and a glass plate is installed at the left and right ends inside the curtain wall panel frame, and the outer side of the curtain wall panel frame is installed with a glass plate. They are respectively attached to the outside of the adjacent curtain wall panels and frames; a panel and frame connector is respectively installed at the four ends of the rear side of the curtain wall panel and frame, and the curtain wall panel frame is installed on the outside of the building through the panel and frame connectors; the assembly plate is located at Inside the curtain wall panel frame, the solar power generation panel and the LED light bar are respectively installed on the front and rear sides of the curtain wall panel frame; the bottom of the driving sprocket is connected with the top of the assembly board, and the driving sprocket is connected with the external drive motor through the chain; the utility model The new type can convert the light energy irradiated on the outside of the building into electrical energy through the solar power panels installed inside the curtain wall frame, so as to meet the night power supply of the LED light strips inside the assembly board and the lighting needs of the building, making the building more energy-saving .

Description

A green energy-saving building curtain wall structure

technical field

The utility model belongs to the technical field of building curtain walls, in particular to a green energy-saving building curtain wall structure.

Background technique

Building curtain wall refers to the non-load-bearing exterior wall enclosure of the building, which is usually composed of panels (glass, metal plates, slate, ceramic plates, etc.) and supporting structures behind (aluminum beams, columns, steel structures, glass ribs, etc.); The building curtain wall structure can refer to the patent CN207211460U, which mainly includes a main wall and a plurality of keels evenly distributed in the main wall. The connecting rib plate, the outer end of the connecting rib plate is provided with a plug body, and a curtain wall plate is arranged between two adjacent plug bodies, the curtain wall plate is parallel to the outer surface of the main wall body, and the An operation gap is formed between the curtain wall panel and the outer surface of the main wall; the existing similar green and energy-saving building curtain wall structures have slightly simplified functions when in use, and the utilization effect of the solar energy irradiating the outside of the building is poor and cannot be used. It can effectively meet the green and energy-saving needs of buildings; and the curtain wall has a poor nighttime lighting display effect, which easily affects the nighttime viewing effect of the building.

Utility model content

In order to solve the above technical problems, the utility model provides a green and energy-saving building curtain wall structure, so as to solve the problem that the functions of the existing similar green and energy-saving building curtain wall structures are slightly simplified when in use, and the utilization effect of the solar energy irradiated to the outside of the building is relatively high. Poor, unable to effectively meet the building's green and energy-saving needs; and the curtain wall night lighting display effect is poor, easily affecting the building's night viewing effect.

The purpose and effect of the green energy-saving building curtain wall structure of the utility model are achieved by the following specific technical means:

A green energy-saving building curtain wall structure includes a curtain wall panel frame, an assembly panel, a light-transmitting panel and a driving sprocket; the curtain wall panel frame is a square frame structure, and a glass panel is installed at the left and right ends of the interior of the curtain wall panel frame, and The outer side of the curtain wall panel frame is respectively attached to the outer side of the adjacent curtain wall panel frame; a panel frame connector is respectively installed at the four ends of the rear side of the curtain wall panel frame, and the curtain wall panel frame is installed on the outside of the building through the panel frame connector; The assembly plate is located inside the curtain wall plate frame, and the solar power generation panel and the LED light bar are respectively installed on the front and rear sides of the curtain wall plate frame; the light-transmitting plate is installed on the front end surface of the assembly plate; the bottom of the driving sprocket and the top of the assembly plate are installed connected, and the drive sprocket is connected to the external drive motor through the chain.

Further, two LED light bars are installed inside the front end of the assembly board, and the light-transmitting plate is located outside the front end of the LED light bar, and the LED light bar is connected to the internal control circuit of the building through a power cord.

Further, two solar power generation panels are installed on the rear end surface of the assembly board, and the solar power generation panels are connected to the power storage facilities inside the building through power lines.

Further, the assembly plate has a rectangular plate-like structure, and the upper and lower ends of the assembly plate respectively penetrate into the upper and lower ends of the curtain wall plate frame, and the assembly plate is vertically rotatably connected to the interior of the curtain wall plate frame.

Further, the top of the assembly plate is provided with a drive connection slot, and the bottom of the assembly plate is provided with a drive connection block, and the drive connection block at the bottom of the assembly plate is inserted into another drive connection slot opened at the top of the assembly plate.

Compared with the prior art, the utility model has the following beneficial effects:

1. The setting of the LED light bar on the front side of the assembly board is beneficial to start the LED light bar at night. Through the LED light bar evenly arranged inside each curtain wall panel frame, the light show is performed on the outside of the building, which improves the viewing effect of the building at night and makes the building more attractive. The functions of the curtain wall are more diversified; and with the setting of the solar power panels on the rear side of the assembly panels, the solar power panels installed inside the curtain wall panel frame can convert the light energy irradiated to the outside of the building into electrical energy for storage, so as to meet the needs of the interior of the assembly panels. LED strips provide power supply at night and the lighting needs of the interior of the building, making the building more energy-efficient.

2. The setting of the rotating connection of the assembly board is conducive to the overturning adjustment of the assembly board inside the curtain wall panel frame, so that the solar power panel on the rear side of the assembly board can rotate the outside of the building during the day, so as to meet the lighting and power generation requirements of the solar power panel, and the LED on the front side of the assembly board can be assembled at night The light bar rotates to the outside of the building to meet the lighting performance effect of the LED light bar; and the assembly board cooperates with the setting of the drive connecting blocks and drive connecting grooves at the upper and lower ends, when the assembly plate inside the curtain wall plate frame rotates, the bottom of the assembly plate can drive the connecting block through the bottom of the assembly plate. It is inserted and connected with the driving connection slot on the top of another assembly plate to drive the inner assembly plate of the other curtain wall plate frame to rotate synchronously, so as to realize the effect of synchronous rotation and adjustment of the assembly plate.

Description of drawings

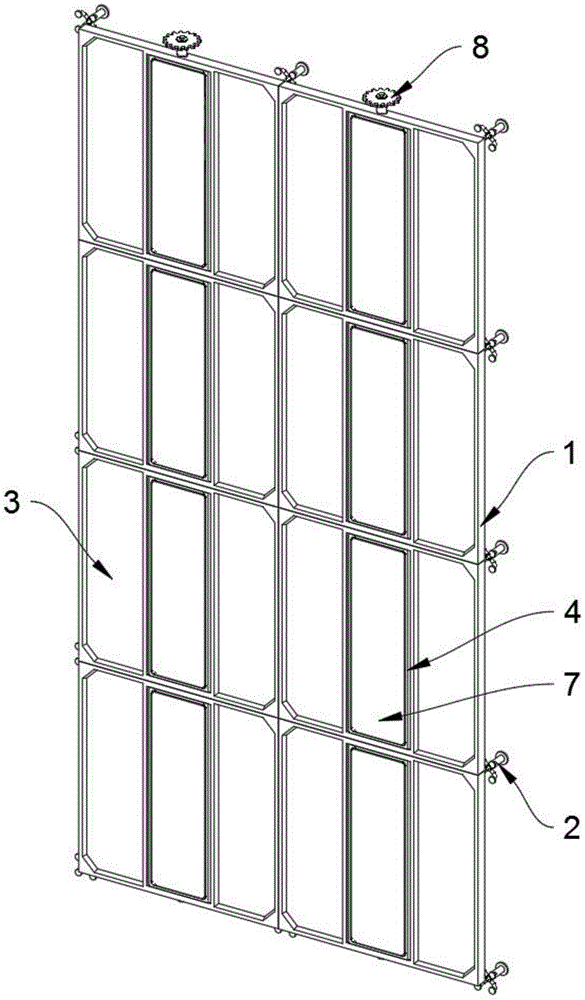

Figure 1 is a schematic diagram of the axial splicing structure of the present invention.

FIG. 2 is a schematic diagram of the axial splicing structure of the rear kitchen of the present invention.

FIG. 3 is a schematic diagram of the rotation adjustment structure of the assembly plate of the present invention.

4 is a schematic diagram of the split structure of the light-transmitting plate and the assembly plate of the present invention.

FIG. 5 is a schematic diagram of the bottom axial view structure of the curtain wall panel frame of the present invention.

FIG. 6 is a schematic diagram of an axial view structure of an assembly plate of the present invention.

In the figure, the corresponding relationship between component names and drawing numbers is:

1. Curtain wall panel frame; 2. Panel-frame connector; 3. Glass panel; 4. Assembly panel; 401. Drive connection slot; 402, Drive connection block; 5. Solar power panel; 6. LED light bar; 7. Transparent Light plate; 8. Drive sprocket.

Detailed ways

The embodiments of the present utility model will be described in further detail below with reference to the accompanying drawings and examples. The following examples are used to illustrate the present invention, but cannot be used to limit the scope of the present invention.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection, or It can be connected integrally; it can be a mechanical connection or an electrical connection; it can be directly connected or indirectly connected through an intermediate medium. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Example:

As shown in accompanying drawings 1 to 6:

The utility model provides a green and energy-saving building curtain wall structure, comprising a curtain wall panel frame 1, an assembly board 4, a light-transmitting panel 7 and a driving sprocket 8; the curtain wall panel frame 1 is a square frame structure, and the interior of the curtain wall panel frame 1 is left and right A glass plate 3 is installed on both ends, and the outer side of the curtain wall panel frame 1 is respectively attached to the outer side of the adjacent curtain wall panel frame 1; a panel frame connector 2 is installed at the four ends of the rear side of the curtain wall panel frame 1 respectively, and The curtain wall panel frame 1 is installed on the outside of the building through the panel frame connector 2; the assembly board 4 is located inside the curtain wall panel frame 1, and the solar power panel 5 and the LED light bar 6 are respectively installed on the front and rear sides of the curtain wall panel frame 1; The light-transmitting plate 7 is installed on the front end surface of the assembly plate 4; the bottom of the drive sprocket 8 is connected to the top of the assembly plate 4, and the drive sprocket 8 is connected to an external drive motor through a chain.

Wherein, two LED light bars 6 are installed inside the front end of the assembly board 4, and the light-transmitting plate 7 is located on the outer side of the front end of the LED light bar 6, and the LED light bar 6 is connected with the internal control circuit of the building through the power cord; the specific function, The LED light strips 6 can be activated at night, and the LED light strips 6 evenly arranged in each curtain wall panel frame 1 can perform light performances on the outside of the building, improve the night viewing effect of the building, and make the building curtain wall function more diverse.

Among them, two solar power generation panels 5 are installed on the rear end surface of the assembly plate 4, and the solar power generation panels 5 are connected with the power storage facilities inside the building through power lines; The power generation board 5 converts the light energy irradiated to the outside of the building into electrical energy for storage, so as to meet the night power supply of the LED light bar 6 inside the assembly board 4 and the lighting needs of the building, making the building more energy-saving.

Wherein, the assembly plate 4 is a rectangular plate-like structure, and the upper and lower ends of the assembly plate 4 penetrate through the upper and lower ends of the curtain wall plate frame 1 respectively, and the assembly plate 4 is vertically rotatably connected to the interior of the curtain wall plate frame 1; Function, the assembly plate 4 inside the curtain wall panel frame 1 can be turned over and adjusted, so that the solar power generation panel 5 on the rear side of the assembly panel 4 can rotate the outside of the building during the day to meet the lighting and power generation requirements of the solar power generation panel 5, and the LED lights on the front side of the assembly panel 4 can be installed at night. The strip 6 is rotated to the outside of the building to meet the lighting performance effect of the LED light strip 6 .

Wherein, the top of the assembly plate 4 is provided with a drive connection slot 401 , and the bottom of the assembly plate 4 is provided with a drive connection block 402 , and the drive connection block 402 at the bottom of the assembly plate 4 is inserted into another drive connection opened on the upper end of the assembly plate 4 . In the connecting groove 401; the specific function is that when the assembly plate 4 rotates inside the curtain wall panel frame 1, the bottom of the assembly plate 4 drives the connecting block 402 to connect with the drive connection groove 401 at the top of the assembly plate 4 at another place to drive the other place. The assembly plate 4 inside the curtain wall panel frame 1 rotates synchronously, so as to realize the effect of synchronous rotation and adjustment of the assembly plate 4 .

The specific usage mode and function of this embodiment:

When the utility model is used, the staff first installs the curtain wall panel frame 1 on the outside of the building through the panel frame connector 2 in turn, and at the same time as the curtain wall panel frame 1 is installed and fixed, the interior of the curtain wall panel frame 1 is assembled at the bottom of the panel 4. Some drive connection blocks 402 are inserted into the drive connection slots 401 opened at the top of the inner assembly plate 4 of the curtain wall panel frame 1 adjacent to the bottom, so that the assembly panels 4 inside the upper and lower curtain wall panel frames 1 can be connected in series with each other; At the same time, the staff drives the drive sprocket 8 connected to the top of the assembly plate 4 to rotate through the external drive motor, and adjusts the rotation of the assembly plate 4 inside the curtain wall panel frame 1, so that the solar power generation panel 5 on the rear side of the assembly plate 4 rotates to the outside of the building. , through the solar power generation panel 5, the light energy irradiated on the outside of the building is converted into electrical energy for storage, so as to meet the night power supply and interior lighting needs of the LED light bar 6 inside the assembly panel 4, so that the building is more energy-saving; at night, work The personnel drives the drive sprocket 8 connected to the top of the assembly board 4 to rotate in the opposite direction through the external drive motor, so that the LED light bar 6 on the front side of the assembly board 4 rotates to the outside of the building, and passes through the LED light bars 6 evenly arranged in the interior of each curtain wall panel frame 1 . , perform light show on the outside of the building to improve the night viewing effect of the building.

The embodiments of the present invention are presented for purposes of illustration and description, and are not intended to be exhaustive or to limit the invention to the form disclosed. Many modifications and variations will be apparent to those of ordinary skill in the art. The embodiment was chosen and described in order to better explain the principles of the invention and the practical application, and to enable others of ordinary skill in the art to understand the invention for the design of various embodiments with various modifications as are suited to the particular use.

Claims (5)

1. The utility model provides a green energy-conserving building curtain wall construction which characterized in that: comprises a curtain wall plate frame (1), an assembly plate (4), a light-transmitting plate (7) and a driving chain wheel (8); the curtain wall plate frame ()1 is of a square frame structure, the left end and the right end of the interior of the curtain wall plate frame (1) are respectively provided with a glass plate (3), and the outer side of the curtain wall plate frame (1) is respectively attached to the outer sides of the adjacent curtain wall plate frames (1); four ends of the rear side of the curtain wall plate frame (1) are respectively provided with a plate frame connecting piece (2), and the curtain wall plate frame (1) is arranged on the outer side of the building through the plate frame connecting piece (2); the assembling plate (4) is positioned inside the curtain wall plate frame (1), and the solar power generation plate (5) and the LED lamp strip (6) are respectively arranged on the front side and the rear side of the curtain wall plate frame (1); the light-transmitting plate (7) is arranged on the front end face of the assembling plate (4); the bottom of the driving chain wheel (8) is connected with the top of the assembling plate (4), and the driving chain wheel (8) is connected with an external driving motor through a chain.

2. The green energy-saving building curtain wall structure of claim 1, wherein: the LED light bar assembly structure is characterized in that two LED light bars (6) are arranged at the front end of the assembly plate (4), the light transmission plate (7) is located on the outer side of the front end of the LED light bars (6), and the LED light bars (6) are connected with a building internal control circuit through power lines.

3. The green energy-saving building curtain wall structure of claim 1, wherein: two solar power generation panels (5) are installed on the end face of the rear side of the assembly plate (4), and the solar power generation panels (5) are connected with an electricity storage facility in the building through power lines.

4. The green energy-saving building curtain wall structure of claim 1, wherein: the assembly plate (4) is of a rectangular plate-shaped structure, the upper end and the lower end of the assembly plate (4) are respectively penetrated into the upper end and the lower end of the curtain wall plate frame (1), and the assembly plate (4) is vertically connected inside the curtain wall plate frame (1) in a rotating mode.

5. The green energy-saving building curtain wall structure of claim 1, wherein: a drive connecting groove (401) is formed in the top of the assembling plate (4), a drive connecting block (402) is arranged at the bottom of the assembling plate (4), and the drive connecting block (402) at the bottom of the assembling plate (4) is inserted into the drive connecting groove (401) formed in the upper end of the assembling plate (4).
