Abstract

The utility model discloses a raw material mixing device for carton processing, which is convenient for discharging, comprising a box body, a pressure sensor, an electric telescopic rod and a supporting leg. The inner wall of the end is embedded with a pressure sensor, the outer end surface of the electric telescopic rod is fixedly connected with a baffle plate, the inner side of the material box is provided with a shaft rod, and the outer surface of the shaft rod is connected with a convex plate. An adjustment rod is connected to the bottom end, a connecting plate is inserted through the inside of the connecting block, a limit plate welded with the connecting block is arranged below the cleaning cotton, and a rubber block is connected to the lower surface of the connecting block. The middle position of the lower surface of the box is connected with a discharge pipe, and the inside of the discharge pipe is interspersed with an auger rod, and the left and right ends of the box body are welded with legs. The raw material mixing device for carton processing with convenient discharging is convenient for quantitatively adding raw materials, and the convenient discharging will not cause blockage.

Description

A kind of raw material mixing device for carton processing with convenient discharging

technical field

The utility model relates to the technical field of carton processing, in particular to a raw material mixing device for carton processing which is convenient for discharging.

Background technique

The most common use of cartons is to store items to facilitate the handling and transfer of items by staff. The application of cartons in the logistics industry is particularly common, and when cartons are produced, a variety of raw materials are mixed and stirred together to form pulp. , and then carry out processing such as shaping and folding, so a mixing device is required;

However, when the existing mixing device on the market is used, it is inconvenient to quantitatively add raw materials, and it is not convenient to discharge materials, and it is easy to block during the discharge process. Raw material mixing device to solve the above problems.

Utility model content

The purpose of the present invention is to provide a raw material mixing device for carton processing that is convenient for discharging, so as to solve the problem that the existing mixing device on the market proposed in the above background technology is inconvenient to add raw materials quantitatively, and does not It is easy to discharge the material, and it is easy to block the problem in the process of discharging.

In order to achieve the above purpose, the utility model provides the following technical solutions: a material mixing device for carton processing that is convenient for discharging, including a box body, a pressure sensor, an electric telescopic rod and a supporting leg, and the top of the box body is provided with a feeding material The bottom end of the feeding port is connected with a material box located inside the box, the inner wall of the bottom end of the material box is embedded and connected with a pressure sensor, and the inner side of the pressure sensor is provided with an electric telescopic rod. The outer end surface is fixedly connected with a baffle plate, and the inner side of the baffle plate is provided with a connecting pipe communicating with the material box, the inner side of the material box is provided with a shaft rod, and the outer surface of the shaft rod is connected with a convex plate;

The bottom end of the shaft rod is connected with an adjusting rod, and the outer surface of the adjusting rod is sleeved with a connecting block, a connecting plate is inserted through the inside of the connecting block, and the lower surface of the connecting plate is connected with cleaning cotton, the cleaning cotton There is a limit plate welded with the connection block below the box, and the lower surface of the connection block is connected with a rubber block, the middle position of the lower surface of the box is connected with a discharge pipe, and the inside of the discharge pipe is interspersed with an auger rod , the left and right ends of the box body are welded with legs.

Preferably, the inner end surface of the baffle is in close contact with the inner wall of the material box, the baffle is in a lifting structure inside the material box, and the lower surface of the material box is in an inclined structure.

Preferably, the adjustment rod, the shaft rod and the auger rod are combined to form an integrated structure, the outer surface of the adjustment rod is in a threaded structure, and the outer surface of the shaft rod is welded with convex plates at equal intervals.

Preferably, the connecting block is a sliding structure in the Y-axis direction of the adjusting rod, and the connecting plate is a rotating structure on the connecting block, and the connecting method of the connecting plate and the cleaning cotton is a sticking connection, and the lower surface of the cleaning cotton is connected to the The upper surfaces of the limit plates are in contact with each other.

Preferably, the size of the cross-section of the rubber block is the same as the size of the cross-section of the discharge pipe, and the position of the rubber block corresponds to the position of the discharge pipe.

Preferably, the auger rod is a rotating structure inside the discharge pipe, and the auger rod, the adjusting rod, the convex plate and the rubber block are combined to form a linkage structure.

Compared with the prior art, the beneficial effects of the present utility model are: the convenient material-discharging raw material mixing device for carton processing is convenient for quantitatively adding raw materials, and the convenient material-discharging will not cause blockage;

1. The lower surface of the material box has an inclined structure, which is convenient for discharging. When the baffle is slid away, the material can be added through the connecting pipe. When adding the material, the pressure sensor always monitors the internal weight to facilitate the Control the amount of raw materials added;

2. During the stirring and mixing process, the adjusting rod and the auger rod rotate at the same time. In the second process, due to the movement of the rubber block, the discharge pipe is no longer blocked. At this time, under the push of the auger rod, that is, The material can be discharged without clogging;

3. The limit plate is clamped in the inner wall of the box, so that the connecting block will not rotate, and the raw materials remaining on the limit plate can be rotated by the connecting plate, so that the surface of the cleaning cotton can be cleaned.

Description of drawings

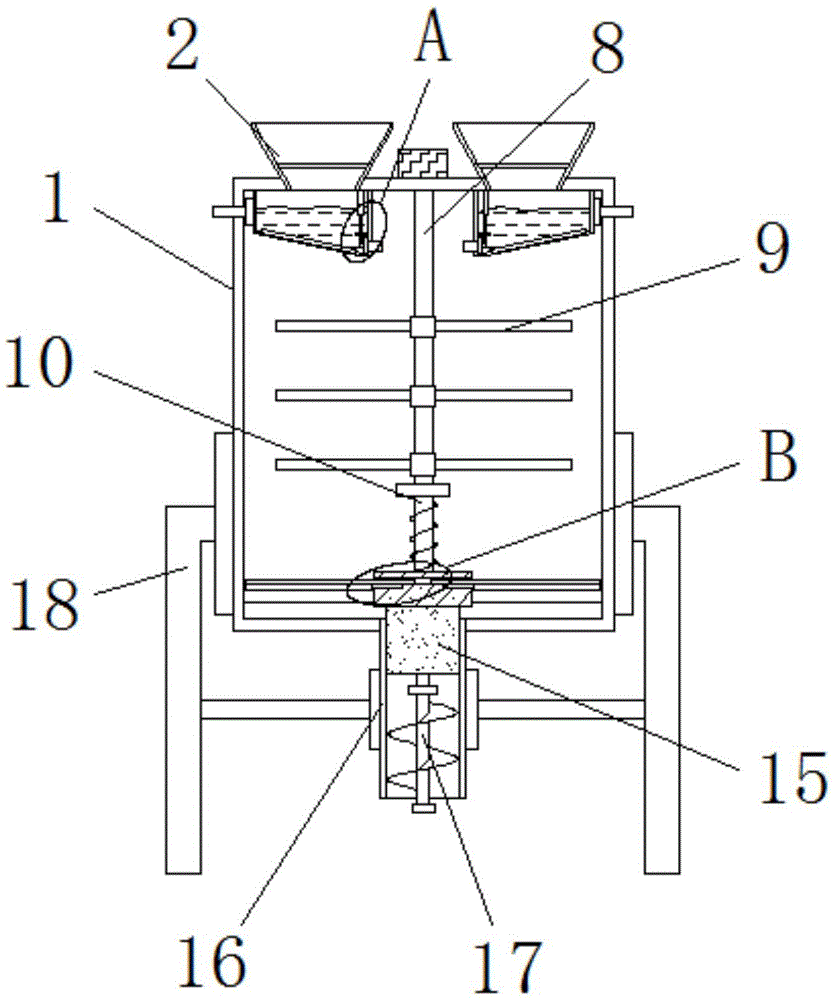

Fig. 1 is the front view sectional structure schematic diagram of the present utility model;

Fig. 2 is the enlarged schematic diagram of the structure at place A in Fig. 1 of the utility model;

Fig. 3 is the enlarged structural schematic diagram at B in Fig. 1 of the utility model;

4 is a schematic structural diagram of the separation state of the rubber block and the discharge pipe of the present invention;

FIG. 5 is a schematic top view of the connecting block of the present invention.

In the figure: 1. Box body; 2. Feed inlet; 3. Material box; 4. Pressure sensor; 5. Electric telescopic rod; 6. Baffle plate; 7. Connecting pipe; 8. Shaft rod; 9. Raised plate; 10. Adjusting rod; 11. Connecting block; 12. Connecting plate; 13. Cleaning cotton; 14. Limiting plate; 15. Rubber block; 16. Discharging pipe; 17. Auger rod; 18. Outrigger.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, but not all of them. Example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-5, the present utility model provides a technical solution: a raw material mixing device for carton processing that is convenient for discharging, comprising a box body 1, a feeding port 2, a material box 3, a pressure sensor 4, and an electric telescopic rod 5. Baffle plate 6, connecting pipe 7, shaft rod 8, convex plate 9, adjusting rod 10, connecting block 11, connecting plate 12, cleaning cotton 13, limit plate 14, rubber block 15, discharge pipe 16, auger Rod 17 and legs 18, the top of the box body 1 is installed with a feed port 2, and the bottom end of the feed port 2 is connected to a material box 3 located inside the box body 1, and the inner wall of the bottom end of the material box 3 is embedded with pressure. The sensor 4, and the inner side of the pressure sensor 4 is provided with an electric telescopic rod 5, the outer end surface of the electric telescopic rod 5 is fixedly connected with a baffle 6, and the inner side of the baffle 6 is provided with a connecting pipe 7 that communicates with the material box 3. The inner side of the box 3 is provided with a shaft rod 8, and the outer surface of the shaft rod 8 is connected with a convex plate 9;

The bottom end of the shaft rod 8 is connected with an adjusting rod 10 , and the outer surface of the adjusting rod 10 is sleeved with a connecting block 11 . The top is a rotating structure, and the connection method of the connecting plate 12 and the cleaning cotton 13 is a stick connection, and the lower surface of the cleaning cotton 13 is in contact with the upper surface of the limit plate 14, which is convenient to use the cleaning cotton 13 to adjust the limit plate. 14 Clean the remaining raw materials on the upper surface, the connecting block 11 is interspersed with a connecting plate 12, and the lower surface of the connecting plate 12 is connected with a cleaning cotton 13, and a limit plate 14 welded with the connecting block 11 is arranged below the cleaning cotton 13 , and the lower surface of the connecting block 11 is connected with a rubber block 15, the cross-sectional size of the rubber block 15 is the same as the cross-sectional size of the discharge pipe 16, and the position of the rubber block 15 corresponds to the position of the discharge pipe 16, so that The discharge pipe 16 can be blocked by the rubber block 15. The middle position of the lower surface of the box body 1 is connected with the discharge pipe 16, and the inside of the discharge pipe 16 is interspersed with an auger rod 17, and the auger rod 17 is in the discharge. The interior of the tube 16 is a rotating structure, and the auger rod 17, the adjusting rod 10, the convex plate 9 and the rubber block 15 are combined to form a linkage structure, so that it is convenient to use one part to drive other parts to work at the same time. The left and right ends of the box 1 Legs 18 are welded on the surface.

As shown in Figures 1 and 2, the inner end surface of the baffle 6 is in close contact with the inner wall of the material box 3, and the baffle 6 has a lifting structure inside the material box 3, and the lower surface of the material box 3 has an inclined structure. In this way, through the sliding of the baffle 6, it is convenient to control the discharge of raw materials inside the material box 3, and at the same time, quantitative discharge can be carried out.

As shown in FIG. 1, the adjustment rod 10, the shaft rod 8 and the auger rod 17 are combined to form an integrated structure, and the outer surface of the adjustment rod 10 is in a threaded structure, and the outer surface of the shaft rod 8 is welded with convex plates 9 at equal intervals, so that The connecting block 11 can slide on the outer surface of the adjusting rod 10, and the convex plate 9 is responsible for stirring the raw materials.

Working principle: When using the raw material mixing device for carton processing, which is convenient for discharging, first, through the feeding port 2 on the upper surface of the box body 1, the raw materials are poured into the inside of the material box 3 for temporary storage, and then the staff starts the diagram. The electric telescopic rod 5 shown in Fig. 2 drives the baffle 6 to move, so that the connecting pipe 7 is opened and the raw materials are discharged. The staff carry out quantitative discharge;

After the discharge is completed, the drive motor installed on the upper surface of the box body 1 is started to control the rotation of the shaft 8. At this time, due to the existence of the interlocking structure, the convex plate 9, the adjusting rod 10 and the auger rod 17 will rotate at the same time , in this process, the convex plate 9 will stir and mix the raw materials;

During the stirring and mixing process, the connecting block 11 shown in FIG. 3 will slide on the adjusting rod 10 and move to the position shown in FIG. Under the action of the rotation of the dragon rod 17, the material will be discharged, and then the shaft rod 8 rotates in the opposite direction, and the staff can continue to quantitatively add the raw material. During this period of pipe 16, the convex plate 9 will fully stir the raw materials;

As for the raw material remaining on the surface of the limit plate 14, the built-in drive motor inside the connecting block 11 can be activated to control the rotation of the connecting plate 12. At this time, the cleaning cotton 13 will clean the surface of the limit plate 14. It is the whole process of using the raw material mixing device for carton processing that is convenient for discharging, and the content not described in detail in this specification belongs to the prior art known to those skilled in the art.

The standard parts used in the utility model can be purchased from the market, the special-shaped parts can be customized according to the description in the specification and the drawings, and the specific connection method of each part adopts the mature bolts, rivets and welding in the prior art. and other conventional means, the machinery, parts and equipment all adopt the conventional models in the prior art, and the circuit connection adopts the conventional connection manner in the prior art, which will not be described in detail here.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A raw material mixing device for carton processing that is convenient for discharging, comprising a box body (1), a pressure sensor (4), an electric telescopic rod (5) and an outrigger (18), characterized in that: the box body ( The top end of 1) is installed with a feeding port (2), and the bottom end of the feeding port (2) is connected with a material box (3) located inside the box body (1), and the inner wall of the bottom end of the material box (3) A pressure sensor (4) is embedded and connected, and an electric telescopic rod (5) is arranged on the inner side of the pressure sensor (4), and a baffle (6) is fixedly connected to the outer end surface of the electric telescopic rod (5), and the baffle The inner side of (6) is provided with a connecting pipe (7) communicating with the material box (3), the inner side of the material box (3) is provided with a shaft rod (8), and the outer surface of the shaft rod (8) is connected with a convex plate (9); The bottom end of the shaft rod (8) is connected with an adjusting rod (10), and a connecting block (11) is sleeved on the outer surface of the adjusting rod (10), and a connecting plate (11) is inserted through the inside of the connecting block (11). 12), and a cleaning cotton (13) is connected to the lower surface of the connecting plate (12), and a limit plate (14) welded with the connecting block (11) is arranged below the cleaning cotton (13), and the connecting block ( The lower surface of 11) is connected with a rubber block (15), the middle position of the lower surface of the box body (1) is connected with a discharge pipe (16), and the inside of the discharge pipe (16) is interspersed with an auger rod (17). ), legs (18) are welded on both the left and right end surfaces of the box body (1). 2. The raw material mixing device for carton processing according to claim 1, characterized in that: the inner end surface of the baffle plate (6) is closely attached to the inner wall of the material box (3), and The baffle plate (6) has a lifting structure inside the material box (3), and the lower surface of the material box (3) is in an inclined structure. 3. A kind of raw material mixing device for carton processing according to claim 1, characterized in that: the adjustment rod (10), the shaft rod (8) and the auger rod (17) are combined to form an integration The outer surface of the adjusting rod (10) has a threaded structure, and the outer surface of the shaft rod (8) is welded with convex plates (9) at equal intervals. 4. A raw material mixing device for carton processing that is convenient for discharging according to claim 1, characterized in that: the connecting block (11) is a sliding structure in the Y-axis direction of the adjusting rod (10), and is connected to The plate (12) has a rotating structure on the connection block (11), and the connection mode of the connection plate (12) and the cleaning cotton (13) is an adhesive connection, and at the same time, the lower surface of the cleaning cotton (13) is connected to the limit plate (14) fit the upper surface. 5. A kind of raw material mixing device for carton processing convenient for discharging according to claim 1, characterized in that: the cross-sectional dimension of the rubber block (15) is the same as the cross-sectional dimension of the discharge pipe (16), And the position of the rubber block (15) corresponds to the position of the discharge pipe (16). 6. The raw material mixing device for carton processing according to claim 1, wherein the auger rod (17) is a rotating structure inside the discharge pipe (16), and the auger rod (17) is a rotating structure. The rod (17), the adjusting rod (10), the convex plate (9) and the rubber block (15) are combined to form a linkage structure.
