Abstract

The utility model discloses an artery is fixed pastes relates to the medical instrument field, including the upper strata subsides, one side that the upper strata was pasted is provided with the extension and takes B, and the below that the upper strata was pasted is provided with the cotton yarn layer, the lower surface department that the below that the upper strata was pasted is located the cotton yarn layer is provided with first adhesive linkage, and the upper strata pastes the below and is provided with the lower floor and pastes, the surface position department that one side that the upper strata was pasted is located the lower floor and pastes is provided with cotton pad, and the upper surface that the upper strata was pasted is provided with the label, the lower surface that the upper strata was pasted is provided with hemostatic cotton. Has the advantages that: the utility model discloses a set up the lower floor and paste for forming two independent processes with fixed pjncture needle and fixed transducing pipe, the lower floor pastes still can play and provides a buffer layer for between pjncture needle and the skin, avoids the needle body to bring uncomfortable sense for skin, the utility model discloses a setting of hemostasis cotton and hemostasis piece, thereby at the in-process of extracting the pjncture needle, can effectually stanch for the wound position.

Description

arterial fixation sticker

technical field

The utility model relates to the field of medical devices, in particular to an artery fixation sticker.

Background technique

At present, arterial blood pressure monitoring is one of the most commonly used indicators of the working state of the cardiovascular system. It mainly monitors the pressure changes in the arterial pipeline, and it is also one of the main indicators for evaluating the circulatory function. The blood pressure of invasive blood pressure monitoring is accurate. In addition to displaying systolic blood pressure, diastolic blood pressure, and mean blood pressure, other vascular parameters, such as myocardial contractility, stroke volume, and systemic circulatory resistance, can also be calculated from arterial pressure.

Patent No. CN204699222U discloses an arterial indwelling catheter fixation patch, which solves the problem that there is no specific arterial indwelling catheter in clinical practice. However, it has the following problems: the structure of the fixation patch in this solution is simple, the connection between the puncture needle and the transducer Some can cause pressure sores on the patient's skin. Patent No. CN205458876U discloses an arterial pressure-appropriate hemostatic bag, which solves the problem of local hemostasis after puncture, but it is only for the bleeding situation that occurs in less extreme cases, and hemostasis is taken as a separate process, so that it can be used. more troublesome.

Although the above two patents have the function of patch or hemostasis, they are only completed by simply setting the patch and the hemostatic bag. Due to the extreme bleeding situation, the hemostatic bag cannot be generally used, or there is no fixed pad to place the transducing tube, so As a result, the patch and hemostatic effect are poor, and cannot well meet the needs of nurses.

For the problems in the related technologies, no effective solutions have been proposed so far.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the present invention provides an arterial fixation sticker, which has the advantages of practicality and convenience, good air permeability, prevention of pressure ulcer formation, and hemostasis, thereby solving the above-mentioned problems in the background art.

(2) Technical solutions

In order to realize the above-mentioned advantages of practical convenience, good air permeability, prevention of pressure ulcer formation, and hemostasis, the specific technical scheme adopted by the present utility model is as follows:

The arterial fixation sticker includes an upper-layer sticker, one side of the upper-layer sticker is provided with an extension band B, and a cotton yarn layer is arranged below the upper-layer sticker, and a first adhesive layer is provided below the upper-layer sticker on the lower surface of the cotton yarn layer , and the upper layer is provided with a lower layer, one side of the upper layer is located at the surface position of the lower layer and is provided with a cotton pad, and the upper surface of the upper layer is provided with a label, and the lower surface of the upper layer is provided with a hemostatic cotton pad , and the lower part of the upper layer sticker is provided with a hemostatic sheet at the position of the lower surface of the hemostatic cotton, the surface of the lower layer sticker is located on one side of the cotton pad and is provided with an extension band A, and one side of the lower layer sticker corresponds to the position of the extension band A A fixing tape is provided, and one side of the extension tape B is provided with a second adhesive sheet.

Further, the lower surfaces of the first adhesive layer and the second adhesive sheet are provided with a cover layer, and the lower surfaces of the first adhesive layer and the second adhesive sheet are provided with adhesive water glue.

Further, the lower layer sticker is located on the back side of the hemostatic cotton, and one side surface of the lower layer sticker is provided with an adhesive patch.

Further, the fixing belt is in line contact with the lower layer, and the length of the fixing belt corresponds to the height of the extension belt A.

Further, the hemostatic cotton is located at a position corresponding to the wound, and the hemostatic cotton is a component made of breathable sanitary napkins.

Further, the thickness of the cotton pad is about 2 cm, and the cotton pad is located on one side of the upper layer sticker.

(3) Beneficial effects

Compared with the prior art, the utility model provides an arterial fixation sticker, which has the following beneficial effects:

(1), the utility model makes the fixed puncture needle and the fixed transduction tube form two independent processes by setting the lower layer sticker, and the lower layer sticker can also play a role of providing a buffer layer between the puncture needle and the skin to avoid the needle body It brings discomfort to the skin, and is provided with a fixing belt, which can fix the part of the transducing tube connected to the needle, and avoid the movement of the transducing tube, thereby driving the puncture needle and affecting the pressure measurement effect.

(2), the present utility model can effectively stop bleeding at the wound site during the process of pulling out the puncture needle through the setting of the hemostatic cotton and the hemostatic sheet, and it is not necessary to let the patient press the disinfectant cotton to stop bleeding after the puncture. The process is convenient for the patient, and the second adhesive sheet is provided, which can prevent the extension belt B from falling off due to the factor of partial skin dry and cracked lamp, and enhances the practicability of the device.

Description of drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only of the present invention. For some embodiments of the present invention, for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

1 is a schematic structural diagram of an arterial fixation sticker according to an embodiment of the present invention;

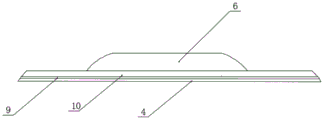

2 is a cross-sectional view of an arterial upper layer sticker according to an embodiment of the present invention;

FIG. 3 is a sectional view according to the structure in FIG. 1 .

In the picture:

1. Extension tape A; 2. Label; 3. Second adhesive sheet; 4. First adhesive layer; 5. Lower layer sticker; 6. Cotton pad; 7. Fixed tape; 8. Extension tape B; 10. Upper layer sticker; 11. Hemostatic cotton; 12. Hemostatic sheet.

Detailed ways

In order to further illustrate each embodiment, the present invention provides accompanying drawings, which are part of the disclosure of the present invention, which are mainly used to illustrate the embodiments, and can be used to explain the operation principles of the embodiments in conjunction with the relevant descriptions in the specification, With reference to these contents, those of ordinary skill in the art will understand other possible implementations and advantages of the present invention. Components in the figures are not drawn to scale, and similar component symbols are generally used to denote similar components.

According to an embodiment of the present invention, an arterial fixation patch is provided.

The present utility model will now be further described with reference to the accompanying drawings and specific embodiments. As shown in Figs. 1-3, the arterial fixation sticker according to the embodiment of the present utility model includes an upper layer sticker 10, and an extension band B8 is provided on one side of the upper layer sticker 10, And the bottom of the upper layer sticker 10 is provided with a cotton yarn layer 9, the bottom of the upper layer sticker 10 is located at the lower surface of the cotton yarn layer 9 and is provided with a first adhesive layer 4, and below the upper layer sticker 10 is provided with a lower layer sticker 5, one side of the upper layer sticker 10 A cotton pad 6 is arranged at the surface position of the lower layer sticker 5, and the upper surface of the upper layer sticker 10 is provided with a label 2, the lower surface of the upper layer sticker 10 is provided with a hemostatic cotton 11, and the bottom of the upper layer sticker 10 is located under the hemostatic cotton 11. The surface position is provided with a hemostatic sheet 12, the surface of the lower layer sticker 5 is located on one side of the cotton pad 6, and an extension band A1 is provided, and one side of the lower layer sticker 5 is provided with a fixing band 7 at the position corresponding to the extension band A1, and the extension band B8 A second sticky sheet 3 is provided on one side of the device. By fixing the upper layer sticker 10 on the needle shaft of the puncture needle, and then by rotating the lower layer sticker 5, the extension belt B8 and the second sticky sheet 3 are attached to the skin, and the cotton pad 6 is The position where the transducer tube is connected to the puncture needle provides a support platform, which effectively prevents pressure ulcers on the patient's skin caused by the connection part of the anti-puncture needle and the transducer.

In one embodiment, the lower surfaces of the first adhesive layer 4 and the second adhesive sheet 3 are provided with a cover layer, and the lower surfaces of the first adhesive layer 4 and the second adhesive sheet 3 are provided with adhesive water glue and a cover layer. , to avoid the drying and aging of the sticky water glue before use, and the inconvenience of use. The sticky water glue can ensure the paste without causing damage to the skin.

In one embodiment, the lower layer sticker 5 is located on the rear side of the hemostatic cotton 11, and one side surface of the lower layer sticker 5 is provided with an adhesive patch, which further improves the stability of the puncture needle.

In one embodiment, the fixing band 7 is in line contact with the lower layer sticker 5, and the length of the fixing band 7 corresponds to the height of the extension band A1. The fixing band 7 is provided, which can effectively ensure the connection between the transducer tube and the puncture needle. The vibration of the puncture needle will not affect the measurement results and bring discomfort to the patient due to the vibration of the transducer tube.

In one embodiment, the hemostatic cotton 11 is located at the position corresponding to the wound, and the hemostatic cotton 11 is a component made of breathable sanitary napkins. The arrangement of the breathable sanitary napkins can provide a guarantee for the air circulation at the wound site and will not form sweat stains produce bacteria.

In one embodiment, the thickness of the cotton pad 6 is about 2 cm, and the cotton pad 6 is located on one side of the upper layer sticker 10. The thickness of the cotton pad is set to ensure the effect of the support pad, and it is located on the side of the upper layer sticker 10, which can ensure During the rotation of the lower layer sticker 5, the cotton pad 6 will not overlap with the upper layer sticker 10.

Working principle: First, fix the upper layer sticker 10 on the needle shaft of the puncture needle, then stick the extension belt B8 and the second adhesive sheet 3 on the skin by rotating the lower layer sticker 5, and the cotton pad 6 is the connection between the transducing tube and the puncture needle. The position provides a support platform, which effectively prevents pressure sores on the patient's skin caused by the connecting part of the anti-puncture needle and the transducer. It is provided with a covering layer to avoid the drying and aging of the sticky water glue before use, and the inconvenience of using the sticky water glue. It can ensure the sticking without causing damage to the skin, and is provided with an adhesive patch, which further improves the stability of the puncture needle, and is provided with a fixing belt 7, which can effectively ensure that the connection between the transducing tube and the puncture needle will not be changed due to replacement. The shaking of the energy tube causes the shaking of the puncture needle to affect the measurement results and bring discomfort to the patient. The setting of the breathable sanitary napkin can provide a guarantee for the air circulation of the wound site, and will not form sweat stains and produce bacteria. The thickness of the cotton pad is set to ensure It is located on one side of the upper layer sticker 10 to ensure the effect of the support pad, which can ensure that the cotton pad 6 will not overlap with the upper layer sticker 10 during the rotation of the lower layer sticker 5 .

In the present utility model, unless otherwise expressly specified and limited, terms such as "installation", "arrangement", "connection", "fixation", "swivel connection" should be understood in a broad sense, for example, it may be a fixed connection, It can also be detachable connection or integrated; it can be mechanical connection or electrical connection; it can be directly connected or indirectly connected through an intermediate medium, it can be the internal communication of two elements or the interaction of two elements Unless otherwise clearly defined, those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention according to specific situations.

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the within the scope of protection of the present invention.

Claims (6)

1. arterial fixation sticker, it is characterized in that, comprise upper layer sticker (10), one side of described upper layer sticker (10) is provided with extension band B (8), and the bottom of upper layer sticker (10) is provided with cotton yarn layer (9) ), the lower surface of the upper layer sticker (10) is located at the lower surface of the cotton yarn layer (9) and is provided with a first adhesive layer (4), and the lower layer sticker (10) is provided with a lower layer sticker (5), and the upper layer sticker (10) is provided with a lower layer sticker (5). One side of (10) is provided with a cotton pad (6) at the surface position of the lower layer sticker (5), and the upper surface of the upper layer sticker (10) is provided with a label (2), and the lower surface of the upper layer sticker (10) is provided with a label (2). A hemostatic cotton (11) is provided, and a hemostatic sheet (12) is provided below the upper layer sticker (10) on the lower surface of the hemostatic cotton (11), and the surface of the lower layer sticker (5) is located on the cotton pad (6) An extension tape A(1) is provided on one side of the tape, and a fixing tape (7) is provided at the position corresponding to the extension tape A(1) on one side of the lower layer sticker (5), and one side of the extension tape B(8) A second adhesive sheet (3) is provided. 2. The arterial fixation patch according to claim 1, characterized in that, the lower surfaces of the first adhesive layer (4) and the second adhesive sheet (3) are provided with a cover layer, and the first adhesive layer (4) . The lower surface of the second adhesive sheet (3) is provided with viscous water glue. 3. The arterial fixation sticker according to claim 1, wherein the lower layer sticker (5) is located at the back side of the hemostatic cotton (11), and one side surface of the lower layer sticker (5) is provided with an adhesive patch . 4. The arterial fixation sticker according to claim 1, wherein the fixation tape (7) is in line contact with the lower layer sticker (5), and the length of the fixation tape (7) is the same as the length of the extension tape A (1). height corresponds. 5 . The arterial fixation patch according to claim 1 , wherein the hemostatic cotton (11) is located at a position corresponding to the wound, and the hemostatic cotton (11) is a member made of a breathable sanitary napkin. 6 . 6 . The arterial fixation patch according to claim 1 , wherein the thickness of the cotton pad ( 6 ) is about 2 cm, and the cotton pad ( 6 ) is located on one side of the upper layer patch ( 10 ). 7 .
