CN210841658U - Filtering mask for preventing children from infecting - Google Patents

Abstract

The utility model discloses a filter mask for preventing infection of children, which relates to the field of masks and comprises a mask body, wherein a breathing valve is arranged inside the mask body, and a shell is connected to the outside of the mask body, and the inside of the mask body is provided with a respirator. A filter layer, and one side of the filter layer is provided with a drug storage layer, the inner side of the mask body is provided with a connection block, and the outer side of the connection block is connected with a first sealing layer, and the inner side of the connection block is provided with a first Velcro . The utility model realizes that children wear the mask body by connecting the hanging ears and the ears when wearing the mask body, the hanging ears and the elastic band, but the elastic band is located on the neck of the child at this time. , The main body of the mask is removed from the ear, but it is hung on the neck by an elastic band, so that it will not be discarded at will, so that the main body of the mask can be used many times, and it will not be lost frequently, reducing economic losses.

Description

A filter mask for preventing infection in children

technical field

The utility model relates to the field of masks, in particular to a filter mask for preventing infection of children.

Background technique

A mask is a sanitary product, generally refers to a device worn on the mouth and nose to filter the air entering the mouth and nose to prevent harmful gases, odors, and droplets from entering and leaving the wearer's mouth and nose. It is made of gauze or paper.

The existing mask adopts the ear-hook type, but this kind of mask is not easy to be lost for adults, but for children, it is easy to take it off and do not know where to put it, which leads to loss, and the existing mask is only used for Filtration is not sufficient for children with respiratory conditions to provide targeted treatment of inhaled and exhaled air.

Utility model content

The purpose of this utility model is: in order to solve the problem that the existing masks used by children are easy to lose, and the existing masks are only used for filtering and cannot be targeted to children with respiratory diseases, a filter mask for preventing infection in children is provided. .

In order to achieve the above purpose, the present utility model provides the following technical solutions: a filter mask for preventing infection in children, comprising a mask body, a breathing valve is provided inside the mask body, and an outer shell is connected to the outside of the mask body, and the mask body is The inner part of the mask is provided with a filter layer, and one side of the filter layer is provided with a drug storage layer, the inner side of the mask body is provided with a connection block, and the outer side of the connection block is connected with a first sealing layer, and the inner side of the connection block is provided with a A first Velcro, and one side of the first Velcro is connected with a second Velcro, the outer side of the mask body is connected with a hanging ear, and the inner side of the hanging ear is connected with a second sealing layer, and the bottom end of the hanging ear is connected Attached with elastic.

Preferably, the outer shell is made of super-soft fibrous material, and the connecting block is made of absorbent cotton.

Preferably, the number of the filter layers is three groups, activated carbon fibers are arranged inside the filter layers of the three groups, and the filter layers of the three groups are all detachably connected to the mask body.

Preferably, the medicine storage layer is provided with medicine inside, and the medicine storage layer is detachably connected to the mask body, and the medicine storage layer is located on one side of the connection block.

Preferably, both the first sealing layer and the second sealing layer are made of silicone material, and the number of the second sealing layers is two groups, and the two groups of the second sealing layers are equidistantly distributed on the inner side of the hanging ear.

Preferably, the first Velcro and the second Velcro are matched, the connection block and the mask body are movably connected through the first Velcro and the second Velcro, the outer shell, the filter layer, the drug storage layer and the connection block There are through holes on the inner side, and the through holes are matched with the breathing valve.

Compared with the prior art, the beneficial effects of the present utility model are: 1. The present utility model realizes that children wear the mask body by connecting the hanging ears and the ears through the provided mask body, hanging ears and elastic band, but the elastic band At this time, it is located on the neck of the child. When the child wants to remove the main body of the mask, the main body of the mask is removed from the ear, but it is hung on the neck by an elastic band, so that it will not be discarded at will, so that the main body of the mask can be more It will not be lost frequently, and economic losses will be reduced;

2. Through the set mask body, breathing valve, shell, filter layer, drug storage layer, first Velcro and second Velcro, it is realized that the medicine inside the drug storage layer can be prepared according to different children, according to the respiratory disease. Different types are prepared by doctors, so that when children with respiratory diseases inhale and exhale air, the bacteria can be suppressed to a certain extent, so as to prevent children from getting sicker and prevent other children from being infected, which is beneficial to children's health. .

Description of drawings

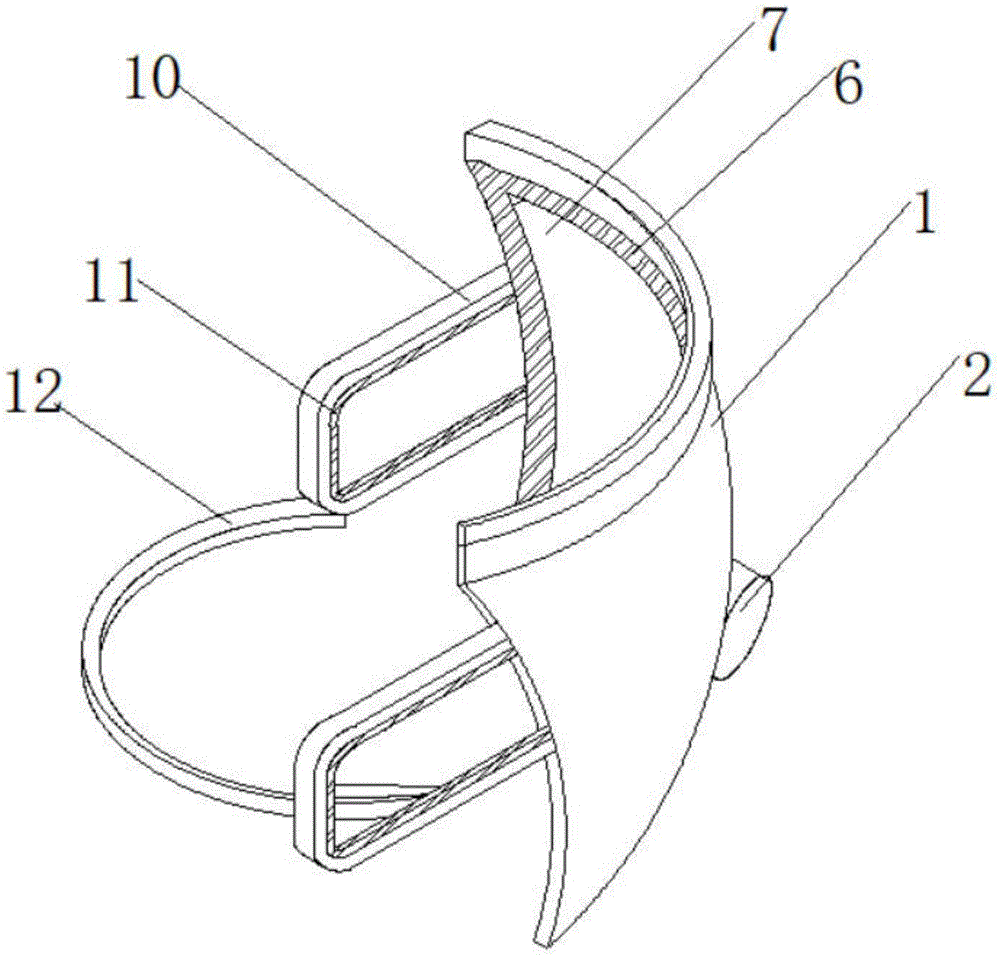

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the sectional view of the utility model;

3 is a schematic diagram of the inner structure of the mask body of the present invention.

In the figure: 1. Mask body; 2. Breathing valve; 3. Shell; 4. Filter layer; 5. Drug storage layer; 6. First sealing layer; 7. Connection block; 8. First Velcro; 9. Section 2. Velcro; 10. Hanging ears; 11. The second sealing layer; 12. Elastic band.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1-3, a filter mask for preventing infection of children, including a mask body 1, a breathing valve 2 is arranged inside the mask body 1, and an outer shell 3 is connected to the outer side of the mask body 1, and the inside of the mask body 1 is provided with a The filter layer 4, and one side of the filter layer 4 is provided with a drug storage layer 5, the inner side of the mask body 1 is provided with a connection block 7, and the outer side of the connection block 7 is connected with a first sealing layer 6, and the inner side of the connection block 7 is provided with a The first Velcro 8 is connected to one side of the first Velcro 8 with a second Velcro 9, the outer side of the mask body 1 is connected with a hanging ear 10, and the inner side of the hanging ear 10 is connected with a second sealing layer 11, and the hanging ear An elastic band 12 is connected to the bottom end of 10 .

Through the mask body 1, the hanging ears 10, and the elastic band 12, the present invention realizes that when the child wears the mask body, the hanging ear 10 is connected to the ear, but the elastic band 12 is located on the neck of the child at this time. When the mask body 1 is removed, the mask body 1 is removed from the ears, but is hung on the neck through the elastic band 12, so that the situation of discarding it will not happen, so that the mask body 1 can be used multiple times without frequent loss. , reduce economic losses.

Please refer to FIG. 2 emphatically, the outer shell 3 is made of super soft fibrous material, the connecting block 7 is made of absorbent cotton material, and the mask body 1 is made of cotton, which is soft and foldable, and is easy to carry.

Please refer to FIG. 2 emphatically, the number of filter layers 4 is three groups, the interior of the three groups of filter layers 4 are all provided with activated carbon fibers, and the three groups of filter layers 4 are all detachably connected to the mask body 1, and the three layers of filter layers 4 can effectively Filter impurities in the air.

Please refer to FIG. 2 , the medicine storage layer 5 is provided with medicine inside, and the medicine storage layer 5 is detachably connected to the mask body 1 , the medicine storage layer 5 is located on one side of the connection block 7 , and the medicine storage layer 5 and the filter layer 4 are both It can be replaced, just tear the connection block 7 apart.

Please refer to FIG. 1 , the first sealing layer 6 and the second sealing layer 11 are both made of silicone material, and the number of the second sealing layers 11 is two groups. inside.

Please focus on Fig. 3, the first Velcro 8 and the second Velcro 9 are matched, the connecting block 7 and the mask body 1 are movably connected through the first Velcro 8 and the second Velcro 9, the shell 3, the filter layer 4, the storage The inner side of the medicine layer 5 and the connecting block 7 are provided with through holes, and the through holes are matched with the breathing valve 2, the breathing valve 2 is fixedly connected with the housing 3, and the breathing valve 2 is fixedly connected with the mask body 1.

Working principle: When in use, the main body 1 of the mask can be worn, and the two sets of hanging ears 10 are connected to the ears, so that the main body 1 of the mask is worn, the first sealing layer 6 and the second sealing layer 11 are made of silicone material, and the silicone material is softer It can make children more comfortable to wear. When children breathe, the air will be filtered by three layers of filter layers 4 successively, which can effectively filter particles, pollen, etc. in the air to ensure the health of children's respiratory tract, and the drug storage layer 5 is based on The specific situation of the child is configured. If the child has respiratory diseases, etc., the drug can be configured according to different situations. If it is a healthy child, some resistant drugs can be configured to ensure the child's health to a certain extent. The breathing valve 2 can quickly discharge the exhaled moisture, so that the child will not feel discomfort when wearing the mask body 1, so that the elastic band 12 is located at the child's neck at this time, and will not hinder the usual play. 1 When removing, the two sets of hanging ears 10 are removed from the ears, and the connection between the mask body 1 detached from the ears and the child is the elastic band 12 on the neck, and the elastic band 12 makes the mask body 1 hang on the neck of the child, It will not happen that the mask will be lost after being removed.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A filter mask for preventing infection in children, comprising a mask body (1), characterized in that: the inside of the mask body (1) is provided with a breathing valve (2), and the outer side of the mask body (1) is connected with a shell (3), the inside of the mask body (1) is provided with a filter layer (4), and one side of the filter layer (4) is provided with a drug storage layer (5), and the inside of the mask body (1) is provided with a A connecting block (7), and a first sealing layer (6) is connected to the outside of the connecting block (7), a first Velcro (8) is arranged on the inner side of the connecting block (7), and the first Velcro (8) ) is connected with a second Velcro (9), the outer side of the mask body (1) is connected with a hanging ear (10), and the inner side of the hanging ear (10) is connected with a second sealing layer (11), so An elastic band (12) is connected to the bottom end of the hanging ear (10). 2 . The filter mask for preventing infection in children according to claim 1 , wherein the outer shell ( 3 ) is made of a super-soft fine fiber material, and the connecting block ( 7 ) is made of a water-absorbing cotton material. 3 . 3. a kind of filter mask for preventing infection of children according to claim 1, is characterized in that: the quantity of described filter layer (4) is three groups, and the inside of three groups of described filter layers (4) is all provided with activated carbon fibers, and the three groups of the filter layers (4) are all detachably connected to the mask body (1). 4. A kind of filter mask for preventing children's infection according to claim 1, it is characterized in that: the inside of described medicine storage layer (5) is provided with medicine, and medicine storage layer (5) and mask main body (1) can be When the connection is disassembled, the drug storage layer (5) is located on one side of the connection block (7). 5. A filter mask for preventing infection in children according to claim 1, wherein the first sealing layer (6) and the second sealing layer (11) are both made of silica gel material, and the second sealing layer The number of (11) is two groups, and the two groups of second sealing layers (11) are equidistantly distributed on the inner side of the hanging ears (10). 6. A filter mask for preventing infection in children according to claim 1, wherein the first Velcro (8) and the second Velcro (9) are matched, and the connecting block (7) is matched with the second Velcro (9). The mask main body (1) is movably connected by the first Velcro (8) and the second Velcro (9), and the outer shell (3), the filter layer (4), the medicine storage layer (5) and the connection block (7) are flexibly connected. The inner side is provided with through holes, and the through holes are matched with the breathing valve (2).
