Abstract

The utility model discloses a composite glass photovoltaic module, which belongs to the field of photovoltaic technology. A screw rod is installed, the installation fixing plate and the screw rod are connected through a first bearing, a moving block is arranged on the outer side of the screw rod, and the moving block and the screw rod are connected through a screw rod sleeve, A telescopic cylinder is installed below the moving block, and a telescopic rod is arranged below the telescopic cylinder; the utility model is provided with a first motor, a moving block, a screw sleeve, a screw, a first bearing, a telescopic cylinder, a magic The sub-sticker, the third rotating shaft, the telescopic rod, the installation frame, the cleaning cotton and the velcro sticker enable the module to clean the surface of the photovoltaic panel through the cleaning cotton, and adjust the position of the cleaning cotton according to the needs, thus improving the cleaning of the module ability.

Description

A composite glass photovoltaic module

technical field

The utility model belongs to the field of photovoltaic technology, in particular to a composite glass photovoltaic assembly.

Background technique

Photovoltaic, short for solar photovoltaic power generation system, is a new type of power generation system that uses the photovoltaic effect of solar cell semiconductor materials to directly convert solar radiation energy into electrical energy. There are two modes of independent operation and grid-connected operation.

The prior art has the following problems: most of the current composite glass photovoltaic modules have the problems of poor cleaning ability and low adjustment ability.

Utility model content

In order to solve the problems raised in the above background art. The utility model provides a composite glass photovoltaic module, which has the characteristics of good cleaning ability and high adjustment ability.

In order to achieve the above purpose, the present invention provides the following technical solutions: a composite glass photovoltaic module, comprising a first motor, two mounting and fixing plates are arranged on one side of the first motor, and the first motor is close to the mounting and fixing plates A screw rod is installed on one side of the screw rod, the mounting plate and the screw rod are connected by a first bearing, a moving block is arranged on the outer side of the screw rod, and a screw rod sleeve is passed between the moving block and the screw rod For connection, a telescopic cylinder is installed below the moving block, a telescopic rod is installed below the telescopic cylinder, an installation frame is installed below the telescopic rod, and a third motor is installed on the front side of the installation frame, so The side of the third motor close to the installation frame is provided with a third rotating shaft, the outer side of the third rotating shaft is installed with a velcro sticker, the outer side of the velcro sticker is provided with a velcro sticker, and the outer side of the velcro sticker is installed There is cleaning cotton, a composite glass photovoltaic panel is arranged below the screw rod, and an adjustment device is installed on the outer side of the composite glass photovoltaic panel.

Preferably, the adjusting device includes a second bearing, a first rotating shaft, a connecting frame, a third bearing, a second motor, a second rotating shaft, a knob, a threaded hole, a screw, a fourth bearing and a rubber plate, and the second motor One side of the motor is provided with a second rotating shaft, the second rotating shaft is connected with the mounting plate through a third bearing, and the side of the second rotating shaft away from the second motor is provided with two connecting frames, the connecting frames There are a plurality of knobs on the upper and lower sides of the screw, the side of the knob close to the connection frame is provided with a screw, the screw and the connection frame are connected through threaded holes, and the side of the screw away from the knob is provided with a screw The rubber plate, the screw and the rubber plate are connected by a fourth bearing, a first rotating shaft is provided on the side of the two connecting frames away from the second rotating shaft, and the first rotating shaft and the installation and fixing plate are connected by the first rotating shaft. The two bearings are connected.

Preferably, the telescopic rod and the mounting frame are fixedly connected by welding.

Preferably, a hole is provided on the mounting and fixing plate at a position where it intersects with the first bearing, and the diameter of the hole on the mounting and fixing plate is equal to the diameter of the outer side of the first bearing.

Preferably, the width of the cleaning cotton is larger than the width of the composite glass photovoltaic panel.

Preferably, the maximum cross-sectional area of the knob is larger than the cross-sectional area of the threaded hole.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The utility model is provided with a first motor, a moving block, a screw sleeve, a screw, a first bearing, a telescopic cylinder, a magic sticker, a third rotating shaft, a telescopic rod, an installation frame, a cleaning cotton and a magic sticker, The component can clean the surface of the photovoltaic panel through the cleaning cotton, and the position of the cleaning cotton can be adjusted as required, thereby improving the cleaning ability of the component.

2. The utility model provides the second bearing, the first rotating shaft, the connecting frame, the third bearing, the second motor, the second rotating shaft, the knob, the threaded hole, the screw, the fourth bearing and the rubber plate, so that the assembly can be adjusted according to the sun's condition. The position adjusts the angle of the photovoltaic panel, and can fine-tune the height of the photovoltaic panel as required, thereby improving the adjustment ability of the module.

Description of drawings

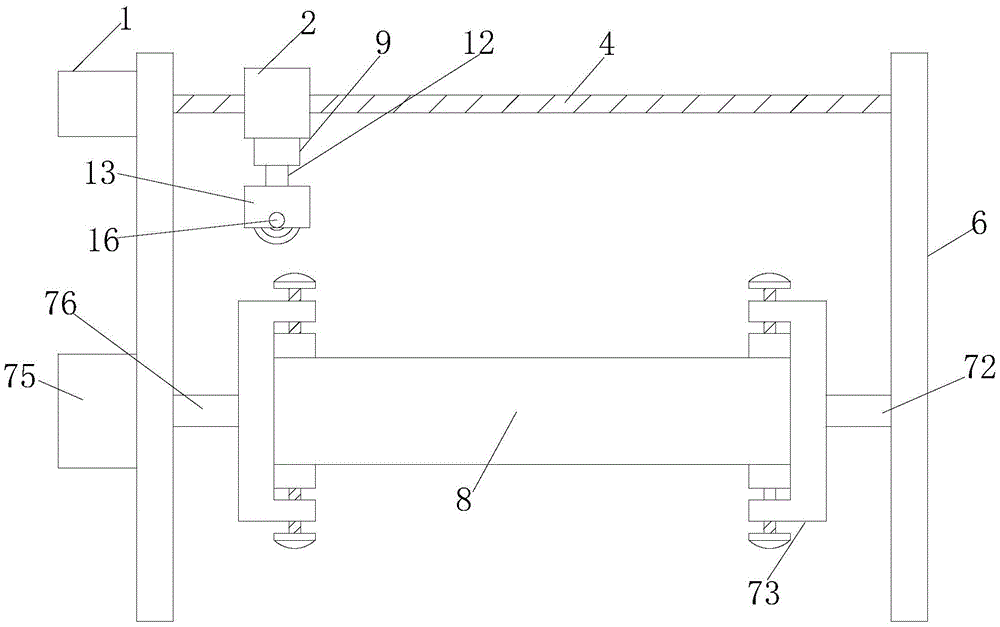

Fig. 1 is the front view of the utility model;

Fig. 2 is the structural representation of the utility model;

FIG. 3 is an enlarged view of FIG. 2A of the present invention.

In the figure: 1, the first motor; 2, the moving block; 3, the screw sleeve; 4, the screw; 5, the first bearing; 6, the fixing plate; 7, the adjusting device; 71, the second bearing; 72 , the first shaft; 73, the connecting frame; 74, the third bearing; 75, the second motor; 76, the second shaft; 77, the knob; 78, the threaded hole; 79, the screw; 80, the fourth bearing; 81, the rubber Board; 8. Composite glass photovoltaic panel; 9. Telescopic cylinder; 10. Velcro sticker; 11. Third shaft; 12. Telescopic rod; 13. Mounting frame; 14. Cleaning cotton; 15. Velcro sticker; 16. Section Three motors.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides the following technical solutions: a composite glass photovoltaic module, comprising a first motor 1, one side of the first motor 1 is provided with two fixing plates 6, the first motor 1 is installed close to A screw rod 4 is installed on one side of the fixed plate 6 , and the first bearing 5 is used to connect the fixed plate 6 and the screw rod 4 . Connected by the screw sleeve 3, a telescopic cylinder 9 is installed below the moving block 2, a telescopic rod 12 is disposed below the telescopic cylinder 9, an installation frame 13 is installed below the telescopic rod 12, and the front side of the installation frame 13 is provided with a The third motor 16, the side of the third motor 16 close to the installation frame 13 is provided with a third rotating shaft 11, the outer side of the third rotating shaft 11 is provided with a Velcro 10, and the outer side of the Velcro 10 is provided with a Velcro 15, the magic A cleaning cotton 14 is installed on the outer side of the mother sticker 15 , a composite glass photovoltaic panel 8 is installed below the screw rod 4 , and an adjusting device 7 is installed on the outer side of the composite glass photovoltaic panel 8 .

In order to ensure the normal operation of the adjusting device 7, in this embodiment, preferably, the adjusting device 7 includes a second bearing 71, a first rotating shaft 72, a connecting frame 73, a third bearing 74, a second motor 75, a second rotating shaft 76, The knob 77 , the threaded hole 78 , the screw 79 , the fourth bearing 80 and the rubber plate 81 , a second rotating shaft 76 is provided on one side of the second motor 75 , and the second rotating shaft 76 and the fixing plate 6 are connected by a third bearing 74 . Connection, the side of the second shaft 76 away from the second motor 75 is provided with two connecting frames 73, the upper and lower sides of the connecting frame 73 are provided with a plurality of knobs 77, and the side of the knob 77 close to the connecting frame 73 is provided with a screw 79 , the screw 79 and the connecting frame 73 are connected through the threaded hole 78, a rubber plate 81 is provided on the side of the plurality of screws 79 away from the knob 77, and the screw 79 and the rubber plate 81 are connected through a fourth bearing 80, two A first rotating shaft 72 is disposed on the side of the connecting frame 73 away from the second rotating shaft 76 , and the first rotating shaft 72 and the mounting and fixing plate 6 are connected by a second bearing 71 .

In order to ensure the normal operation of the telescopic rod 12, in this embodiment, preferably, the telescopic rod 12 and the installation frame 13 are fixedly connected by welding.

In order to ensure the normal operation of the first bearing 5 , in this embodiment, preferably, a hole is provided on the installation fixing plate 6 at the intersection with the first bearing 5 , and the diameter of the hole on the installation fixing plate 6 is the same as that of the outer side of the first bearing 5 . diameters are equal.

In order to ensure the normal operation of the cleaning cotton 14 , in this embodiment, preferably, the width of the cleaning cotton 14 is larger than the width of the composite glass photovoltaic panel 8 .

In order to ensure the normal operation of the knob 77 , in this embodiment, preferably, the maximum cross-sectional area of the knob 77 is larger than the cross-sectional area of the threaded hole 78 .

The working principle and use process of the present utility model: First, the cleaning cotton 14 is fixedly connected with the third rotating shaft 11 through the Velcro 10 and the Velcro 15, and then the composite glass photovoltaic panel 8 is placed in the two adjustment devices 7. Between the connecting frames 73, the knob 77 is rotated. The knob 77 drives the rubber plate 81 to clamp the composite glass photovoltaic panel 8 through the screw 79 and the threaded hole 78. The fourth bearing 80 prevents the rubber plate 81 from rotating. 6 Install the components in a suitable position, and after installation, the components start to work. When the angle needs to be adjusted so that the composite glass photovoltaic panel 8 can better receive sunlight, the second motor 75 is started, and the second motor 75 drives the composite glass photovoltaic panel 8 to rotate through the second shaft 76 to adjust, and the second bearing 71. The first rotating shaft 72 and the third bearing 74 both play the role of auxiliary rotation. When the surface of the composite glass photovoltaic panel 8 needs to be cleaned, the first motor 1 is started, and the first motor 1 drives the moving block 2 to move through the screw sleeve 3 and the screw 4, thereby moving the cleaning cotton 14 to the position where cleaning is required. Above, the first bearing 5 plays the role of auxiliary rotation, starts the telescopic cylinder 9, the telescopic cylinder 9 drives the cleaning cotton 14 down through the telescopic rod 12, and then starts the third motor 16, which drives the cleaning cotton through the third rotating shaft 11. 14 Rotation for cleaning.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A composite glass photovoltaic module, includes first motor (1), its characterized in that: two mounting and fixing plates (6) are arranged on one side of the first motor (1), a lead screw (4) is mounted on one side, close to the mounting and fixing plates (6), of the first motor (1), the mounting and fixing plates (6) are connected with the lead screw (4) through a first bearing (5), a moving block (2) is arranged on the outer side of the lead screw (4), the moving block (2) is connected with the lead screw (4) through a lead screw sleeve (3), a telescopic cylinder (9) is mounted below the moving block (2), a telescopic rod (12) is arranged below the telescopic cylinder (9), a mounting frame (13) is mounted below the telescopic rod (12), a third motor (16) is arranged on the front side of the mounting frame (13), and a third rotating shaft (11) is arranged on one side, close to the mounting frame (13), of the third motor (16), magic sub-subsides (10) are installed in the outside of third pivot (11), the outside that magic sub-pasted (10) is provided with the female subsides of magic (15), clean cotton (14) are installed in the female outside of pasting (15) of magic, the below of lead screw (4) is provided with composite glass photovoltaic board (8), adjusting device (7) are installed in the outside of composite glass photovoltaic board (8).

2. The composite glass photovoltaic module of claim 1, wherein: the adjusting device (7) comprises a second bearing (71), a first rotating shaft (72), a connecting frame (73), a third bearing (74), a second motor (75), a second rotating shaft (76), knobs (77), threaded holes (78), a screw rod (79), a fourth bearing (80) and a rubber plate (81), wherein the second rotating shaft (76) is arranged on one side of the second motor (75), the second rotating shaft (76) is connected with the installation fixing plate (6) through the third bearing (74), two connecting frames (73) are arranged on one side, away from the second motor (75), of the second rotating shaft (76), the plurality of knobs (77) are arranged on the upper side and the lower side of each connecting frame (73), the screw rod (79) is arranged on one side, close to the connecting frames (73), of the screw rod (79) and the connecting frames (73) are connected through the threaded holes (78), it is a plurality of one side that knob (77) was kept away from in screw rod (79) is provided with rubber slab (81), be connected through fourth bearing (80) between screw rod (79) and rubber slab (81), two one side that second pivot (76) were kept away from in link (73) is provided with first pivot (72), be connected through second bearing (71) between first pivot (72) and installation fixed plate (6).

3. The composite glass photovoltaic module of claim 1, wherein: the telescopic rod (12) is fixedly connected with the mounting frame (13) in a welding mode.

4. The composite glass photovoltaic module of claim 1, wherein: and a hole is formed in the position, intersected with the first bearing (5), of the mounting fixing plate (6), and the diameter of the hole in the mounting fixing plate (6) is equal to the diameter of the outer side of the first bearing (5).

5. The composite glass photovoltaic module of claim 1, wherein: the width of the cleaning cotton (14) is larger than that of the composite glass photovoltaic panel (8).

6. The composite glass photovoltaic module of claim 2, wherein: the maximum cross-sectional area of the knob (77) is larger than the cross-sectional area of the threaded hole (78).
