Abstract

The utility model discloses a head-mounted device and a head-band adjusting device. The head-band adjusting device makes a clamping structure and an adjusting rack in an engaged state through a reset piece to fix the head-band. At this time, the head-band cannot be adjusted; Pressing the clamping structure keeps the clamping structure and the adjusting rack in a separated state, so that the adjusting rack is in a free state, and the tightness of the headband can be adjusted according to the size of the user's head. The utility model has the advantages of simple structure, easy assembly and convenient operation.

Description

A kind of head-mounted device and headband adjustment device

technical field

The utility model belongs to the technical field of head-mounted equipment, in particular to a head-mounted equipment and a headband adjustment device.

Background technique

Virtual reality technology is a computer simulation system that can create and experience virtual worlds. It uses computers to generate a simulation environment. The user is immersed in the environment. The head-mounted device uses the head-mounted display device to close people's vision and hearing to the outside world, and guide the user to produce a feeling of being in a virtual environment. For head-mounted devices, different users need to adjust the tightness of the headband to achieve the best experience due to different head sizes. The existing headband adjusting device has a complicated structure and is troublesome to assemble and operate.

SUMMARY OF THE INVENTION

The purpose of the utility model is to provide a head-mounted device and a headband adjustment device, which solve the technical problems of complex structure and troublesome assembly and operation of the existing headband adjustment device.

For realizing above-mentioned utility model purpose, the utility model adopts following technical scheme to realize:

A headband adjustment device, the adjustment device includes:

case;

a first adjustment rack and a second adjustment rack, the first adjustment rack and the second adjustment rack can move relatively;

A first clamping structure and a second clamping structure, the first clamping structure and the second clamping structure are located in the housing, the first clamping structure and the second clamping structure are rotatably connected, so The first clamping structure has a state of being engaged with or disengaged from the first adjusting rack, and the second clamping structure has a state of being engaged with or disengaged from the second adjusting rack;

a reset piece, the reset piece is used to connect the first clamping structure and the second clamping structure, so that the first clamping structure and the first adjusting rack are in an engaged state, so that the The two clamping structures are in meshing state with the second adjusting rack;

a button, the button is used to press the first clamping structure and/or the second clamping structure, so that the first clamping structure and the first adjusting rack are in a separated state, so that the first clamping structure and the first adjusting rack are separated. The two clamping structures are in a separated state from the second adjusting rack.

In the above-mentioned headband adjusting device, the casing is provided with a snap-fit structure support, and the snap-fit structure support is used to support the first snap-fit structure and the second snap-fit structure.

In the headband adjusting device as described above, the clip-on structure support includes a support portion and a first shaft and a second shaft located on the support portion, the first shaft is used to support the first clip-on structure , the second shaft is used to support the second clamping structure.

In the above headband adjusting device, a limit chute is provided on the support portion, and the limit chute is used to limit the moving direction of the first adjusting rack and the second adjusting rack.

In the above-mentioned headband adjusting device, the button is provided with a rotating shaft, and both the first clamping structure and the second clamping structure are rotatably connected with the rotating shaft.

In the above-mentioned headband adjusting device, a limiting portion is provided on the key, and the limiting portion is used for contacting with the housing to limit the maximum depth of the key being pressed into the housing.

In the above-mentioned headband adjusting device, a snap-fit structural support is provided on the housing, and the limiting portion is used for contacting the snap-fit structural support to restrict the button from being pressed into the housing. maximum depth.

In the above-mentioned headband adjusting device, the clip-mounted structural support includes a support portion, and the support portion is provided with a limit groove adapted to the limit portion.

In the above-mentioned headband adjusting device, the rotating shaft and the restoring member are in a vertical state.

A head-mounted device comprising the above-mentioned headband adjustment device.

Compared with the prior art, the advantages and positive effects of the present utility model are: the headband adjusting device of the present utility model makes the clamping structure and the adjusting rack in an engaged state through the reset piece to fix the headband, at this time, the headband cannot be adjusted. Adjustment: Press the button to make the clamping structure and the adjusting rack in a separate state, so that the adjusting rack is in a free state, and the tightness of the headband can be adjusted according to the size of the user's head. The utility model has the advantages of simple structure, easy assembly and convenient operation.

Other features and advantages of the present invention will become more apparent after reading the specific embodiments of the present invention in conjunction with the accompanying drawings.

Description of drawings

FIG. 1 is an exploded view of a headband adjusting device according to a specific embodiment of the present invention.

FIG. 2 is a partial schematic diagram of a specific embodiment of the present invention after removing the upper shell.

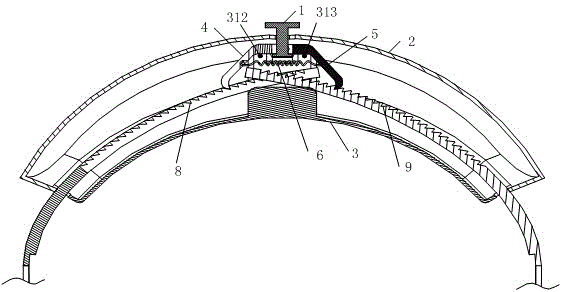

FIG. 3 is a cross-sectional view (mesh state) of the specific embodiment of the present invention in the direction of the adjusting rack.

FIG. 4 is a cross-sectional view (separated state) of the specific embodiment of the present invention in the direction of the adjusting rack.

FIG. 5 is a schematic diagram of the assembly of a button, a clamping structure, and a reset member according to a specific embodiment of the present invention.

FIG. 6 is a bottom view of FIG. 5 .

FIG. 7 is a top view of FIG. 5 .

FIG. 8 is a schematic diagram of a button.

In the figure,

1-Button, 11-Rotation shaft, 12-Limiting part, 2-Headband rear shell, 21-Key hole, 3-Headband front shell, 31-Clamping structural support, 311-Support part, 312-First Shaft, 313-Second shaft, 314-Limiting chute, 315-Limiting groove, 4-First clamping structure, 41-Connecting arm, 411-Shaft hole, 42-Clamping arm, 421-Hook part , 5 - the second clamping structure, 6 - the reset piece, 8 - the first adjusting rack, 9 - the second adjusting rack.

Detailed ways

The technical solutions of the present utility model will be described in further detail below with reference to the accompanying drawings and specific embodiments.

This embodiment proposes a headband adjustment device, which includes a casing, a clamping structure, an adjustment rack, a reset member and a button. The clamping structure is separated from the adjusting rack by pressing the button to adjust the tension of the headband.

As shown in Figures 1-8, the headband adjustment device of this embodiment includes a casing, a first clamping structure 4, a second clamping structure 5, a first adjusting rack 8, a second adjusting rack 9, a reset Piece 6 and Button 1. The following describes each component in turn:

The shell is composed of a headband rear shell 2 and a headband front shell 3, and an accommodation cavity is formed between the headband rear shell 2 and the headband front shell 3.

The inner wall of the headband front shell 3 is provided with a clamping structure supporting member 31 , and the clamping structure supporting member 31 is used for supporting the first clamping structure 4 and the second clamping structure 5 .

The clamping structure support 31 includes a support portion 311 and a first shaft 312 and a second shaft 313 located on the support portion 311 . The first shaft 312 is used to support the first clamping structure 4, and the first clamping structure 4 is located on the first shaft 312 and can move relative to the first shaft 312; the second shaft 313 is used to support the second clamping structure Structure 5, the second clamping structure 5 is located on the second shaft 313, and can generate relative movement with the second shaft 313.

In order to ensure smooth adjustment of the adjusting rack, a limit chute 314 is provided on the support portion 311 , and the limit chute 314 is used to limit the moving direction of the first adjusting rack 8 and the second adjusting rack 9 .

The adjusting rack includes a first adjusting rack 8 and a second adjusting rack 9, and the first adjusting rack 8 and the second adjusting rack 9 are relatively movable. The first adjustment rack 8 and the second adjustment rack 9 have teeth.

The first adjusting rack 8 and the second adjusting rack 9 are part of the headband, or the first adjusting rack 8 and the second adjusting rack 9 are respectively connected with the headband. The first adjustment rack 8 and the second adjustment rack 9 are located at least partially within the housing.

The clamping structure includes a first clamping structure 4 and a second clamping structure 5, and the first clamping structure 4 and the second clamping structure 5 are located in the casing. The first clamping structure 4 and the second clamping structure 5 are rotatably connected, the first clamping structure 4 is in a state of being engaged with or disengaged from the first adjusting rack 8 , and the second clamping structure 5 is engaged with the second adjusting rack 9 . Engaged or disengaged state. When the clamping structure and the adjusting rack are in an engaged state, the headband is fixed and cannot be adjusted, and when the clamping structure and the adjusting rack are in a separated state, the headband can be adjusted.

The structures of the first clamping structure 4 and the second clamping structure 5 are similar, and the first clamping structure 4 is taken as an example for description:

The first clamping structure 4 includes a connecting arm 41 and a clamping arm 42 arranged at a certain angle. The connecting arm 41 is provided with a shaft hole 411 , and the shaft hole 411 is used for connecting with the rotating shaft 11 on the button 1 . There are two connecting arms 41 , the two sides of the button 1 are respectively provided with the rotating shafts 11 , and the two connecting arms 41 are respectively assembled with the rotating shafts 11 located on both sides of the button 1 . The end of the clamping arm 42 is provided with a hook portion 421 which is matched with the rack.

The reset member 6 is used to connect the first clamping structure 5 and the second clamping structure 6, so that the first clamping structure 5 and the first adjusting rack 8 are in an engaged state, so that the second clamping structure 6 and the The second adjusting rack 9 is in the meshing state.

The reset member 6 is a reset spring, and the reset member 6 is connected to the clamping arm 42 of the clamping structure. Wherein, the reset member 6 and the rotating shaft 11 of the button 1 are in a vertical state, so as to ensure the best reset effect and improve the service life of the reset member 6 . Of course, the reset member 6 can also be realized by other elastic members.

Button 1, the button 1 is used to press the first clamping structure 4 and the second clamping structure 5, so that the first clamping structure 4 and the first adjusting rack 8 are in a separated state, so that the second clamping structure 5 and the second clamping structure 5 are separated from each other. The adjusting rack 9 is in a disengaged state. A button hole 21 is opened on the headband rear shell 2 , and the button 1 is located in the button hole 21 .

Two rotating shafts 11 are arranged on the button 1 , the two rotating shafts 11 are located on both sides of the button 1 , and the first clamping structure 4 and the second clamping structure 5 are both rotatably connected with the rotating shafts 11 .

Of course, in other embodiments, the button 1 can also be rotatably connected only with the first clamping structure 4 or only with the second clamping structure 5 . Since the first clamping structure 4 and the second clamping structure 5 are rotatably connected, when the button 1 presses the first clamping structure 4 or the second clamping structure 4, the first clamping structure 4 and the first adjustment can be realized. The rack 8 is in a separated state, so that the second clamping structure 5 and the second adjusting rack 9 are in a separated state.

The button 1 is provided with a limiting portion 12, and the limiting portion 12 is used for contacting with the casing to limit the maximum depth that the button 1 is pressed into the casing. The limiting portion 12 is a limiting plate.

Specifically, the limiting portion 12 is used for contacting with the clamping structural support member 31 to limit the maximum depth that the button 1 is pressed into the housing.

The end of the support portion 311 of the clamping structural support member 31 is provided with a limit groove 315 which is adapted to the limit portion 12 , so as to ensure smooth pressing or ejection of the button 1 .

When assembling, the button 1 is first loaded into the headband rear shell 2, and then the first clamping structure 4 and the second clamping structure 5 are installed on the button 1; the two ends of the reset member 6 are respectively hung on the first clamping structure 4. and the second clamping structure 5, the first shaft 312 and the second shaft 313 are installed on the support part 311 of the headband front shell 3; The wearing back shell 2 and the headband front shell 3 are assembled to form a complete machine.

In the initial state as shown in FIG. 3 , the headband adjusting device makes the clamping structure and the adjusting rack in an engaged state through the reset member 6 to fix the headband, and at this time, the headband cannot be adjusted.

If the user feels that the headband is too loose or too tight to fit after wearing the headset, you can press and hold button 1 to adjust. Press the button 1 to press the clamping structure to separate the clamping structure from the adjustment rack, as shown in Figure 4, so that the adjustment rack is in a free movement state. At this time, the adjustment rack can be adjusted according to the size of the user's head To adjust the tightness of the headband, release the button after the adjustment is completed, and under the action of the reset element, the clamping structure and the adjusting rack are in an engaged state, so that the headband is in a fixed state.

Specifically, if you feel that the headband is too loose and you want to tighten it, press down the button 1, so that the limit part 12 of the button 1 moves in the limit groove 315 of the headband front shell 3, and the button 1 moves toward the headband front shell. 3 approaches, and at the same time, the two rotating shafts 11 on the button 1 drive the connecting arms of the clamping structure to approach the headband front shell 3 together, and at the same time the reset member 6 is stretched, and the two clamping structures are respectively driven by the first 312 and the second shaft 313 are blocked, so that the hook-shaped portion 421 of the clamping structure is disengaged from the tooth-shaped portion of the adjusting rack. At this time, the two adjusting racks can be adjusted to move toward the middle. After feeling the tightness, release the button 1. Under the pulling force of the reset element 6, the hook-shaped portion 421 of the clamping structure is re-clamped to the adjusting rack. In the toothed part, the tightness of the headband is fixed.

In the same way, if the headband feels too tight, press and hold button 1 in the same way, then pull the first adjusting rack 8 and the second adjusting rack 9 to both sides, and release the button 1 after feeling appropriate. The headband can be loosened.

This embodiment also proposes a head-mounted device, the head-mounted device including the above-mentioned headband adjustment device. The headset can be a VR or AR device, etc.

The above embodiments are only used to illustrate the technical solutions of the present invention, but not to limit them; although the present invention has been described in detail with reference to the foregoing embodiments, for those of ordinary skill in the art, it is still possible to implement the foregoing implementations. The technical solutions described in the examples are modified, or some technical features thereof are equivalently replaced; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the spirit and scope of the technical solutions claimed by the present invention.

Claims (10)

1. An adjustment device for a headband, the adjustment device comprising:

a housing;

the first adjusting rack and the second adjusting rack can move relatively;

the first clamping structure and the second clamping structure are positioned in the shell and are rotationally connected, the first clamping structure is meshed with or separated from the first adjusting rack, and the second clamping structure is meshed with or separated from the second adjusting rack;

the resetting piece is used for connecting the first clamping structure and the second clamping structure, so that the first clamping structure and the first adjusting rack are in an engaged state, and the second clamping structure and the second adjusting rack are in an engaged state;

the key is used for pressing the first clamping structure and/or the second clamping structure to enable the first clamping structure and the first adjusting rack to be in a separated state, and enable the second clamping structure and the second adjusting rack to be in a separated state.

2. The headband adjustment device of claim 1 wherein the housing is provided with a snap fit structural support for supporting the first and second snap fit structures.

3. The headband adjustment device of claim 2 wherein the snap fit structure support comprises a support portion and first and second shafts on the support portion, the first shaft for supporting the first snap fit structure and the second shaft for supporting the second snap fit structure.

4. The headband adjustment device of claim 3 wherein the support portion is provided with a limit runner thereon for defining a direction of movement of the first and second adjustment racks.

5. The headband adjusting device according to claim 1, wherein the key is provided with a rotating shaft, and the first clamping structure and the second clamping structure are rotatably connected with the rotating shaft.

6. The headband adjustment device of claim 5 wherein the key is provided with a stop portion for contacting the housing to limit the maximum depth of the key pressed into the housing.

7. The headband adjustment device of claim 6 wherein the housing is provided with a snap fit structural support, the stop portion for contacting the snap fit structural support to limit the maximum depth of the key press into the housing.

8. The headband adjustment device of claim 7 wherein the snap fit structural support comprises a support portion with a stop groove adapted to the stop portion.

9. The headband adjustment device according to claim 5, wherein the rotation shaft is perpendicular to the return member.

10. A head-mounted apparatus, characterized in that the head-mounted apparatus comprises the headband adjustment device according to any one of claims 1-9.
