CN210825801U

CN210825801U - Novel water purifying device

Info

Publication number: CN210825801U
Application number: CN201921864071.0U
Authority: CN
Inventors: 姚建容; 苏金海; 陈金钗
Original assignee: Keda Valve Technology Co ltd
Current assignee: Keda Valve Technology Co ltd
Priority date: 2019-11-01
Filing date: 2019-11-01
Publication date: 2020-06-23
Anticipated expiration: 2029-11-01

Abstract

The utility model relates to the technical field of water purification equipment, a novel water purification device, comprising a valve and a hollow body. The accommodating cavity is used to install the filter material, the baffle is provided with a communication port, the main body is provided with a detachable observation window at the top of the accommodating cavity, the center of the bottom of the main body is connected to a drain pipe, and the A first valve is arranged on the drain pipe, a water inlet pipe is arranged on one side of the drain pipe, the recoil pipe is arranged on one side of the main body, and the upper end of the recoil pipe extends into the main body with the opening facing downward, A second valve and a third valve are respectively arranged between the water inlet pipe, the drain pipe and the backwash pipe, a water supply pipe is arranged on one side of the body, and an ultraviolet lamp is arranged in the water supply pipe, so the The top of the body is provided with a solar panel. The purpose of the present utility model is to provide a new type of water purification device, which is helpful to solve the problems that the existing structure occupies a large area and has a poor water purification effect.

Description

Novel water purifying device

Technical Field

The utility model relates to a water purification unit technical field, concretely relates to novel water purification device.

Background

With the development of social economy, the quality of the living standard of people is continuously improved, however, the living environment of people is influenced by the development of industry, a lot of industrial wastewater, agricultural wastewater and other poor water quality are discharged into rivers, so that the water body is seriously polluted, certain impurities often exist in the domestic water after being disinfected and purified by a water supply plant, and from this link to the household, for example, a reservoir of a community, most of water pools constructed by concrete have large floor area, poor water purification effect and long purification time, and people usually need to add a small water purifier at home to further purify the water quality, so that a device which can be used as a large water purification device with good water purification effect is urgently needed.

Disclosure of Invention

In view of this, the utility model aims at providing a novel purifier helps solving the problem that current structure area is big, water purification effect is poor.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a novel water purifying device comprises a valve and a hollow body, wherein the lower end of the body is provided with supporting legs, a plurality of partition plates are arranged in the body, a containing cavity is formed between every two adjacent partition plates and is used for containing filter materials, the partition plates are provided with communication ports, the body is positioned at the top end of the containing cavity and is provided with a detachable observation window, the central position of the bottom of the body is connected with a drain pipe, a first valve is arranged on the drain pipe, one side of the drain pipe is provided with a water inlet pipe, the water inlet pipe is respectively connected with the drain pipe and a back flushing pipe through a three-way joint, the back flushing pipe is arranged at one side of the body, the upper end of the back flushing pipe extends into the body and has a downward opening, the connecting point of the water inlet pipe and the drain pipe is positioned above the first valve, and a second valve and a third valve are, one side is equipped with the delivery pipe in the body, be equipped with ultraviolet tube in the delivery pipe, the body top is equipped with solar panel, solar panel's battery pack with ultraviolet tube electric connection.

Preferably, the cross section of body is one of circular, square, polygon, the baffle level sets up in the body, with body fixed connection, the intercommunication mouth is located the baffle central point puts, be equipped with the filter screen on the intercommunication mouth, the body with the baffle junction is equipped with the drain, the drain comprises the nipple spare of installing the valve switch.

Preferably, a filter cartridge is arranged on the backflushing pipe, and filter cotton is arranged in the filter cartridge.

Preferably, the water supply pipe penetrates through the partition plate, the water supply pipe is tightly connected with the partition plate, a water supply inlet is formed in one side of the upper end of the water supply pipe, a water supply outlet is formed in the bottom of the water supply pipe, the water supply outlet penetrates to the outer side of the body, and the water supply inlet is formed by vertically arranged pipe fittings.

Preferably, the position of the water supply inlet is higher than the opening position of the upper end of the back washing pipe.

Preferably, solar panel one end with body pivotal connection, the solar panel bottom surface still is connected with the telescopic bracing piece, the bracing piece bottom with body pivotal connection.

Preferably, a manhole is arranged on one side of the top of the body.

Advantageous effects

The utility model has the advantages that: the utility model provides a water purifying device, which communicates a back flushing pipe with a water inlet pipe, and can be flushed only by controlling a valve, thereby being convenient and rapid; the utility model relates to a multilayer holds the chamber, can adorn multiple filter media, improves water purification effect and accelerates water purification efficiency, through addding the viewing aperture, makes things convenient for maintenance personal to maintain the inspection, knows the in service behavior of inside filter media in real time, in time changes, guarantees the water purification quality; the utility model discloses utilize solar panel to turn into the electric energy with light energy, supply ultraviolet tube work, carry out the disinfection effect of disinfecting, further promote the water purification quality.

Drawings

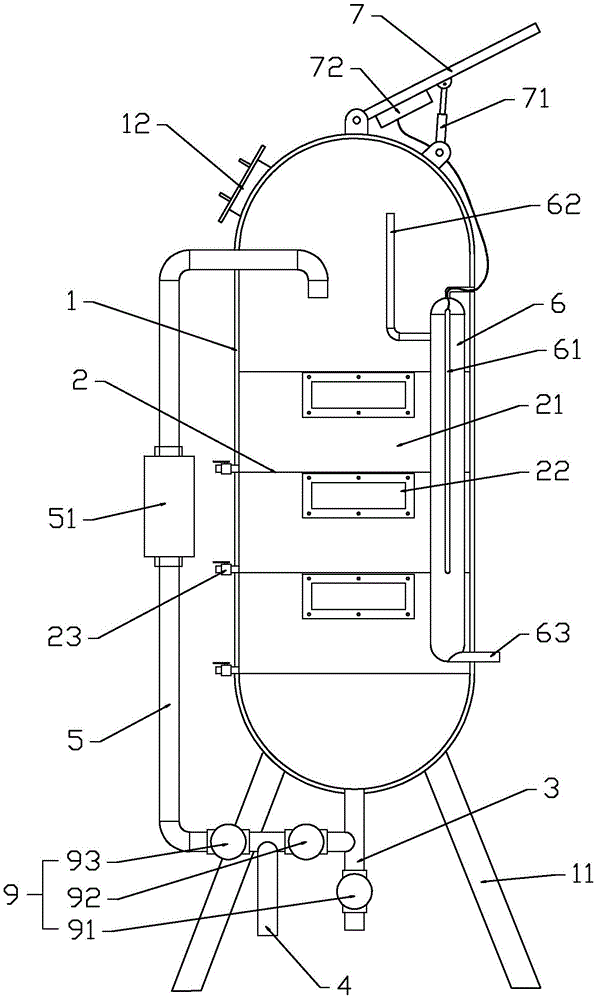

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the structure of the partition board of the present invention;

the figure is marked with: 1-body; 11-supporting feet; 12-a manhole; 2-a separator; 21-a containing cavity; 22-a viewing window; 23-a sewage draining outlet; 24-a communication port; 25-a filter screen; 3, a drain pipe; 4-water inlet pipe; 5-backflushing the pipe; 51-a filter cartridge; 6-water supply pipe; 61-ultraviolet lamp tube; 62-water inlet of water supply; 63-a water supply outlet; 7-a solar panel; 71-a support bar; 72-a battery assembly; 8-filtering material; 9-a valve; 91-a first valve; 92-a second valve; 93-third valve.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention clearer, the present invention is described in detail with reference to the accompanying drawings and embodiments:

referring to fig. 1 and 2, a novel water purifying device comprises a valve 9 and a hollow body 1, wherein a supporting leg 11 is arranged at the lower end of the body 1, a plurality of partition plates 2 are arranged in the body 1, 4 partition plates are taken as examples in the embodiment, an accommodating cavity 21 is formed between every two adjacent partition plates 2, in the embodiment, 3 accommodating cavities 21 are provided, the accommodating cavity 21 is used for accommodating a filter material 8, the filter material 8 can comprise a quartz sand, an activated carbon, a filter cotton and other filter materials, and is fully stacked in the accommodating cavity 21 in a bag-shaped manner, a communication port 24 is arranged on each partition plate 2, water flow can circulate through the communication port 24, a detachable observation window 22 is arranged at the top end of the accommodating cavity 21 of the body 1, the observation window 22 is made of a transparent material and is fixed on the outer side wall of the body 1 through a bolt assembly and a sealing piece, so that maintenance personnel can monitor the use condition of the filter material 8 in real, the filter material cleaning device is characterized in that cleaning and replacement are carried out in time to ensure water purification quality, the observation window 22 is also used for filling the filter material 8, the central position at the bottom of the body 1 is connected with the drain pipe 3, the drain pipe 3 is vertically arranged, the drain pipe 3 is provided with a first valve 91, one side of the drain pipe 3 is provided with a water inlet pipe 4, the water inlet pipe 4 is respectively connected with the drain pipe 3 and a back flushing pipe 5 through a three-way joint, the back flushing pipe 5 is arranged at one side of the body 1, the upper end of the back flushing pipe 5 extends into the body 1, the opening of the back flushing pipe is downward, a nozzle can be additionally arranged at the opening to improve the flushing effect, the connection point of the water inlet pipe 4 and the drain pipe 3 is positioned above the first valve 91, a second valve 92 and a third valve 93 are respectively arranged between the water inlet pipe 4 and the drain, one side is equipped with the delivery pipe 6 in the body 1, be equipped with ultraviolet tube 61 in the delivery pipe 6, body 1 top is equipped with solar panel 7, solar panel 7's battery pack 72 with ultraviolet tube 61 electric connection.

Further, the cross section of body 1 is one of circular, square, polygon, the outline of baffle 2 with the unanimous phase-match of body cross sectional structure, the level sets up in the body 1, the outline with body 1 is through modes fixed connection such as welding, intercommunication mouth 24 is located 2 central point of baffle puts, be equipped with filter screen 25 on the intercommunication mouth 24, body 1 with the junction of baffle 2 is equipped with drain 23, promptly drain 23 is located hold chamber 22 bottom one side, drain 23 comprises the short-cut pipe fitting that is equipped with the valve switch.

Further, be equipped with cartridge filter 51 on the recoil pipe 5, cartridge filter 51 has the tube structure that can dismantle the lid, the built-in filter pulp that is equipped with of cartridge filter 51 can carry out purification treatment to quality of water in the washing process.

Further, the water supply pipe 6 penetrates through the partition board 2, the water supply pipe 6 is tightly connected with the partition board 2, a water supply inlet 62 is formed in one side of the upper end of the water supply pipe 6, a water supply outlet 61 is formed in the bottom of the water supply pipe 6, the water supply outlet 61 penetrates to the outer side of the body 1, and the water supply inlet 62 is formed by vertically arranged pipe fittings.

Further, the position of the water supply inlet 62 is higher than the opening position of the upper end of the back flushing pipe 5, so that the problem that in the flushing process, water in the back flushing pipe 5 directly enters the water supply pipe 6 and then is discharged, and the water quality of the water supply end is influenced is avoided.

Further, solar panel 7 one end with body 1 pivotal connection can adjust according to the mounted position, improves photic time and photic area, improves electric energy conversion efficiency, solar panel 7 bottom surface still is connected with telescopic bracing piece 71, helps right at different angles solar panel 7 supports, improves structural strength, bracing piece 71 bottom with body 1 pivotal connection.

Further, a manhole 12 is arranged on one side of the top of the body 1, and is helpful for an operator to enter the body 1 for installation, maintenance and the like.

The working principle is as follows: in an actual implementation process, in a daily water purification state, the third valve 93 and the first valve 91 are closed, the second valve 92 is in an open state, water flows from the water inlet pipe 4 into the body 1 through the top of the water outlet pipe 3, and passes through the multiple layers of accommodating cavities 21 from bottom to top through the communication ports 24, at this time, the filter material 8 arranged in the accommodating cavities 21 can perform a water purification function on water, the purified water is accumulated upwards and enters the water supply pipe 6 when flowing through the water supply inlet, and the ultraviolet lamp 61 further performs a sterilization function on the water and then is discharged from the water supply outlet 63; an operator can monitor the filter material 8 through the observation window 22 to know the internal condition in real time, and when the filter material 8 needs to be replaced, the operator can operate through the observation window 22; when regular cleaning equipment, close earlier second valve 92 opens first valve 91 carries out the drainage, then opens third valve 93, will rivers in the inlet tube 4 are followed recoil pipe 5 introduces the inside upper end of body 1 is from last down washed, opens drain 23 helps quick blowdown, materials such as cartridge filter 51 inside is equipped with filter pulp, can carry out purification treatment to the recoil water.

The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.

Claims

1. The utility model provides a novel water purification device, includes the valve, its characterized in that: the filter material collecting device also comprises a hollow body, wherein the lower end of the body is provided with supporting legs, a plurality of partition plates are arranged in the body, a containing cavity is formed between every two adjacent partition plates and is used for containing filter materials, the partition plates are provided with communication ports, the body is provided with a detachable observation window at the top end of the containing cavity, the center of the bottom of the body is connected with a drain pipe, the drain pipe is provided with a first valve, one side of the drain pipe is provided with a water inlet pipe, the water inlet pipe is respectively connected with the drain pipe and a recoil pipe through a three-way joint, the recoil pipe is arranged at one side of the body, the upper end of the recoil pipe extends into the body and is provided with a downward opening, the connecting point of the water inlet pipe and the drain pipe is positioned above the first valve, a second valve and a third valve are respectively arranged between the water inlet, the solar water supply device is characterized in that an ultraviolet lamp tube is arranged in the water supply pipe, a solar panel is arranged at the top of the body, and a battery pack of the solar panel is electrically connected with the ultraviolet lamp tube.

2. The novel water purification device of claim 1, wherein: the cross section of the body is one of circular, square and polygonal, the partition plate is horizontally arranged in the body and fixedly connected with the body, the communication opening is located at the center of the partition plate, a filter screen is arranged on the communication opening, a sewage discharge opening is arranged at the joint of the body and the partition plate, and the sewage discharge opening is composed of a short-section pipe fitting provided with a valve switch.

3. The novel water purification device of claim 1, wherein: and a filter cartridge is arranged on the backflushing pipe, and filter cotton is arranged in the filter cartridge.

4. The novel water purification device of claim 1, wherein: the water supply pipe runs through the partition plate, the water supply pipe is tightly connected with the partition plate, a water supply inlet is formed in one side of the upper end of the water supply pipe, a water supply outlet is formed in the bottom of the water supply pipe, the water supply outlet penetrates to the outer side of the body, and the water supply inlet is formed by vertically arranged pipe fittings.

5. The novel water purification device of claim 4, wherein: the position of the water supply inlet is higher than the opening position of the upper end of the back flushing pipe.

6. The novel water purification device of claim 1, wherein: solar panel one end with body pivotal connection, the solar panel bottom surface still is connected with the telescopic bracing piece, the bracing piece bottom with body pivotal connection.

7. The novel water purification device of claim 1, wherein: a manhole is arranged on one side of the top of the body.
