Abstract
The utility model relates to a high-speed mixing device suitable for large granular materials, which comprises a high-speed mixing chamber, a crushing chamber and a screw extrusion chamber which are connected in sequence; one end of the high-speed mixing chamber is supported by a support frame, the other end of the high-speed mixing chamber is communicated with the crushing chamber, one side of the crushing chamber is connected with the electric control chamber, the other side of the crushing chamber is communicated with the screw extrusion chamber, the electric control chamber is arranged on the base and is connected with the driving motor, and the screw extrusion chamber is arranged on the base through a rack; the crushing chamber is vertically communicated with the high-speed mixing chamber, two mutually-meshed crushers are arranged in the crushing chamber, each crusher comprises a crushing plate and a crushing shaft arranged at the center of the crushing plate, and a plurality of crushing blades are arranged at the edge of the crushing plate. The utility model discloses existing mixed function has crushing function again, and the great material of granule mixes again after broken and extrudes for raw and other materials misce bene, the effect ideal has improved product quality.
Description
Technical Field
The utility model relates to a plastic processing equipment technical field especially relates to a high-speed mixing arrangement suitable for large granular material.
Background
The production of the color master batch starts from material preparation, plastic raw materials, additives, pigments and the like are needed, the plastic raw materials, the additives, the pigments and the like are mixed, melted and extruded, then the mixture is cooled and dried, and then the mixture is granulated, finally screened and packaged. Most of the current mixing machines are roller type mixing machines, when the plastic raw materials and the auxiliary agent particles are too large, the roller type mixing machines are not suitable for pre-mixing the raw materials, because the equipment has no crushing function, when the raw materials have large particles, especially the auxiliary agent particles with high melt viscosity, are not easy to crush and melt and disperse in the melt extrusion process, and the auxiliary agent particles which are not dispersed easily appear in the extrudate, so that the melting is insufficient, and the quality of the product is influenced. Therefore, a high-speed mixing device suitable for large granular materials is urgently needed.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome above-mentioned not enough, provide a high-speed mixing arrangement suitable for large granular material, high-speed the mixing after the breakage for raw and other materials misce bene improves product quality.
The purpose of the utility model is realized like this:
a high-speed mixing device suitable for large granular materials comprises a high-speed mixing chamber, a crushing chamber and a screw extrusion chamber which are connected in sequence; one end of the high-speed mixing chamber is supported by a support frame, the other end of the high-speed mixing chamber is communicated with the crushing chamber, one side of the crushing chamber is connected with the electric control chamber, the other side of the crushing chamber is communicated with the screw extrusion chamber, the electric control chamber is arranged on the base and is connected with the driving motor, and the screw extrusion chamber is arranged on the base through a rack; the crushing chamber is vertically communicated with the high-speed mixing chamber, two mutually-meshed crushers are arranged in the crushing chamber, each crusher comprises a crushing plate and a crushing shaft arranged at the center of the crushing plate, and a plurality of crushing blades are arranged at the edge of the crushing plate.
The utility model provides a high-speed mixing arrangement suitable for large granule material, the one end of high-speed mixing chamber is equipped with the feeding die head, be equipped with the center pin in the high-speed mixing chamber, be equipped with a plurality of extrusion blade on the center pin.
A rotating shaft is connected to one end, close to a feeding die head, of a central shaft in a crossed mode, and a plurality of shearing blades are arranged on the rotating shaft.
A high-speed mixing device suitable for large granular materials is characterized in that the extrusion blades are obliquely arranged, and the inclination directions of the adjacent extrusion blades are opposite.
A high-speed mixing device suitable for large granular materials is characterized in that one end of a screw extrusion chamber is connected with a crushing chamber, and the other end of the screw extrusion chamber is provided with an extrusion die head.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses set up high-speed mixing chamber, crushing chamber and screw rod and extruded the room, existing mixing function has crushing function again, and general mixing time is 3~5 minutes, and the great material of granule mixes again after broken and extrudes for raw and other materials misce bene, the effect ideal has improved product quality.
Drawings
Fig. 1 is a schematic structural diagram of the present invention.

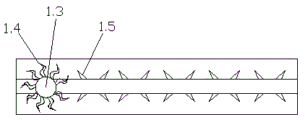

Fig. 2 is a cross-sectional view of the high-speed mixing chamber of the present invention.
Fig. 3 is a sectional view of the crushing chamber of the present invention.
Wherein:
the device comprises a high-speed mixing chamber 1, a feeding die head 1.1, a mixing motor 1.2, a rotating shaft 1.3, a shearing blade 1.4, an extrusion blade 1.5, a crushing chamber 2, a crushing shaft 2.1, a crushing plate 2.2, a crushing blade 2.3, a screw extrusion chamber 3, an extrusion die head 4, an electric control chamber 5, a driving motor 6, a base 7, a rack 8 and a supporting frame 9.
Detailed Description
Example 1:
referring to fig. 1-3, the utility model relates to a high-speed mixing arrangement suitable for large granule material, it includes high-speed mixing chamber 1, crushing chamber 2 and the screw extrusion chamber 3 that connects gradually.
One end of the high-speed mixing chamber 1 is supported by a support frame 9, the other end of the high-speed mixing chamber is communicated with the crushing chamber 2, one side of the crushing chamber 2 is connected with an electric control chamber 5, the other side of the crushing chamber is communicated with a screw extrusion chamber 3, the electric control chamber 5 is arranged on a base 7 and is connected with a driving motor 6, and the screw extrusion chamber 3 is arranged on the base 7 through a rack 8.
The high-speed mixing chamber is characterized in that a feeding die head 1.1 is arranged at one end of the high-speed mixing chamber 1, a central shaft is arranged in the high-speed mixing chamber 1, a rotating shaft 1.3 is connected to one end, close to the feeding die head 1.1, of the central shaft in a crossed mode, a plurality of shearing blades 1.4 which are regularly arranged are arranged on the rotating shaft 1.3, the shearing blades 1.4 are curved blades, a plurality of extrusion blades 1.5 are arranged on the portion, except the rotating shaft 1.3, of the central shaft, the extrusion blades 1.5 are obliquely arranged, and the oblique directions of the adjacent extrusion blades 1.5 are opposite. The high-speed mixing chamber 1 is connected with a mixing motor 1.2.
The crushing chamber 2 is vertically communicated with the high-speed mixing chamber 1, two mutually-meshed crushers are arranged in the crushing chamber 2, each crusher comprises a crushing plate 2.2 and a crushing shaft 2.1 arranged at the center of the crushing plate 2.2, and a plurality of crushing blades 2.3 are arranged at the edge of the crushing plate 2.2.
One end of the screw extrusion chamber 3 is connected with the crushing chamber 2, the other end of the screw extrusion chamber is provided with an extrusion die head 4, and an extrusion screw is arranged in the screw extrusion chamber 3.
The working principle is as follows:
raw materials enter a high-speed mixing chamber through a feeding die head, are firstly subjected to primary shearing by a shearing blade 1.4 to crush larger particles, are mixed and extruded by an extrusion blade 1.5 on a central shaft and are crushed at the same time, then enter a crushing chamber 2, and are subjected to secondary enhancement of crushing effect by two crushers, so that the complete crushing of large particles is ensured, and the product quality is ensured; finally, extruding the mixture through a screw extrusion chamber 3 to perform the next working procedure.
The above is only a specific application example of the present invention, and does not constitute any limitation to the protection scope of the present invention. All the technical solutions formed by equivalent transformation or equivalent replacement fall within the protection scope of the present invention.
Claims (5)
1. A high-speed mixing arrangement suitable for large granular material which characterized in that: the device comprises a high-speed mixing chamber (1), a crushing chamber (2) and a screw extrusion chamber (3) which are connected in sequence; one end of the high-speed mixing chamber (1) is supported by a support frame (9), the other end of the high-speed mixing chamber is communicated with the crushing chamber (2), one side of the crushing chamber (2) is connected with an electric control chamber (5), the other side of the crushing chamber is communicated with the screw extrusion chamber (3), the electric control chamber (5) is arranged on a base (7) and is connected with a driving motor (6), and the screw extrusion chamber (3) is arranged on the base (7) through a rack (8); the high-speed mixing chamber is characterized in that the crushing chamber (2) is vertically communicated with the high-speed mixing chamber (1), two mutually-occluded crushers are arranged in the crushing chamber (2), each crusher comprises a crushing plate (2.2) and a crushing shaft (2.1) arranged at the center of the crushing plate (2.2), and a plurality of crushing blades (2.3) are arranged at the edge of the crushing plate (2.2).
2. A high-speed mixing device suitable for large particulate materials according to claim 1, wherein: one end of the high-speed mixing chamber (1) is provided with a feeding die head (1.1), a central shaft is arranged in the high-speed mixing chamber (1), and a plurality of extrusion blades (1.5) are arranged on the central shaft.
3. A high-speed mixing apparatus suitable for use with large particulate materials, according to claim 2, wherein: and one end of the central shaft, which is close to the feeding die head (1.1), is crossed with a rotating shaft (1.3), and a plurality of shearing blades (1.4) are arranged on the rotating shaft (1.3).
4. A high-speed mixing apparatus suitable for use with large particulate materials, according to claim 2, wherein: the extrusion blades (1.5) are obliquely arranged, and the oblique directions of the adjacent extrusion blades (1.5) are opposite.
5. A high-speed mixing device suitable for large particulate materials according to claim 1, wherein: one end of the screw extrusion chamber (3) is connected with the crushing chamber (2), and the other end is provided with an extrusion die head (4).
