Abstract

The utility model relates to a workpiece batch placing table, which comprises a frame, a jig table is arranged on the frame, a jig plate is arranged on the jig table, and a plurality of workpieces are arranged on the jig plate. The workpiece placement board is provided with a workpiece groove, and the two sides of the fixture table are screwed with positioning rods and limit blocks for supporting and buffering; the frame is provided with a drive table corresponding to the fixture table, and the The bottom of the drive table is driven with several suction heads. The utility model provides a batch placement table for workpieces, which can improve the efficiency and stability of batch placement of workpieces and effective positioning of workpieces.

Description

A workpiece batch placing table

technical field

The utility model relates to the field of mechanical processing, mainly relates to the field of workpiece transmission, in particular to a workpiece batch placing table.

Background technique

Existing patent: clamping device for machine tool processing thin plate (patent number: CN201721879169.4), which discloses a clamping device for machine tool processing thin plate, which clamps the workpiece between the upper plate of the jig and the lower plate of the jig, and the jig is The upper plate and the lower plate of the fixture are connected together by bolt assemblies. The lower plate of the jig is fixed on the machine table by the splint, and the horizontal limit groove of the workpiece is installed on the vertical plate frame of the upper and lower plates of the jig. The workpiece longitudinal limit plate is provided with a limit cylindrical rod at the front end of the workpiece longitudinal limit plate. Both the positioning pin and the limit cylindrical rod are provided with limit screws.

In the prior art, large parts can be clamped by two plates, so as to perform clamping processing, so as to ensure that the workpiece does not shift during processing, and improve the processing accuracy. However, for a workpiece with a small volume and an irregular structure, it is not convenient to place it between the two plates for clamping, and it is not convenient to place it between the two jig plates for clamping, which is not convenient for the processing and production of the workpiece, as well as the processing of the workpiece. Transmission and clamping operations are cumbersome and inconvenient.

Therefore, in order to improve the efficiency and stability of batch placement of workpieces and effective positioning of workpieces, it is necessary to develop a workpiece batch placement table.

Utility model content

The utility model overcomes the deficiencies of the prior art and provides a workpiece batch placement table, which can improve the efficiency and stability of the batch placement of the workpieces and the effective positioning of the workpieces.

In order to achieve the above purpose, the technical scheme adopted by the present invention is as follows: a workpiece batch placing table, including a frame, a jig table is arranged on the frame, a jig plate is arranged on the jig table, and the jig plate is arranged on the jig table. A number of workpiece placement plates are arranged on the jig plate, workpiece slots are arranged on the workpiece placement plate, and positioning rods and limit blocks for supporting buffers are screwed on both sides of the jig table; the frame is provided with Corresponding to the driving table of the fixture table, the bottom of the driving table is driven and provided with several suction heads.

In a preferred embodiment of the present invention, two ends of the workpiece groove are provided with clamping grooves for embedding the workpiece.

In a preferred embodiment of the present invention, the workpiece groove is provided with a boss for supporting the workpiece, and each boss corresponds to the suction head.

In a preferred embodiment of the present invention, the drive table is provided with a transverse guide rail with a push cylinder, the transverse guide rail is provided with a mounting seat installed at one end of the push cylinder, and the mounting seat is provided with a lift The longitudinal guide rail of the cylinder is provided with a transmission seat installed at one end of the lifting cylinder, and a plurality of suction heads that can be lifted and lowered are arranged at the bottom of the transmission seat.

In a preferred embodiment of the present invention, the suction head is connected up and down with the transmission base through a lift column.

In a preferred embodiment of the present invention, the suction head is connected with an air flow pipe.

The utility model solves the defects existing in the background technology, and the beneficial effects of the present utility model:

The utility model provides a batch placement table for workpieces, which can improve the efficiency and stability of the batch placement of the workpieces and the effective positioning of the workpieces.

Description of drawings

The present utility model will be further described below in conjunction with the accompanying drawings and embodiments.

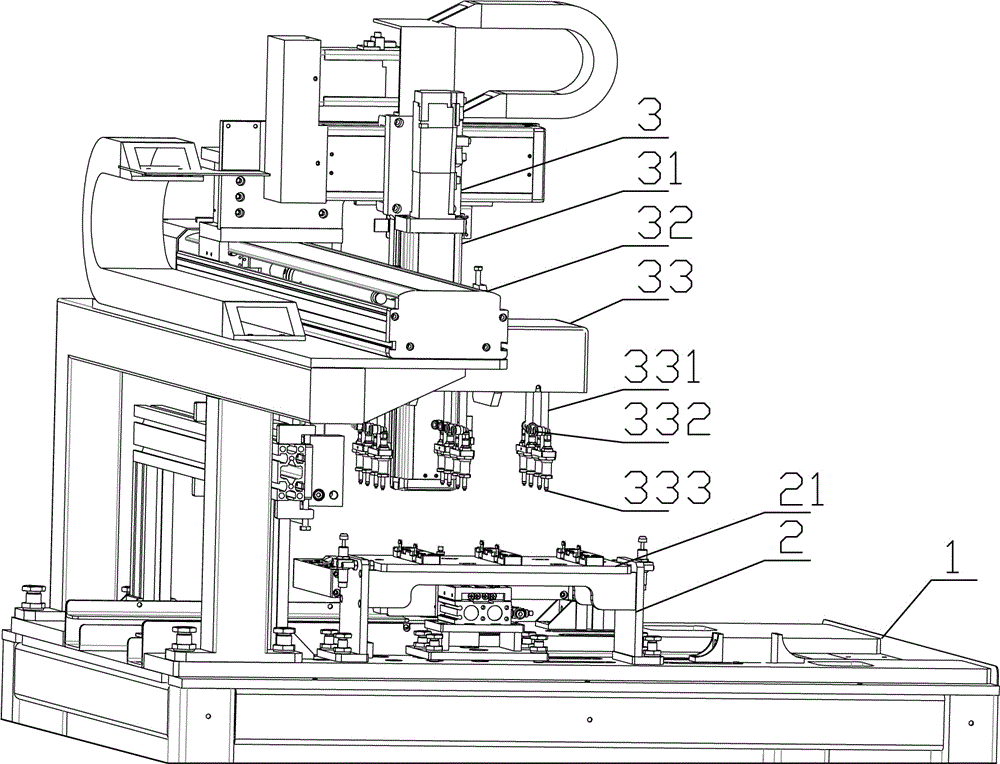

Fig. 1 is the structural representation that the workpiece batch placing table of the present utility model is arranged on the frame;

Fig. 2 is the structural representation of the workpiece batch placement platform in the present utility model;

Fig. 3 is the enlarged structural representation of A part in Fig. 1 of the present utility model;

Fig. 4 is the structural representation of the workpiece in the present utility model;

Among them, 1-frame, 11-jig table, 12-limit block, 13-positioning rod, 2-placement table, 21-jig plate, 22-workpiece placing plate, 221-card slot, 222-boss , 223-workpiece slot, 3-drive table, 31-longitudinal guide rail, 32-transverse guide rail, 33-transmission seat, 331-lifting column, 332-air flow pipe, 333-suction head, 4-workpiece, 41-end piece.

Detailed ways

The present utility model will now be described in further detail in conjunction with the accompanying drawings and embodiments. These drawings are simplified schematic diagrams, and only illustrate the basic structure of the present utility model in a schematic way, so they only show the structures related to the present utility model.

As shown in FIG. 1 to FIG. 4 , this embodiment discloses a workpiece batch placement table, including a frame 1, a jig table 11 is arranged on the frame 1, a jig plate 21 is arranged on the jig table 11, The tool plate 21 is provided with a number of workpiece placement plates 22, the workpiece placement plate 22 is provided with a workpiece slot 223, and both sides of the fixture table 11 are screwed with positioning rods 13 for clamping on the fixture plate 21 and a support. Buffer limit block 12; the frame 1 is provided with a drive table 3 corresponding to the fixture table 11, and a number of suction heads 333 are driven at the bottom of the drive table 3.

Specifically, in a preferred embodiment of the present invention, two ends of the workpiece groove 223 are provided with clamping grooves 221 for embedding the workpiece 4 . The workpiece groove 223 is provided with bosses 222 for supporting the workpiece 4 , and each boss 222 corresponds to a suction head 333 .

Specifically, in a preferred embodiment of the present utility model, the drive table 3 is provided with a transverse guide rail 32 with a pushing cylinder, the transverse guide rail 32 is provided with a mounting seat installed on one end of the pushing cylinder, and the mounting seat is provided with a A longitudinal guide rail 31 with a lift cylinder is provided on the longitudinal guide rail 31 with a transfer seat 33 installed at one end of the lift cylinder, and a plurality of suction heads 333 that can be lifted and lowered are provided at the bottom of the transfer seat 33 . The suction head 333 is connected up and down with the transfer base 33 through the lift column 331 . The suction head 333 is connected with an air flow pipe 332 .

The principle of the present utility model is that, as shown in FIGS. 1 to 4 , the workpiece conveying plate clamps the workpiece 4 and transfers it to the top of the placing table 2 on the frame 11 , and the pushing cylinder action of the driving table 3 drives the conveying seat 33 along the lateral guide rail. 32 slides to the corresponding position, then lifts the cylinder to act, drives the transfer seat 33 to slide along the longitudinal guide rail 31 to a fixed position, and then the lifting column 331 set at the bottom of the transfer seat 33 drives the suction head 333 to move, and moves to the workpiece 4 through the suction head 333 At this point, the suction head 333 is attached to the corresponding workpiece 4, and the suction head 332 is sucked to generate a negative pressure in the airflow pipe 332, so that the suction head 333 adsorbs the corresponding workpiece 4 and moves the workpiece 4 to the position of the placing table 2. Above the workpiece groove 223, the lifting column 331 drives the suction head 333 to press against the end head 41, pushes the workpiece 4 to insert into the workpiece groove 223, and inserts both ends of the workpiece 4 into the clamping grooves 221 at both ends of the workpiece groove 223 until The suction head 333 presses the workpiece 4 into the workpiece groove 223 , and the end head 41 presses against the boss 222 . At the same time, the limit height reserved by the limit block 12 prevents the workpiece 4 and the jig board 21 on the jig plate 21 from being crushed when the transfer equipment in other processes transfers the workpiece 4 . After the workpiece 4 is placed in the workpiece slot 223 in place, the next step is performed.

Alternatively, the workpiece 4 is placed on each workpiece groove 223 of the placing table 2 , and the workpiece 4 is inserted into the clamping groove 221 of the workpiece groove 223 by pressing down the suction head 333 . Thereby, the embedded placement of the workpiece 4 is realized. The position of the workpiece 4 and the insertion operation are effectively defined, and then the next step is carried out.

Based on the ideal embodiment of the present invention, the above description can be used by relevant persons to make various changes and modifications without departing from the technical idea of the present invention. The technical scope of the present invention is not limited to the content in the description, and the technical scope must be determined according to the scope of the claims.

Claims (6)

1. The utility model provides a platform is placed in batches to work piece, includes frame (1), be provided with tool platform (11) in frame (1), be provided with tool board (21) on tool platform (11), be provided with a plurality of work piece on tool board (21) and place board (22), its characterized in that: a workpiece groove (223) is formed in the workpiece placing plate (22), and positioning rods (13) and a support buffer limiting block (12) are screwed on two sides of the jig table (11); the jig is characterized in that a driving table (3) corresponding to the jig table (11) is arranged on the rack (1), and a plurality of suction heads (333) are arranged at the bottom of the driving table (3) in a driving mode.

2. The batch of workpieces holding table of claim 1, wherein: and clamping grooves (221) used for embedding the workpieces (4) are formed in the two ends of the workpiece groove (223).

3. The batch of workpieces holding table of claim 2, wherein: bosses (222) for supporting the workpiece (4) are arranged on the workpiece groove (223), and each boss (222) is corresponding to the suction head (333).

4. The batch of workpieces holding table of claim 3, wherein: be provided with transverse guide (32) that have the propelling movement cylinder on drive platform (3), be provided with the mount pad of installing in the one end of propelling movement cylinder on transverse guide (32), be provided with longitudinal rail (31) that have the lift cylinder on the mount pad, be provided with on longitudinal rail (31) and install conveying seat (33) in lift cylinder one end, conveying seat (33) bottom is provided with a plurality of suction head (333) that can go up and down.

5. The batch of workpieces holding table of claim 4, wherein: the suction head (333) is connected with the conveying seat (33) in a lifting way through a lifting column (331).

6. The batch of workpieces holding table of claim 4, wherein: the suction head (333) is connected with an airflow pipe (332).
